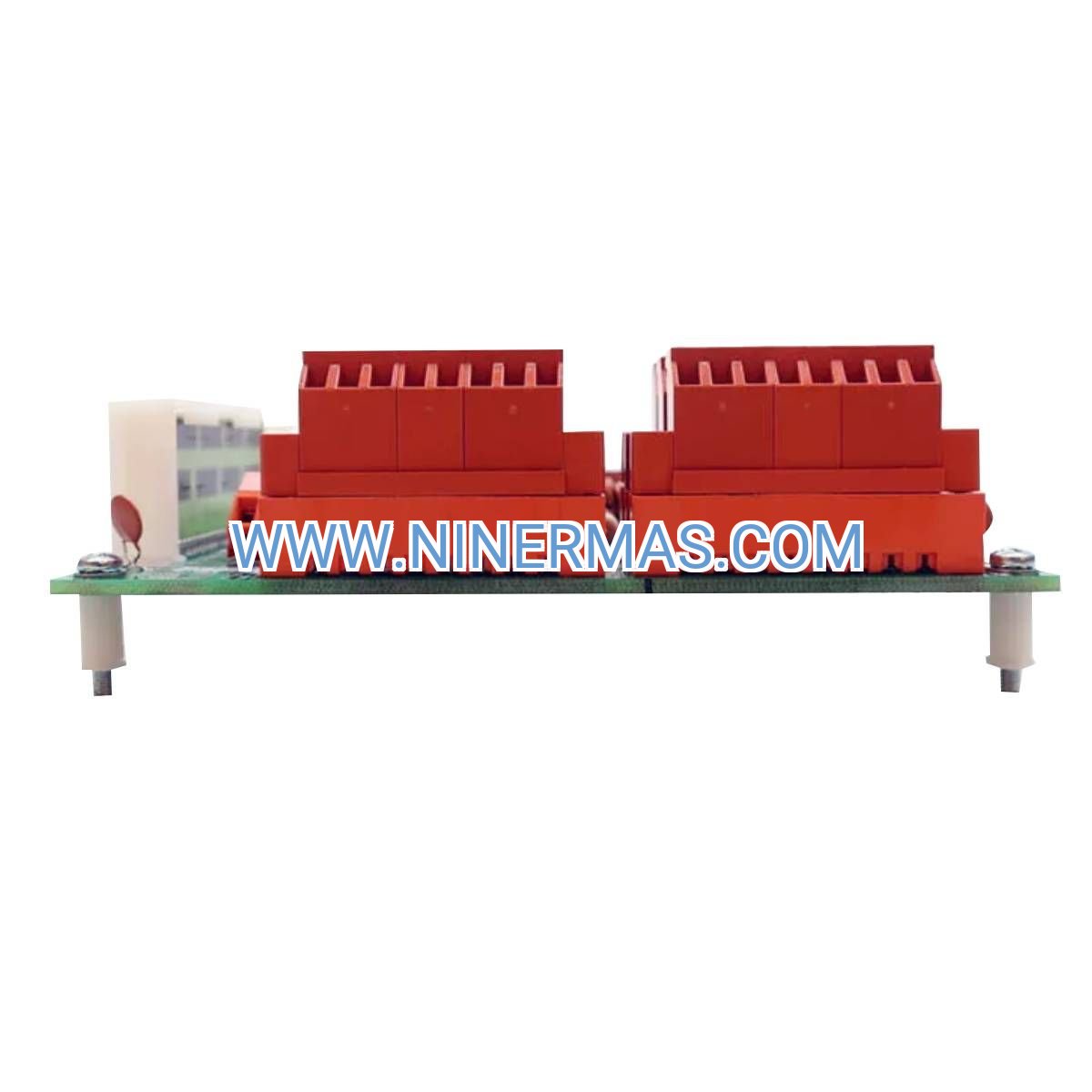

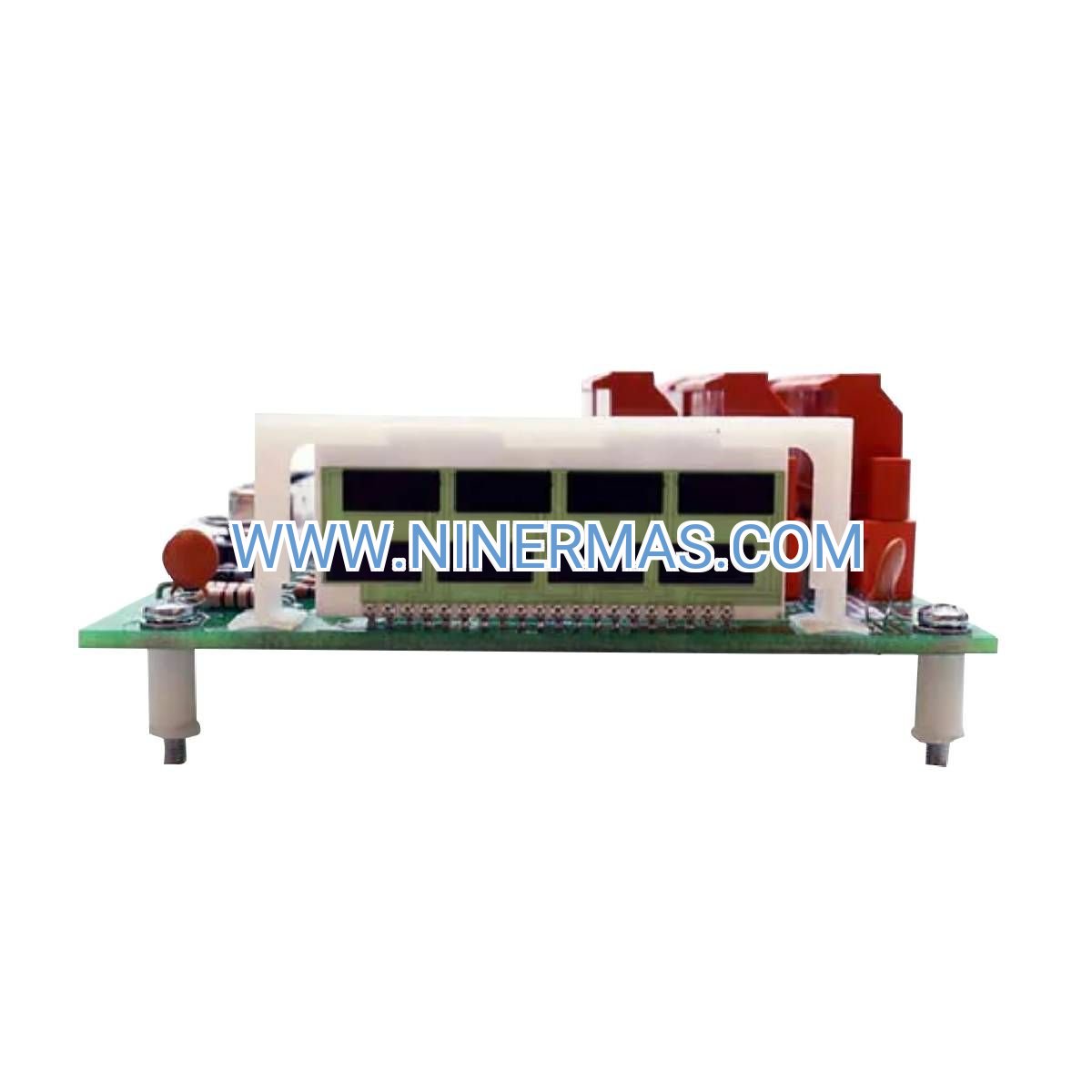

51304812-200 EPLCG I/O Adapter (Industrial-Grade Communication Gateway)

Engineered for mission-critical process automation, the 51304812-200 EPLCG I/O Adapter serves as the intelligent bridge between Honeywell TDC 3000 distributed control platforms and field instrumentation networks. This industrial-grade interface module translates controller commands into device-specific protocols while aggregating real-time sensor data with sub-100ms deterministic response times.

Designed for continuous operation in harsh industrial environments—from petrochemical refineries to pharmaceutical clean rooms—this adapter combines robust hardware architecture with advanced diagnostic capabilities. Plant engineers rely on the 51304812-200 to maintain uptime in applications where process interruptions translate directly to production losses and safety risks.

Whether you're upgrading legacy TDC infrastructure or expanding existing control networks, this genuine Honeywell OEM component delivers proven reliability backed by comprehensive technical support and global spare parts availability.

Core Capabilities & Business Value

→ Real-Time Process Data Integrity: EPLCG protocol ensures microsecond-level synchronization between controllers and field devices, eliminating data skew that compromises product quality in batch operations

→ Zero-Downtime Maintenance: Hot-swappable architecture allows module replacement during live operation—reduce annual maintenance windows by 40% compared to legacy systems requiring full shutdown

→ Environmental Hardening: Conformal-coated circuitry withstands -40°C to +85°C storage extremes, 95% humidity, and industrial vibration per IEC 61131-2 standards—proven in offshore platforms and desert installations

→ Intelligent Fault Detection: Onboard diagnostics monitor communication health, power rail integrity, and field device status with configurable alarm thresholds—average MTTR reduction of 60% through predictive maintenance alerts

→ Scalable I/O Architecture: Supports up to 256 process points per adapter when paired with TDC 3000 expansion racks—future-proof your control system as production capacity grows

✓ Regulatory Compliance Ready: CE, UL, and CSA certifications streamline validation for FDA 21 CFR Part 11, ATEX Zone 2, and SIL 2 safety applications

Industry Applications & Problem Resolution

Petrochemical Refining:
Challenge: Catalytic cracker units require precise temperature control across 50+ zones with ±0.5°C accuracy to optimize yield and prevent coking.
Solution: The 51304812-200 interfaces RTD sensors and control valves with 50ms scan cycles, enabling advanced cascade control strategies that improve light ends recovery by 2-3%.

Pharmaceutical Manufacturing:
Challenge: Bioreactor systems demand validated, auditable control with full electronic batch records for regulatory compliance.
Solution: Adapter's timestamped data logging and redundant communication paths support 21 CFR Part 11 requirements while maintaining sterile processing conditions through non-intrusive monitoring.

Power Generation:
Challenge: Combined-cycle plants need coordinated control of gas turbines, HRSGs, and steam turbines to maximize efficiency during load-following operation.
Solution: High-speed EPLCG protocol synchronizes combustion control, emissions monitoring, and turbine protection systems—achieve 58% combined efficiency with NOx below 9 ppm.

Pulp & Paper Production:
Challenge: Paper machine wet-end chemistry requires real-time pH, consistency, and retention aid dosing adjustments to prevent sheet breaks.
Solution: Adapter's deterministic I/O updates enable model-predictive control algorithms that reduce broke by 15% and improve first-pass quality.

Chemical Batch Processing:
Challenge: Multi-product reactors need flexible recipe management with ingredient traceability and deviation alarming.
Solution: Integration with TDC 3000 batch executive provides ISA-88 compliant sequencing with automatic material tracking and electronic signature capture.

Technical Parameters & Selection Criteria

Selection Guidance: Confirm your TDC 3000 system firmware revision supports EPLCG protocol before ordering. For systems running pre-R300 firmware, contact our technical team for upgrade path recommendations. When deploying in redundant configurations, order adapters in matched pairs with identical firmware revisions to ensure seamless failover.

Advanced Integration Features

Redundancy & High Availability: Deploy dual 51304812-200 adapters in hot-standby configuration for automatic failover within one scan cycle. Bumpless transfer maintains process control during module replacement or communication path failures—critical for SIL-rated safety systems.

Cybersecurity Hardening: Firmware-level authentication prevents unauthorized configuration changes. Supports encrypted communication tunnels when paired with TDC 3000 security modules—meet IEC 62443 industrial cybersecurity standards for critical infrastructure protection.

Predictive Diagnostics: Embedded health monitoring tracks communication error rates, power supply ripple, and thermal stress. Trend analysis algorithms predict module degradation 30-60 days before failure—schedule replacements during planned outages rather than emergency shutdowns.

Delivery Timeline & Support Services

Standard Delivery: In-stock units ship within 24 business hours via DHL Express or FedEx International Priority. Typical transit times: North America 3-5 days, Europe 4-6 days, Asia-Pacific 5-7 days. All shipments include full insurance and real-time tracking.

Custom Configuration: Pre-programmed modules with your specific I/O mapping and network parameters available with 5-7 business day lead time. Reduces commissioning time by 60% and eliminates configuration errors during startup.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Advance replacement program ships pre-configured spare within 48 hours for mission-critical applications—minimize unplanned downtime costs.

Technical Support: Lifetime access to certified Honeywell DCS specialists for integration assistance, troubleshooting, and optimization guidance. Includes configuration file review, network diagnostics, and performance tuning recommendations.

Documentation Package: Every module ships with installation manual, wiring diagrams, configuration templates, and compliance certificates. Digital library access provides firmware updates, application notes, and training videos.

Frequently Asked Questions

Can the 51304812-200 interface with third-party PLCs or SCADA systems?
The EPLCG protocol is proprietary to Honeywell TDC 3000 architecture. For multi-vendor integration, consider the TDC 3000 OPC server or Modbus gateway modules that translate between protocols while maintaining data integrity.

What is the maximum cable distance between the adapter and field devices?
EPLCG supports up to 1,200 meters (4,000 feet) using shielded twisted-pair cable with proper termination. For longer distances, deploy fiber optic media converters or install intermediate I/O racks closer to field instrumentation.

How does this adapter handle power supply fluctuations or brownout conditions?
Internal voltage regulation maintains operation from 18-32 VDC input with <5% ripple tolerance. For critical applications, pair with the 51196653-100 redundant power supply that provides automatic switchover during primary supply failures.

Is firmware upgradeable in the field, or does it require factory service?
Firmware updates are performed via TDC 3000 engineering workstation using standard download procedures. No physical module return required—complete updates in 10-15 minutes during scheduled maintenance windows with full rollback capability.

What diagnostic information is accessible during normal operation?
Real-time diagnostics include communication packet error rates, signal strength metrics, module temperature, power supply voltages, and field device health status. All parameters are accessible via TDC 3000 operator displays and can trigger configurable alarms or email notifications.

Does the adapter support legacy TDC 2000 systems after migration to TDC 3000?
Yes, when TDC 2000 systems are upgraded to TDC 3000 controllers, the 51304812-200 maintains backward compatibility with existing I/O racks and field wiring. Consult migration documentation for specific firmware compatibility matrices.

Order Your 51304812-200 EPLCG I/O Adapter Today

Ensure uninterrupted process control with genuine Honeywell components backed by expert technical support. Our global logistics network delivers to over 150 countries with full traceability and compliance documentation. Volume pricing available for system integrators, OEMs, and multi-site deployments.

Ready to upgrade your TDC 3000 infrastructure? Contact our automation specialists at sale@ninermas.com or call +0086 187 5021 5667 for application-specific recommendations, custom configuration services, and competitive project quotations.
