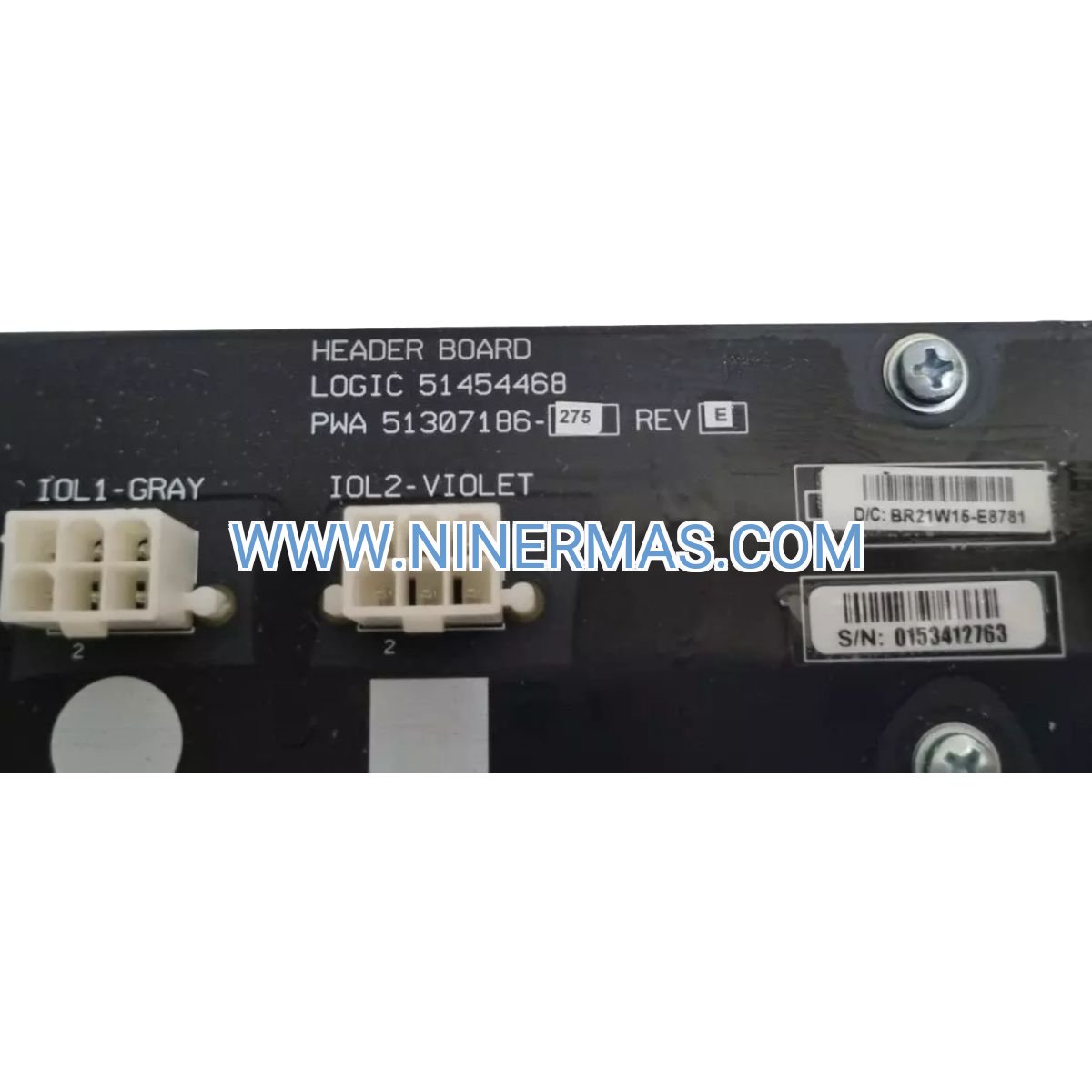

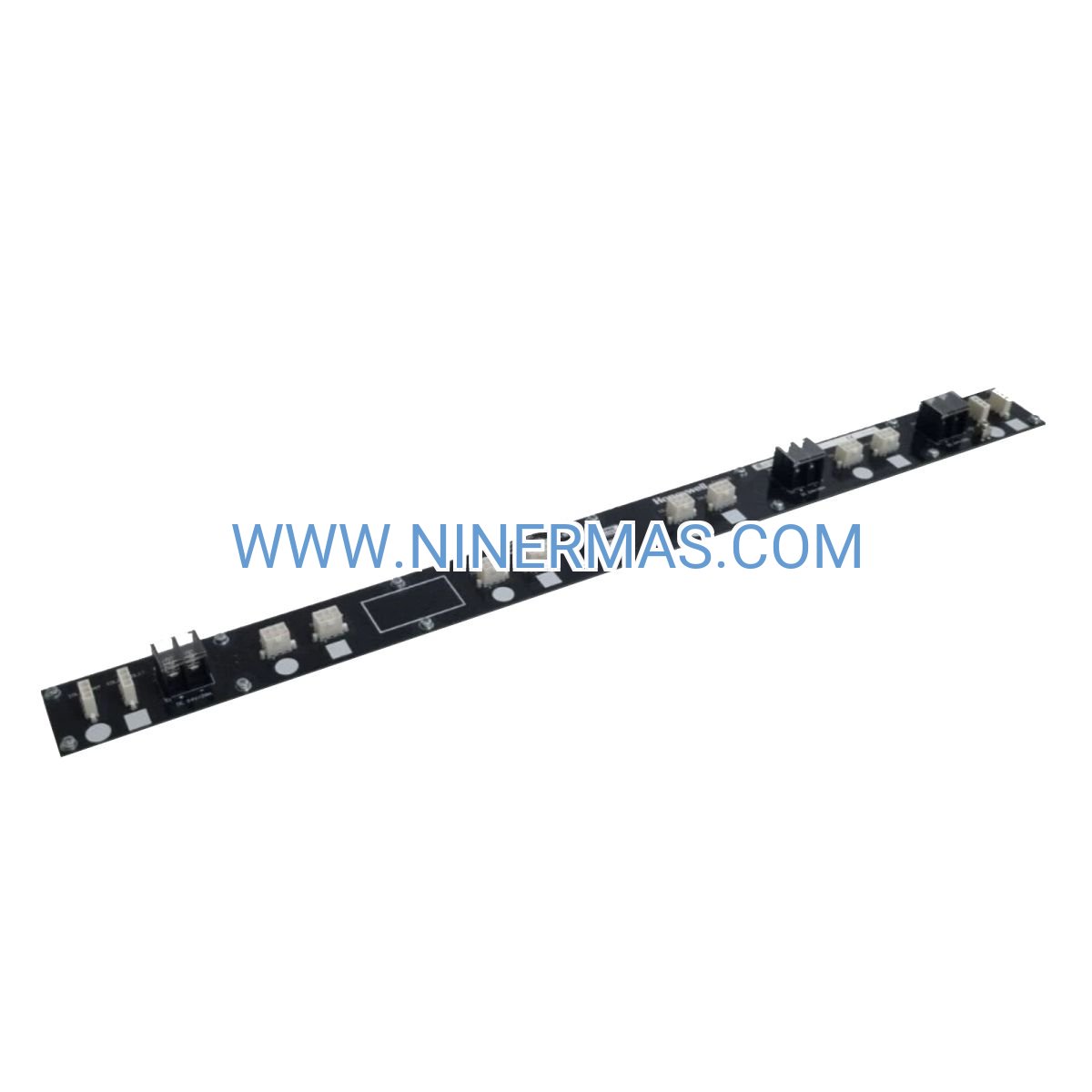

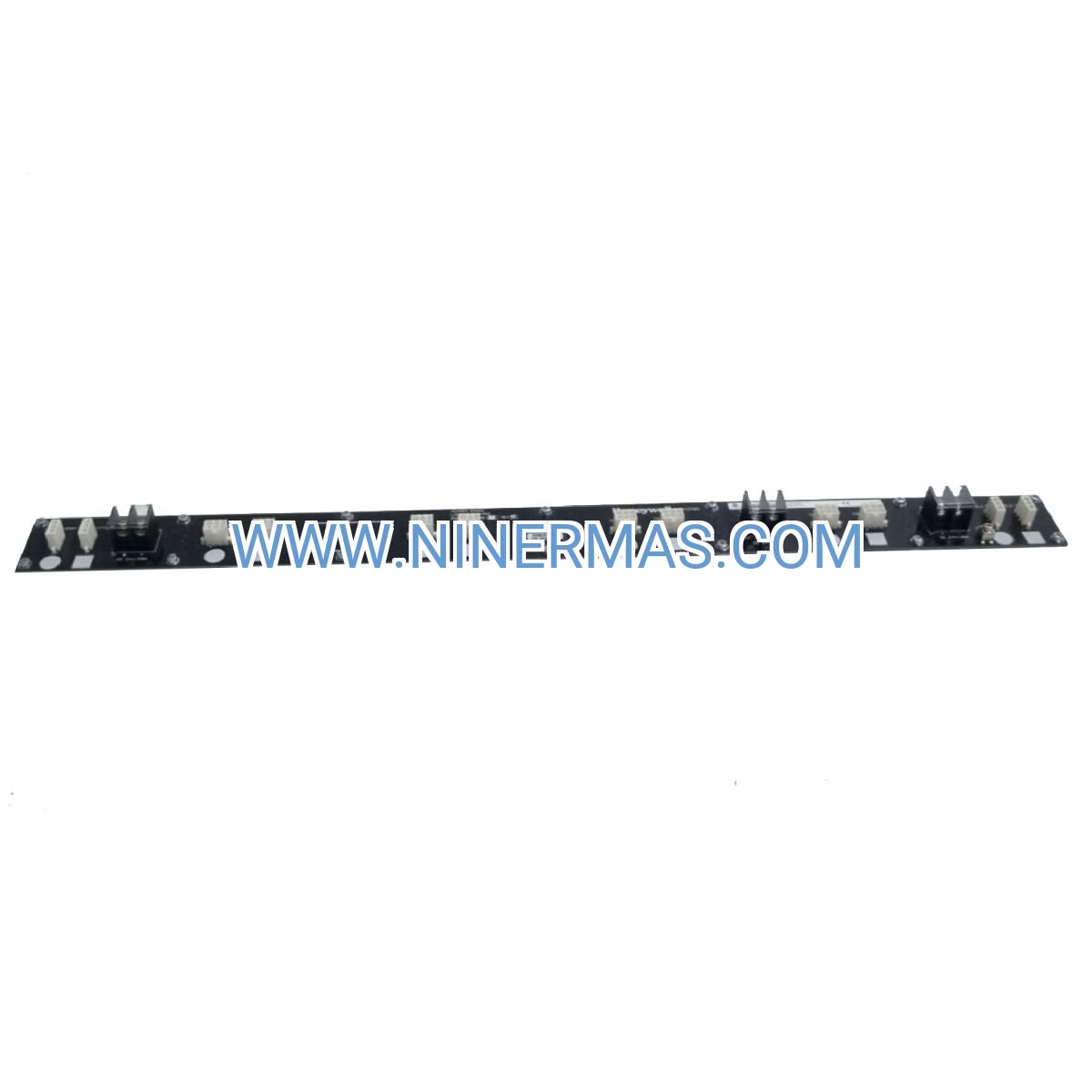

51307186-275 Rev.E Digital Output Module (Industrial-Grade Process Control)

The Honeywell 51307186-275 Rev.E represents a proven solution for supervised digital output control within Experion PKS distributed control architectures. This 32-channel module delivers field device actuation with comprehensive fault detection, enabling operators to maintain continuous process integrity across C200 and C300 controller platforms. Designed for hot-swap serviceability, the module minimizes downtime during maintenance cycles while providing channel-level diagnostics that accelerate troubleshooting in mission-critical environments.

Process engineers rely on this module to bridge controller logic with physical actuators—solenoid valves, motor contactors, alarm panels, and positioning drives—across refining, chemical synthesis, power generation, and pharmaceutical batch operations. Its supervised architecture detects wiring faults before they escalate into process deviations, reducing unplanned shutdowns and improving overall equipment effectiveness.

With field-proven reliability in hazardous area installations (ATEX Zone 2 certified) and seamless integration into existing Experion infrastructures, the 51307186-275 REVE accelerates commissioning timelines while delivering the diagnostic depth required for predictive maintenance strategies.

Core Capabilities & Business Value

→ 32 Supervised Output Channels
Each output point features independent supervision circuitry that detects short-circuit, open-circuit, and overload conditions in real time. This translates to faster fault isolation, reduced mean time to repair (MTTR), and lower risk of cascading failures in interconnected process loops.

✓ Hot-Swappable Architecture
Replace modules during live operation without halting production or entering bypass mode. This capability is critical for continuous process industries where scheduled downtime windows are measured in days, not hours—directly protecting revenue streams and contractual delivery commitments.

→ Channel-to-Channel Isolation
Electrical isolation between output points prevents cross-talk and ground loop interference, ensuring signal integrity in electrically noisy industrial environments. This design choice reduces nuisance trips and improves control loop stability, particularly in motor control and high-frequency switching applications.

✓ 24V DC Nominal Operation
Standardized voltage rating simplifies field wiring design and aligns with global industrial power distribution practices. Each channel supports up to 0.5A continuous current, accommodating a wide range of actuator types without external amplification.

→ Integrated Diagnostic Reporting
Per-channel status data streams directly to Experion operator stations, enabling condition-based maintenance workflows. Maintenance teams can prioritize interventions based on actual fault patterns rather than fixed schedules, optimizing labor allocation and spare parts inventory.

✓ Extended Temperature Range (0°C to 60°C)
Qualified for installation in non-climate-controlled equipment rooms and field enclosures, reducing infrastructure costs associated with HVAC systems while maintaining specification compliance across seasonal temperature swings.

Application Scenarios Across Industries

Oil & Gas Refining – Valve Manifold Control
In hydrocracker units and fluid catalytic cracking (FCC) systems, the module controls pneumatic valve manifolds that regulate catalyst flow and reactor pressure. Supervised outputs detect stuck valves or air supply failures before they trigger emergency shutdowns, preserving throughput during high-margin operating periods.

Chemical Processing – Batch Reactor Sequencing
Pharmaceutical and specialty chemical plants use the module to orchestrate multi-step batch sequences involving ingredient addition, agitation control, and temperature zone management. Fault diagnostics ensure recipe compliance by flagging actuator malfunctions that could compromise product quality or regulatory documentation.

Power Generation – Turbine Auxiliary Systems
Combined-cycle and coal-fired plants deploy the module for boiler feedwater pump control, fuel valve actuation, and emissions control damper positioning. The hot-swap capability allows technicians to service modules during load-following operations without forcing unit trips that cost thousands of dollars per hour in lost generation capacity.

Water Treatment – Clarifier & Filtration Control
Municipal water treatment facilities leverage the module to operate chemical dosing pumps, backwash valve sequences, and sludge removal systems. Open-circuit detection alerts operators to broken wiring in outdoor installations before treatment processes drift out of compliance with discharge permits.

Pulp & Paper – Digester & Bleaching Operations
Kraft pulping lines use the module to control chemical addition valves, steam injection systems, and washing stage actuators. The module's isolation design prevents electrical noise from variable-frequency drives (VFDs) from corrupting control signals, maintaining tight process tolerances required for consistent fiber quality.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose this module when your application requires supervised output control with diagnostic feedback. For unsupervised applications where cost optimization is prioritized over fault detection, consider standard relay output modules. Verify that your C200/C300 controller firmware supports Rev.E hardware—consult Experion release notes for compatibility matrices. When designing I/O layouts, allocate one spare slot per eight active modules to accommodate future expansion without chassis replacement.

Advanced Integration & IoT Connectivity

The 51307186-275 REVE integrates seamlessly with Experion's Unified Asset Management framework, enabling predictive analytics workflows that correlate output channel health metrics with process performance indicators. When paired with Honeywell's Forge industrial IoT platform, operators gain cloud-based dashboards that visualize actuator cycling patterns, identify premature wear trends, and recommend optimal replacement intervals based on actual duty cycles rather than conservative OEM estimates.

For brownfield modernization projects, the module coexists with legacy TDC 3000 systems via UCN/LCN bridge modules, allowing phased migration strategies that preserve existing field wiring investments. Custom function blocks enable advanced control schemes including split-range valve positioning, sequential interlocking, and time-proportional pulsing for thermal management applications.

Third-party SCADA integration is supported through OPC UA and Modbus TCP gateways, facilitating data exchange with enterprise MES/ERP systems for production tracking and regulatory compliance reporting. The module's diagnostic data streams can trigger automated work order generation in CMMS platforms, closing the loop between control system alarms and maintenance execution.

Delivery Timelines & Service Commitments

Standard Lead Time: In-stock units ship within 1-2 business days via express courier services (DHL, FedEx, UPS). Typical transit time to major industrial hubs: 3-5 business days for Asia-Pacific, 5-7 days for Europe/Middle East, 7-10 days for Americas.

Custom Configuration: Factory-programmed modules with pre-loaded configuration files available with 7-10 business day lead time. Ideal for large-scale deployments where commissioning speed is critical.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service—receive a replacement unit before returning the defective module to minimize downtime.

Technical Support: Unlimited access to application engineers for installation guidance, configuration troubleshooting, and integration planning. Support channels include email (response within 4 hours), phone hotline (business hours), and remote desktop assistance for complex diagnostic scenarios.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration templates for Control Builder, and safety data sheets. Digital downloads include 3D CAD models (STEP format) for panel layout design and spare parts cross-reference lists.

Frequently Asked Questions

Can this module control both AC and DC field devices simultaneously?
No, the 51307186-275 REVE is designed exclusively for 24V DC loads. For AC load control (120V/230V), use solid-state relay modules or electromechanical relay output modules rated for AC switching. Mixing AC and DC on the same module risks damage to supervision circuitry.

What is the maximum field wiring distance for reliable operation?
Recommended maximum cable run is 300 meters (984 feet) using 18 AWG shielded twisted-pair cable. For longer distances, install signal repeaters or use 4-20mA output modules with remote I/O racks positioned closer to field devices. Cable capacitance and resistance degrade supervision accuracy beyond 300m.

How does hot-swapping work without disrupting active control loops?
The module features keep-alive circuitry that maintains output states during extraction/insertion when the I/O bus remains powered. Proper procedure: place controller in manual mode, verify backup power supply status, extract module within 30-second window, insert replacement, return controller to auto mode. Always follow site-specific lockout/tagout protocols.

Is firmware upgrade required when replacing older revisions?
Rev.E modules are backward-compatible with C200/C300 controllers running Experion R410 or later. Controllers on R300-series firmware may require a patch—consult Honeywell Technical Support for compatibility verification. Configuration databases migrate automatically; no manual re-engineering needed.

What diagnostic data is available for predictive maintenance programs?
The module reports per-channel metrics including cumulative switching cycles, fault event timestamps, load current trends, and thermal status. Export this data via Experion's historian interface to CSV or OPC-compliant databases for analysis in tools like MATLAB, Python pandas, or commercial APM platforms.

Can I use this module in SIL-rated safety instrumented systems?
No, the 51307186-275 REVE is qualified for BPCS (basic process control) applications only. For SIL 2/3 safety functions, specify Honeywell's Safety Manager or FSC (Fail-Safe Controller) modules with TÜV certification. Mixing safety and non-safety I/O on the same chassis violates IEC 61511 segregation requirements.

Ready to Optimize Your Process Control Infrastructure?

Contact our automation specialists to discuss your specific application requirements, receive detailed technical drawings, or request a formal quotation. We support project engineers with I/O sizing calculations, panel layout reviews, and integration roadmaps for multi-phase modernization initiatives. Bulk pricing available for orders exceeding 10 units—ideal for plant-wide standardization programs.
