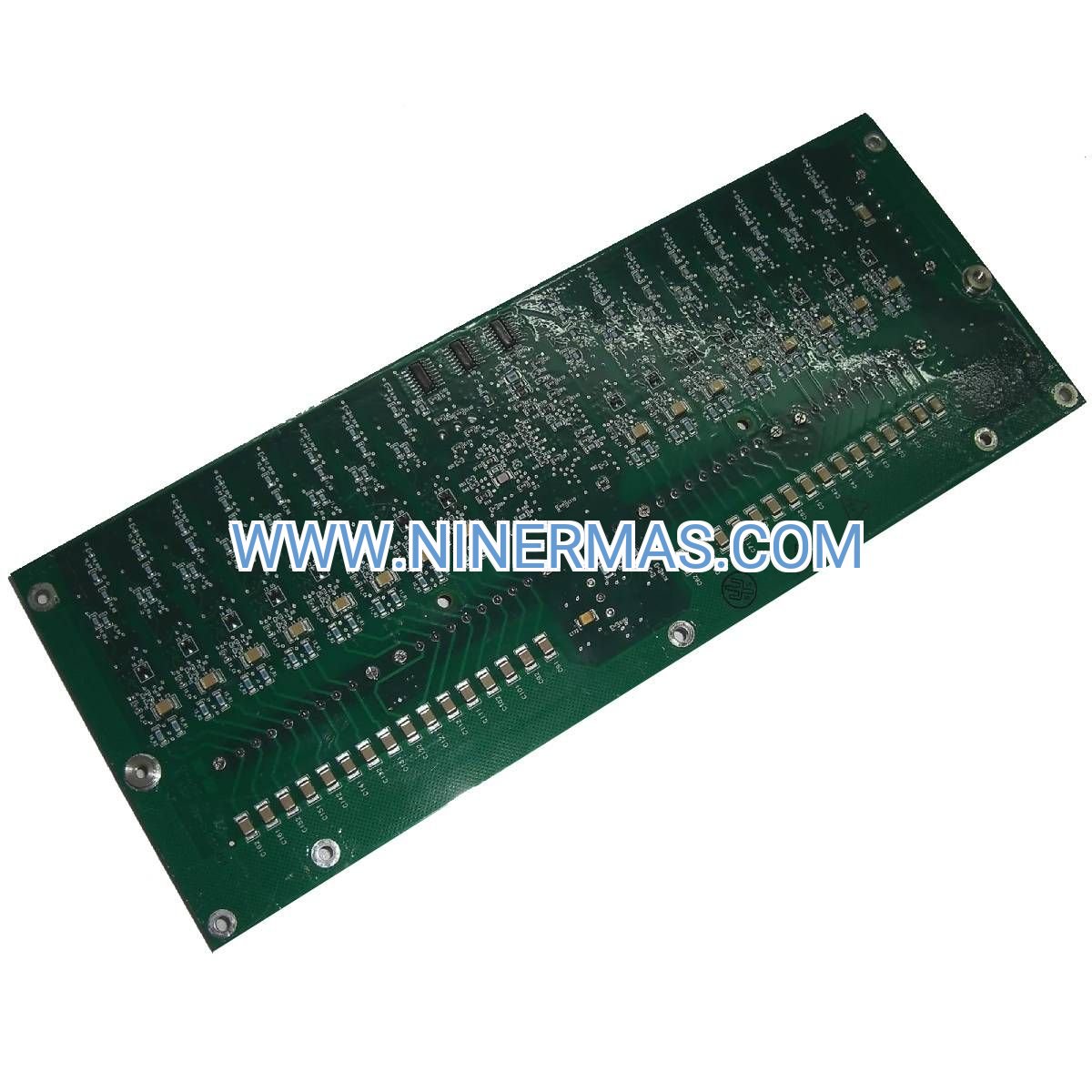

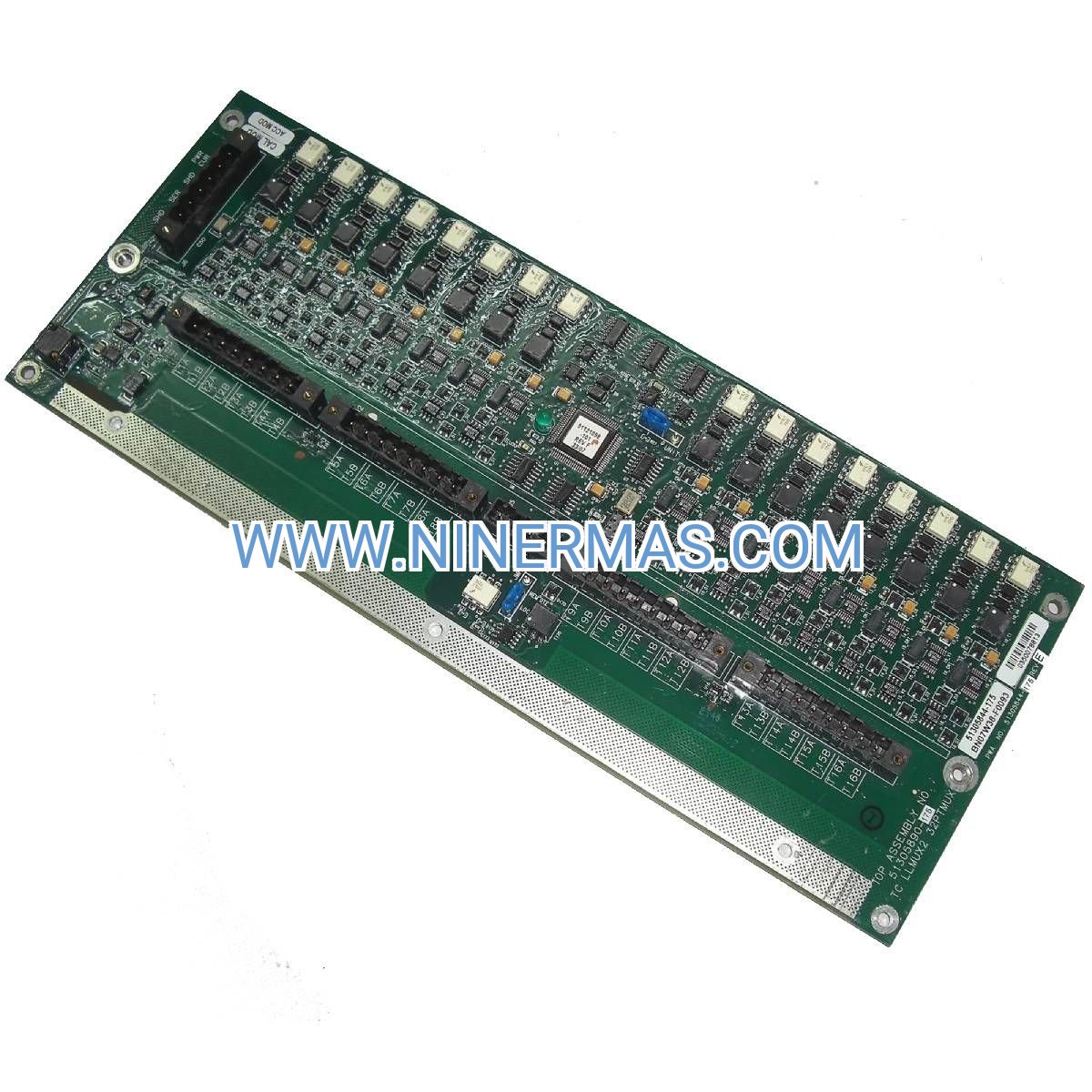

51305890-175 Industrial-Grade Thermocouple Multiplexer

The Honeywell 51305890-175 represents a proven solution for multi-point temperature acquisition in mission-critical distributed control environments. Engineered specifically for TDC 3000 and Experion PKS platforms, this 16-channel multiplexer module transforms complex thermocouple signal management into a streamlined, reliable operation.

Process engineers and automation specialists rely on this module to consolidate temperature measurement infrastructure while maintaining the signal integrity demanded by pharmaceutical validation, petrochemical safety systems, and power generation efficiency monitoring. Its factory-calibrated precision and diagnostic intelligence reduce commissioning time and operational risk.

Whether you're retrofitting legacy TDC 3000 installations or expanding Experion PKS capacity, the 51305890-175 delivers plug-and-play compatibility with comprehensive channel isolation and real-time health monitoring—critical capabilities for maintaining process uptime and regulatory compliance.

Core Features & Benefits

✓ 16 Independent Thermocouple Inputs
Consolidate multiple measurement points into a single module footprint, reducing panel space requirements by up to 60% compared to individual transmitter installations while simplifying wiring infrastructure.

✓ Universal TC Type Compatibility
Supports J, K, T, E, R, S, and B thermocouple types with software-selectable configuration—eliminating the need for multiple spare modules and reducing inventory carrying costs.

✓ Factory-Calibrated ±0.1% Accuracy
Ships with NIST-traceable calibration certificates, meeting pharmaceutical 21 CFR Part 11 and ISO 9001 quality requirements without field calibration delays.

✓ Comprehensive Signal Isolation
Channel-to-channel and channel-to-system galvanic isolation protects against ground loops and electrical noise in high-EMI industrial environments, ensuring measurement reliability.

✓ Integrated Cold Junction Compensation
Automatic CJC eliminates external reference junction requirements, reducing installation complexity and potential error sources in temperature measurement chains.

✓ Hot-Swap Capability
Replace modules during operation in redundant configurations without process interruption—critical for continuous manufacturing and 24/7 operations.

Application Scenarios

→ Refinery Distillation Control
Monitor column tray temperatures across 16 measurement points to optimize separation efficiency and product quality. The module's ±0.1% accuracy ensures precise control of critical temperature profiles, reducing off-spec production and energy waste.

→ Pharmaceutical Sterilization Validation
Track autoclave chamber temperatures with the accuracy and documentation required for FDA validation protocols. Built-in diagnostics provide audit-trail-ready open/short circuit detection for GMP compliance.

→ Power Plant Boiler Monitoring
Acquire superheater tube temperatures to prevent thermal stress failures and optimize steam conditions. Channel isolation protects against the electrical noise common in high-voltage generation environments.

→ Heat Treatment Process Control
Manage multi-zone furnace temperature profiles for metallurgical processes requiring tight uniformity specifications. Consolidating 16 zones into one module simplifies PLC integration and reduces commissioning time.

→ Chemical Reactor Safety Systems
Provide redundant temperature measurement for exothermic reaction monitoring and emergency shutdown logic. The module's diagnostic capabilities support SIL-rated safety instrumented systems.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose this module when consolidating 8-16 thermocouple measurement points within a 10-meter radius
• Verify your DCS supports low-level analog input modules (consult system I/O capacity documentation)
• For RTD applications, consider the 51305896-xxx series instead
• Confirm thermocouple wire gauge compatibility (module accepts 14-24 AWG terminations)

Extended Functions

Advanced Diagnostic Capabilities
Real-time channel health monitoring detects open circuits, short circuits, and out-of-range conditions with configurable alarm thresholds. Diagnostic data integrates seamlessly with Experion PKS alarm management and TDC 3000 historian systems for predictive maintenance strategies.

Redundancy Support
Deploy in redundant I/O configurations for high-availability applications. Automatic failover ensures continuous measurement during module replacement or failure scenarios—essential for safety instrumented systems and critical process control.

Customization Options
Factory configuration services available for pre-programmed channel assignments, custom calibration ranges, and application-specific firmware. Contact our engineering team for projects requiring specialized thermocouple linearization or non-standard signal conditioning.

Delivery & Service Assurance

Standard Delivery: In-stock units ship within 1-2 business days via express courier with full tracking. Typical transit time: 3-5 business days to major industrial centers worldwide.

Custom Configuration: Factory-programmed modules ship within 7-10 business days. Expedited processing available for critical outage situations.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for long-term projects.

Technical Support: Unlimited access to our application engineering team for installation guidance, troubleshooting, and system integration consultation. Phone, email, and remote diagnostic support included.

Documentation Package: Each module ships with installation manual, wiring diagrams, calibration certificates, and configuration quick-start guide. CAD drawings and 3D models available for download.

Frequently Asked Questions

Q: How do I configure different thermocouple types on individual channels?
A: Channel configuration is performed through the TDC 3000 or Experion engineering station software. Each of the 16 channels can be independently assigned to any supported thermocouple type (J, K, T, E, R, S, B) without hardware changes or jumper settings.

Q: What is the maximum thermocouple wire length this module supports?
A: The module reliably processes thermocouple signals with wire runs up to 100 meters (330 feet) when using twisted-pair thermocouple extension wire with proper shielding. For longer distances, consider installing signal conditioners or using RTD sensors instead.

Q: Can this module replace legacy TDC 2000 analog input cards?
A: No, the 51305890-175 is designed specifically for TDC 3000 and Experion PKS architectures. For TDC 2000 system upgrades, contact our migration specialists to identify compatible replacement modules or system upgrade paths.

Q: Does the module require external power supplies or signal conditioners?
A: The module draws power directly from the TDC 3000/Experion I/O chassis backplane—no external power supply needed. Cold junction compensation and signal conditioning are integrated, eliminating the need for external transmitters or isolators.

Q: How does the module perform in high-vibration environments?
A: The module meets IEC 60068-2-6 vibration specifications (10-150 Hz, 1g) suitable for most industrial installations. For severe vibration applications (compressor skids, offshore platforms), consider shock-mount panel installations or consult our application engineers.

Q: What preventive maintenance does this module require?
A: The module is solid-state with no moving parts or consumables. Recommended maintenance includes annual terminal tightness inspection and verification of diagnostic alarm functionality. Recalibration intervals depend on your quality system requirements—typically 2-5 years for non-critical applications.
