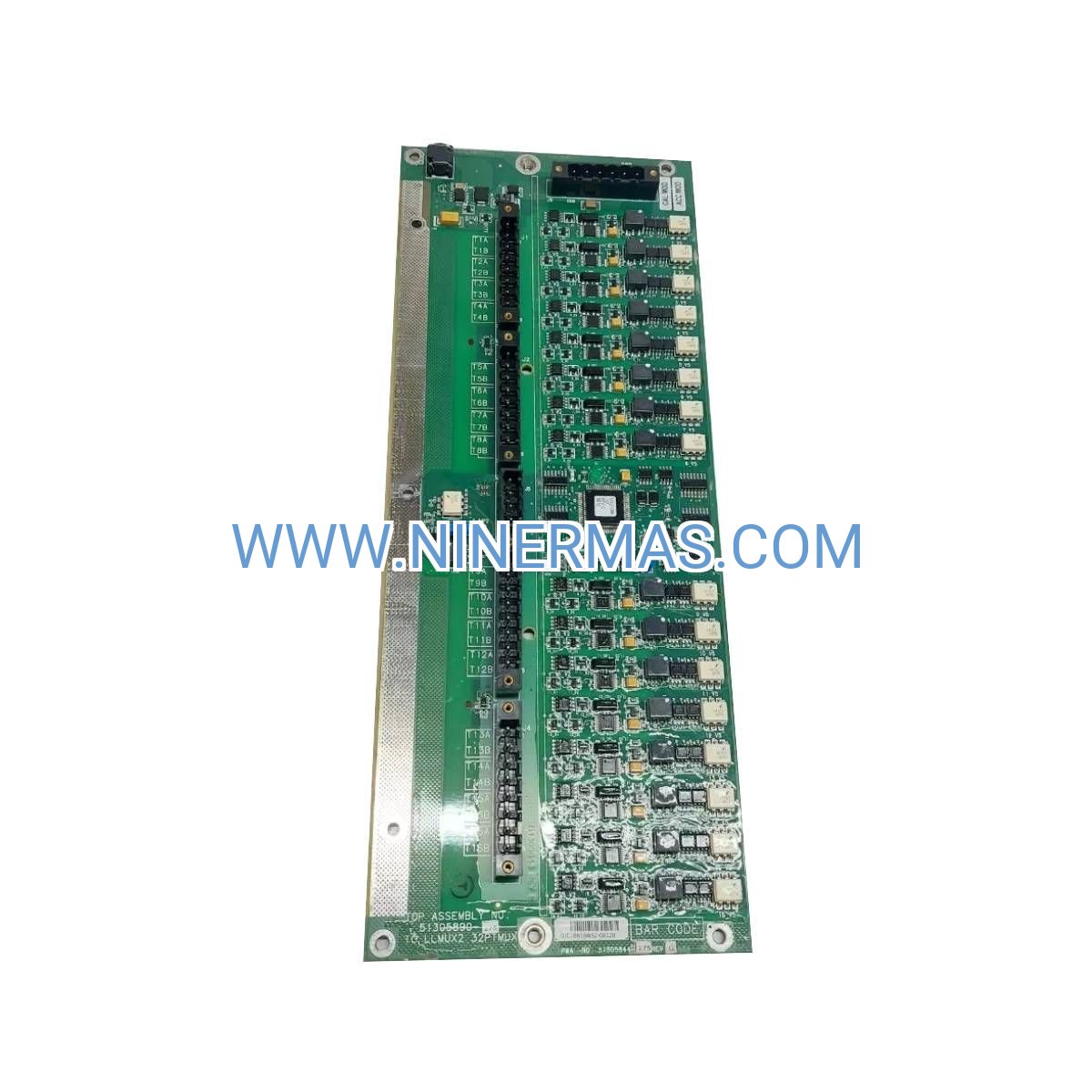

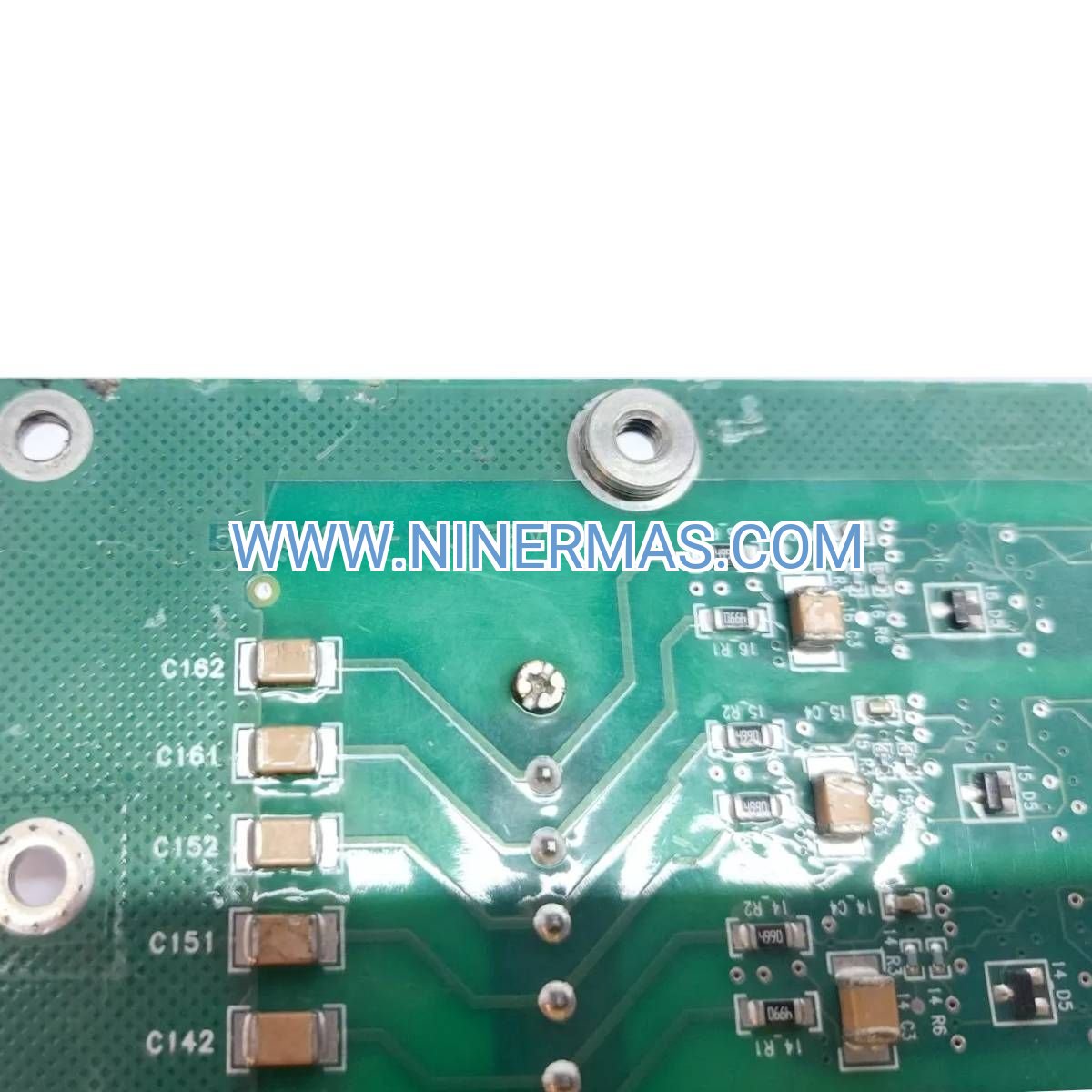

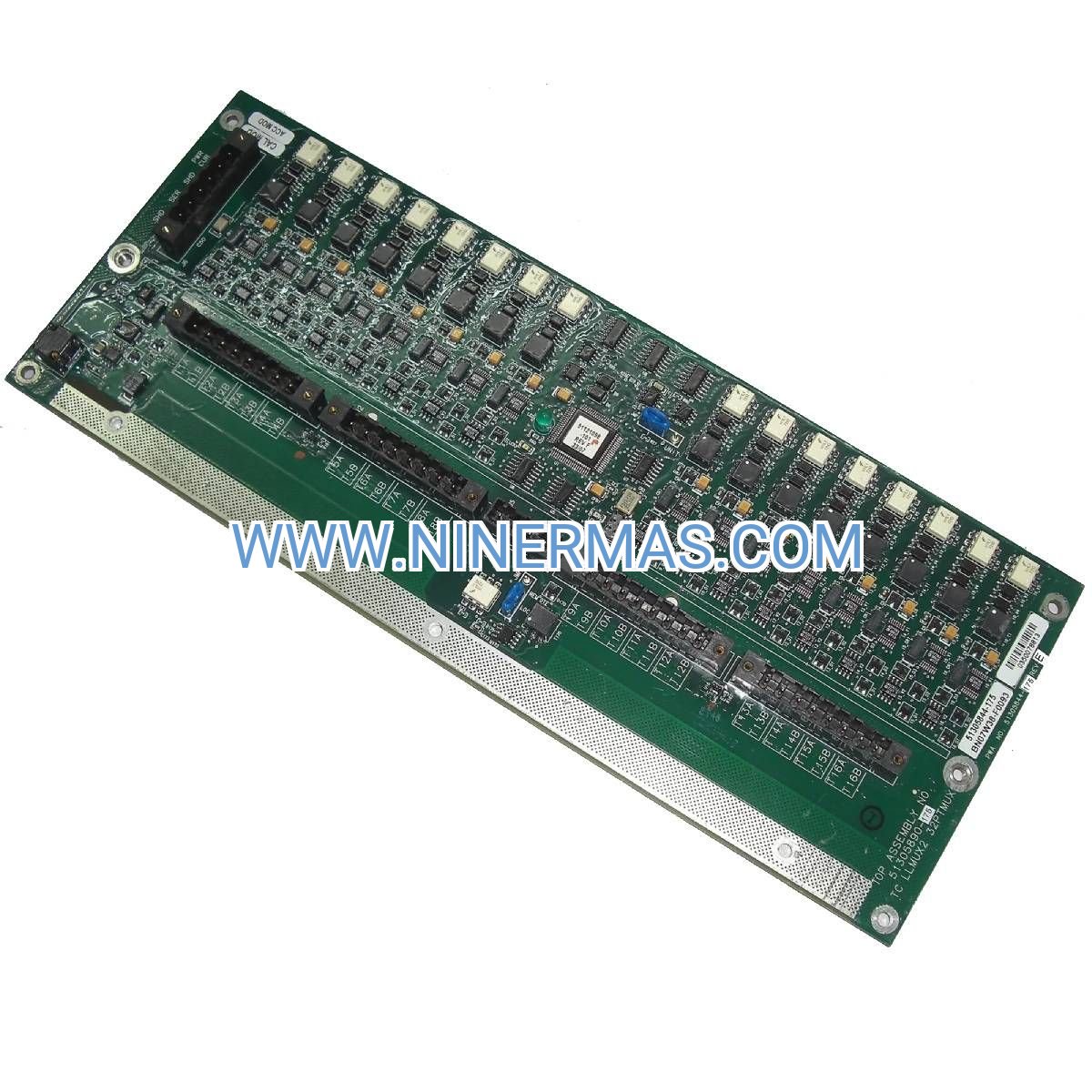

MC-TAMT03 Multiplexer (Industrial-Grade Temperature Signal Processor)

The MC-TAMT03 51305844-175 represents Honeywell's advanced solution for multi-point temperature acquisition in mission-critical process control environments. Engineered for TDC 3000 and Experion PKS distributed control architectures, this 16-channel multiplexer transforms raw thermocouple and RTD signals into high-precision digital data streams that drive intelligent process decisions.

Process industries demand unwavering accuracy when monitoring reactor temperatures, distillation profiles, and thermal gradients across complex manufacturing operations. This multiplexer addresses those challenges through 16-bit resolution, differential input architecture, and industrial-hardened construction that withstands electromagnetic interference, temperature extremes, and vibration common in refinery and chemical plant environments.

Whether you're upgrading legacy TDC 3000 installations or building new Experion PKS systems, the MC-TAMT03 delivers the measurement integrity and system compatibility that keeps critical processes running within specification. Hot-swappable design minimizes maintenance windows while universal sensor support eliminates the need for multiple input card types.

Core Capabilities & Business Value

→ 16 Differential Analog Channels
Monitor up to 16 independent temperature points from a single module, reducing rack space requirements by 60% compared to single-channel solutions while lowering installation costs and simplifying wiring infrastructure.

→ Universal Sensor Compatibility
Accepts J, K, T, E, R, S, B, N thermocouples plus 100Ω/1000Ω RTDs and millivolt signals without external signal conditioning, eliminating costly interface modules and reducing spare parts inventory by supporting diverse sensor types through one platform.

→ 16-Bit A/D Conversion Precision
Delivers ±0.1% of span accuracy across the full measurement range, ensuring regulatory compliance in pharmaceutical batch processes, maintaining product quality in chemical synthesis, and preventing costly off-spec production in refineries.

→ Hot-Swappable Architecture
Replace failed modules during operation without process shutdown or controller reboot, reducing unplanned downtime costs by thousands of dollars per incident and enabling predictive maintenance strategies that extend mean time between failures.

→ EMI/RFI Hardened Construction
Military-grade shielding and filtering reject electrical noise from VFDs, welders, and high-voltage switchgear, preventing false alarms and measurement drift that compromise process stability in electrically harsh industrial environments.

✓ Dual-Platform Integration
Seamless operation with both TDC 3000 legacy systems and modern Experion PKS platforms protects capital investments during phased migration projects, allowing gradual system upgrades without forklift replacements that disrupt production schedules.

Industry Applications & Problem Resolution

Petrochemical Refining
Crude distillation units require precise temperature profiling across 40+ tray locations to optimize cut points and maximize valuable product yields. The MC-TAMT03's multi-channel architecture consolidates these measurements while maintaining the ±0.5°C accuracy needed to prevent product giveaway worth thousands per day.

Chemical Manufacturing
Exothermic batch reactors demand real-time thermal monitoring to prevent runaway reactions. Sixteen independent channels track reactor jacket temperatures, internal zones, and condenser performance, providing the data density required for advanced control algorithms that maintain safe operating envelopes.

Power Generation
Boiler efficiency optimization depends on accurate flue gas temperature mapping across economizer, superheater, and reheater sections. This multiplexer's thermocouple compatibility and high channel count enable comprehensive thermal profiling that identifies fouling, improves combustion efficiency, and reduces fuel costs by 2-3%.

Pharmaceutical Production
FDA-validated sterilization cycles require NIST-traceable temperature documentation at multiple chamber locations. The MC-TAMT03 provides the measurement accuracy and data integrity needed for 21 CFR Part 11 compliance while supporting validation protocols that satisfy regulatory audits.

Food & Beverage Processing
Pasteurization and fermentation processes balance product safety against quality degradation through precise thermal control. Multi-point monitoring detects temperature stratification in large vessels, ensuring uniform treatment that meets HACCP requirements while preserving flavor profiles and nutritional content.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the MC-TAMT03 when you need high-density temperature measurement with mixed sensor types. For applications requiring faster scan rates (>10 Hz), consider dedicated high-speed analog input modules. If measuring only 4-8 points, evaluate whether single-width modules offer better rack utilization. Ensure your FTA power supply provides adequate capacity for the 5W per module load.

Advanced Integration Features

Distributed I/O Flexibility
The MC-TAMT03 operates in both local and remote I/O configurations, supporting fiber-optic links up to 2 km for distributed process units. This enables centralized control rooms while positioning I/O close to field sensors, reducing wiring costs and improving signal integrity in large facilities.

Redundancy Support
When configured in redundant FTA architectures, the module provides automatic failover capabilities that maintain process visibility during controller or network failures. Bumpless transfer ensures continuous data acquisition without measurement gaps that could compromise batch records or regulatory compliance.

Diagnostic Intelligence
Built-in self-diagnostics continuously monitor A/D converter performance, reference voltage stability, and sensor health. Open thermocouple detection, out-of-range alarms, and module fault reporting enable predictive maintenance strategies that prevent unexpected failures during critical production runs.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking. Expedited same-day shipping available for emergency replacements when ordered before 2 PM CST.

Custom Configuration: Factory-programmed modules with pre-loaded channel assignments and scaling parameters ship within 7-10 business days, reducing commissioning time and eliminating configuration errors.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Extended 36-month service contracts available for critical applications requiring guaranteed uptime.

Technical Support: Unlimited phone and email support from Honeywell-certified engineers with TDC 3000 and Experion PKS expertise. Remote diagnostics and configuration assistance included at no additional charge.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration worksheets, and NIST-traceable calibration certificates suitable for FDA and ISO audit requirements.

Common Implementation Questions

Can this multiplexer interface with third-party DCS platforms beyond Honeywell systems?
The MC-TAMT03 is specifically engineered for TDC 3000 and Experion PKS architectures using proprietary FTA backplane communication protocols. For non-Honeywell systems, consider universal analog input modules with industry-standard interfaces like Modbus or HART.

What's the maximum thermocouple extension wire length before signal degradation occurs?
With proper thermocouple-grade extension wire and shielded installation practices, you can reliably run 300 meters (1000 feet) for base metal thermocouples (J, K, T) and 150 meters for noble metal types (R, S, B). Beyond these distances, consider transmitter-based solutions to maintain accuracy.

Does the module support cold junction compensation for thermocouple measurements?
Yes, integrated electronic cold junction compensation is provided for all thermocouple input types with ±0.5°C reference accuracy. The compensation circuitry automatically adjusts for ambient temperature variations within the FTA rack environment, eliminating external ice-point references.

How do I migrate existing TDC 3000 configurations to Experion PKS while reusing this hardware?
The MC-TAMT03 hardware is fully compatible with both platforms. Use Honeywell's Control Builder software to import TDC 3000 database configurations, then map the existing I/O addresses to Experion PKS controller instances. The physical module remains in place without rewiring.

What's the recommended calibration interval for maintaining measurement accuracy?
Honeywell specifies annual calibration verification for critical applications, though the module typically maintains specification for 24-36 months in controlled environments. Industries with regulatory requirements (pharma, aerospace) should follow their validation protocols, which often mandate 6-12 month intervals.

Can I mix thermocouple types across the 16 channels on a single module?
Absolutely. Each channel is independently configurable through software, allowing simultaneous use of different thermocouple types, RTDs, and millivolt signals on the same module. This flexibility reduces spare parts inventory and simplifies system design for multi-zone applications.

Ready to Enhance Your Temperature Measurement System?

Contact our industrial automation specialists for application-specific guidance on integrating the MC-TAMT03 into your TDC 3000 or Experion PKS architecture. We provide complimentary system design reviews, wiring diagrams, and configuration templates that accelerate project timelines and ensure first-time-right installations.
