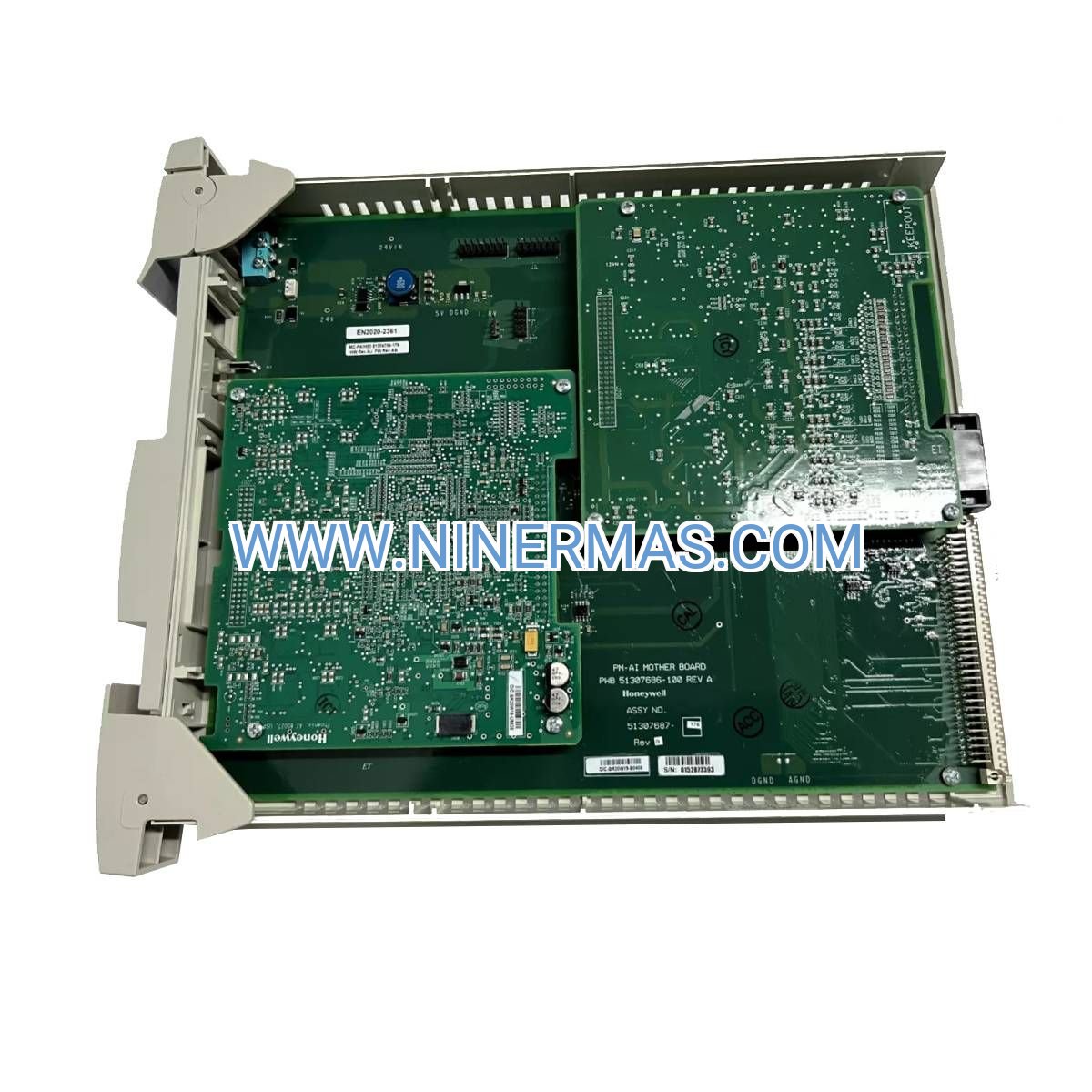

MC-PAIH03 51304754-176 High-Level Analog Input Module (Industrial-Grade Signal Processor)

The MC-PAIH03 51304754-176 delivers enterprise-class analog signal acquisition for Honeywell distributed control architectures. Engineered for TotalPlant Solution and Process Manager environments, this 16-channel processor transforms field transmitter signals into actionable process data with exceptional precision and reliability.

Industrial facilities demand robust I/O solutions that maintain accuracy under harsh conditions while integrating seamlessly with existing automation infrastructure. This high-level analog input module addresses critical challenges in process measurement—signal noise immunity, multi-channel isolation, and real-time data integrity—enabling operators to make confident decisions based on trusted sensor readings.

Whether you're modernizing legacy TDC 3000 installations or building new Process Manager systems, the MC-PAIH03 provides the foundation for reliable process monitoring. Its proven architecture supports both voltage and current inputs across all channels, eliminating the complexity of mixed-signal conditioning while delivering consistent 12-bit resolution throughout your measurement infrastructure.

Core Features & Benefits

→ Dual-Mode Signal Flexibility
Each of the 16 independent channels accepts either 0-10V DC voltage or 4-20mA current inputs through software configuration. This versatility eliminates the need for multiple module types, reducing spare parts inventory and simplifying system design for mixed-sensor environments.

→ Superior Measurement Accuracy
12-bit analog-to-digital conversion combined with ±0.1% full-scale accuracy ensures precise representation of process variables. High input impedance (>10 MΩ for voltage, 250Ω for current) minimizes loading effects on transmitter circuits, preserving signal integrity from field to control room.

→ Comprehensive Electrical Isolation
Channel-to-channel and channel-to-bus isolation protects against ground loops and electrical interference common in industrial installations. This isolation architecture prevents fault propagation, ensuring a single channel failure doesn't compromise the entire module's operation.

→ Rapid System Response
100ms scan cycle across all 16 channels provides responsive data acquisition suitable for dynamic process control applications. Fast update rates enable tight regulatory control and quick detection of process upsets or equipment malfunctions.

→ Built-In Diagnostic Intelligence
Advanced fault detection identifies open circuits, out-of-range conditions, and module health issues automatically. Diagnostic data integrates directly into DCS alarm management systems, reducing troubleshooting time and improving overall system availability.

→ Proven Platform Compatibility
Full backward compatibility with TDC 3000 legacy systems while supporting modern TotalPlant Solution and Process Manager platforms. This dual-generation support protects automation investments during phased migration projects.

Application Scenarios

Refinery Process Units
Acquire critical parameters from pressure transmitters, flow meters, and temperature sensors across crude distillation, catalytic cracking, and hydrotreating units. The module's noise immunity and accuracy maintain measurement integrity despite electromagnetic interference from large motors and variable frequency drives. Operators gain reliable visibility into column pressures, reactor temperatures, and product flow rates essential for safe, efficient operations.

Chemical Batch Manufacturing
Interface with analytical instruments, pH sensors, and level transmitters in batch reactor systems. Precise measurement of reagent addition rates, reaction temperatures, and product concentrations ensures batch consistency and quality compliance. The module's fast scan rate captures rapid process changes during exothermic reactions or phase transitions.

Power Plant Auxiliary Systems
Monitor boiler feedwater chemistry, cooling tower performance, and emissions control equipment. Accurate acquisition of conductivity, dissolved oxygen, and opacity measurements supports environmental compliance while optimizing auxiliary power consumption. Integration with existing Honeywell DCS infrastructure eliminates protocol conversion complexity.

Pharmaceutical Clean Utilities
Process signals from purified water systems, clean steam generators, and HVAC environmental controls. The module's diagnostic capabilities detect sensor drift or calibration issues before they impact product quality, supporting FDA validation requirements for critical utility systems.

Food & Beverage Processing
Capture pasteurization temperatures, CIP system parameters, and packaging line sensors. Multi-channel isolation prevents cross-contamination of measurement signals in systems with multiple ground references, while the wide operating temperature range accommodates both refrigerated and cooking environments.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the MC-PAIH03 when your application requires direct connection to industrial transmitters outputting standard voltage or current signals. For thermocouple or RTD inputs, consider the MC-TAIH12 analog input FTA instead. If your system demands higher channel density, evaluate multi-module configurations with appropriate I/O link infrastructure.

Verify that your DCS platform supports the UCN/LCN communication protocol used by this module. For Experion PKS systems, alternative C300 controller I/O modules may provide better integration. Consult your system architecture documentation or contact our technical team for compatibility confirmation.

Extended Functions

Advanced Diagnostics & Predictive Maintenance
Beyond basic fault detection, the module tracks signal quality metrics over time. Trending of input noise levels and drift patterns enables predictive maintenance strategies, identifying failing transmitters before they cause process upsets or safety incidents.

Flexible Configuration Management
Channel parameters—including signal type, engineering units, alarm limits, and filtering—are configured through the DCS engineering station. Configuration databases can be backed up and restored, simplifying module replacement and reducing commissioning time during maintenance activities.

Scalable I/O Architecture
Multiple MC-PAIH03 modules can be deployed within a single FTA chassis, providing up to 128 analog inputs per I/O link. This scalability supports large process units while maintaining centralized wiring and simplified troubleshooting access.

Integration with Asset Management Systems
Diagnostic data from the module can be exported to Honeywell Uniformance or third-party asset management platforms. This integration enables enterprise-wide visibility into I/O system health and supports data-driven maintenance optimization programs.

Delivery & Service Assurance

Lead Time: Standard inventory items ship within 2-3 business days. For quantity orders exceeding 10 units or custom-configured modules, allow 4-6 weeks for factory fulfillment. Expedited shipping options available for critical outage support.

Warranty Coverage: 12-month comprehensive warranty from date of shipment covers manufacturing defects and component failures under normal operating conditions. Warranty includes advance replacement service to minimize downtime during failure events.

Technical Support: Our automation specialists provide pre-sales application engineering, configuration assistance, and post-installation troubleshooting support. Access to Honeywell technical documentation, wiring diagrams, and configuration examples included with purchase.

Documentation Package: Each module ships with installation instructions, safety certifications, and calibration certificates. Complete technical manuals, CAD drawings, and spare parts lists available for download from our technical library.

Return & Exchange Policy: Unused modules in original packaging may be returned within 30 days for full refund or exchange. Installed modules with defects covered under warranty receive priority advance replacement to maintain system uptime.

Frequently Asked Questions

Can this analog input module interface with HART-enabled transmitters?
Yes, the MC-PAIH03 processes the 4-20mA analog signal from HART transmitters without issue. However, it does not decode the digital HART communication protocol. For HART data access, consider adding a HART multiplexer or upgrading to Experion PKS with native HART I/O capabilities.

What is the maximum cable distance between field transmitters and this input module?
For current loop inputs (4-20mA), cable runs up to 1000 meters are typically acceptable with standard instrumentation cable. Voltage inputs (0-10V DC) should be limited to 100 meters to minimize noise pickup and voltage drop. Shielded twisted-pair cable is recommended for both signal types in electrically noisy environments.

How does channel isolation protect my control system during field wiring faults?
Each input channel features galvanic isolation rated to 1500V AC. If a field transmitter experiences a ground fault or voltage surge, the isolation barrier prevents damage from propagating to the backplane bus or other channels. This protection is critical in systems with multiple ground references or exposure to lightning-induced transients.

Is hot-swapping supported for module replacement during operation?
The MC-PAIH03 does not support true hot-swap capability. Module replacement requires de-energizing the FTA chassis or following specific lockout/tagout procedures. For applications requiring online module replacement, consider redundant I/O configurations with automatic failover capabilities.

What calibration procedures are required for maintaining measurement accuracy?
The module ships factory-calibrated and typically maintains specification accuracy throughout its service life. Annual verification using a precision calibrator is recommended for critical measurement loops. Recalibration services are available through authorized Honeywell service centers if drift is detected during verification testing.

Can I mix this module with other I/O types in the same FTA chassis?
Absolutely. The MC-PAIH03 is designed for mixed I/O configurations within standard TDC 3000 FTA chassis. Combine with digital input modules, analog output modules, and specialty I/O cards as needed for your application. Ensure total chassis power consumption remains within backplane supply limits.

Start Your System Upgrade Today

Ready to enhance your process measurement infrastructure with proven Honeywell technology? Our technical team is standing by to assist with module selection, system integration planning, and configuration support. Contact us for application-specific recommendations, quantity pricing, or expedited delivery options for your critical automation projects.

Request a detailed quotation, technical datasheet, or compatibility assessment by reaching out through the channels below. We maintain extensive inventory of genuine Honeywell automation components to support your operational excellence goals.
