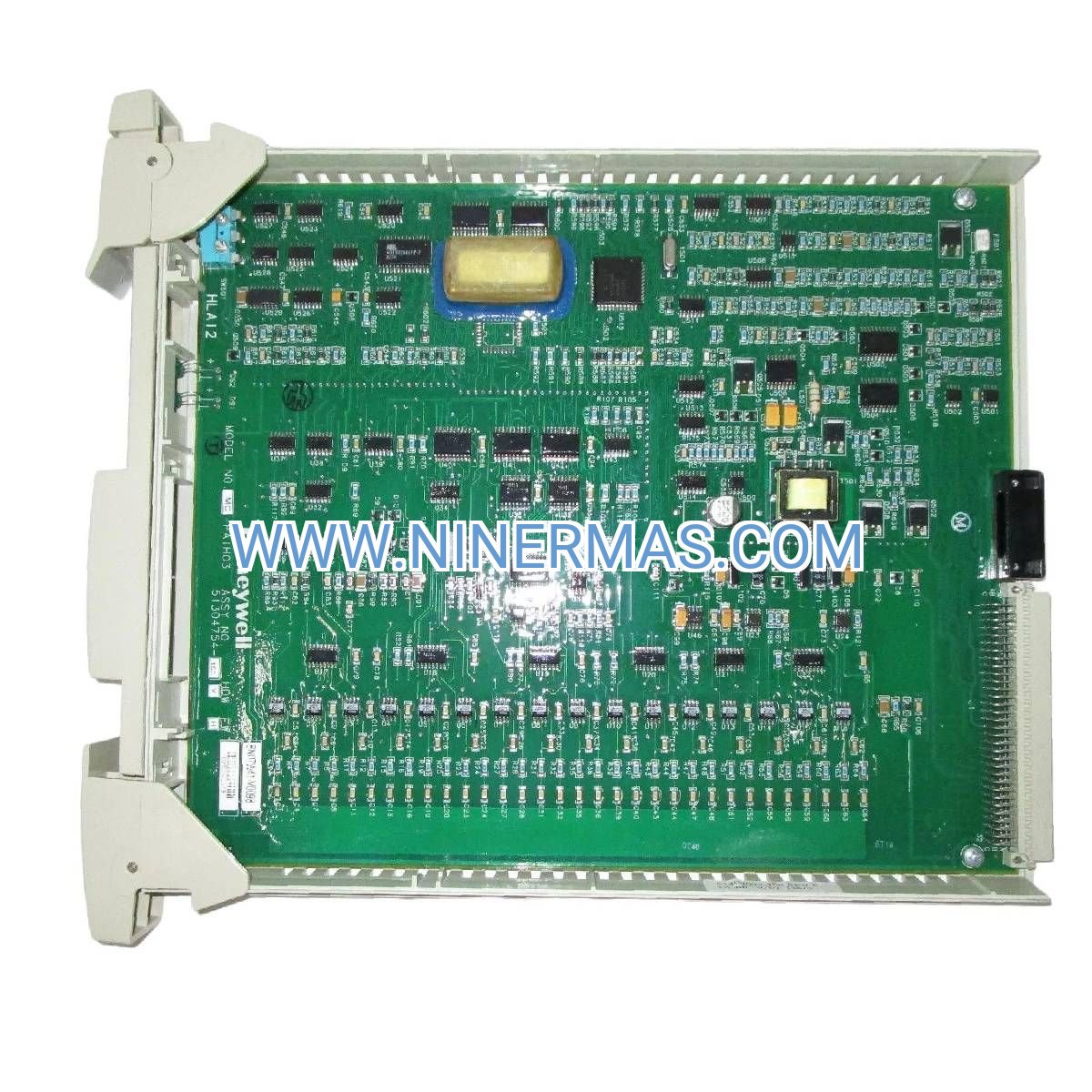

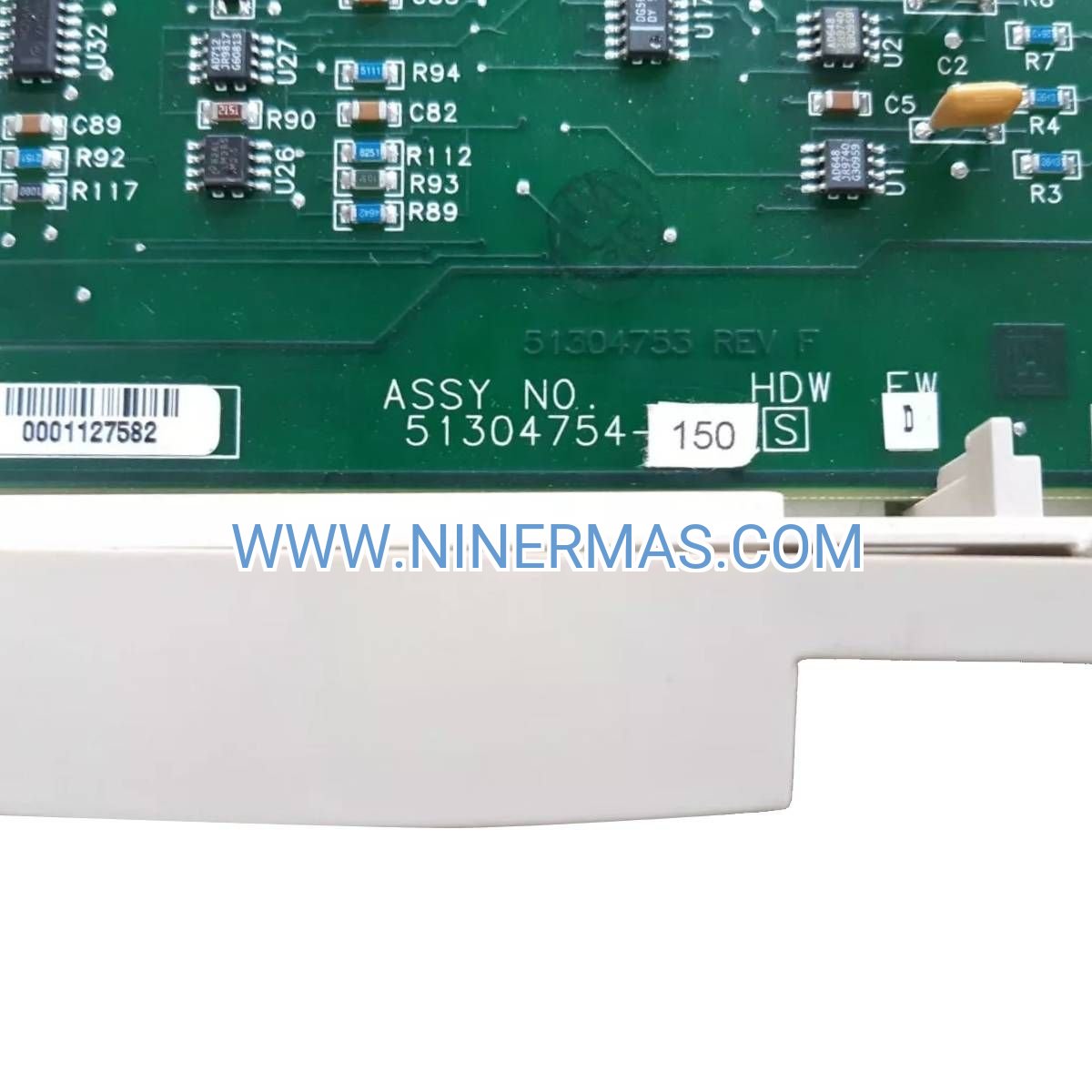

Honeywell 51304754-150 High-Precision Analog Input Module (Industrial-Grade HLAI)

The Honeywell 51304754-150 represents a proven solution for high-density analog signal acquisition in mission-critical distributed control systems. This HLAI (High Level Analog Input) processor module delivers 16 differential input channels with 16-bit resolution, engineered specifically for Honeywell TDC 3000 and Experion PKS platforms where measurement accuracy and system uptime are non-negotiable.

Designed for process industries requiring continuous monitoring of temperature, pressure, flow, and level transmitters, this module combines galvanic isolation, hot-swap capability, and conformal-coated circuitry to ensure reliable operation in demanding industrial environments. Whether you're upgrading legacy I/O infrastructure or expanding existing control architectures, the 51304754-150 provides seamless integration with proven Honeywell DCS ecosystems.

With ±0.1% full-scale accuracy and comprehensive diagnostic capabilities, this analog input module minimizes measurement uncertainty while simplifying maintenance workflows. Factory-calibrated and ready for deployment, it reduces commissioning time and supports diverse voltage input ranges through software configuration—eliminating the need for hardware jumpers or DIP switches.

Core Features & Technical Advantages

✓ 16 Differential Analog Input Channels
Maximize cabinet space efficiency with high-density I/O architecture. Each channel features independent signal conditioning and A/D conversion, supporting simultaneous acquisition of multiple process variables without multiplexing delays or channel-to-channel interference.

✓ 16-Bit Resolution with ±0.1% Accuracy
Capture subtle process variations with precision measurement capability. The high-resolution analog-to-digital converter ensures accurate representation of sensor signals across the full input range, critical for tight process control and regulatory compliance in pharmaceutical and chemical applications.

✓ Galvanic Isolation & Noise Immunity
Channel-to-channel and channel-to-bus isolation protects against ground loops, electrical transients, and EMI/RFI interference. Advanced filtering algorithms reject common-mode noise, ensuring signal integrity even in electrically noisy environments near VFDs, welders, or high-voltage switchgear.

✓ Hot-Swappable Architecture
Replace failed modules without system shutdown or process interruption. The hot-swap design maintains I/O bus integrity during insertion and removal, enabling online maintenance that reduces unplanned downtime and supports continuous manufacturing operations.

✓ Software-Configurable Input Ranges
Adapt to diverse sensor types without hardware modifications. Supported voltage ranges include 0-10V DC, 0-5V DC, 1-5V DC, and ±10V DC—configurable per channel via Experion Station or TDC 3000 configuration software for maximum deployment flexibility.

✓ Built-In Diagnostics & LED Indicators
Accelerate troubleshooting with real-time module health monitoring. Self-diagnostic routines detect open circuits, out-of-range signals, and communication faults, while multi-color LEDs provide instant visual status feedback for maintenance personnel.

Industrial Application Scenarios

→ Refinery & Petrochemical Processing
Monitor distillation column temperatures, reactor pressures, and product flow rates in continuous processing units. The 51304754-150's isolation and accuracy meet API and ASME standards for critical measurement loops in hydrocarbon processing, where measurement errors can impact product quality and safety margins.

→ Power Generation & Utilities
Interface with turbine vibration probes, boiler drum level transmitters, and stack gas analyzers in coal, gas, and combined-cycle power plants. Proven reliability in high-availability applications where unplanned outages carry significant financial penalties and grid stability implications.

→ Pharmaceutical & Biotech Manufacturing
Ensure GMP/FDA compliance with validated analog measurement for cleanroom differential pressure, bioreactor dissolved oxygen, and autoclave temperature profiling. The module's deterministic scan rates and audit trail capabilities support 21 CFR Part 11 electronic record requirements.

→ Pulp & Paper Production
Acquire consistency transmitter signals, steam pressure measurements, and chemical dosing feedback in continuous digesters and paper machines. Conformal coating and wide operating temperature range withstand the corrosive, high-humidity conditions typical of pulp mill environments.

→ Water & Wastewater Treatment
Monitor pH, turbidity, chlorine residual, and flow measurements in municipal treatment facilities and industrial effluent systems. Multi-range capability accommodates the diverse sensor types required for comprehensive water quality monitoring and regulatory reporting.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 51304754-150 when your application requires voltage input acquisition with high channel density. For 4-20mA current loop signals, consider the complementary LLAI (Low Level Analog Input) modules. Verify compatibility with your specific TDC 3000 or Experion PKS system revision level before ordering.

Extended Capabilities & System Integration

Redundancy & High Availability: Deploy in redundant pairs for fault-tolerant architectures in critical control loops. The module supports automatic failover when configured with redundant I/O processors, ensuring continuous measurement availability during maintenance or component failures.

Remote I/O Deployment: Install in distributed I/O cabinets up to 12,000 feet from the control room via fiber-optic IOTA links. This flexibility reduces field wiring costs and enables optimized cabinet placement near process equipment.

Advanced Diagnostics: Access detailed channel-level diagnostics through Experion Station or TDC 3000 operator interfaces. Monitor wire-off detection, out-of-range alarms, and module health status for predictive maintenance and rapid fault isolation.

Calibration Management: Factory calibration coefficients stored in non-volatile memory eliminate field calibration requirements. Optional field verification procedures available via configuration software for applications requiring periodic accuracy validation.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Custom configurations or large quantity orders typically ship within 5-7 business days. Expedited same-day shipping available for emergency replacements.

Warranty Coverage: All modules include a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for critical sparing applications and long-term service agreements.

Technical Assistance: Our application engineers provide pre-sale configuration guidance, post-sale integration support, and troubleshooting assistance. Access to detailed installation manuals, wiring diagrams, and configuration examples included with every purchase.

Documentation Package: Each module ships with installation instructions, safety certifications, and calibration certificates. Complete technical reference manuals and CAD drawings available for download from our support portal.

Frequently Asked Questions

Can the 51304754-150 HLAI module accept 4-20mA current signals directly?
No, this module is designed exclusively for voltage inputs (0-10V, 0-5V, 1-5V, ±10V). For current signal acquisition, use Honeywell LLAI modules or install external current-to-voltage converters with appropriate burden resistors.

What is the maximum recommended cable distance from field transmitters to the HLAI module?
With properly shielded twisted-pair cable (120Ω characteristic impedance), voltage signals can reliably transmit up to 300 meters (1000 feet). Actual distance depends on signal level, ambient electrical noise, and cable capacitance—consult installation guidelines for specific applications.

Does this analog input module require periodic calibration after installation?
Factory calibration is stored in EEPROM and remains stable over the module's operational life. Field calibration is generally unnecessary unless required by specific industry regulations (e.g., FDA, nuclear) or if accuracy verification is needed after environmental exposure.

Is the 51304754-150 compatible with legacy TDC 2000 control systems?
This module is engineered for TDC 3000 and Experion PKS platforms. TDC 2000 systems require different I/O modules. Contact our technical team for migration strategies if you're upgrading from TDC 2000 to TDC 3000 architectures.

Can I mix different input voltage ranges on the same HLAI module?
Yes, each of the 16 channels can be independently configured for different voltage ranges via software. This flexibility allows a single module to interface with diverse sensor types without hardware modifications or jumper changes.

What diagnostic features help identify wiring or sensor faults?
The module provides wire-off detection, out-of-range signal alarms, and channel-specific fault indicators. LED status lights and software diagnostics accessible through Experion Station enable rapid troubleshooting and reduce mean time to repair (MTTR).

Order Your Honeywell 51304754-150 HLAI Module Today

Upgrade your analog input infrastructure with proven Honeywell technology. Our technical sales team is ready to assist with system compatibility verification, quantity pricing, and integration planning. Contact us for same-day quotations and expedited delivery options for your critical control system projects.
