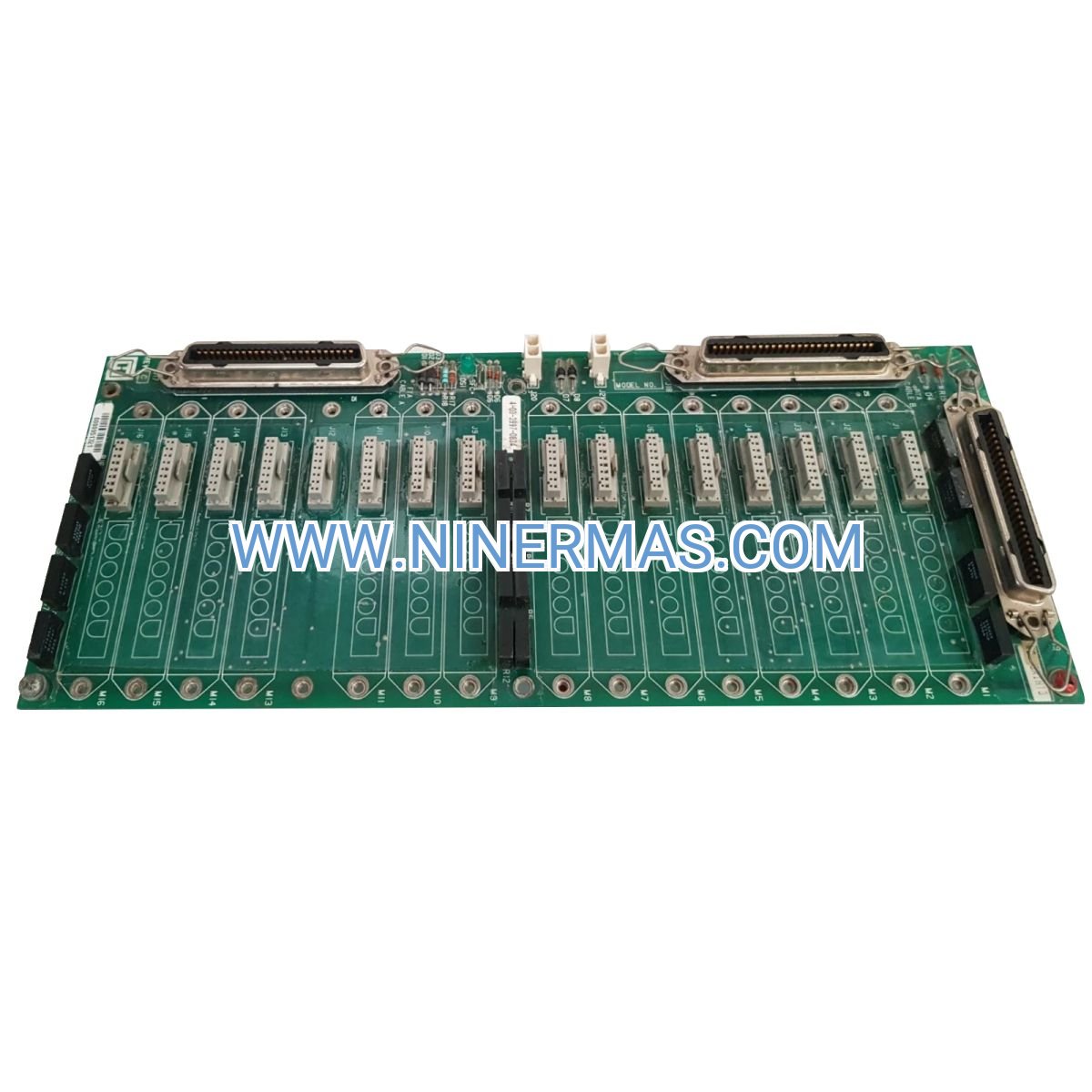

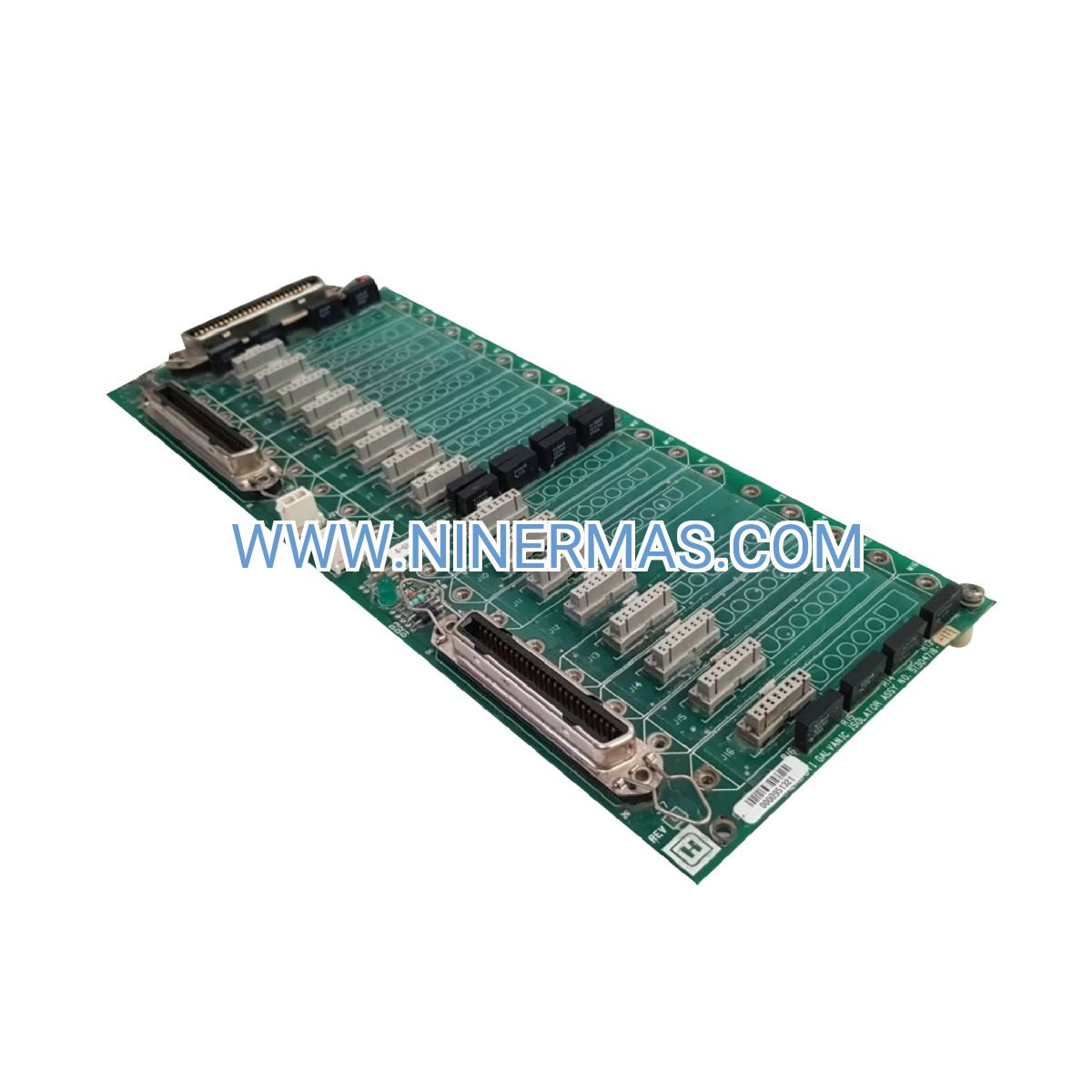

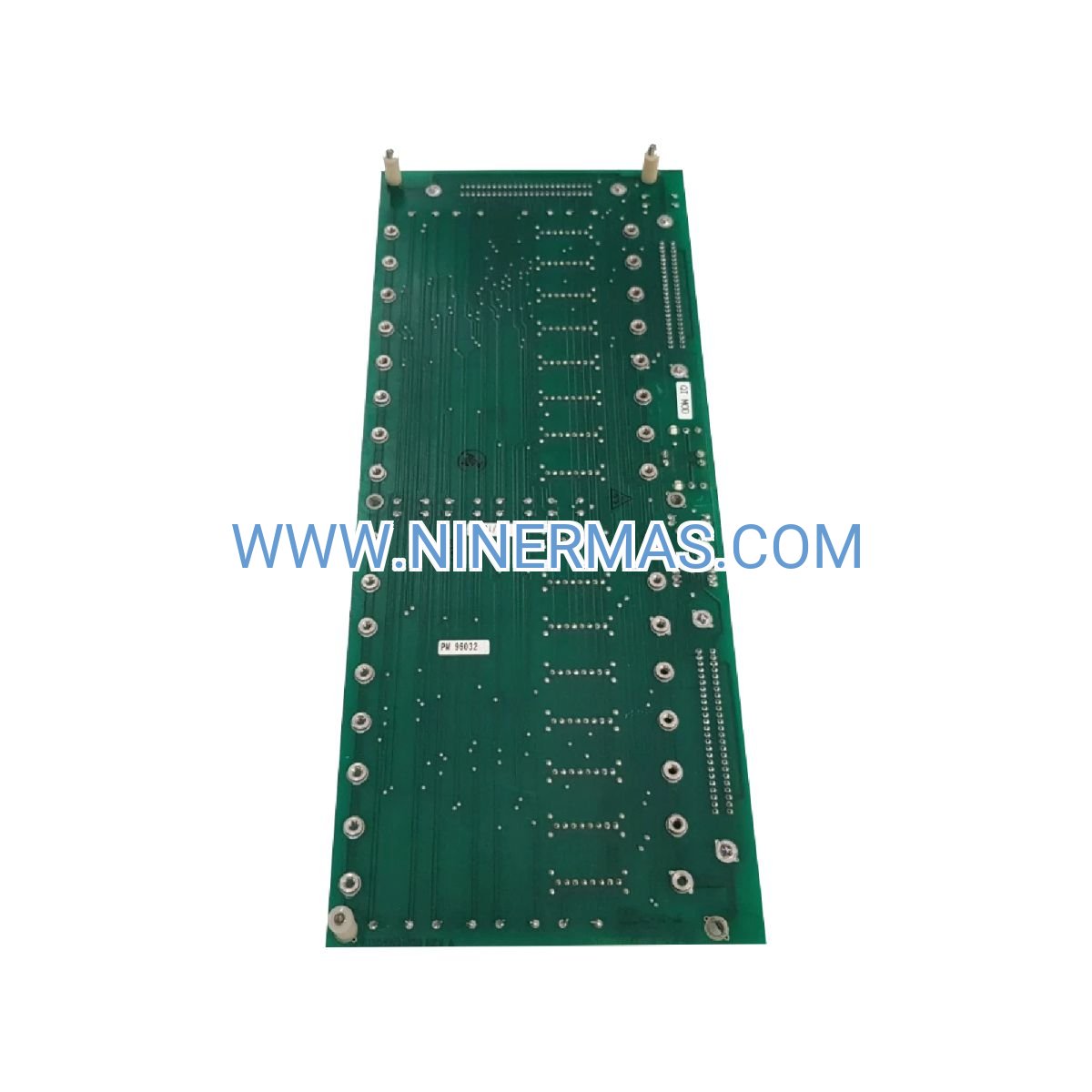

51304718-100 MU-GAIH13 Analog Input Module (Industrial-Grade TDC 3000 FTA)

The 51304718-100 MU-GAIH13 represents Honeywell's proven field-termination assembly technology for distributed control environments. Designed as an 8-channel high-level analog input interface, this module bridges critical process instrumentation to TDC 3000 Universal Control Network architectures, delivering microsecond-level signal acquisition for mission-critical industrial operations.

Process engineers and automation specialists rely on this FTA to consolidate temperature transmitters, pressure sensors, flow meters, and analytical instruments into unified control strategies. Whether retrofitting legacy installations or commissioning greenfield facilities, the MU-GAIH13 provides the signal integrity and network reliability demanded by continuous process industries.

With compression terminal technology eliminating traditional screw-clamp wiring, installation teams achieve 40% faster commissioning times while maintaining IP20-rated environmental protection. The module's 12-bit resolution and multi-range input capability ensure compatibility across diverse sensor ecosystems without external signal conditioning.

Core Features & Benefits

✓ Multi-Range Signal Processing: Native support for 0-10V DC, 0-20mA, and 4-20mA inputs eliminates external converters, reducing panel complexity and potential failure points while cutting material costs by 25%

✓ Compression Terminal Architecture: Tool-free wire insertion with visual verification windows accelerates field wiring and reduces human error during maintenance turnarounds

✓ UCN Network Integration: Deterministic communication protocol ensures sub-100ms update rates across distributed I/O networks, critical for cascade control loops and batch sequencing

✓ High-Density Channel Configuration: Eight independent input channels in a single-slot footprint maximize cabinet utilization in space-constrained control rooms and field junction boxes

✓ Conformal Coating Protection: Military-grade circuit board treatment withstands corrosive atmospheres, humidity extremes, and vibration profiles typical of heavy industrial environments

✓ Hot-Swap Capability: Field-replaceable design with automatic channel re-initialization minimizes process disruption during preventive maintenance or emergency repairs

Typical Application Scenarios

→ Petrochemical Refining Operations
Distillation column temperature profiling requires simultaneous monitoring of 8-16 RTD transmitters per tray section. The 51304718-100 consolidates these signals for advanced control algorithms managing reflux ratios and product separation efficiency. Operators achieve ±0.5°C temperature control precision, directly impacting product quality and energy consumption in crude processing units.

→ Pharmaceutical Batch Manufacturing
GMP-compliant production demands traceable process variable recording throughout reaction cycles. This analog input module interfaces with validated transmitters measuring reactor temperature, jacket pressure, and agitator torque. Integration with TDC 3000 historians provides 21 CFR Part 11-ready audit trails for regulatory submissions.

→ Pulp & Paper Mill Digester Control
Kraft pulping digesters require coordinated monitoring of cooking liquor temperature, pressure, and chemical concentration across multiple vessel zones. The MU-GAIH13's multi-channel architecture supports complex cascade strategies that optimize fiber yield while preventing equipment damage from thermal runaway conditions.

→ Combined-Cycle Power Plant Optimization
Heat recovery steam generators (HRSG) utilize dozens of analog inputs for economizer, evaporator, and superheater sections. This module acquires steam temperature and pressure profiles that feed predictive control models, maximizing thermal efficiency and extending turbine component life in baseload generation facilities.

→ Municipal Water Treatment SCADA
Clarifier and filtration processes depend on continuous pH, turbidity, and chlorine residual measurement. The 51304718-100 provides the signal acquisition foundation for automated chemical dosing systems, ensuring regulatory compliance with drinking water standards while minimizing reagent consumption.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 51304718-100 when your application requires high-level (non-isolated) analog inputs with standard industrial signal ranges. For low-level millivolt signals (thermocouples, RTDs), consider the MU-TAIS13 variant. Applications demanding intrinsic safety barriers should specify the -175 suffix version with ATEX/IECEx certification. Verify UCN network compatibility with existing TDC 3000 controllers before ordering.

Extended Functions

Advanced Diagnostics: Built-in self-test routines continuously monitor channel health, detecting open-circuit conditions, out-of-range signals, and A/D converter drift. Status LEDs provide at-a-glance troubleshooting during commissioning and maintenance activities.

Software Configuration Flexibility: Engineering workstation tools allow per-channel customization of input ranges, filtering time constants, and alarm limits without hardware jumper changes. Configuration databases support version control and automated backup strategies.

Redundancy Support: When deployed in fault-tolerant TDC 3000 architectures, the module participates in automatic failover sequences, transferring control to backup I/O processors within 200ms of primary path failure.

Third-Party Integration: OPC DA/UA server connectivity enables data exchange with plant-wide MES systems, enabling real-time production dashboards and predictive maintenance analytics platforms.

Delivery & Service

Lead Time: In-stock units ship within 24 hours via express courier. Custom-configured modules with factory programming require 7-10 business days. International orders include full export documentation and HS code classification for customs clearance.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Extended service agreements available for critical infrastructure applications requiring 4-hour response SLAs.

Technical Support: Our application engineers provide pre-sales system design consultation, configuration file review, and post-installation troubleshooting assistance. Remote diagnostic services available via secure VPN connections to minimize on-site visit requirements.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, UCN network configuration templates, and calibration certificates traceable to NIST standards.

Frequently Asked Questions

Q: What is the maximum cable distance between the 51304718-100 module and field transmitters?
A: For 4-20mA current loop signals, standard practice allows up to 1000 meters using 18 AWG shielded twisted-pair cable with loop resistance below 600 ohms. Voltage inputs should be limited to 100 meters to minimize noise pickup and signal degradation.

Q: Can this analog input module interface with HART-enabled smart transmitters?
A: The 51304718-100 acquires the 4-20mA analog signal from HART devices but does not decode digital HART communication. For full asset management functionality, pair with Honeywell's HART multiplexer modules or use the 51304718-150 variant with integrated HART pass-through.

Q: How do I configure input signal ranges for individual channels?
A: Signal range selection is performed through the TDC 3000 engineering workstation using Station Manager software. Navigate to the I/O configuration database, select the target channel, and assign the desired range from the dropdown menu. Changes take effect after downloading the configuration to the controller.

Q: Is the module compatible with legacy TDC 2000 systems?
A: The 51304718-100 is designed exclusively for TDC 3000 UCN networks and is not backward-compatible with TDC 2000 LCN/HLCN architectures. For TDC 2000 retrofits, consult our migration specialists about UCN gateway solutions or equivalent LCN-compatible modules.

Q: What preventive maintenance is recommended for optimal performance?
A: Annual inspection should include visual examination of terminal block integrity, verification of LED status indicators, and functional testing of channel accuracy using calibrated signal sources. Conformal coating inspection is recommended every 3 years in corrosive environments.

Q: Does the module support redundant power supply configurations?
A: Yes, when installed in TDC 3000 redundant I/O chassis, the module automatically switches to backup power rails without process interruption. Ensure both primary and secondary 24V DC supplies meet the 5W power budget per module.

Secure Your TDC 3000 System Upgrade Today

Enhance process visibility and control loop performance with proven Honeywell analog input technology. Our technical team is ready to assist with system integration planning, spare parts recommendations, and volume pricing for multi-site deployments. Contact us now for application-specific configuration guidance and expedited delivery options.
