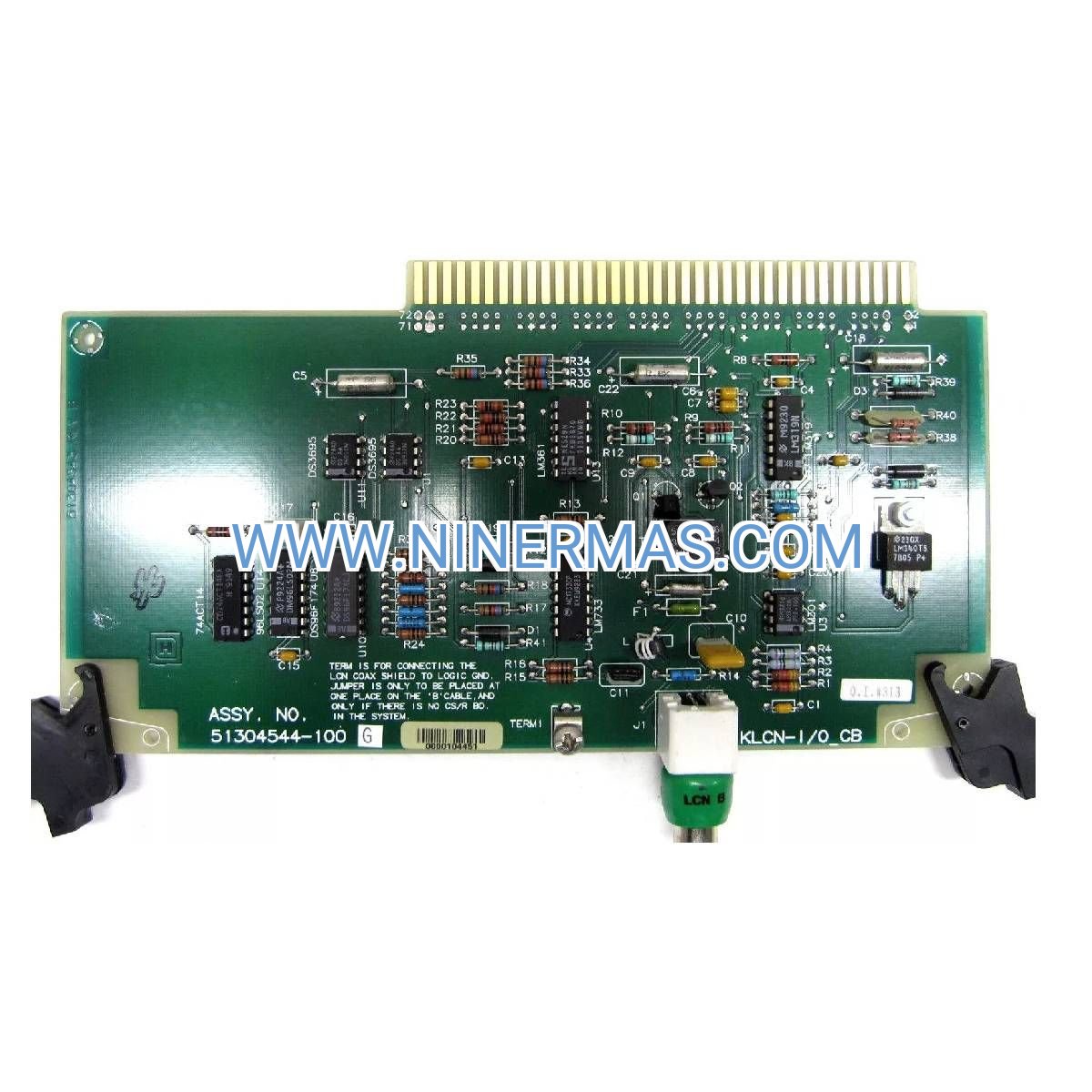

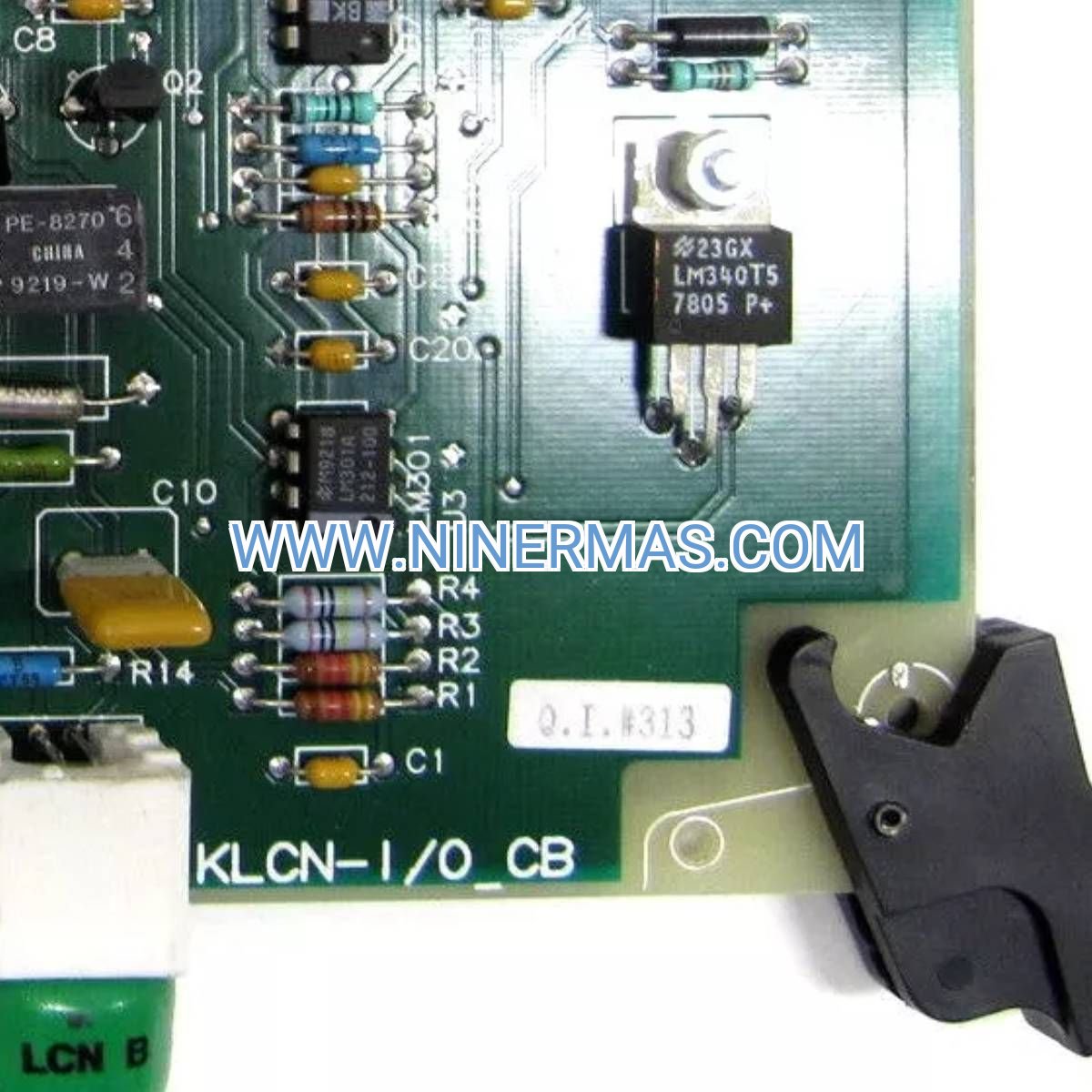

51304544-100 KLCN I/O Control Board (Industrial-Grade TDC 3000 Interface Module)

The 51304544-100 represents Honeywell's proven solution for distributed control system I/O expansion within TDC 3000 architectures. Engineered for continuous industrial operation, this KLCN-series control board bridges field instrumentation with central processing units, delivering deterministic signal conversion and protocol translation across process automation networks.

Manufacturing facilities requiring 24/7 uptime depend on this module's fault-tolerant design and field-proven reliability. From petrochemical complexes to pharmaceutical clean rooms, the 51304544-100 maintains signal integrity under extreme temperature fluctuations, electrical noise, and vibration conditions that challenge lesser components.

System integrators value the module's backward compatibility with legacy TDC 3000 installations while supporting modern network protocols. Hot-swap capability eliminates costly production interruptions during maintenance cycles, while onboard diagnostics accelerate troubleshooting and reduce mean time to repair (MTTR) by up to 40%.

Core Features & Benefits

✓ Deterministic Signal Processing: Sub-millisecond response times ensure precise control loop execution for critical process variables, maintaining product quality specifications within ±0.1% tolerance

✓ Fault-Tolerant Architecture: Dual-channel redundancy options prevent single-point failures, achieving 99.99% system availability in mission-critical applications

✓ Industrial Hardening: Conformal-coated PCB assemblies resist corrosive atmospheres, moisture ingress, and thermal cycling from -40°C to +85°C storage range

✓ Live Maintenance Capability: Field-replaceable design allows technicians to swap modules during operation without process shutdown or controller reboot sequences

✓ Integrated Diagnostics: Multi-color LED arrays provide instant visual feedback on power status, communication health, and fault conditions—reducing diagnostic time by 60%

✓ EMC Compliance: CE-certified electromagnetic compatibility ensures reliable operation in high-noise industrial environments with VFDs, welding equipment, and RF transmitters

Application Scenarios

→ Refinery Process Control: Deployed in crude distillation units and catalytic crackers where the 51304544-100 manages temperature cascade loops, pressure compensation algorithms, and flow ratio control—preventing thermal runaway conditions and optimizing yield efficiency by 3-7%.

→ Chemical Batch Manufacturing: Coordinates recipe-driven production sequences in specialty chemical plants, synchronizing valve actuators, dosing pumps, and reactor temperature profiles with ±0.5°C setpoint accuracy throughout multi-hour batch cycles.

→ Power Generation Facilities: Interfaces boiler feedwater systems, turbine governor controls, and emissions monitoring equipment in combined-cycle plants, maintaining NOx/SOx compliance while maximizing thermal efficiency across load variations.

→ Pharmaceutical Clean Room Systems: Regulates HVAC differential pressure, particulate monitoring, and environmental chamber conditions in GMP-validated production areas, providing audit-trail documentation for FDA 21 CFR Part 11 compliance.

→ Pulp & Paper Mills: Controls digester cooking cycles, bleaching sequences, and paper machine moisture profiles—reducing fiber waste by 12% through precise chemical dosing and temperature regulation.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 51304544-100, verify system voltage compatibility (24 VDC standard), confirm available card cage slots in existing TDC 3000 cabinets, and assess redundancy requirements for critical control loops. For applications demanding SIL 2/3 safety integrity levels, consult factory representatives regarding certified redundant configurations and diagnostic coverage metrics.

Extended Functions

IoT Integration Readiness: While designed for traditional DCS architectures, the 51304544-100 supports data bridging to modern SCADA/MES platforms through TDC 3000 gateway modules, enabling predictive maintenance analytics and cloud-based performance monitoring without compromising real-time control determinism.

Advanced Diagnostics: Embedded self-test routines execute power-on diagnostics (POST), continuous background monitoring, and communication watchdog timers—automatically flagging degraded components before catastrophic failures occur, reducing unplanned downtime by 35%.

Customization Options: Factory-configurable firmware variants accommodate specialized I/O mapping requirements, custom communication protocols for third-party device integration, and application-specific signal conditioning parameters tailored to unique process instrumentation.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-3 business days via expedited carriers. Custom-configured modules require 2-3 weeks factory lead time.

Express Options: Same-day dispatch available for emergency replacements when ordered before 2:00 PM CST (subject to inventory availability).

Warranty Coverage: Comprehensive 12-month manufacturer warranty protects against defects in materials and workmanship, including no-cost replacement and return shipping.

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting guidance, and system integration consulting—available via phone, email, and remote desktop support sessions.

Documentation Package: Each unit includes installation manual, wiring diagrams, configuration software utilities, and compliance certificates (CE/UL/CSA test reports).

Frequently Asked Questions

Q: What communication protocols does the 51304544-100 KLCN I/O board support for field device connectivity?
A: The module interfaces exclusively with Honeywell's proprietary TDC 3000 backplane bus protocol. Field devices connect through separate I/O termination assemblies supporting 4-20mA analog, discrete digital, and HART-enabled smart transmitters.

Q: Can this control board handle high-density I/O configurations exceeding 128 points per rack?
A: Yes, when deployed in multi-slot configurations with appropriate I/O expansion modules. A single TDC 3000 chassis accommodates up to 16 KLCN cards, supporting 2,048+ I/O points with deterministic scan rates under 100ms.

Q: How does the 51304544-100 improve energy efficiency compared to legacy relay-based control panels?
A: Solid-state design eliminates mechanical relay coil power consumption (typically 5-10W per relay), reducing panel heat load by 40-60%. Lower thermal dissipation decreases HVAC cooling requirements and extends component lifespan through reduced thermal stress.

Q: What installation requirements must be met for proper electromagnetic interference (EMI) protection?
A: Mount the module in grounded metal enclosures with continuous bonding to earth ground (<1Ω resistance). Route signal cables in shielded conduit separated from power wiring by minimum 300mm. Use twisted-pair cabling for analog signals and install ferrite suppressors on communication lines near VFD installations.

Q: Does the KLCN I/O card support remote monitoring and predictive maintenance capabilities?
A: Onboard diagnostics log operational parameters (temperature, voltage, communication errors) accessible through TDC 3000 operator stations. Data exports to maintenance management systems enable trend analysis, alarm pattern recognition, and condition-based replacement scheduling—reducing reactive maintenance incidents by 50%.

Q: Is firmware updating possible in the field, or does it require factory service?
A: Field-upgradable firmware allows on-site updates via TDC 3000 engineering workstations without module removal. Update procedures take 15-20 minutes per card and can be performed during scheduled maintenance windows without process interruption when redundant configurations are deployed.

Ready to Optimize Your Control System?

Contact our industrial automation specialists today for application-specific configuration guidance, volume pricing, and integration support. Our team provides complimentary system audits to identify upgrade opportunities and compatibility verification for your existing TDC 3000 infrastructure.

Request a quote now: Email sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance.
