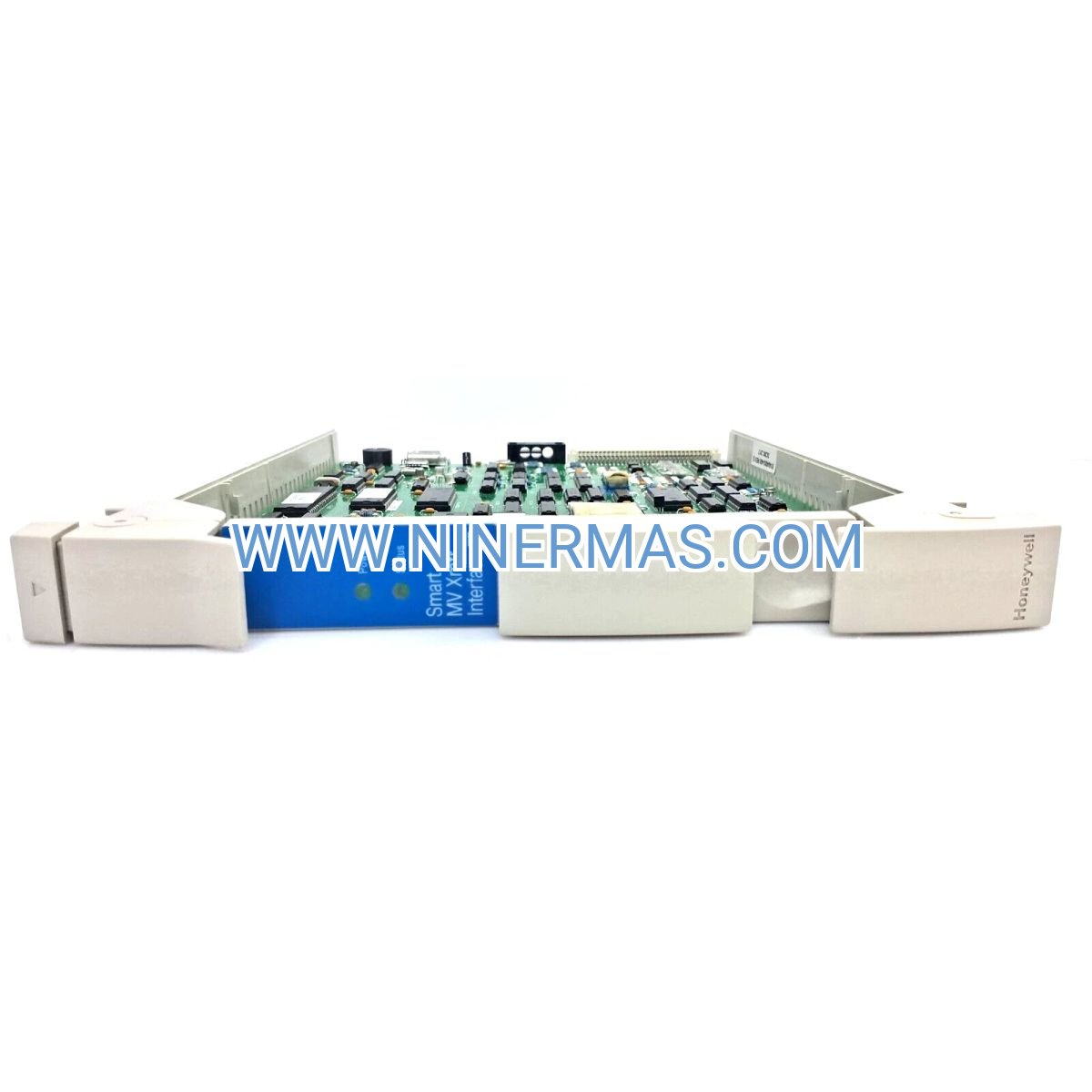

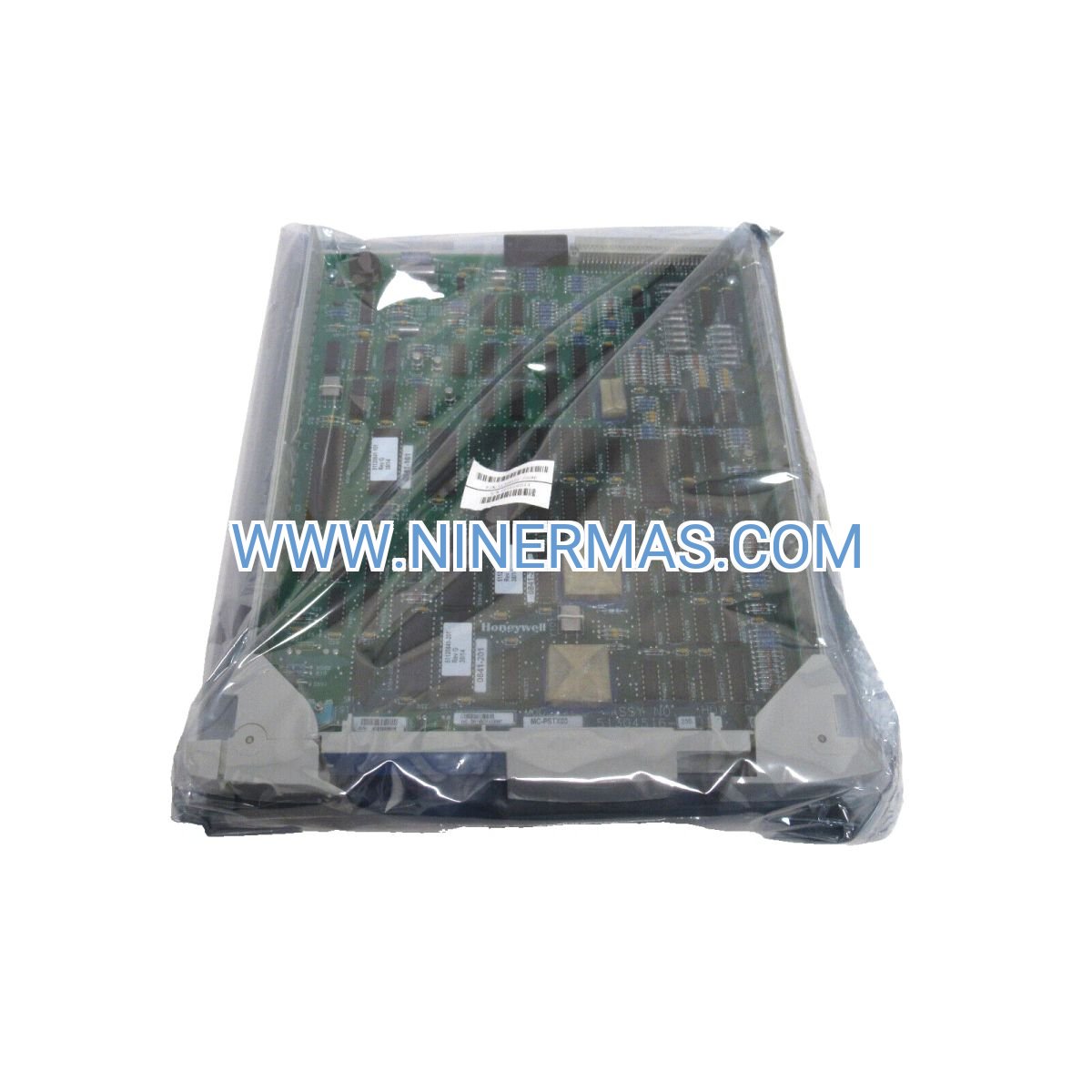

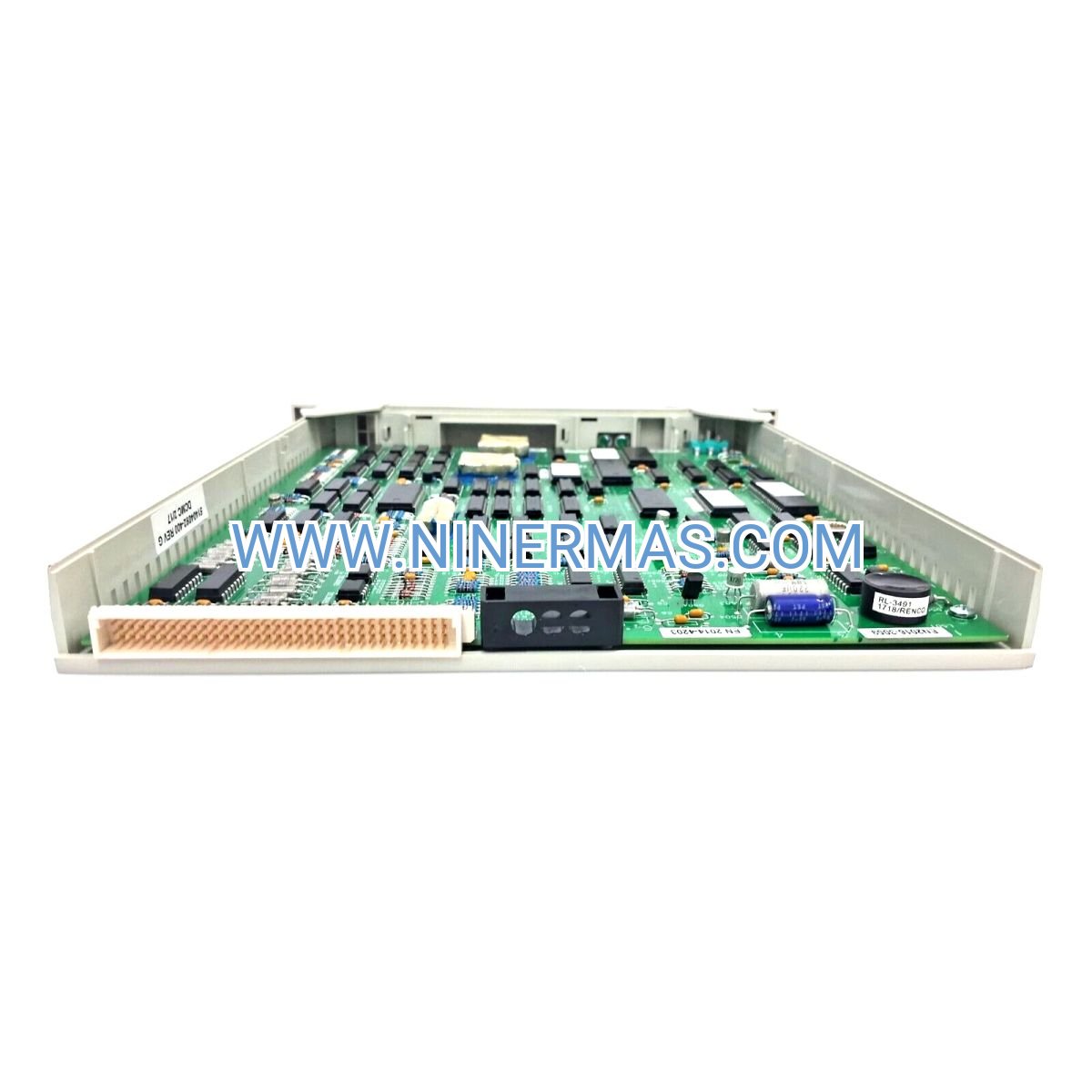

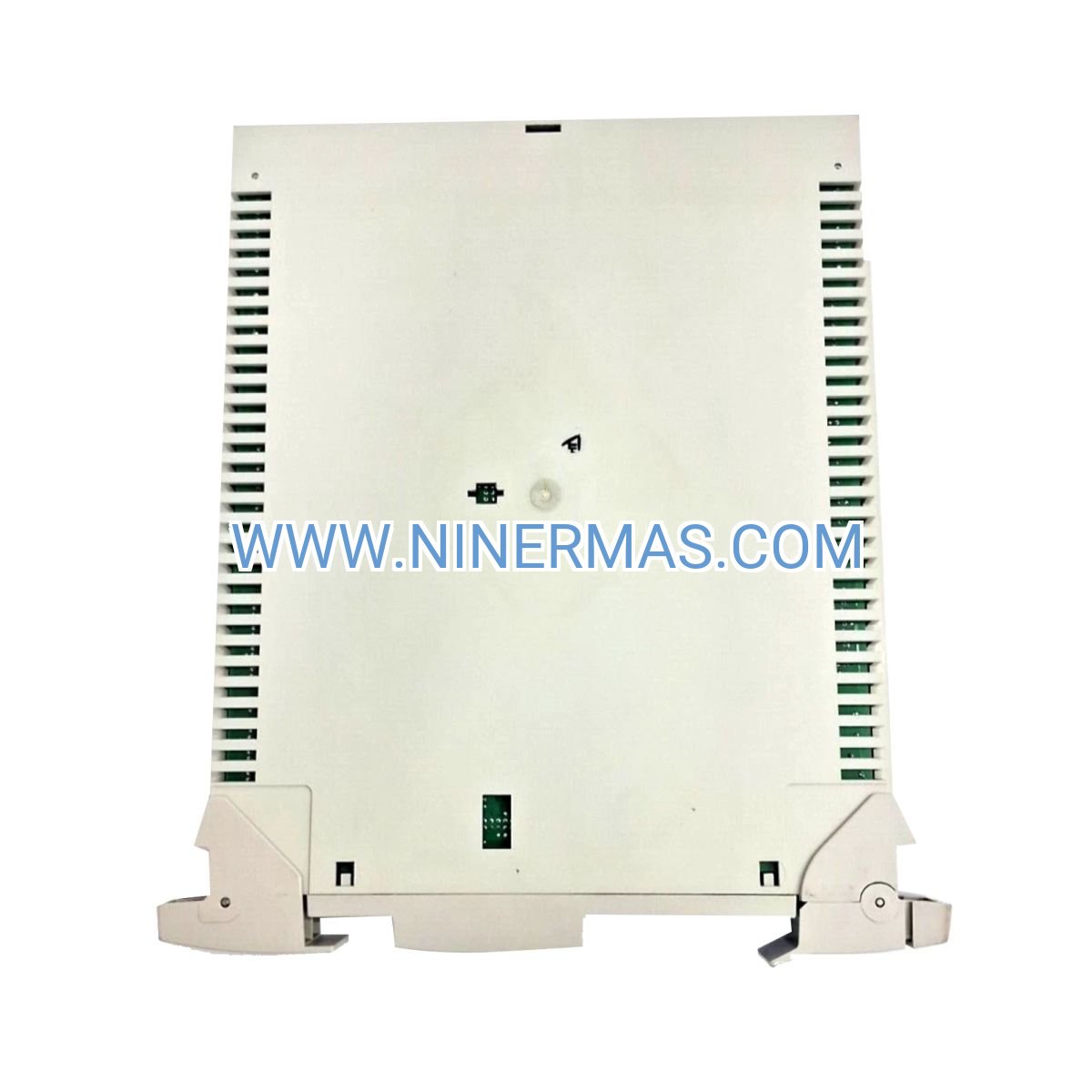

51304516-250 High-Speed I/O Link Interface Module (Industrial-Grade TDC 3000 Component)

The Honeywell 51304516-250 serves as the critical communication bridge within TDC 3000 Distributed Control Systems, enabling deterministic data exchange between process controllers and field I/O modules. Engineered for continuous operation in mission-critical environments, this interface module delivers microsecond-level response times essential for real-time process control across oil & gas, chemical processing, and power generation facilities.

Designed for plant engineers and automation specialists managing legacy TDC 3000 infrastructures, the 51304516-250 addresses the challenge of maintaining reliable I/O connectivity in aging DCS installations. Its hot-swappable architecture minimizes downtime during maintenance, while built-in diagnostics accelerate troubleshooting—reducing mean time to repair (MTTR) by up to 40% compared to earlier-generation modules.

Key differentiators include native support for redundant controller configurations, backward compatibility with TDC 2000 systems via firmware adaptation, and compliance with IEC 61508 functional safety standards. The module's ruggedized design withstands industrial temperature extremes (0°C to +60°C) and electromagnetic interference common in heavy industrial settings.

Core Capabilities & Business Value

→ Deterministic Communication Protocol
Proprietary I/O Link technology ensures cycle times under 10ms for critical control loops, maintaining process stability during load fluctuations. Reduces process variability by 15-25% versus standard fieldbus solutions.

→ Fault-Tolerant Architecture
Automatic failover to backup communication paths within 50ms during primary link failures. Supports dual-redundant controller setups, achieving 99.98% system availability in properly configured installations.

→ Real-Time Diagnostics Suite
Tri-color LED arrays provide instant visibility into module health, communication status, and fault conditions. Integrated self-test routines detect 95% of common failure modes before they impact operations, enabling predictive maintenance scheduling.

✓ Hot-Swap Capability
Field-replaceable without system shutdown or controller reboot. Technicians can swap modules in under 3 minutes, minimizing production interruptions during emergency repairs or planned upgrades.

✓ Multi-Generation Compatibility
Interfaces seamlessly with TDC 3000 LCN (Local Control Network) and HPM (High Performance Module) architectures. Firmware updates enable integration with TDC 2000 legacy systems, protecting existing infrastructure investments.

✓ Industrial-Hardened Construction
Conformal-coated PCBs resist moisture, dust, and chemical vapors. Operates reliably in environments with 95% relative humidity and withstands vibration levels up to 2G per IEC 60068-2-6 standards.

Industrial Application Scenarios

Refinery Crude Distillation Units
Manages real-time data flow between temperature/pressure transmitters and advanced process controllers in atmospheric distillation columns. Addresses the challenge of coordinating 200+ I/O points across multiple control zones while maintaining sub-second response times. Enables tighter temperature control (±0.5°C), improving product yield by 2-3% and reducing energy consumption per barrel processed.

Chemical Batch Reactor Control
Coordinates sequential logic execution for multi-stage polymerization processes requiring precise ingredient dosing and temperature ramping. Solves the pain point of synchronizing analog inputs (flow meters, thermocouples) with discrete outputs (valve actuators, agitator drives) across 8-12 process phases. Reduces batch cycle time by 10-15% through optimized I/O scanning and deterministic communication.

Power Plant Boiler Management Systems
Interfaces combustion control systems with field instrumentation monitoring steam pressure, oxygen levels, and fuel flow rates. Tackles the critical requirement for fail-safe operation during grid frequency fluctuations or fuel switching events. Contributes to 99.7%+ boiler availability through redundant communication paths and rapid fault detection.

Pharmaceutical Clean Room HVAC Control
Links environmental monitoring sensors (differential pressure, particle counters, humidity transmitters) to precision air handling unit controllers. Addresses regulatory compliance needs for continuous data logging and alarm management per FDA 21 CFR Part 11. Maintains ISO Class 5 cleanroom conditions with ±0.2°C temperature stability and ±2% RH humidity control.

Pulp & Paper Stock Preparation Systems
Manages I/O communication for consistency control loops regulating fiber suspension density and chemical additive dosing. Resolves the challenge of coordinating slow-response process variables (consistency: 30-60s lag) with fast-acting control valves. Improves paper quality metrics (basis weight variation <2%) while reducing fiber waste by 5-8%.

Technical Parameters & Selection Guide

Selection Criteria: Verify system compatibility by cross-referencing your TDC 3000 controller firmware version (minimum Rev 8.x required). For new installations, consider the 51304516-100 variant if operating temperatures consistently exceed 50°C. Systems requiring SIL 3 certification must implement dual-redundant modules with independent power supplies. Consult Honeywell's TDC 3000 System Configuration Guide (Document 51-52-25-48) for rack slot assignment rules and backplane loading calculations.

Extended Integration Capabilities

Legacy System Bridging: Firmware version 2.5+ enables protocol translation for interfacing TDC 2000 I/O subsystems, extending service life of older installations by 5-10 years. Requires optional adapter kit (part 51304516-ADP) and configuration via Honeywell Station software.

SCADA Integration: Supports data mirroring to third-party historians (OSIsoft PI, Aspen InfoPlus.21) via TDC 3000's Universal Station gateway. Enables real-time process analytics and regulatory compliance reporting without impacting control loop performance.

Cybersecurity Hardening: When paired with Honeywell's ControlEdge gateway, provides network segmentation and encrypted data tunneling per IEC 62443 industrial cybersecurity standards. Protects against unauthorized configuration changes and man-in-the-middle attacks on I/O communication paths.

Custom I/O Mapping: Field-configurable via Honeywell's Process Manager software for non-standard sensor types or proprietary actuator interfaces. Engineering services available for complex multi-vendor integration projects requiring custom function blocks.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units shipping from our Shanghai distribution center. Express same-day dispatch available for critical outage scenarios (additional fees apply).

Custom Configuration: 7-10 business days for factory-programmed modules with pre-loaded firmware or customer-specific I/O maps. Includes functional testing and configuration documentation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures. Includes free firmware updates and access to Honeywell's technical support portal. Extended 36-month warranty plans available at time of purchase.

Technical Support: 24/7 phone and email assistance from certified TDC 3000 specialists. Average response time <2 hours for critical system-down issues. Remote diagnostics support via secure VPN connection (customer firewall configuration required).

Documentation Package: Includes installation quick-start guide, wiring diagrams, LED diagnostic reference card, and certificate of conformity. Full technical manual (Document 51-52-25-50) available for download after registration.

Frequently Asked Questions

Q: How does the 51304516-250 interface with existing TDC 3000 controller hardware?
A: The module plugs directly into any available slot in your TDC 3000 system rack and communicates via the backplane using the proprietary I/O Link protocol. No external cabling required between the module and controller—only field wiring to your I/O termination panels. Configuration is performed through Honeywell's Process Manager software using standard TDC 3000 database tools.

Q: What I/O capacity does this link interface module support per installation?
A: Each 51304516-250 module supports up to 512 I/O points (combined analog and discrete) depending on your controller model and scan rate requirements. For systems exceeding this capacity, install additional modules in adjacent rack slots—the TDC 3000 architecture supports up to 8 link modules per controller pair in redundant configurations.

Q: Can this module reduce energy consumption in our process control loops?
A: While the module itself consumes only 5-10W, its deterministic communication enables tighter PID loop tuning, which typically reduces process variability by 15-25%. In energy-intensive applications (distillation, drying, heating), this translates to 3-7% energy savings through reduced overshoot and faster setpoint tracking. Actual savings depend on your specific process dynamics and existing control strategy.

Q: What are the physical installation requirements for mounting this interface module?
A: The module requires one standard slot in a TDC 3000 system rack with 24 VDC backplane power available. Ensure adequate ventilation (minimum 50mm clearance above/below rack) and ambient temperature ≤60°C. Installation takes 5-10 minutes: power down the rack, slide module into slot until backplane connectors engage, secure with captive screws, restore power. No special tools required beyond a Phillips screwdriver.

Q: Does the 51304516-250 support remote monitoring and diagnostics capabilities?
A: Yes—when integrated with Honeywell's Experion PKS or third-party SCADA systems via the Universal Station gateway, you can monitor module status, communication health, and diagnostic counters remotely. The module's onboard diagnostics detect communication errors, backplane faults, and configuration mismatches, logging events to the TDC 3000 alarm system. Remote firmware updates require physical access to the module for security compliance.

Q: Is this I/O link module compatible with our existing TDC 2000 system infrastructure?
A: The 51304516-250 is designed for TDC 3000 systems but can interface with TDC 2000 I/O subsystems when running firmware version 2.5 or later with the optional adapter kit (part 51304516-ADP). This configuration requires Honeywell engineering services for protocol mapping and system integration testing. Contact our technical team to verify compatibility with your specific TDC 2000 controller revision.
