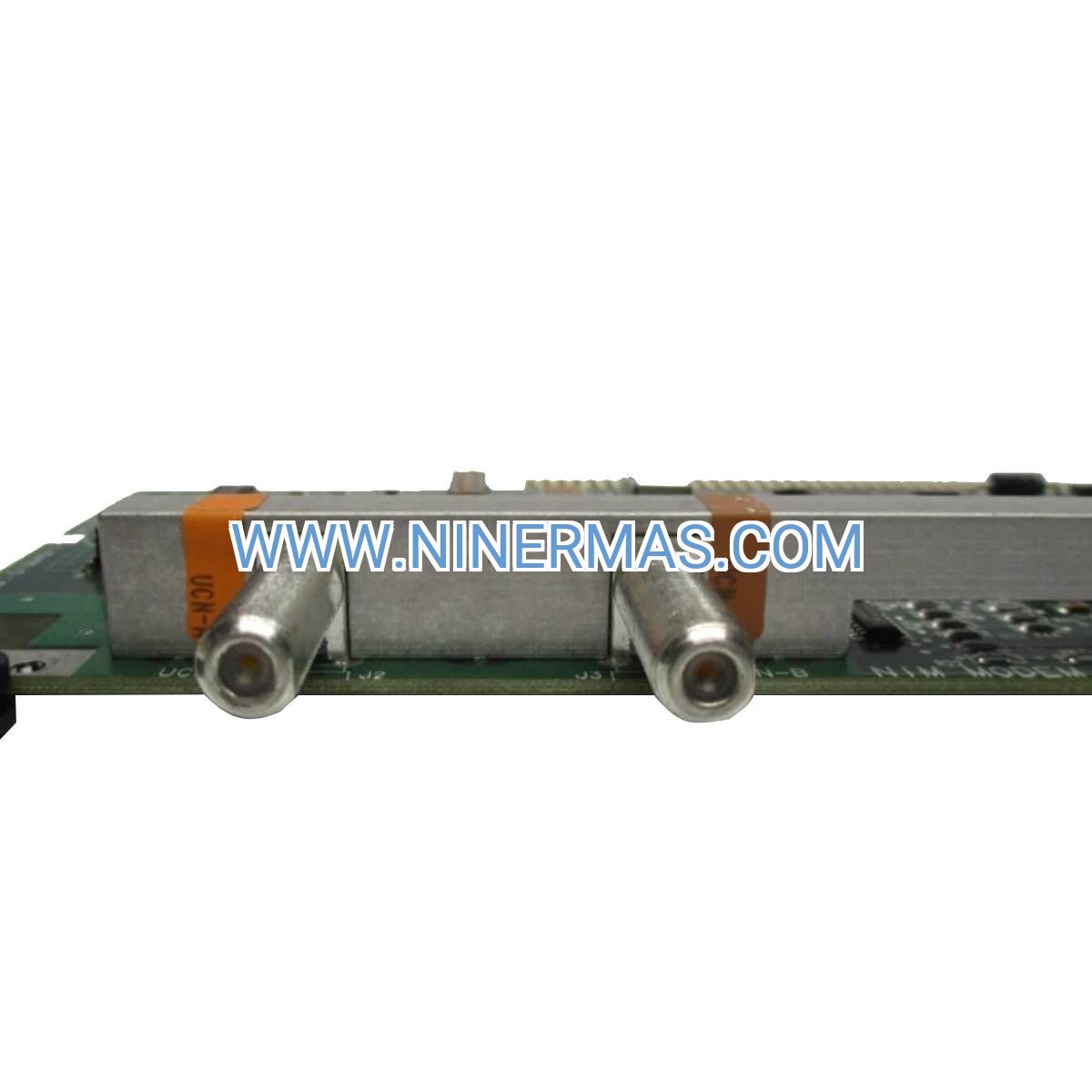

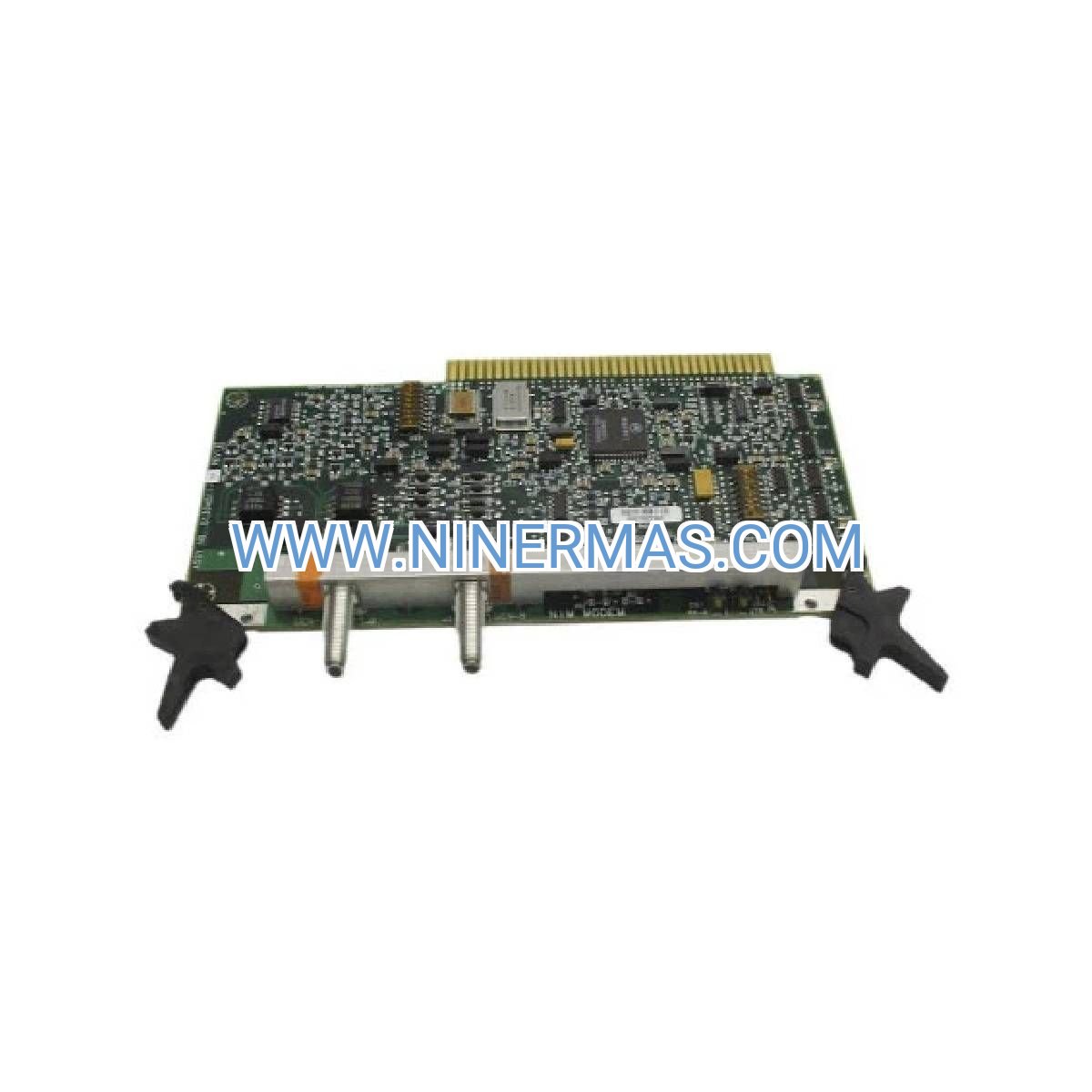

51304511-100 Universal Control Network Gateway (Industrial-Grade Communication Bridge)

The 51304511-100 represents Honeywell's proven solution for establishing deterministic, fault-tolerant communication pathways within TDC 3000 distributed control environments. This network interface module transforms complex multi-node architectures into cohesive control ecosystems, delivering the real-time data synchronization that process industries demand. Designed for engineers managing critical infrastructure where network latency directly impacts safety margins and production efficiency.

Process facilities face mounting pressure to maintain continuous operations while integrating legacy systems with modern monitoring platforms. Traditional network interfaces often create single points of failure or introduce unacceptable latency in time-sensitive control loops. The 51304511-100 addresses these challenges through redundant token-passing protocols and hardware-level fault detection, ensuring your control network remains operational even when individual components fail.

Whether you're upgrading aging TDC 3000 infrastructure or expanding existing installations, this module provides backward-compatible integration with minimal configuration overhead. Factory-calibrated for immediate deployment, it reduces commissioning time while maintaining the deterministic performance characteristics essential for regulatory compliance in pharmaceutical, petrochemical, and power generation sectors.

Core Capabilities & Technical Advantages

→ Dual-Path Redundancy Architecture
Simultaneous operation across primary and backup UCN segments eliminates network downtime. Automatic failover occurs within 50 milliseconds, maintaining control loop integrity during cable faults, connector failures, or planned maintenance activities.

→ Deterministic 5 Mbps Token-Passing Protocol
Guaranteed message delivery timing ensures predictable response in closed-loop control applications. Unlike Ethernet-based systems subject to collision delays, token-passing architecture provides bounded latency critical for cascade control and interlock logic.

✓ Comprehensive Diagnostic Framework
Multi-color LED arrays provide instant visibility into power status, network activity, and fault conditions. Built-in self-test routines execute during startup and continuously monitor signal quality, reducing mean time to repair by 40% compared to modules lacking onboard diagnostics.

✓ Extended Temperature Range Operation
Validated performance from 0°C to 60°C accommodates installation in non-climate-controlled equipment rooms and field enclosures. Conformal coating protects circuitry against humidity, dust, and corrosive atmospheres common in industrial settings.

✓ Hot-Standby Configuration Support
Seamless integration with redundant controller pairs enables N+1 system architectures. Automatic synchronization of configuration data across redundant modules ensures consistent operation during controller switchovers.

✓ Low Power Consumption Design
15W typical draw reduces cooling requirements and enables deployment in power-constrained installations. Compatible with standard 24VDC industrial power supplies and UPS systems.

Industry-Specific Deployment Scenarios

Upstream Oil & Gas Production Facilities
Remote wellhead monitoring and separator control systems require network interfaces capable of operating in harsh environments with limited maintenance access. The 51304511-100's extended temperature rating and diagnostic capabilities reduce site visits while maintaining the real-time data flow essential for optimizing production rates and detecting equipment anomalies.

Continuous Chemical Manufacturing
Batch reactors and distillation columns demand precise coordination between temperature controllers, flow transmitters, and safety interlocks. This module's deterministic communication ensures that critical shutdown sequences execute within specified timeframes, meeting SIL-rated safety requirements while enabling advanced process optimization strategies.

Combined-Cycle Power Plants
Turbine control and heat recovery steam generator (HRSG) monitoring generate high-frequency data streams that must reach operator consoles without delay. The 51304511-100 handles sustained message traffic while maintaining microsecond-level timestamp accuracy required for sequence-of-events recording and post-incident analysis.

Pharmaceutical Clean Room Operations
Environmental monitoring systems in GMP-regulated facilities require validated communication pathways with full audit trails. This module's stable firmware and documented performance characteristics simplify 21 CFR Part 11 compliance while supporting the data integrity requirements of electronic batch records.

Municipal Water Treatment Infrastructure
SCADA integration across geographically distributed pump stations and filtration plants benefits from the module's ability to bridge legacy TDC 3000 controllers with modern HMI platforms. Redundant network paths ensure that alarm notifications and trending data reach operators even during communication infrastructure failures.

Technical Specifications & Selection Criteria

Selection Guidelines: Verify that your existing TDC 3000 system operates on firmware revision R400 or newer before ordering. For installations requiring SIL-rated redundancy, specify dual modules during procurement. Consult network topology diagrams to determine optimal placement within your UCN architecture—modules should be positioned to minimize cable runs while maintaining geographic diversity for fault tolerance.

Advanced Integration & Customization Options

OPC UA Gateway Compatibility: When paired with Honeywell's Experion PKS interface cards, the 51304511-100 enables secure data bridging to Industry 4.0 platforms. This configuration supports encrypted historian connections and cloud-based analytics without compromising real-time control performance.

Cybersecurity Hardening: Factory-configurable firmware lockdown prevents unauthorized modifications in facilities subject to NERC CIP or IEC 62443 compliance requirements. MAC address filtering and network segmentation capabilities align with defense-in-depth security architectures.

Custom Firmware Profiles: For high-availability applications requiring sub-10ms response times, Honeywell offers optimized firmware builds that prioritize critical message traffic. Contact our engineering team to discuss performance tuning for your specific control strategy.

Delivery Timelines & Support Infrastructure

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for emergency replacements
Custom Configuration: 10-15 business days for pre-programmed modules with site-specific network parameters
Warranty Coverage: 12 months comprehensive parts and labor, extendable to 36 months with premium support contract
Technical Assistance: Lifetime access to certified DCS engineers via phone and email; on-site commissioning support available
Documentation Package: Installation manual, network configuration guide, troubleshooting flowcharts, and AutoCAD mounting templates included

Frequently Asked Questions

What cable specifications are mandatory for UCN network connections?
RG-11 coaxial cable with 75-ohm impedance and BNC compression connectors. Maximum segment length is 1,000 meters; use Honeywell-certified cable assemblies to maintain signal integrity and warranty coverage. Avoid running UCN cables parallel to high-voltage AC power lines.

Can this module interface with non-Honeywell control systems?
The 51304511-100 uses proprietary UCN protocol exclusively compatible with TDC 3000 architecture. For integration with third-party PLCs or SCADA systems, deploy Honeywell's protocol gateway modules that translate UCN messages to Modbus RTU or Ethernet/IP formats.

How does redundant operation affect network bandwidth allocation?
Both UCN paths carry identical message traffic simultaneously, providing full 5 Mbps capacity on each segment. Total system bandwidth remains 5 Mbps—redundancy enhances availability without increasing throughput. For applications requiring higher data rates, consider migrating to Honeywell's Fault-Tolerant Ethernet (FTE) platform.

What firmware upgrade procedures apply to installed modules?
Firmware updates require temporary network isolation and execute via serial console connection. The process takes approximately 15 minutes per module. Always upgrade redundant pairs sequentially to maintain system availability. Download firmware packages from Honeywell's secure support portal using your registered service account.

Are there environmental certifications for hazardous area installations?
Standard units carry UL/CSA approval for general industrial use. For Class I Division 2 hazardous locations, specify the -H suffix variant during ordering. ATEX/IECEx certifications available for Zone 2 installations in European and international markets.

How do I verify network performance after installation?
Use Honeywell's Station Manager software to monitor real-time statistics including token rotation time, message retry rates, and signal quality metrics. Baseline measurements should show token circulation under 50ms with zero CRC errors. Persistent retries indicate cable faults or termination issues requiring immediate attention.

Ready to Enhance Your DCS Network Reliability?

Our industrial automation specialists are available to discuss your specific TDC 3000 configuration and recommend optimal network architecture. Contact us for detailed technical specifications, compatibility verification, or to request a formal quotation. Expedited shipping ensures your critical infrastructure upgrades proceed on schedule.
