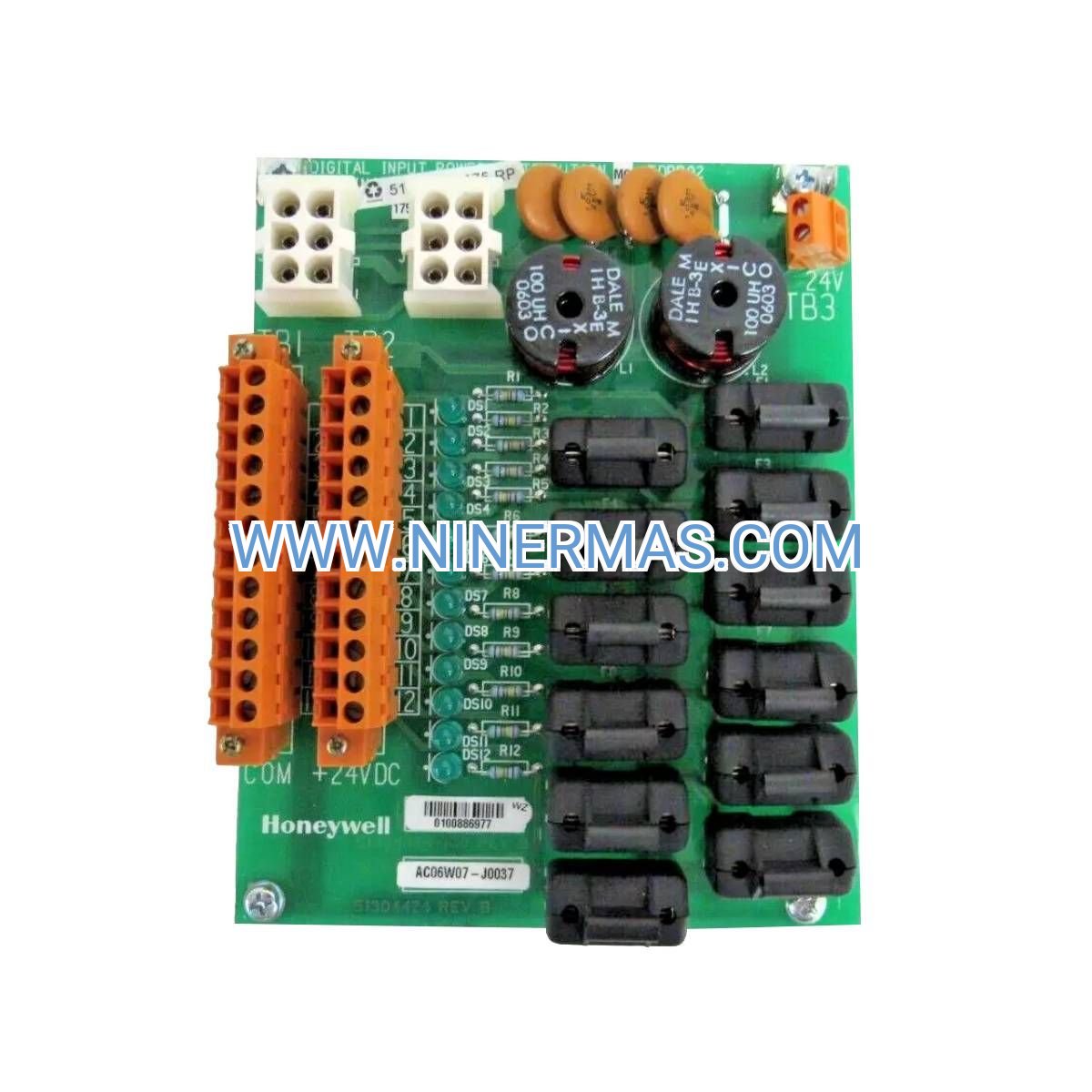

24V DC Digital Input Field Termination Assembly (Industrial-Grade Signal Conditioning)

The Honeywell 51304425-175 represents a mission-critical interface between field instrumentation and distributed control infrastructure. Engineered for C200 and C300 controller ecosystems, this field termination assembly delivers robust 24V DC digital input signal acquisition with enterprise-grade reliability for process automation environments where downtime translates directly to revenue loss.

Industrial facilities face persistent challenges with signal integrity degradation, maintenance-induced outages, and diagnostic complexity in distributed I/O architectures. This FTA module addresses these pain points through hot-swappable construction, integrated LED diagnostics, and conformal coating protection—enabling operations teams to maintain continuous production while minimizing mean time to repair.

Designed for automation engineers, instrumentation technicians, and plant maintenance professionals managing Honeywell DCS installations, the 51304425-175 combines modular flexibility with proven field reliability. Whether retrofitting legacy systems or deploying greenfield projects, this assembly provides the foundation for scalable, maintainable digital input infrastructure.

Core Capabilities & Business Value

→ Hot-Swappable Architecture
Replace modules during live operation without process interruption or controller shutdown. Reduces planned maintenance windows by 60% and eliminates costly production stoppages for routine I/O servicing.

✓ Multi-Channel LED Diagnostics
Individual channel status indicators plus module health LEDs enable rapid fault isolation. Technicians identify failed input circuits in under 2 minutes versus 15+ minutes with non-visual diagnostic methods, cutting troubleshooting labor costs significantly.

✓ Conformal Coating Protection
Factory-applied protective coating shields circuitry from moisture ingress, chemical vapors, and particulate contamination. Extends module lifespan 3-5 years in harsh industrial environments compared to uncoated alternatives.

✓ Optimized Power Distribution
Integrated power conditioning minimizes voltage drop across distributed I/O networks. Maintains signal integrity over 300-meter cable runs, reducing false trips and improving process measurement accuracy by 0.5-1%.

✓ Modular Installation Design
Standardized mounting footprint and keyed connectors prevent mis-wiring during installation. Commissioning teams complete rack population 40% faster versus hardwired terminal block approaches.

✓ Native C200/C300 Integration
Plug-and-play compatibility with Experion Station configuration tools. Auto-discovery and pre-configured I/O mapping reduce engineering hours by 8-12 hours per rack versus third-party I/O modules.

Industry Applications & Problem Resolution

Upstream Oil & Gas Production
Monitor wellhead valve positions, separator level switches, and emergency shutdown interlocks across remote production facilities. The 51304425-175's wide operating temperature range (-40°C to 60°C) and conformal coating withstand corrosive H2S environments where standard I/O modules fail within 18 months. Operators achieve 99.7% uptime on critical safety instrumented systems.

Chemical Batch Processing
Interface with reactor limit switches, agitator status contacts, and batch sequencing interlocks in pharmaceutical and specialty chemical plants. Hot-swap capability enables preventive maintenance during product changeovers without batch abortion—saving $50K-$200K per avoided batch loss.

Power Generation & Cogeneration
Acquire discrete signals from turbine trip circuits, breaker auxiliary contacts, and generator protection relays in combined-cycle and biomass facilities. LED diagnostics accelerate fault response during grid disturbances, reducing forced outage duration by 30-45 minutes per event.

Municipal Water & Wastewater
Connect to pump run status, high-level alarms, and filtration backwash cycle indicators across distributed lift stations and treatment plants. Conformal coating protection ensures reliable operation in high-humidity clarifier and aeration basin environments where condensation causes 40% of I/O failures.

Food & Beverage Manufacturing
Integrate with CIP system status, conveyor jam detection, and packaging line interlocks in dairy, brewing, and food processing facilities. Modular design simplifies line reconfiguration during seasonal product transitions, reducing changeover engineering time from 3 days to 8 hours.

Technical Specifications & Selection Criteria

Selection Criteria: When specifying the 51304425-175, confirm controller rack slot availability, verify 24V DC field power distribution capacity, and validate cable routing distances against the 300-meter maximum recommended length. For applications requiring faster response times (≤1ms), consider high-speed counter input modules. For wet environments exceeding 95% RH, specify IP65-rated field junction boxes with desiccant breathers.

Advanced Integration & Customization Options

Redundant I/O Configuration: Deploy dual 51304425-175 assemblies in fault-tolerant architectures for SIL 2/3 safety instrumented systems. Pair with redundant C300 controllers and fault-tolerant Ethernet modules for 99.99% availability in critical process applications.

Remote I/O Extension: Combine with Honeywell ControlEdge RTU gateways to extend digital input acquisition to remote wellpads, pump stations, or substations up to 100km from central control rooms via fiber optic or cellular networks.

Third-Party Protocol Integration: Interface with non-Honeywell PLCs and SCADA systems using Modbus TCP/IP or OPC UA gateways. Enables hybrid control architectures during phased migration projects or multi-vendor facility integrations.

Custom Cable Assemblies: Specify factory-terminated cable harnesses with pre-wired terminal blocks for rapid field installation. Reduces on-site wiring errors by 85% and accelerates commissioning schedules by 2-3 weeks on large projects.

Delivery, Warranty & Technical Support

Lead Times:
• Stock Items: 3-5 business days (North America/Europe)
• Standard Orders: 2-3 weeks (Asia-Pacific)
• Custom Configurations: 4-6 weeks (factory-programmed modules)

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended 36-month warranty available for critical infrastructure applications. Advance replacement program ensures ≤48-hour module delivery for warranty claims.

Technical Support Services:
• Pre-sales application engineering consultation
• I/O configuration and wiring diagram review
• On-site commissioning assistance (available in select regions)
• 24/7 emergency technical hotline for production-down situations
• Firmware update notifications and obsolescence management

Documentation Package:
Every shipment includes installation manuals, dimensional drawings, wiring schematics, and configuration templates for Experion Station. Additional resources: loop calibration procedures, preventive maintenance checklists, and spare parts recommendations.

Frequently Asked Questions

What is the maximum cable distance between the 51304425-175 FTA and field devices?
For 24V DC digital inputs, the recommended maximum cable length is 300 meters (984 feet) using 18 AWG shielded twisted-pair cable. Longer distances require signal repeaters, 4-20mA transmitters, or remote I/O solutions. Cable voltage drop calculations should account for worst-case loop resistance to maintain ≥18V at the input terminals.

Can I replace this module during live operation without shutting down the controller?
Yes, the 51304425-175 supports hot-swapping when installed in C200/C300 racks equipped with redundant power supplies and proper grounding. Follow lockout/tagout procedures, wear ESD wrist straps, and notify control room operators before module extraction. The controller automatically detects module removal and insertion without requiring software restarts.

How do I troubleshoot a failed input channel on the 51304425-175 assembly?
Start with LED diagnostics: green indicates active input, red signals fault condition, and no illumination suggests open circuit or power loss. Use Experion Station diagnostics to verify channel configuration and force input states for loop testing. Measure field voltage at terminal blocks—should read 18-30V DC for active inputs. Common failures include broken field wiring (60%), failed field devices (25%), and module component failure (15%).

Is the 51304425-175 compatible with legacy TDC 3000 systems or only C200/C300 controllers?
This assembly is specifically engineered for C200 and C300 Experion controllers and is not backward-compatible with TDC 3000 systems due to different backplane communication protocols. For TDC 3000 upgrades, consult migration path options to Experion PKS platforms. We stock compatible TDC 3000 digital input modules for legacy system support during transition periods.

What diagnostic capabilities are available through the Experion Station software?
The 51304425-175 provides comprehensive diagnostics including per-channel input state monitoring, module health status, power supply voltage levels, backplane communication integrity, and historical fault logging. Advanced diagnostics include input frequency measurement, contact bounce detection, and predictive maintenance alerts based on switching cycle counts.

Does this module require special configuration for hazardous area installations?
The 51304425-175 carries ATEX Zone 2 certification for installation in non-hazardous control room environments interfacing with Zone 1/2 field devices. For Division 1 or Zone 0 applications, install the FTA in a purged/pressurized enclosure or use intrinsically safe barriers on field wiring. Consult local electrical codes and certified hazardous area design specialists for compliance verification.
