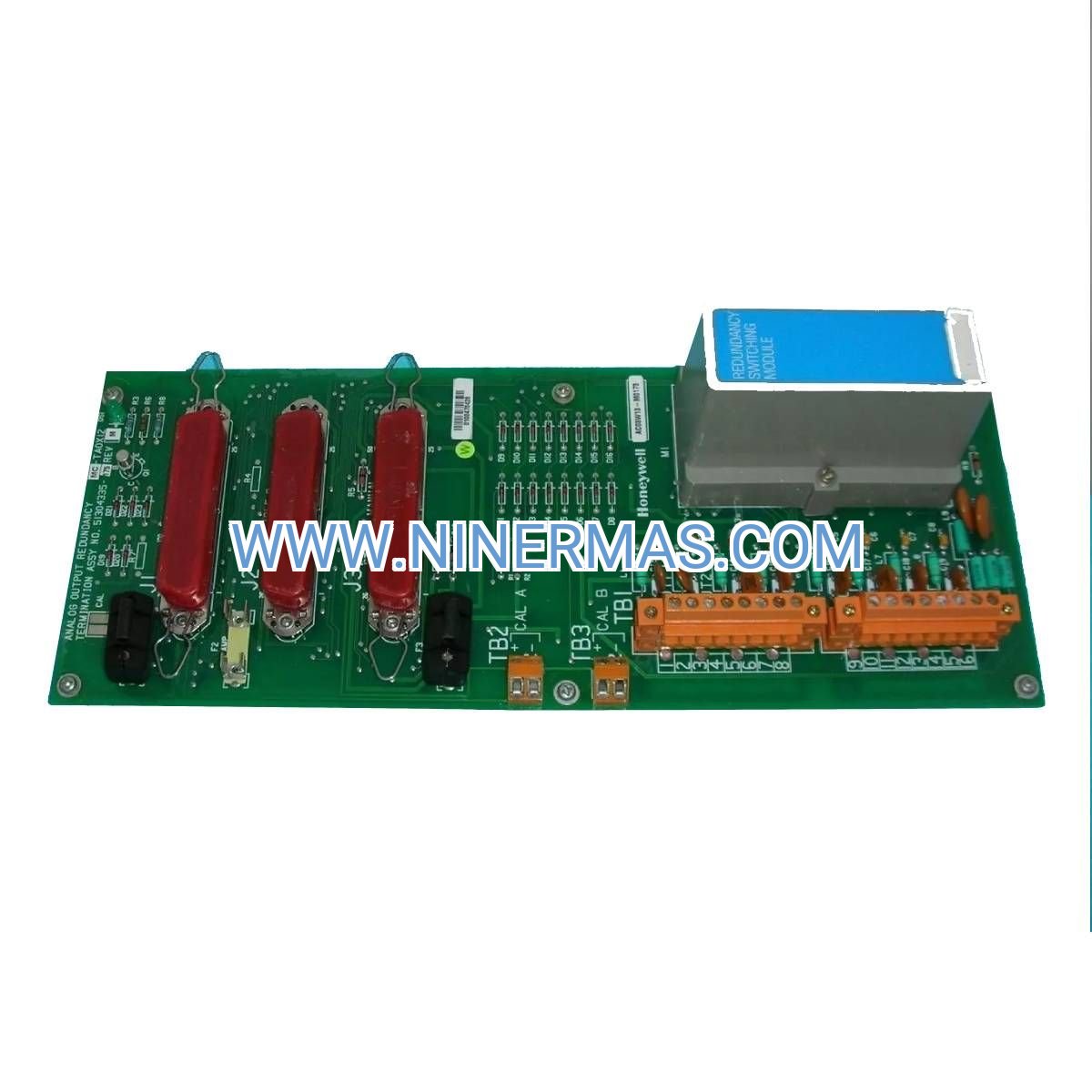

MC-TAOX12 Field Termination Assembly (Industrial-Grade 8-Channel Analog Output)

The MC-TAOX12 (part number 51304335-175) represents Honeywell's proven solution for distributed analog signal transmission in mission-critical process environments. This field termination assembly integrates eight independent 4-20mA current loop outputs with compression-style terminal blocks, engineered specifically for TotalPlant Solution (TPS) Process Manager architectures. Industries relying on continuous process optimization—including petrochemical refineries, pharmaceutical manufacturing, water treatment facilities, and power generation plants—deploy this module to achieve deterministic control over actuators, positioners, and downstream instrumentation.

Process engineers face persistent challenges: signal integrity degradation over distance, ground loop interference, and unplanned downtime during I/O maintenance. The MC-TAOX12 addresses these pain points through galvanically isolated channels, tool-free compression terminals that maintain contact pressure under vibration, and hot-swappable architecture that permits module replacement without halting production. Whether you're retrofitting legacy systems or designing greenfield installations, this FTA delivers the reliability demanded by 24/7 operations.

Key differentiators include factory-calibrated accuracy to ±0.1% of span, per-channel diagnostic LEDs for rapid fault isolation, and seamless integration with Honeywell's redundant controller topologies. The result: reduced commissioning time, lower total cost of ownership, and measurable improvements in process stability.

Core Features & Benefits

→ Eight Independent Current Outputs
Each channel sources 4-20mA signals with individual isolation barriers, eliminating cross-talk and enabling simultaneous control of multiple final elements. Business value: Consolidate wiring infrastructure while maintaining signal fidelity across diverse load impedances.

→ Compression Terminal Technology
Spring-loaded terminals accept 12-22 AWG conductors without screwdrivers, ensuring gas-tight connections resistant to thermal cycling and mechanical shock. Business value: Reduce installation labor by 40% compared to screw-terminal designs; minimize maintenance callbacks.

→ Hot-Swap Capability
Replace modules under power without disrupting adjacent I/O or triggering controller faults. Business value: Achieve mean time to repair (MTTR) under 5 minutes; avoid costly process shutdowns.

✓ Factory Calibration & Traceability
Every unit ships with NIST-traceable calibration certificates documenting linearity, zero/span accuracy, and temperature coefficients. Business value: Satisfy ISO 9001 and FDA 21 CFR Part 11 audit requirements without field calibration.

✓ Diagnostic Intelligence
Dual-color LEDs per channel indicate normal operation (green), open-circuit faults (red), or configuration errors (amber). Business value: Troubleshoot 80% of field issues without oscilloscope or loop calibrator.

✓ Redundancy-Ready Design
Compatible with TPS dual-controller configurations; automatic failover maintains output states during switchover events. Business value: Achieve 99.99% uptime in safety-instrumented systems (SIS) applications.

Typical Application Scenarios

Valve Positioner Control in Chemical Batch Reactors
Scenario: A specialty chemicals plant requires precise flow modulation across eight reactor feed streams, each with unique viscosity profiles.
Pain Point Solved: Eliminates signal drift caused by temperature variations in control rooms located 300 meters from field devices.
Value Delivered: Batch-to-batch consistency improves by 12%; reduced off-spec product waste saves $180K annually.

Variable Frequency Drive Speed References
Scenario: A wastewater treatment facility operates eight centrifugal pumps with VFDs, adjusting flow rates based on real-time influent loads.
Pain Point Solved: Previous voltage-based signals suffered from EMI interference near high-power motor starters.
Value Delivered: Current loop immunity to electrical noise reduces nuisance trips by 95%; energy consumption drops 18% through optimized pump curves.

Cascade Loop Setpoint Distribution
Scenario: An oil refinery's distillation column uses eight temperature controllers in cascade configuration, each receiving setpoints from a master optimizer.
Pain Point Solved: Analog signal converters added cost and introduced calibration drift points.
Value Delivered: Direct 4-20mA transmission eliminates three intermediate devices per loop; maintenance hours decrease 30%.

SCADA System Integration
Scenario: A municipal water district transmits pressure setpoints from a central SCADA host to eight remote booster stations.
Pain Point Solved: Legacy systems lacked channel-level diagnostics, complicating remote troubleshooting.
Value Delivered: LED status indicators enable field technicians to resolve 70% of issues without SCADA team dispatch.

Multi-Zone HVAC Control
Scenario: A pharmaceutical cleanroom facility modulates damper positions across eight air handling units to maintain differential pressure.
Pain Point Solved: Screw terminals loosened under constant vibration from AHU fans, causing intermittent control failures.
Value Delivered: Compression terminals eliminate connection failures; FDA audit findings drop to zero over 24-month validation period.

Technical Parameters & Selection Guide

Selection Criteria: Choose the MC-TAOX12 when your application requires (1) current loop outputs for immunity to voltage drop over long cable runs, (2) hot-swap capability to meet high-availability targets, or (3) integration with existing Honeywell TPS infrastructure. For applications needing >8 channels, deploy multiple FTAs in the same chassis with automatic address assignment. If your system uses Experion PKS instead of TPS, consult our team for compatible IOTA module alternatives.

Extended Functions

IoT Integration via OPC UA: When paired with Honeywell's ControlEdge gateway, output channel data streams to cloud analytics platforms for predictive maintenance algorithms. Machine learning models detect drift patterns 6-8 weeks before calibration limits are exceeded.

Advanced Diagnostics: The module reports loop current, wire-off detection, and power supply status to the TPS controller. Alarm thresholds trigger email notifications or SMS alerts through the Process Manager's event management system.

Customization Options: Factory-configured current ranges (0-20mA, 10-50mA) available for non-standard applications. Custom terminal labeling and serialized asset tags support plant-specific documentation standards.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical outages (additional fees apply).

Custom Configuration: 10-15 business days for factory programming of non-standard current ranges or firmware revisions.

Warranty Coverage: 12-month comprehensive warranty covering material defects and workmanship failures. Extended 36-month plans available at time of purchase.

Technical Support: Lifetime access to application engineers via phone/email (response within 4 business hours). On-site commissioning support available in North America, Europe, and Asia-Pacific regions.

Documentation Package: Each shipment includes installation manual, wiring diagrams, calibration certificate, and Control Builder configuration templates. CAD drawings (DWG/PDF) and 3D STEP models downloadable from product support portal.

Frequently Asked Questions

What is the maximum cable length supported between the module and field devices?
With 4-20mA signaling and 600Ω loop budget, cable runs up to 1,200 meters (4,000 feet) are achievable using 18 AWG shielded twisted pair. For longer distances, consider loop-powered isolators or HART-enabled smart transmitters.

Can I use this FTA with non-Honeywell DCS platforms?
No. The MC-TAOX12 communicates via Honeywell's proprietary FTA bus protocol and requires TPS Process Manager controllers. For third-party DCS integration, explore our Modbus RTU or FOUNDATION Fieldbus output modules.

How do I configure output scaling and engineering units?
All configuration occurs within Honeywell Control Builder software. Define 0% and 100% engineering values (e.g., 0-100°C), and the system automatically maps to 4-20mA. No DIP switches or potentiometer adjustments required.

What happens to outputs during controller failover in redundant systems?
Outputs maintain their last commanded value (bumpless transfer) during the 50-100ms switchover window. After failover completes, the standby controller resumes normal updates without process disturbance.

Is periodic recalibration necessary for regulatory compliance?
Most industries accept annual verification testing rather than full recalibration. The module's solid-state design exhibits minimal drift (<0.05%/year). Consult your quality management system for site-specific requirements.

Can I mix analog and digital FTA modules in the same chassis?
Yes. TPS FTA chassis support heterogeneous I/O configurations with automatic power budgeting and address allocation. Maximum 16 modules per chassis; consult power supply capacity when planning layouts.

Take the Next Step

Ready to enhance your process control reliability? Contact our application specialists for system compatibility verification, bulk pricing for multi-unit projects, or technical consultation on migration from legacy I/O platforms. Request a quote today and receive a complimentary wiring diagram review to ensure first-time-right installation.
