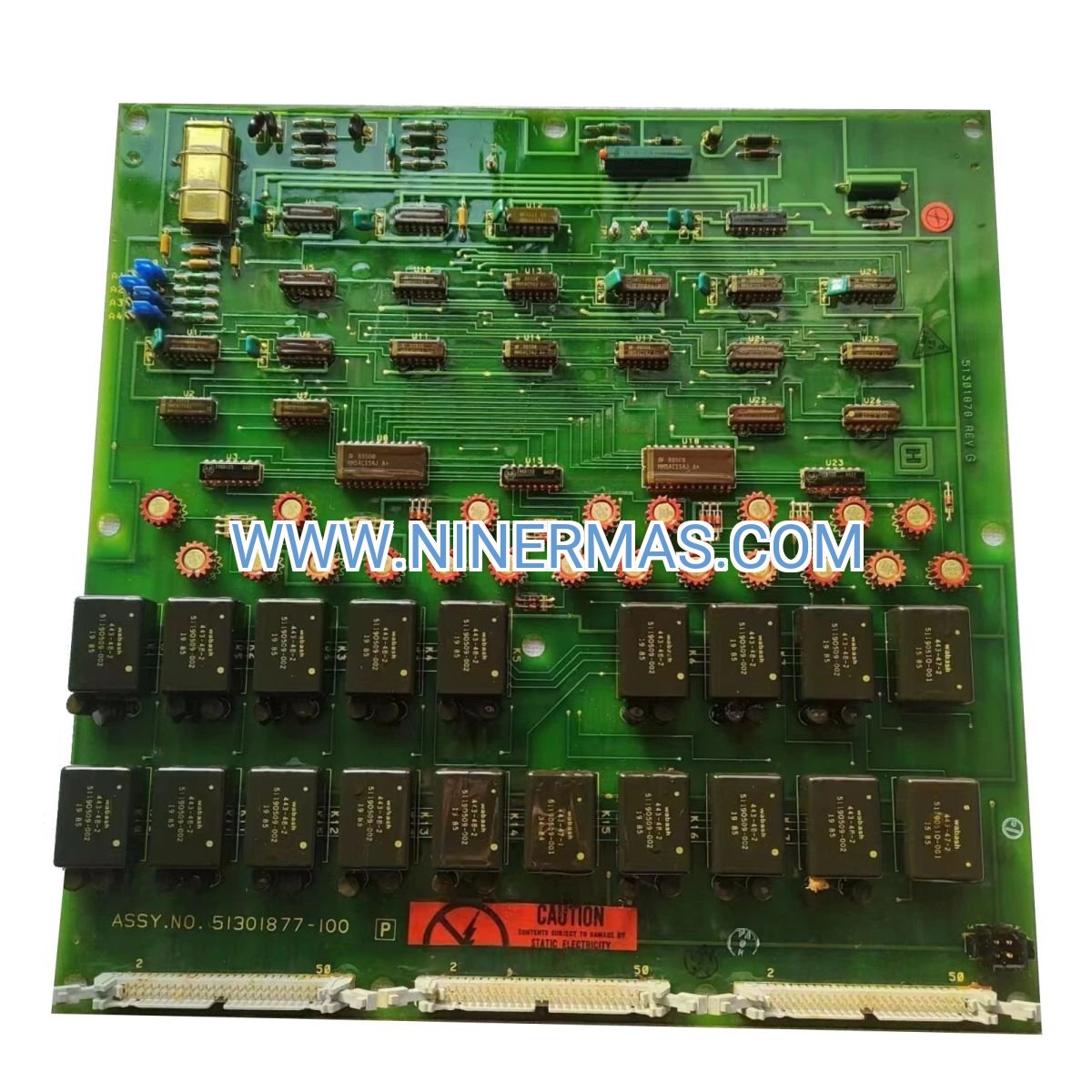

Honeywell 51301877-100 – Industrial-Grade Analog Output FTA for TDC 3000 DCS

The Honeywell 51301877-100 Field Termination Assembly represents a critical interface component within TDC 3000 distributed control architectures, converting digital control signals into precise 4-20mA analog outputs for actuator positioning, valve modulation, and variable frequency drive control. Engineered with 12-bit resolution and ±0.1% accuracy across eight independent channels, this FTA module ensures deterministic process control in mission-critical industrial environments where signal integrity directly impacts product quality, safety compliance, and operational efficiency.

Designed for process engineers, automation integrators, and plant maintenance teams managing legacy TDC 3000 infrastructure, the 51301877-100 addresses the challenge of maintaining reliable analog output capabilities in aging DCS installations. Whether you're executing brownfield modernization projects, expanding existing control loops, or maintaining spare parts inventory for unplanned failures, this genuine Honeywell component delivers the performance consistency and system compatibility your operations demand.

With channel-to-channel isolation, robust EMI immunity, and proven compatibility across TDC 3000 platform generations, the 51301877-100 FTA minimizes integration risk while maximizing uptime. Factory-calibrated and ready for immediate deployment, this module reduces commissioning time and eliminates field calibration uncertainties that can delay project completion.

Core Features & Technical Advantages

→ Eight Independent 4-20mA Output Channels – Supports simultaneous control of multiple field devices from a single module, reducing cabinet space requirements and simplifying wiring infrastructure while maintaining complete channel isolation for fault containment.

→ 12-Bit Digital-to-Analog Conversion – Delivers 4096 discrete output steps across the 4-20mA range, providing the resolution necessary for precise valve positioning, smooth motor speed control, and accurate setpoint tracking in demanding process applications.

→ ±0.1% Full-Scale Accuracy – Maintains tight control tolerances essential for pharmaceutical batch processing, chemical reactor temperature control, and other applications where output precision directly impacts product specifications and regulatory compliance.

✓ Channel-to-Channel & Channel-to-Bus Isolation – Prevents ground loop formation and cross-channel interference, ensuring that a fault on one output circuit cannot propagate to adjacent channels or compromise backplane communication integrity.

✓ Wide Operating Temperature Range (0-60°C) – Supports installation in non-climate-controlled environments including field junction boxes, remote marshalling cabinets, and industrial control rooms without supplemental cooling requirements.

✓ Integrated Diagnostic Capabilities – Provides real-time fault detection including open circuit alarms, short circuit protection, and out-of-range condition reporting, enabling predictive maintenance strategies and reducing mean time to repair during troubleshooting.

Industrial Application Scenarios

Oil & Gas Production Facilities – Deploy the 51301877-100 for wellhead choke valve control, separator level regulation, and compressor anti-surge valve positioning where analog output reliability directly impacts production optimization and equipment protection. The module's isolation architecture prevents electrical noise from variable frequency drives and high-power switching equipment from corrupting control signals.

Chemical Process Manufacturing – Utilize this FTA for reactor temperature cascade control, distillation column reflux ratio adjustment, and feed rate modulation in continuous and batch chemical production. The ±0.1% accuracy specification supports tight process control windows required for consistent product quality and yield optimization.

Power Generation & Utilities – Implement the 51301877-100 for boiler combustion air damper control, feedwater flow regulation, and turbine governor setpoint generation in coal-fired, gas-fired, and combined-cycle power plants. The module's proven reliability in high-availability applications minimizes forced outage risk.

Pharmaceutical & Biotechnology – Apply this analog output module for bioreactor pH control, fermentation temperature regulation, and clean-in-place (CIP) chemical dosing where FDA 21 CFR Part 11 compliance and batch record integrity depend on accurate, traceable control signal generation.

Water & Wastewater Treatment – Control chemical feed pumps, aeration blower speeds, and filter backwash valve sequences using the 51301877-100's reliable 4-20mA outputs, supporting compliance with discharge permit limits and optimizing energy consumption in municipal and industrial treatment facilities.

Technical Specifications & Selection Criteria

Selection Guidelines: When specifying the 51301877-100, verify that your field devices operate within the 4-20mA standard and that loop resistance (including cable and device impedance) does not exceed 600Ω. For applications requiring higher loop resistance, consider loop-powered isolators or alternative output configurations. Ensure adequate ventilation around the module to maintain ambient temperatures within the 0-60°C operating range, particularly in densely populated control cabinets.

Extended Functionality & System Integration

Redundant Configuration Support – The 51301877-100 can be deployed in redundant pairs for high-availability applications, with automatic failover managed by TDC 3000 controller logic to ensure continuous process control during module replacement or failure scenarios.

Remote I/O Architecture Compatibility – Integrate this FTA into distributed I/O subsystems located near process equipment, reducing field wiring costs and improving signal quality by minimizing cable runs between the control room and field devices.

SCADA & HMI Integration – Output channel status, diagnostic alarms, and calibration data are accessible through TDC 3000 operator interfaces and can be forwarded to plant-wide SCADA systems via OPC, Modbus, or proprietary protocols for centralized monitoring and historical trending.

Custom Scaling & Linearization – Configure non-linear output curves and custom scaling parameters through TDC 3000 engineering tools to match specific actuator characteristics, valve trim profiles, or process requirements without external signal conditioning hardware.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 1-2 business days via express courier services with tracking. Typical transit time to major industrial centers: 3-7 business days depending on destination.

Custom Configuration: Factory-configured modules with pre-programmed parameters or special testing requirements: 2-3 weeks lead time. Contact our technical sales team for expedited processing options.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service to minimize downtime during failure events.

Technical Support: Unlimited access to application engineers experienced in TDC 3000 system integration, troubleshooting, and optimization. Support available via email, phone, and remote diagnostic sessions during business hours (extended coverage available).

Documentation Package: Each module ships with installation manual, wiring diagrams, dimensional drawings, and calibration certificates. Complete technical documentation library available for download including configuration guides and maintenance procedures.

Frequently Asked Questions

What is the maximum cable distance between the 51301877-100 FTA and field devices?
Standard 4-20mA current loops support cable runs up to 1000 meters (3280 feet) when using appropriate wire gauge (typically 18 AWG or larger) and shielded twisted-pair construction. Actual maximum distance depends on loop resistance budget and environmental noise conditions.

Can this analog output module be hot-swapped during system operation?
Hot-swap capability depends on your specific TDC 3000 configuration and controller firmware version. Consult system documentation and follow proper safety lockout procedures. Most installations require controlled shutdown of affected control loops before module replacement.

How does the 51301877-100 handle output channel failures or diagnostics?
The module continuously monitors each output channel for open circuit conditions, short circuits, and out-of-range current levels. Detected faults generate alarms visible on TDC 3000 operator displays and can trigger automated responses such as switching to backup control strategies or initiating safe shutdown sequences.

Is field calibration required after installing the 51301877-100 FTA?
All modules ship with factory calibration traceable to NIST standards. Field calibration is optional and typically performed only when application-specific accuracy requirements exceed factory specifications or when integrating with precision instrumentation requiring end-to-end loop verification.

What power supply voltage does the analog output module require?
The 51301877-100 receives operating power from the TDC 3000 backplane (typically 24VDC). Field loop power for the 4-20mA outputs is supplied externally, usually from dedicated loop power supplies rated at 24VDC with sufficient current capacity for all connected devices.

Does the module support HART communication protocol over the 4-20mA outputs?
Standard 51301877-100 modules provide conventional 4-20mA analog outputs without HART capability. For applications requiring digital communication superimposed on analog signals, consult Honeywell's HART-compatible I/O module offerings or implement external HART multiplexers.

Secure Your TDC 3000 Analog Output Solution Today

Maintain peak performance in your distributed control infrastructure with genuine Honeywell components backed by expert technical support and rapid global logistics. Request a detailed quotation, discuss application-specific requirements, or place your order through our streamlined procurement process.
