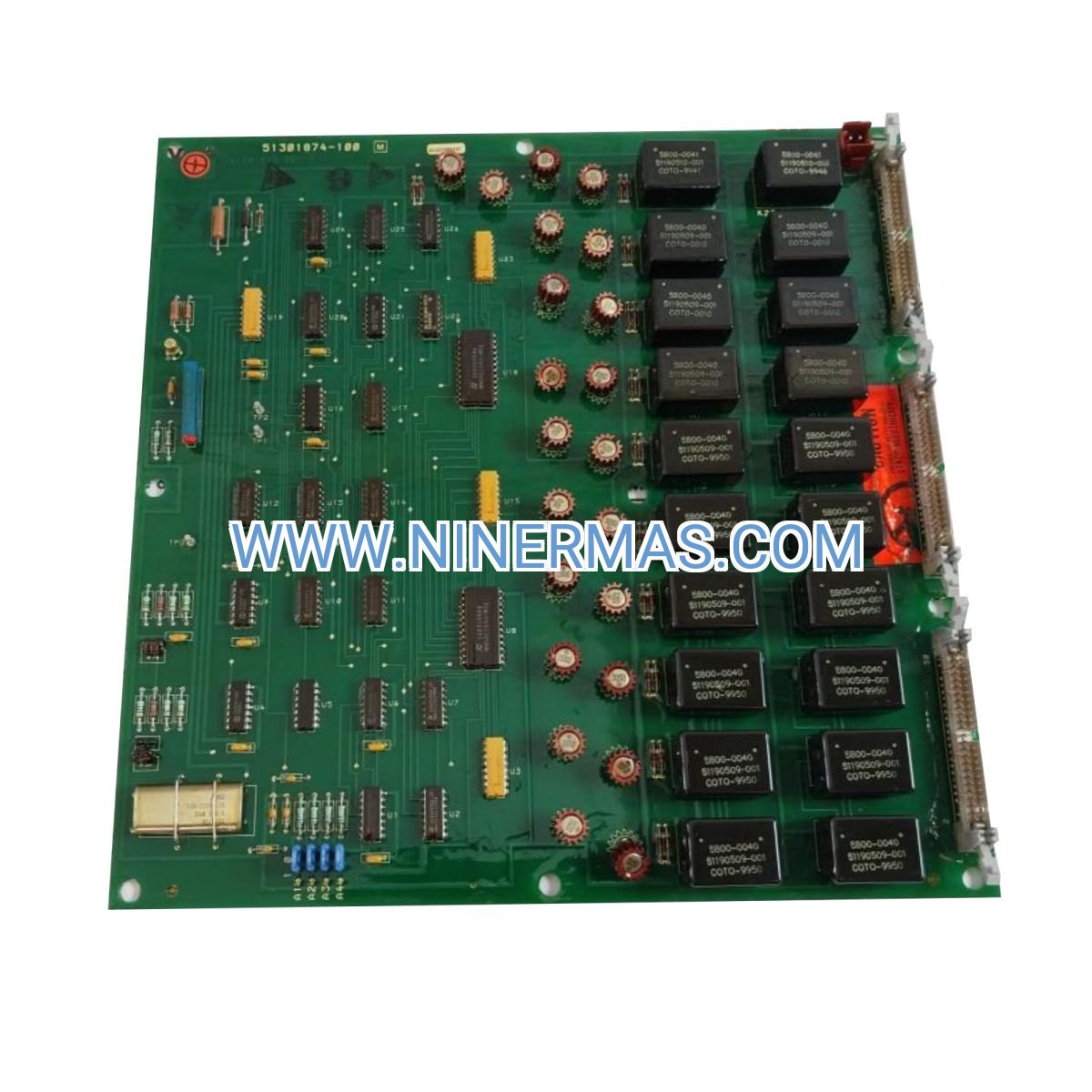

51301874-100 Thermocouple Multiplexer Board (Industrial-Grade Temperature Acquisition)

Designed for mission-critical temperature monitoring in TDC 2000 and TDC 3000 distributed control environments, the 51301874-100 Thermocouple Multiplexer Board provides high-density signal conditioning and multiplexing capabilities for industrial process applications. This field-proven module enables precise multi-point temperature measurement across petrochemical, power generation, and chemical processing facilities where thermal control accuracy directly impacts product quality, safety compliance, and operational efficiency.

Process engineers rely on this multiplexer board to consolidate multiple thermocouple inputs into a single chassis slot, reducing cabinet footprint while maintaining measurement integrity. With built-in cold junction compensation and automatic linearization for seven standard thermocouple types, the 51301874-100 eliminates external signal conditioning requirements and simplifies system commissioning. Whether you're upgrading legacy TDC 2000 installations or expanding existing TDC 3000 architectures, this module delivers the measurement reliability demanded by continuous process industries.

Backed by comprehensive technical documentation and 12-month warranty coverage, the 51301874-100 represents a cost-effective solution for facilities seeking to extend the service life of proven DCS platforms while maintaining compliance with industry temperature monitoring standards.

Core Features & Benefits

→ Multi-Type Thermocouple Compatibility
Accepts J, K, T, E, R, S, and B-type thermocouples with automatic type recognition and linearization, enabling flexible sensor selection based on temperature range and process media requirements. Reduces spare parts inventory by supporting mixed sensor configurations on a single board.

→ Integrated Cold Junction Compensation
On-board reference junction circuitry eliminates external ice-point references and compensates for terminal block temperature variations, ensuring ±0.5°C measurement accuracy across 0-60°C ambient conditions. Simplifies installation and reduces calibration maintenance.

→ High-Density Input Architecture
Multiplexed channel design maximizes I/O density within standard TDC chassis slots, reducing cabinet space requirements by up to 40% compared to individual input cards. Lowers installation costs and improves system scalability for large temperature monitoring applications.

✓ Seamless TDC Platform Integration
Direct compatibility with Process Manager, TDC 2000, and TDC 3000 control networks ensures plug-and-play installation without firmware modifications or custom configuration files. Maintains full diagnostic capabilities through standard system interfaces.

✓ Industrial Environmental Ratings
Qualified for 0-60°C operating temperatures with conformal coating protection against humidity, dust, and chemical vapors typical of process control environments. Meets NEMA and IEC standards for industrial control equipment reliability.

✓ Field-Proven Reliability
Based on decades of Honeywell DCS heritage with MTBF exceeding 100,000 hours in continuous process applications. Reduces unplanned downtime and maintenance costs through robust component selection and thermal management design.

Typical Application Scenarios

Refinery Distillation Column Profiling
Monitor 20-40 temperature points across distillation trays to optimize separation efficiency and product quality. The 51301874-100's high channel density reduces wiring complexity while maintaining the ±1°C accuracy required for advanced process control algorithms. Integrates with cascade control strategies to maximize throughput while minimizing energy consumption.

Chemical Reactor Safety Monitoring
Track exothermic reaction temperatures at multiple vessel locations to prevent thermal runaway conditions. Multiplexed inputs enable cost-effective redundant measurement architectures that meet SIL-rated safety instrumented system requirements when combined with appropriate voting logic and shutdown modules.

Power Plant Boiler Tube Temperature Surveillance
Continuously measure superheater and reheater tube metal temperatures to prevent catastrophic failures from overheating. The board's R and S-type thermocouple support accommodates high-temperature applications up to 1600°C, while fast scan rates enable early detection of abnormal thermal gradients.

Pharmaceutical Sterilization Validation
Document temperature uniformity during autoclave and dry heat sterilization cycles to satisfy FDA 21 CFR Part 11 compliance requirements. High-accuracy measurement with timestamped data logging supports validation protocols and batch record documentation for GMP-regulated manufacturing.

Food Processing Pasteurization Control
Ensure product safety by monitoring critical control points in HTST pasteurizers and retort systems. The multiplexer's ability to handle mixed thermocouple types accommodates both product and equipment temperature measurements within a single control loop, simplifying HACCP compliance documentation.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 51301874-100 when your application requires consolidation of multiple thermocouple inputs within existing TDC chassis infrastructure. This board is ideal for retrofits and capacity expansions where cabinet space is limited. For new installations requiring distributed I/O architectures, consider pairing with remote I/O modules. Verify thermocouple type compatibility with your process temperature ranges: Type K for general purpose (-200 to 1260°C), Type J for reducing atmospheres, Types R/S for high-temperature applications above 1000°C.

Extended Functions

Diagnostic Capabilities: Built-in self-diagnostics continuously monitor sensor integrity, detecting open circuits, short circuits, and out-of-range conditions. Alarm status integrates with TDC system diagnostics for centralized maintenance management and predictive failure analysis.

Calibration Management: Factory calibration data stored in non-volatile memory ensures measurement accuracy over the product lifecycle. Field verification procedures documented in technical manuals enable periodic accuracy checks without removing the board from service.

System Expansion Options: Modular architecture supports incremental capacity additions by installing additional multiplexer boards in available chassis slots. Hot-swap capability (chassis-dependent) enables maintenance without process shutdown in redundant configurations.

Legacy System Migration: Provides upgrade path for aging TDC 2000 systems by maintaining backward compatibility while enabling integration with modern SCADA and historian platforms through TDC 3000 network interfaces.

Delivery & Service Assurance

Lead Time: Stock items ship within 1-3 business days via express courier services. Custom configurations or large quantity orders may require 2-4 weeks; contact our sales team for project-specific scheduling.

Warranty Coverage: Comprehensive 12-month warranty protects against manufacturing defects and component failures under normal operating conditions. Warranty includes replacement parts and technical support for troubleshooting assistance.

Technical Support: Our application engineers provide pre-sale consultation for system design, configuration guidance, and compatibility verification. Post-sale support includes installation assistance, commissioning support, and ongoing troubleshooting via phone and email.

Documentation Package: Each unit ships with installation instructions, wiring diagrams, configuration parameters, and maintenance procedures. Complete technical manuals available for download from our support portal, including integration guides for common TDC system architectures.

Quality Assurance: All modules undergo functional testing and inspection prior to shipment. Test certificates and traceability documentation available upon request for applications requiring quality system compliance.

Frequently Asked Questions

How do I configure different thermocouple types on the same multiplexer board?
The 51301874-100 supports mixed thermocouple configurations through software-selectable channel parameters in the TDC configuration database. Each input channel can be independently programmed for thermocouple type, engineering units, and alarm limits using standard TDC configuration tools. Consult the system configuration manual for detailed programming procedures specific to your TDC platform version.

What is the maximum cable length for thermocouple connections to this board?
Typical installations support thermocouple extension wire runs up to 100 meters (330 feet) when using appropriate thermocouple-grade extension wire and proper shielding practices. Longer runs may be possible depending on electrical noise environment and measurement accuracy requirements. Follow Honeywell wiring guidelines for cable routing, grounding, and separation from power circuits.

Can this multiplexer board be used in redundant controller configurations?
Yes, the 51301874-100 integrates with redundant TDC 3000 controller architectures when installed in redundant I/O chassis configurations. Consult your system integrator or Honeywell representative for redundancy design guidelines specific to your application's availability requirements and safety integrity level targets.

Does the board require periodic recalibration for accuracy maintenance?
Factory calibration typically remains stable throughout the product's operational life under normal conditions. However, many facilities implement annual or biennial verification procedures as part of quality management systems or regulatory compliance programs. Verification can be performed using precision temperature simulators without removing the board from the chassis.

What are the power supply requirements for this module?
The 51301874-100 draws operating power directly from the TDC chassis backplane, eliminating the need for external power connections. Ensure your chassis power supply has adequate capacity for the total number of installed I/O modules. Refer to chassis specifications for maximum module loading and power budget calculations.

Is this board compatible with third-party DCS systems or only Honeywell platforms?
This multiplexer board is specifically designed for Honeywell TDC 2000, TDC 3000, and Process Manager DCS platforms and is not compatible with third-party control systems due to proprietary backplane communication protocols and configuration requirements. For non-Honeywell systems, contact us for alternative temperature input solutions.

Ready to Enhance Your Temperature Monitoring System?

Contact our industrial automation specialists today to verify compatibility with your specific TDC configuration, discuss quantity pricing for multi-unit projects, or request technical documentation. Our team is ready to support your temperature measurement requirements with expert application guidance and fast delivery.
