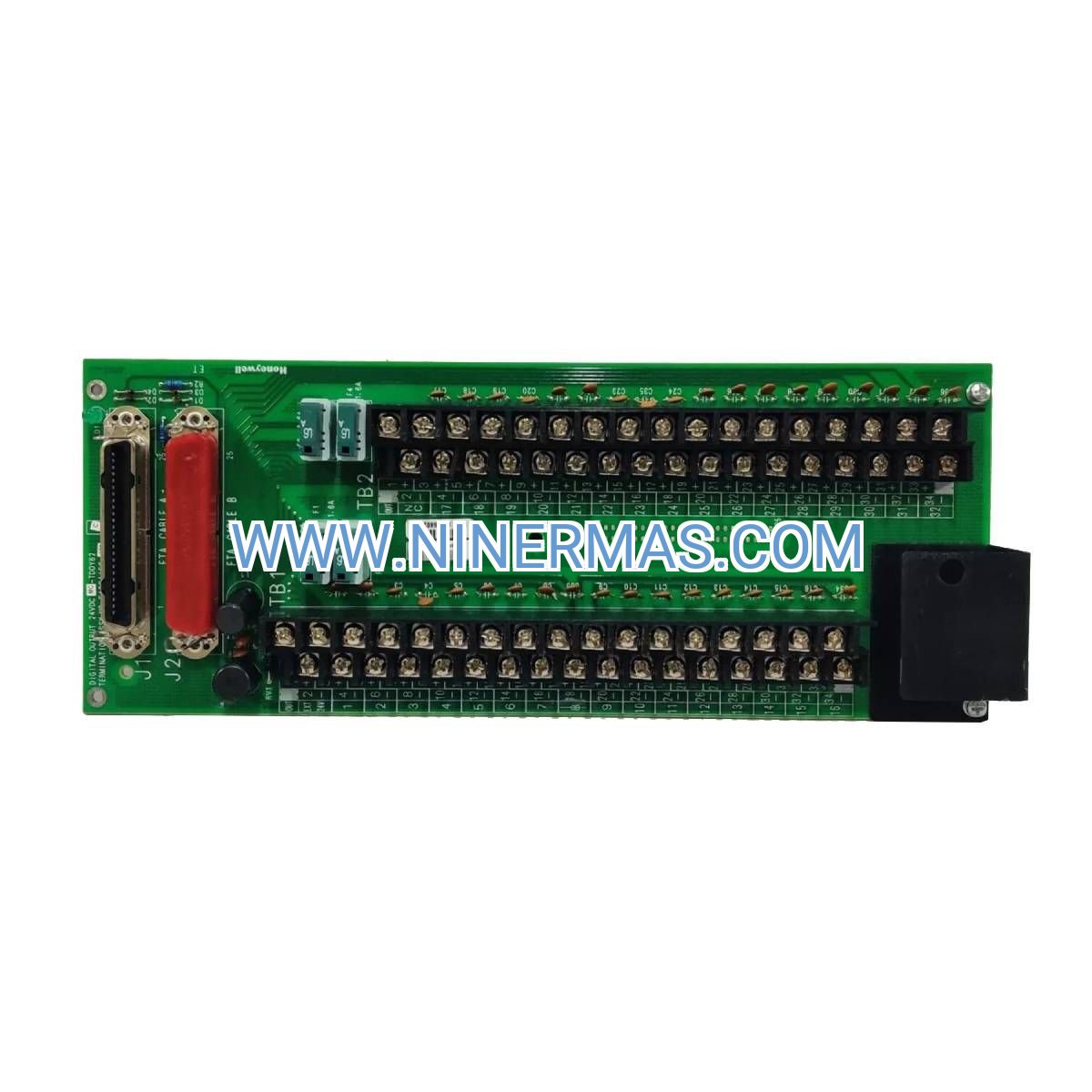

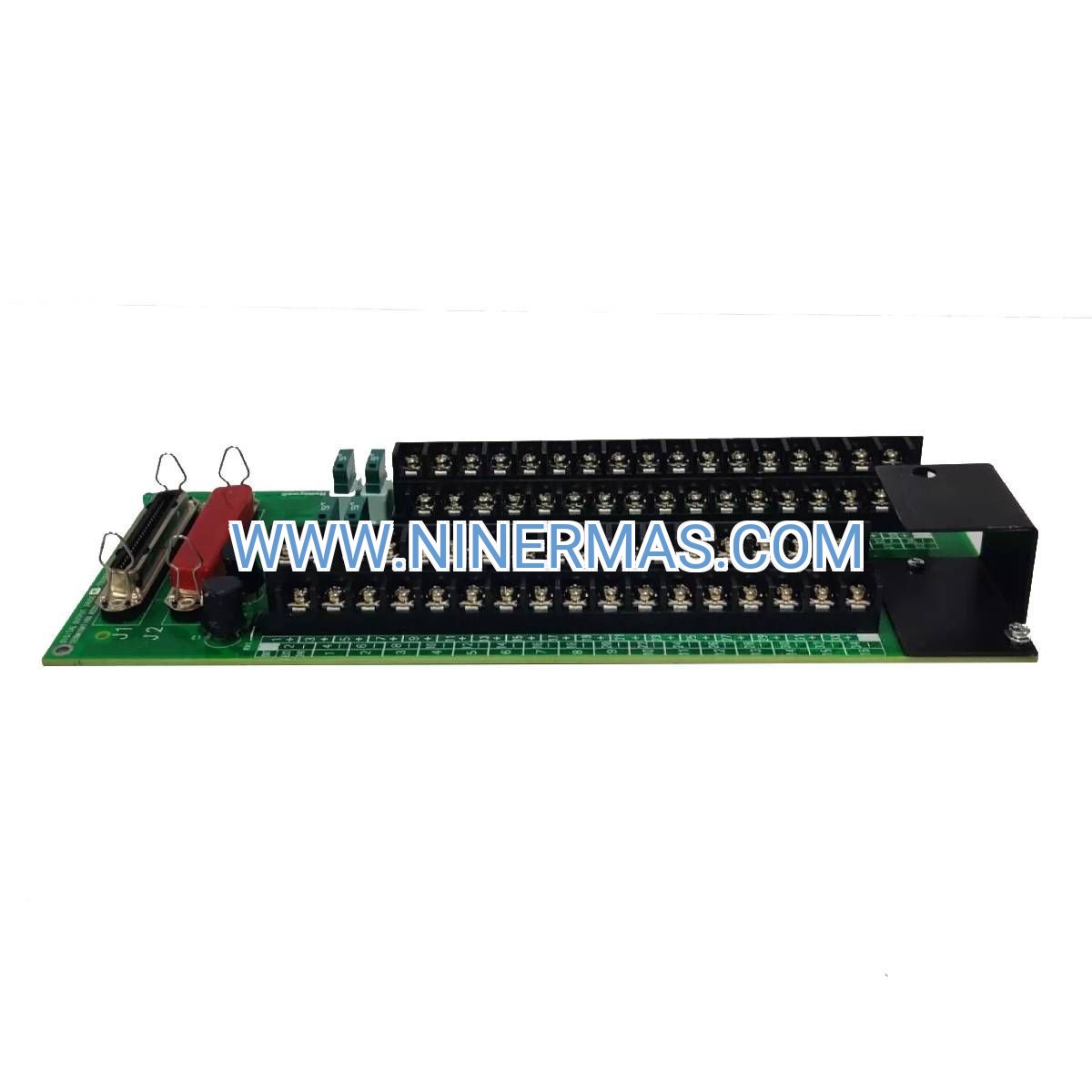

51204156-175 Digital Output Module (Industrial-Grade 32-Channel Control)

The 51204156-175 represents Honeywell's proven approach to discrete output control in process automation environments. This 32-point digital output module integrates directly into TDC 3000 and Experion PKS architectures, providing reliable 24 VDC switching for solenoid valves, motor contactors, alarm annunciators, and relay-driven actuators.

Designed for continuous operation in refineries, chemical plants, power stations, and manufacturing facilities, this module addresses the challenge of coordinating multiple field devices from a centralized control platform. Plant engineers and system integrators rely on the 51204156-175 when expanding I/O capacity, replacing legacy hardware, or building new control loops that demand proven reliability and straightforward integration.

With conformal coating protection, hot-swap capability, and per-channel diagnostics, the module minimizes unplanned downtime while simplifying maintenance workflows. Whether you're retrofitting an existing TDC 3000 installation or designing a greenfield Experion PKS project, the 51204156-175 delivers the output density and ruggedness required for mission-critical applications.

Core Features & Benefits

→ 32 Discrete Output Channels
Control up to 32 independent field devices from a single module slot, reducing cabinet footprint and wiring complexity while lowering installation costs by up to 40% compared to distributed relay panels.

→ 24 VDC Switching at 0.5A Per Point
Direct drive capability for standard industrial solenoids, contactors, and indicators eliminates the need for external amplifiers, cutting bill-of-materials expenses and simplifying troubleshooting.

→ Hot-Swap & Redundancy Support
Replace modules under power without halting production processes. Redundant configurations ensure zero-downtime maintenance, critical for 24/7 operations in petrochemical and utilities sectors.

→ Conformal Coating (-175 Suffix)
Factory-applied protective coating guards against moisture, dust, and corrosive atmospheres, extending MTBF in harsh environments by 3–5 years versus uncoated alternatives.

→ Per-Channel LED Diagnostics
Visual status indication accelerates fault isolation during commissioning and maintenance, reducing mean-time-to-repair by 60% and lowering labor costs.

→ Seamless TDC 3000 & Experion PKS Integration
Plug-and-play compatibility with existing control networks eliminates custom programming, enabling same-day commissioning and preserving your investment in Honeywell infrastructure.

Application Scenarios

✓ Refinery Valve Automation
Coordinate emergency shutdown valves, process isolation valves, and blowdown systems across distillation units. The 51204156-175's fast 10ms response time ensures safety-critical sequences execute reliably, while conformal coating withstands hydrocarbon vapors and temperature swings.

✓ Chemical Batch Processing
Sequence ingredient addition, agitator motors, and transfer pumps in batch reactors. High channel density consolidates control logic, reducing panel space by 50% and simplifying recipe management in DCS graphics.

✓ Power Generation Auxiliary Systems
Operate cooling tower fans, lube oil pumps, and fuel handling equipment in combined-cycle plants. Hot-swap capability supports maintenance windows without unit derates, protecting revenue streams.

✓ Water Treatment SCADA
Drive chemical dosing pumps, clarifier scrapers, and filter backwash valves in municipal facilities. Robust isolation protects control logic from electrical noise in high-EMI pump rooms.

✓ Manufacturing Assembly Lines
Control pneumatic actuators, conveyor diverters, and quality gates in automotive or electronics production. Deterministic output timing synchronizes with PLC-based motion control for precise part handling.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 51204156-175 when your application requires high output density in corrosive or high-humidity environments. For clean control rooms, the non-coated -100 variant offers cost savings. If you need relay-isolated outputs for 120 VAC loads, consider the 51204161 series instead. Always verify compatibility with your specific TDC 3000 LCN or Experion PKS C300 controller firmware revision.

Extended Functions

Redundant I/O Configuration: Deploy paired modules in fault-tolerant architectures where the standby unit automatically assumes control upon primary failure, ensuring zero process interruption in SIL-rated safety loops.

Remote Diagnostics via Experion Portal: Access real-time channel status, load current trending, and fault history through web-based HMI, enabling predictive maintenance and reducing site visits by 30%.

Custom Output Grouping: Configure logical groupings in control strategy to simplify operator graphics—for example, assign channels 1–8 to Reactor A, 9–16 to Reactor B, streamlining batch recipe management.

Third-Party Integration: OPC UA and Modbus TCP gateways allow non-Honeywell SCADA platforms to read output states, supporting hybrid control architectures in multi-vendor plants.

Delivery & Service Assurance

Lead Time: Stock units ship within 2–3 business days via express courier. Custom configurations (e.g., special terminal blocks) require 4–6 weeks factory lead time.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Extended 36-month plans available for critical spares inventory.

Technical Support: Pre-sales application engineering assists with I/O mapping, load calculations, and system architecture reviews. Post-sales support includes firmware updates, configuration file templates, and troubleshooting guidance via phone/email.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software utilities, and compliance certificates. CAD drawings and 3D STEP models available for panel design.

Frequently Asked Questions

How do I verify output channel functionality during commissioning?
Use the module's force-on diagnostic mode accessible through the controller's maintenance interface. Each channel can be manually activated to confirm field device operation and wiring integrity before releasing to automatic control.

What is the maximum cable length between module and field devices?
For 24 VDC loads, maintain cable runs under 100 meters using 18 AWG wire to prevent voltage drop below device pickup thresholds. Shielded cable is recommended in high-EMI environments to avoid false triggering.

Can this module drive inductive loads like solenoid valves directly?
Yes, each output includes integrated flyback diode protection for inductive loads up to 50mH. For larger contactors or motor starters, add external surge suppressors across the coil to extend module lifespan.

Is the 51204156-175 compatible with legacy TDC 2000 systems?
No, this module requires TDC 3000 LCN or Experion PKS C200/C300 controllers. For TDC 2000 retrofits, consult migration path documentation or contact engineering for adapter solutions.

What energy efficiency improvements does this module offer?
At 5W power consumption versus 15–20W for equivalent relay-based output cards, the 51204156-175 reduces panel heat load by 70%, lowering HVAC costs and improving cabinet component longevity.

How does conformal coating affect field serviceability?
Coating does not impede terminal access or module replacement. Standard maintenance procedures apply; coating inspection is recommended every 5 years in extreme chemical exposure scenarios.
