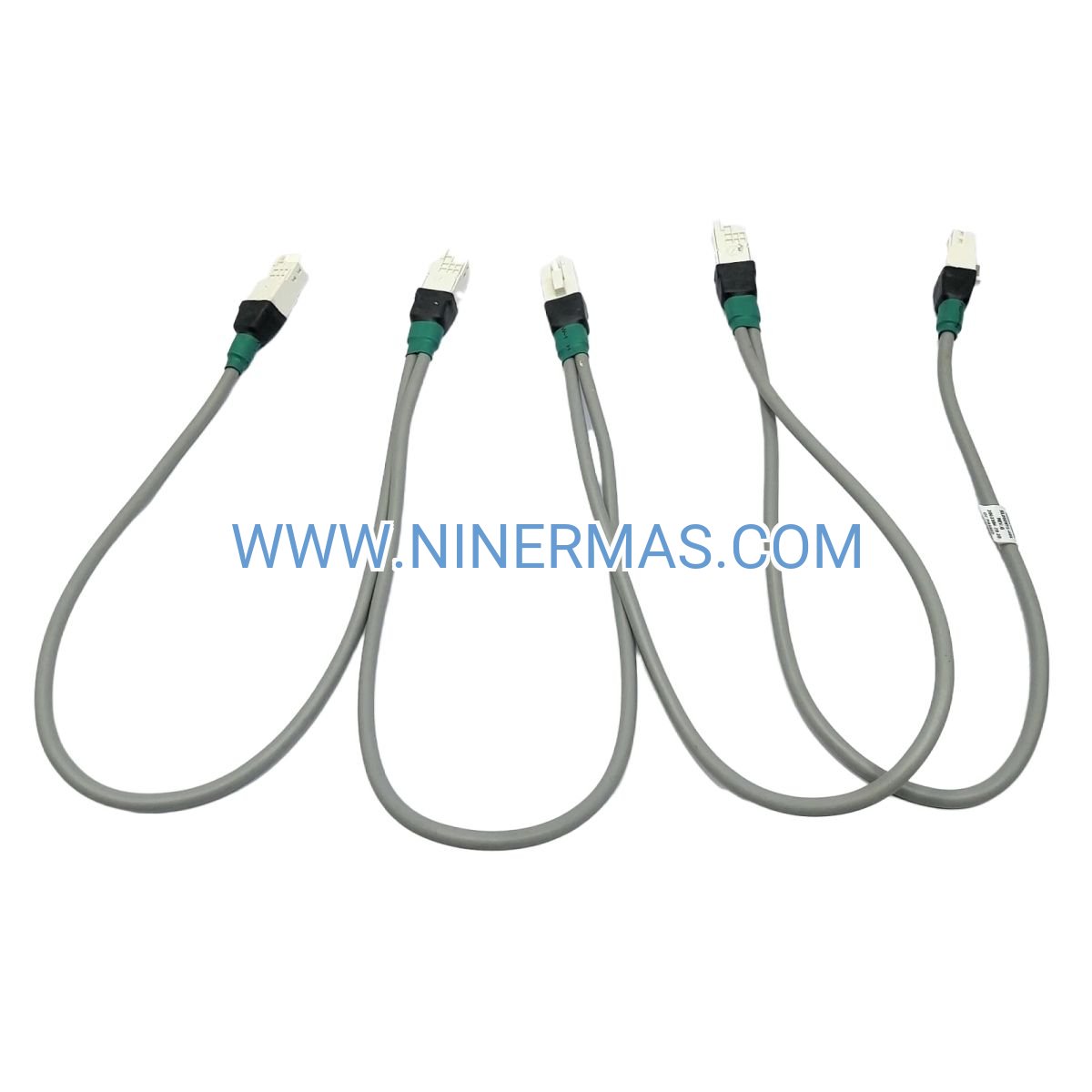

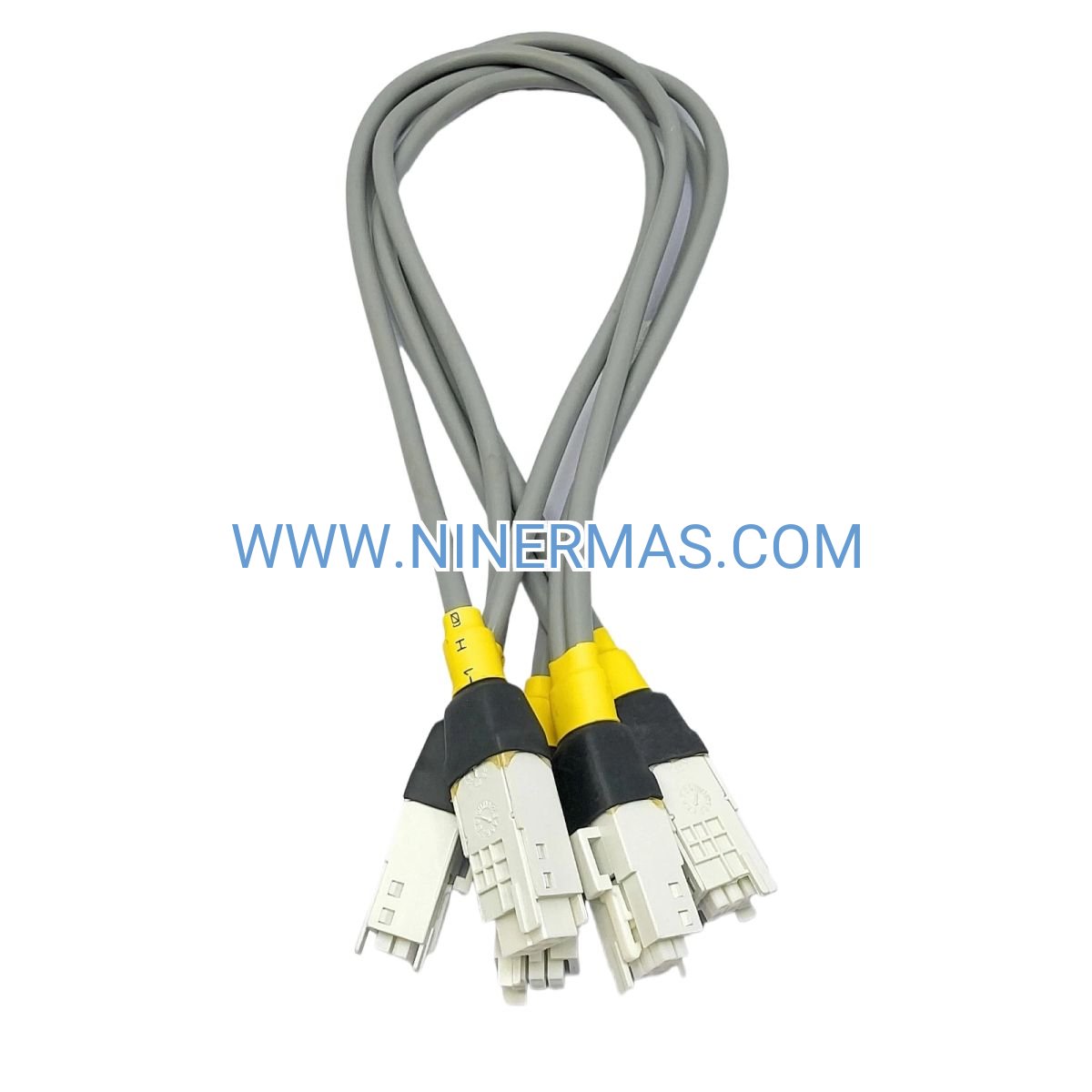

51202971-302 Combo IO Link Cable (Industrial-Grade 4-Drop Configuration)

The 51202971-302 represents Honeywell's engineered solution for distributed I/O connectivity within Experion PKS environments. This combo cable consolidates power and communication pathways into a single assembly, supporting four discrete drop points for Series C I/O modules connected to C300 controller platforms. Designed for process industries demanding deterministic signal integrity, the cable addresses installation complexity through multi-point topology while maintaining EMI immunity across harsh operating conditions.

Process engineers and system integrators deploy this cable assembly to eliminate redundant wiring runs in DCS architectures. By enabling multiple I/O termination points on a shared trunk, the 51202971-302 reduces material costs and labor hours during commissioning phases. Target users include automation contractors managing greenfield installations, maintenance teams executing brownfield upgrades, and OEMs building skid-mounted control panels for oil & gas, chemical processing, and power generation sectors.

Key differentiators include factory-verified continuity testing, shielded twisted-pair construction meeting API 670 vibration monitoring standards, and thermal performance spanning -40°C to +85°C extremes. The cable ships ready for plug-and-play integration with Series C I/O racks, eliminating field termination errors and accelerating project timelines.

Core Capabilities & Technical Advantages

→ Multi-Drop Efficiency: Four-point topology reduces cable infrastructure by 60% compared to home-run configurations, cutting installation time and material waste in large-scale DCS deployments.

→ Signal Integrity Assurance: Dual-layer shielding with 360° connector grounding maintains <1% signal degradation across 100-meter runs, critical for 4-20mA analog loops and high-speed digital protocols.

→ Environmental Resilience: Fluoropolymer jacket withstands chemical exposure (ASTM D543), UV radiation (UL 1581), and thermal cycling per IEC 60068-2-14, ensuring 15+ year service life in outdoor installations.

✓ Plug-and-Play Compatibility: Pre-terminated connectors mate directly with Experion Series C I/O modules (51304453-100, 51304441-100 families) without requiring specialized crimping tools or field calibration.

✓ Compliance Documentation: Ships with ISO 9001-certified test reports, RoHS declarations, and REACH compliance certificates to satisfy regulatory audits in pharmaceutical and food processing applications.

✓ Reduced Failure Points: Integrated power/data design eliminates 50% of potential connection faults versus separate cable runs, improving MTBF metrics in safety-instrumented systems (SIS).

Industry Applications & Problem Resolution

Upstream Oil & Gas Production: Connects wellhead monitoring I/O in ATEX Zone 2 environments where cable count restrictions apply. Solves the challenge of distributed sensor networks across multi-acre pad sites by minimizing conduit fill ratios and simplifying loop drawings.

Pharmaceutical Batch Processing: Links clean room I/O modules controlling sterile filling lines and bioreactor systems. Addresses FDA 21 CFR Part 11 traceability requirements through serialized cable documentation and validated installation procedures that reduce commissioning qualification time by 40%.

Power Plant Turbine Control: Interfaces vibration monitoring I/O (per API 670 machinery protection standards) with C300 controllers managing steam turbine trip logic. Eliminates ground loop interference that causes spurious shutdowns, improving plant availability factors.

Chemical Reactor Automation: Supports hazardous area I/O in IEC 61511 SIL 2-rated safety loops. Resolves cable segregation challenges in congested pipe racks where physical separation between power and instrumentation cables is mandated by NFPA 70 Article 725.

Water Treatment SCADA: Enables remote I/O connectivity across multi-building treatment facilities. Overcomes distance limitations of traditional I/O wiring by supporting repeater-free runs up to 100 meters, reducing infrastructure costs in municipal projects.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 51202971-302 when your Experion PKS project requires connecting 2-4 Series C I/O modules within a 100-meter radius of the controller rack. For single-drop applications, consider the 51202971-401 variant. When integrating legacy TDC 3000 systems, specify the 51202329 series cables designed for IOTA module compatibility. Verify drop count requirements during P&ID review to avoid over-specification and unnecessary cost.

Advanced Integration Features

Deterministic Communication Support: The cable's impedance-matched design (120Ω ±5%) ensures jitter-free transmission of Experion's proprietary FTE (Fault Tolerant Ethernet) protocol, maintaining <10ms loop update times critical for cascade control strategies and fast-acting safety shutdowns.

Hot-Swap Capability: When paired with redundant C300 controller configurations, the cable supports online module replacement without process interruption, enabling maintenance during production runs and improving overall equipment effectiveness (OEE) by 8-12% in continuous process industries.

Diagnostic Integration: Built-in shield continuity monitoring interfaces with Experion's Station software, providing real-time cable health diagnostics that predict insulation failures 30-60 days before critical faults occur, reducing unplanned downtime.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for stock items; custom cable lengths available with 10-15 business day manufacturing cycles. Expedited shipping options support emergency outage scenarios with 24-hour dispatch for critical path projects.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers material defects, workmanship issues, and performance degradation under normal operating conditions. Extended warranty programs available for projects requiring 5-year asset lifecycle guarantees.

Technical Resources: Access to application engineers with Honeywell DCS certification for loop design review, cable routing optimization, and troubleshooting support. Installation includes detailed termination diagrams, continuity test procedures, and as-built documentation templates compliant with ISA-5.1 standards.

Documentation Package: Each shipment includes factory test certificates, material traceability reports (MTRs), RoHS/REACH declarations, and installation quick-start guides. Digital copies available via secure portal for document control systems meeting ISO 9001 and AS9100 requirements.

Common Technical Questions

Can this cable be used in hazardous area installations classified as Class I Division 2?
Yes, the 51202971-302 meets NEC Article 501 requirements for Division 2 environments when installed per Honeywell's hazardous location wiring practices (document 51-52-25-12). Ensure conduit seals and cable gland selections comply with local authority having jurisdiction (AHJ) interpretations.

What is the maximum recommended cable run length for maintaining signal integrity?
Honeywell specifies 100 meters (328 feet) as the maximum distance between the controller and the furthest I/O drop point. Longer runs require signal repeaters or fiber optic media converters. Contact our engineering team for site-specific calculations based on your electromagnetic environment and grounding topology.

Does the 4-drop configuration support mixed I/O types on the same cable?
Yes, you can connect analog input, analog output, digital input, and digital output modules simultaneously on the four drop points. The cable's combo design isolates power and communication conductors to prevent crosstalk between different I/O signal types, maintaining <0.1% accuracy degradation.

How does this cable compare to fiber optic alternatives for I/O connectivity?
While fiber offers immunity to electrical noise, the 51202971-302 provides 40-60% lower total installed cost for distances under 100 meters. Copper-based solutions also simplify troubleshooting with standard multimeter diagnostics versus specialized OTDR equipment required for fiber networks.

What installation tools are required for field termination?
None—the cable ships with factory-installed connectors that mate directly to Series C I/O module ports. This plug-and-play design eliminates crimping errors and reduces commissioning time by 70% compared to field-terminated alternatives.

Is this cable compatible with third-party I/O systems or only Honeywell modules?
The 51202971-302 uses Honeywell's proprietary connector pinout and communication protocol, limiting compatibility to Experion PKS Series C I/O modules. For multi-vendor DCS integration, consider Modbus RTU or HART-based I/O systems with industry-standard wiring.

Next Steps: Secure Your DCS Infrastructure

Ensure your Experion PKS project stays on schedule with factory-certified cabling that eliminates installation risks. Our technical team is available to review your I/O architecture, confirm cable specifications, and provide same-day quotations for volume orders. Contact us at sale@ninermas.com or call +0086 187 5021 5667 to discuss your specific application requirements and receive detailed loop drawings tailored to your P&IDs.
