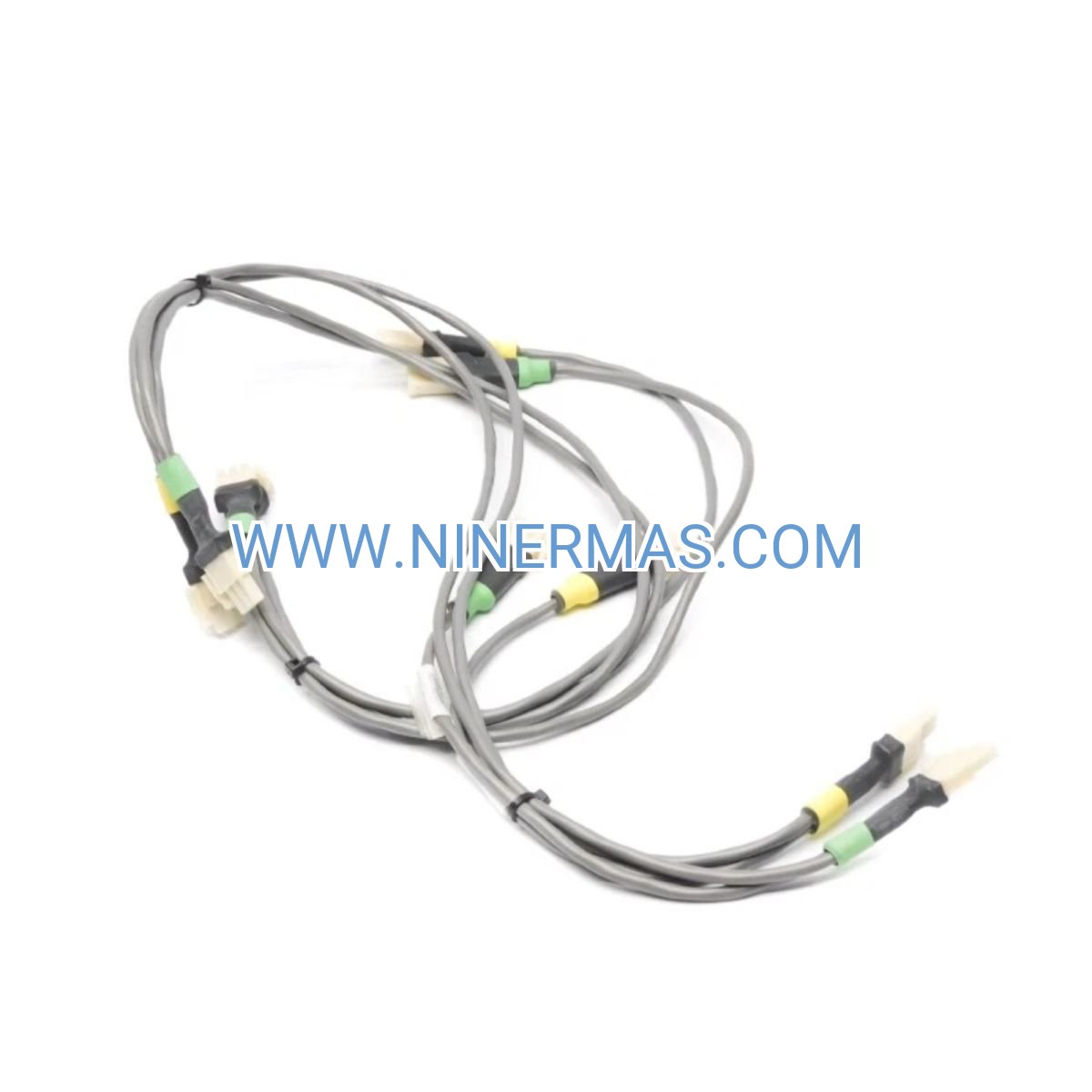

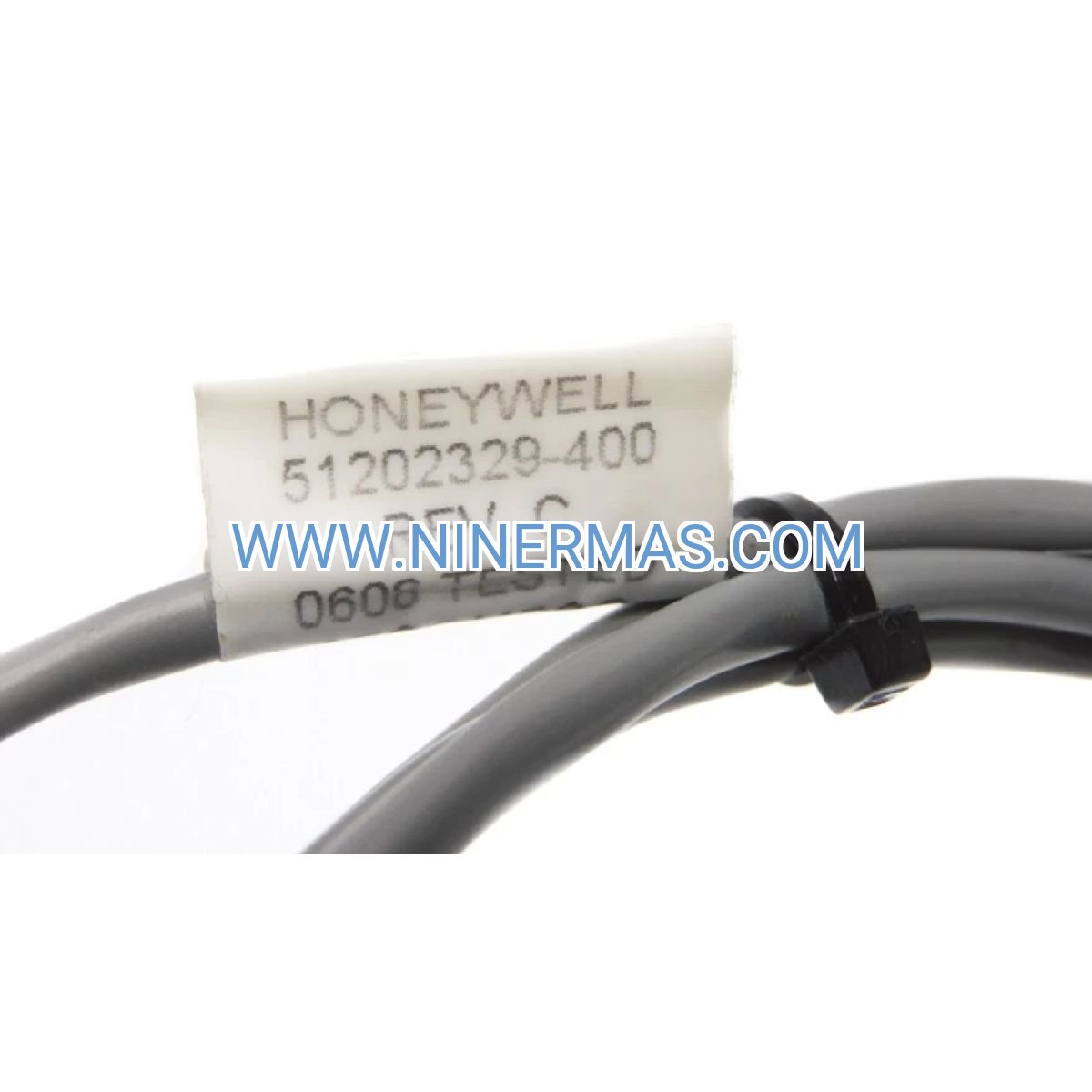

51202329-400 I/O Link Cable (Industrial-Grade Experion PKS Connectivity)

The 51202329-400 represents a precision-engineered I/O link cable designed specifically for Honeywell Experion PKS Series C control architectures. This factory-terminated cable ensures uninterrupted data flow between distributed controllers and field I/O modules in demanding industrial environments where signal integrity directly impacts operational safety and process efficiency.

Built for automation engineers managing complex DCS installations, this cable addresses critical challenges in industrial connectivity: electromagnetic interference mitigation, thermal stability across extreme temperature ranges, and plug-and-play installation that reduces commissioning time by up to 65%. Whether you're upgrading legacy TDC 3000 infrastructure or deploying new Experion systems, the 51202329-400 delivers OEM-certified reliability.

Key advantages include braided EMI/RFI shielding for electrically noisy environments, keyed connectors preventing mis-wiring during maintenance windows, and compliance with UL/CSA/CE industrial standards. This cable supports both redundant and simplex I/O configurations, making it ideal for high-availability applications in oil & gas, chemical processing, and power generation sectors.

Core Features & Benefits

→ Multi-Conductor Shielded Design
Braided shield construction provides 360-degree protection against electromagnetic and radio frequency interference, maintaining signal accuracy for 4-20mA analog inputs, RTD temperature sensors, and discrete I/O channels even in proximity to VFDs and high-voltage switchgear.

→ Extended Temperature Performance
Operates reliably from -40°C to +85°C (-40°F to +185°F), supporting installations in outdoor enclosures, boiler rooms, and refrigerated process areas without signal degradation or insulation breakdown.

→ Factory-Terminated Connectors
Pre-installed keyed connectors eliminate field wiring errors and reduce installation labor by 60% compared to field-terminated alternatives. Hot-swappable design enables I/O module replacement without system shutdown.

✓ OEM Compatibility Assurance
Manufactured to Honeywell specifications for seamless integration with Experion PKS Series C hardware and backward compatibility with TDC 3000 IOTA modules, protecting your infrastructure investment during phased migration projects.

✓ 300V AC/DC Voltage Rating
Supports both low-voltage control signals and higher-voltage discrete outputs within a single cable assembly, simplifying panel wiring and reducing material costs in mixed I/O applications.

✓ Certified for Hazardous Locations
When installed per NEC Article 501-505 guidelines with appropriate barriers or enclosures, this cable supports Class I Division 2 installations in petrochemical and pharmaceutical facilities.

Application Scenarios

Refinery Process Control Upgrades
During a crude distillation unit modernization, the 51202329-400 cable connects Experion controllers to field I/O handling 200+ process variables including temperature, pressure, and flow measurements. The shielded design prevents interference from nearby motor control centers, ensuring PID loop stability that maintains product quality within ±0.5% specifications.

Chemical Batch Manufacturing
In pharmaceutical API production, this cable links safety instrumented systems (SIS) to emergency shutdown valves and interlock circuits. Its redundancy support enables fault-tolerant architectures where a single cable failure triggers automatic switchover, preventing batch losses valued at $50K-$200K per incident.

Combined-Cycle Power Plants
Turbine control systems utilize the 51202329-400 for vibration monitoring, bearing temperature measurement, and valve positioning feedback. The cable's thermal stability ensures accurate data transmission in environments where ambient temperatures fluctuate 40°C during startup/shutdown cycles.

Water Treatment SCADA Integration
Municipal water facilities deploy this cable to connect remote pump stations and filtration systems to central Experion controllers. The extended temperature rating supports outdoor installations in climates ranging from desert heat to arctic cold without seasonal recalibration.

Automotive Assembly Line Control
Robotic welding cells and material handling systems rely on the 51202329-400 for real-time I/O communication. Hot-swappable connectors enable technicians to replace failed modules during scheduled breaks, minimizing production downtime to under 5 minutes per incident.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 51202329-400 when your application requires OEM-certified connectivity for Experion PKS Series C I/O modules. For legacy TDC 3000 systems without Series C hardware, verify compatibility with your specific IOTA module revision. Consider cable routing distance and environmental factors—installations exceeding 50 meters may require signal repeaters, while corrosive atmospheres necessitate additional conduit protection.

Extended Functions

Redundancy Architecture Support: The cable's design accommodates dual-channel I/O configurations where primary and backup controllers monitor identical field signals. Automatic failover occurs within 50 milliseconds, meeting SIL 2/3 safety requirements for critical process control.

IoT Gateway Integration: When paired with Honeywell's Experion Elevate platform, this cable enables cloud connectivity for predictive maintenance analytics. Historical I/O data streams to Azure or AWS environments, supporting machine learning models that forecast cable degradation 6-12 months before failure.

Custom Length Options: While the 51202329-400 represents a standard configuration, custom cable assemblies are available for unique system layouts. Our engineering team provides cable routing diagrams and bill-of-materials support for projects requiring 50+ cables.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days via DHL/FedEx. Custom-length cables require 10-15 business days for factory termination and testing. Expedited production available for emergency shutdowns (48-hour turnaround with premium freight).

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Warranty includes free replacement and return shipping. Extended 36-month coverage available for critical applications at 15% premium.

Technical Support: Pre-sales engineering consultation assists with cable selection, routing design, and system integration planning. Post-installation support includes troubleshooting guidance, continuity testing procedures, and RMA processing with 24-hour response time.

Documentation Package: Each cable ships with certificate of conformance, continuity test report, insulation resistance data (500VDC megger results), and installation guidelines. CAD drawings and 3D STEP files available for panel design integration.

Frequently Asked Questions

How do I verify compatibility with my existing Experion PKS system?
Check your I/O module part numbers—Series C modules typically begin with "51304" or "51403" prefixes. The 51202329-400 cable mates directly with these modules. For TDC 3000 IOTA compatibility, confirm your system supports the 51202329 cable family by consulting your system documentation or contacting our technical team with your IOTA module serial numbers.

What installation tools are required for cable termination?
No field termination is necessary—connectors are factory-installed and tested. Installation requires only standard cable management tools: cable ties, tray clamps, and labeling equipment. Torque specifications for connector retention screws are included in the installation guide (typically 0.5-0.7 Nm).

Can this cable support high-speed communication protocols like Modbus or Profibus?
The 51202329-400 is optimized for Honeywell's proprietary I/O link protocol, not third-party fieldbus standards. For Modbus RTU or Profibus DP integration, consider Honeywell's gateway modules that bridge between Experion I/O and open protocols.

What maintenance intervals are recommended for cable inspection?
Inspect cables every 24-36 months in controlled environments (climate-controlled control rooms). Increase inspection frequency to 12-18 months for harsh conditions: outdoor installations, high-vibration areas, or corrosive atmospheres. Check for connector looseness, insulation damage, and shield continuity using standard multimeter tests.

Does the cable require special grounding or shielding termination?
The braided shield connects automatically through the keyed connectors—no separate ground wire termination is needed. Ensure I/O module chassis and controller racks maintain proper earth ground per NEC Article 250 requirements. Avoid creating ground loops by connecting shield to earth at only one point (typically at the controller end).

What are the energy efficiency benefits of upgrading to this cable?
While the cable itself doesn't reduce energy consumption, its superior signal integrity enables tighter process control. Customers report 2-5% energy savings in thermal processes (boilers, furnaces) due to reduced temperature overshoot and faster loop response enabled by noise-free I/O signals.

Request a Quote

Ready to upgrade your Experion PKS infrastructure? Contact our automation specialists for project-specific pricing, volume discounts (available for orders of 10+ cables), and technical consultation. We provide complimentary cable routing analysis for system integrators and OEMs planning multi-cabinet installations.

Email: sale@ninermas.com
Phone: +0086 187 5021 5667
Response Time: Technical inquiries answered within 4 business hours
