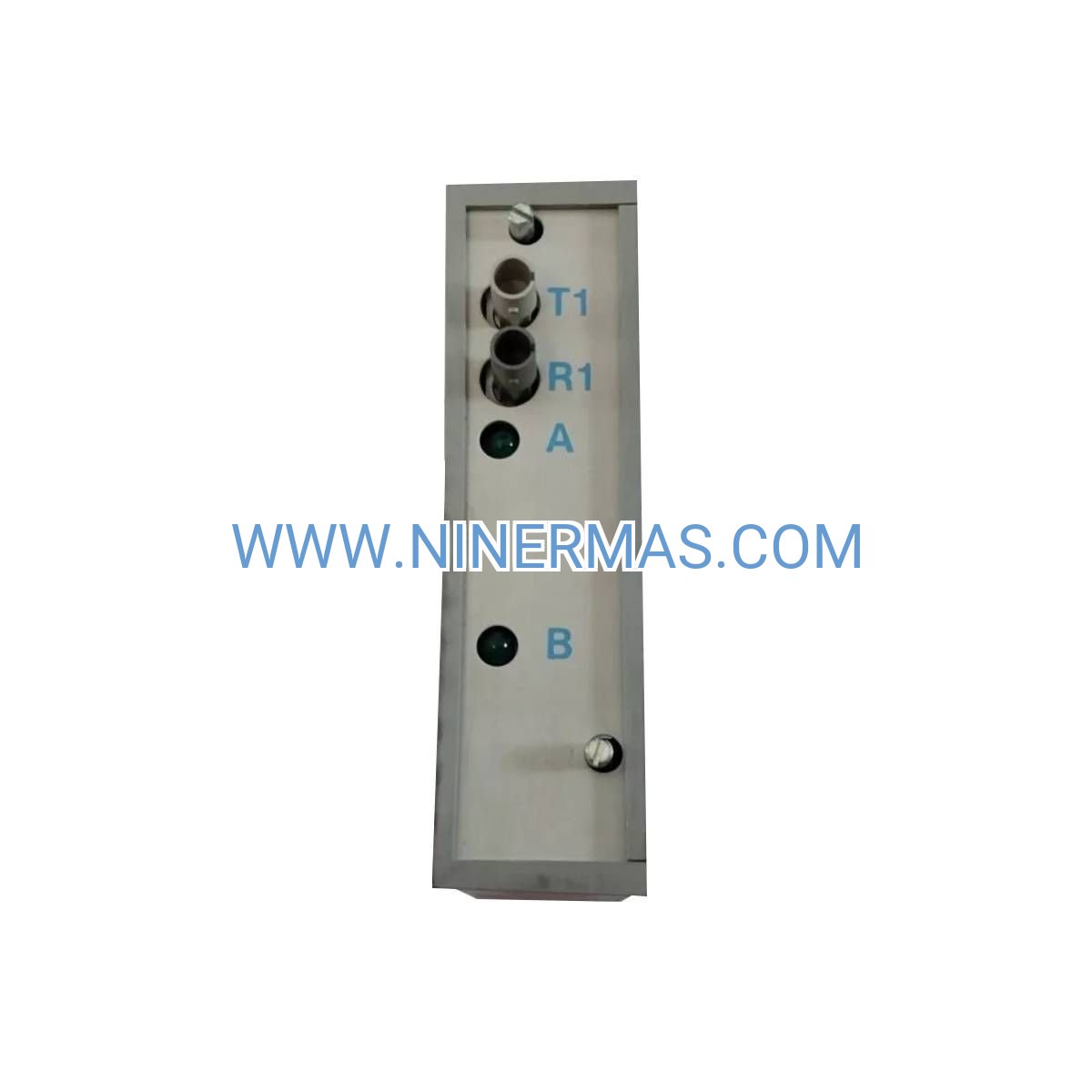

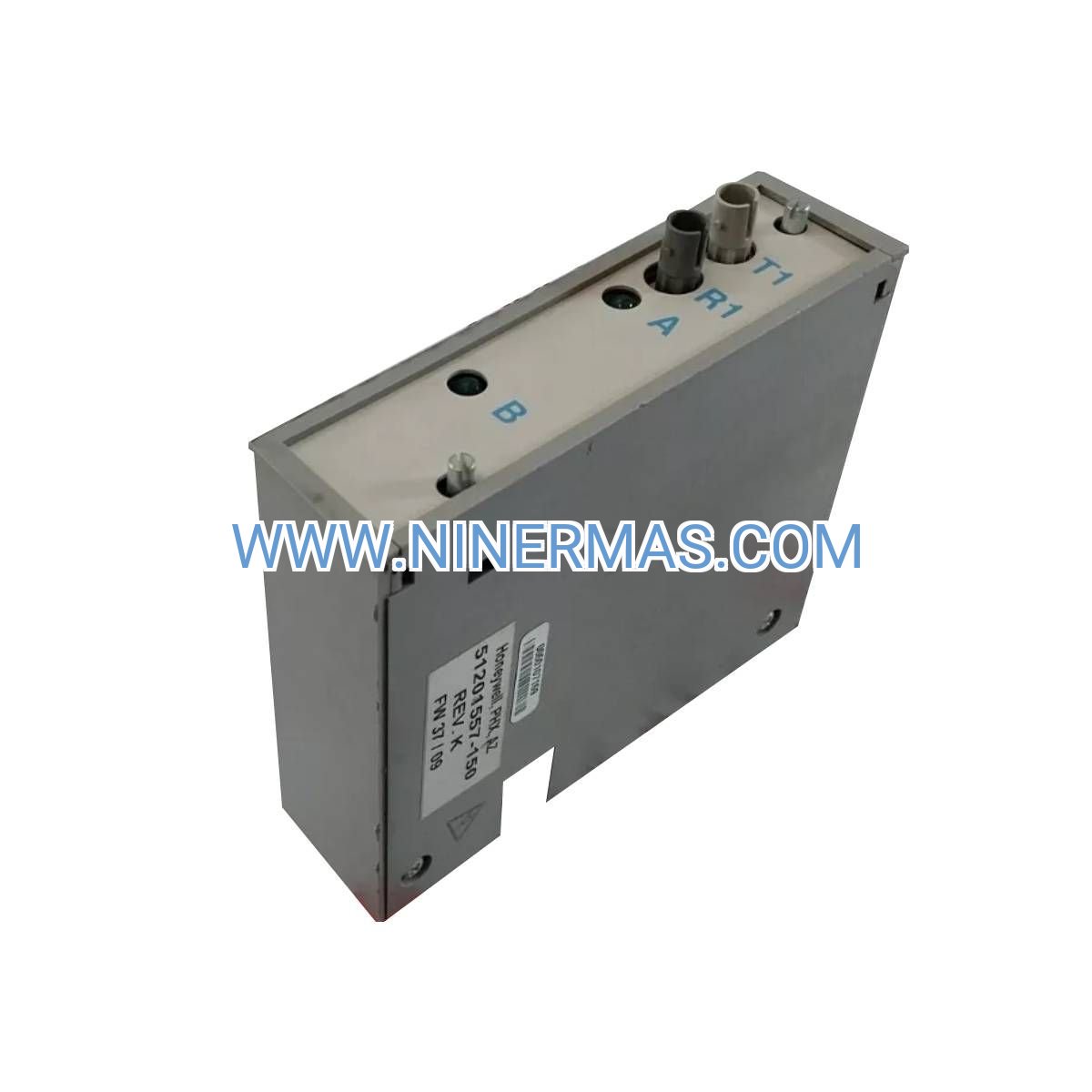

51201557-150 I/O Link Extender Coupler (Industrial-Grade Communication Interface)

The 51201557-150 I/O Link Extender Coupler delivers enterprise-class signal extension for Honeywell TDC 3000 and Experion PKS distributed control systems. Engineered for mission-critical process environments, this OEM-certified module bridges Process Manager (PM) controllers with remote I/O subsystems across distances reaching 1.3 kilometers—eliminating costly repeater infrastructure while maintaining deterministic communication integrity. Ideal for oil & gas, chemical processing, power generation, and water treatment facilities requiring geographically distributed control architecture.

Built to industrial standards with hot-swappable redundancy support, the 51201557-150 enables modular system expansion without controller relocation or production downtime. Whether you're retrofitting legacy installations or designing greenfield DCS networks, this extender coupler reduces installation complexity, lowers total cost of ownership, and ensures reliable data transmission in harsh operating conditions.

Ready to extend your control system reach? Contact our automation specialists for application-specific configuration guidance and volume pricing.

Technical Advantages & Performance Benefits

✓ Extended Communication Range: Supports cable runs up to 1.3 km (4,265 ft) without signal degradation or intermediate amplification—ideal for large-scale facilities with centralized control rooms and remote field equipment.

✓ Deterministic Data Integrity: Maintains microsecond-level timing accuracy and error-free transmission across extended distances, ensuring real-time process control responsiveness and alarm management reliability.

✓ Hot-Swappable Architecture: Field-replaceable design allows maintenance and upgrades without system shutdown when deployed in redundant configurations—minimizing unplanned downtime and production losses.

✓ Universal Platform Compatibility: Seamlessly integrates with TDC 3000 Series C and Experion PKS controllers, supporting both fiber optic and shielded twisted pair cabling for flexible installation options.

✓ Reduced Infrastructure Costs: Eliminates expensive conduit runs, cable trays, and intermediate junction boxes in retrofit projects—delivering 30-40% savings on installation labor and materials.

✓ Industrial-Grade Reliability: Operates continuously in 0°C to 60°C environments with UL/CE/CSA certifications, backed by factory calibration and 12-month OEM warranty coverage.

Industry Applications & Use Cases

→ Offshore Oil & Gas Production: Connect platform control rooms with remote wellhead monitoring systems, separator units, and flare management subsystems across multi-level deck structures—maintaining safety-critical communication links in corrosive marine environments.

→ Chemical Manufacturing Complexes: Integrate centralized DCS cabinets with reactor control panels, distillation column instrumentation, and warehouse tank farms spread across multi-building campuses—enabling unified process visualization and batch management.

→ Power Generation Facilities: Link turbine control systems, boiler management networks, and emissions monitoring stations in coal-fired, combined-cycle, and cogeneration plants—supporting regulatory compliance and efficiency optimization.

→ Municipal Water Treatment: Coordinate SCADA operations between central control facilities and geographically dispersed pump stations, filtration units, and chemical dosing systems—improving operational efficiency and regulatory reporting accuracy.

→ Pharmaceutical Production: Extend clean room environmental monitoring, bioreactor control, and automated material handling systems while maintaining validated system architecture and 21 CFR Part 11 compliance requirements.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 51201557-150 when your application requires point-to-point I/O extension between PM controllers and remote subsystems within 1.3 km. For distances exceeding this range, consider the 51309208-150 long-distance variant (up to 10 km). Verify cable specifications match Honeywell impedance requirements—fiber optic recommended for electrically noisy environments, shielded twisted pair acceptable for clean installations.

Advanced Integration Capabilities

Redundancy Configuration: Deploy in dual-module pairs with redundant PM controllers and parallel I/O Link cables to achieve fault-tolerant communication paths—automatic failover occurs within 50 milliseconds upon primary link failure.

System Scalability: Supports modular I/O expansion without controller hardware upgrades—add remote subsystems incrementally as production capacity grows, maintaining centralized engineering database and operator interface consistency.

Diagnostic Monitoring: Integrated status LEDs and system diagnostics enable real-time link health monitoring through Experion Station displays—proactive maintenance alerts reduce unplanned outages and troubleshooting time.

Legacy System Migration: Facilitates phased TDC 2000 to TDC 3000 upgrades by enabling new PM controllers to communicate with existing I/O subsystems during transition periods—minimizing production disruption and capital expenditure timing.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-2 business days via expedited carrier—tracking information provided upon dispatch with signature-required delivery for high-value shipments.

Custom Configurations: Pre-tested redundant pairs or bulk orders (10+ units) typically require 2-4 weeks for factory preparation—contact our sales team for project-specific scheduling and expedited options.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship—includes factory calibration certificate, compliance documentation, and installation manual with wiring diagrams.

Technical Support: Access to certified Honeywell integration partners and in-house automation engineers for application design assistance, commissioning support, and troubleshooting guidance—phone/email support available during business hours.

Documentation Package: Each shipment includes product datasheet, installation quick-start guide, cable specification requirements, and safety compliance certificates—digital copies available for download upon request.

Frequently Asked Questions

Can the 51201557-150 I/O Link Extender work with TDC 2000 legacy systems?
No, this model is engineered exclusively for TDC 3000 and Experion PKS platforms. TDC 2000 applications require different extender models—consult our migration specialists for upgrade path recommendations and compatibility alternatives.

What cable type delivers optimal performance for maximum distance I/O Link extension?
For 1.3 km installations, use Honeywell-approved fiber optic cable (part number 51202329 series) to ensure signal integrity. Shielded twisted pair is acceptable for shorter runs (<500m) in electrically clean environments—refer to installation manual for impedance specifications.

Does this I/O Link Extender Coupler support daisy-chain topology configurations?
No, the 51201557-150 creates point-to-point links only—each extender connects one PM controller to one remote I/O subsystem. Multi-drop architectures require UCN or ControlNet infrastructure instead of I/O Link technology.

How does the hot-swappable feature work in redundant DCS configurations?
When deployed with dual PM controllers and parallel I/O Link cables, you can replace a failed extender module without system shutdown—the redundant path maintains communication while the faulty unit is serviced, ensuring continuous process control.

What is the typical power consumption for the 51201557-150 module?
The module draws approximately 3-5 watts from the 24 VDC supply under normal operating conditions—verify your DCS power budget can accommodate additional modules when planning system expansions.

Are firmware updates required for the I/O Link Extender Coupler?
No, the 51201557-150 uses hardware-based communication protocols without user-accessible firmware—configuration is automatic upon installation when connected to compatible PM controllers and I/O subsystems.

Get Started with Your DCS Extension Project

Our automation specialists are ready to assist with application-specific configuration, cable selection, and redundancy design. Contact us for technical consultation, volume pricing, or expedited delivery options—we support projects from single-module replacements to complete facility-wide DCS expansions.

Request a Quote: Email your system architecture diagram and distance requirements for customized recommendations and competitive pricing.
