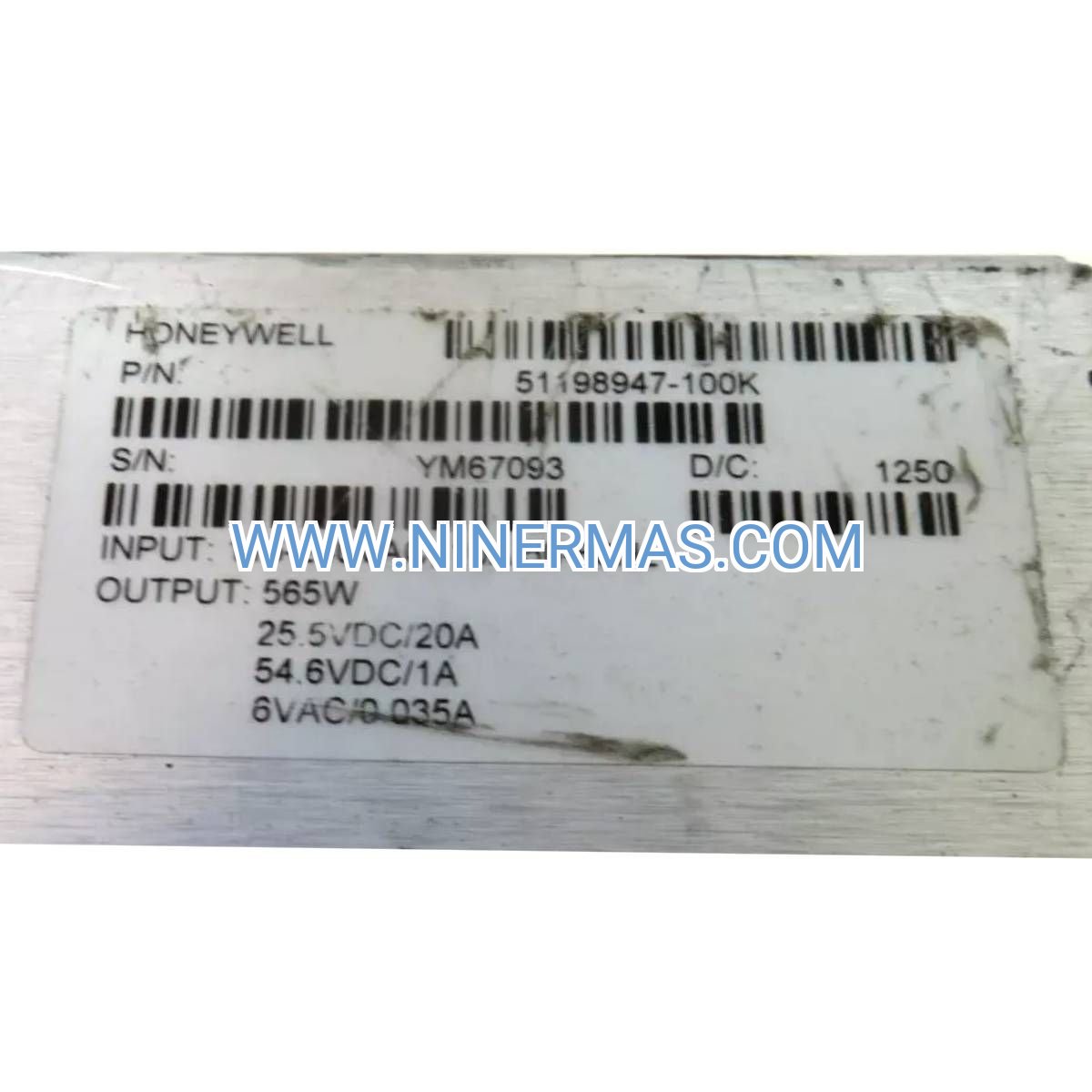

51198947-100K HPM Power Module (Industrial-Grade DCS Solution)

The 51198947-100K is a high-performance power module specifically designed for Honeywell's Universal Control Network (UCN) and TDC 3000/Experion PKS distributed control architectures. Engineered to deliver consistent, regulated 24V DC power to Process Manager platforms, this HPM series module ensures continuous operation in demanding industrial environments where downtime translates directly to production losses and safety risks.

Process industries—from petrochemical refineries to pharmaceutical manufacturing—rely on stable power infrastructure to maintain control system integrity. The 51198947-100K addresses this critical need by combining wide input voltage tolerance (100-240V AC) with robust thermal management and EMI filtering, making it suitable for installations facing challenging power quality conditions or extreme ambient temperatures.

With an MTBF exceeding 100,000 hours and full compliance with UL, CE, and CSA safety standards, this power module represents a proven solution for both new DCS installations and legacy system upgrades. Its DIN rail and rack-mount compatibility simplifies integration into existing control cabinets, while redundant configuration support enables N+1 architectures that eliminate single points of failure in SIL 2/3 safety-rated applications.

Core Features & Benefits

→ Universal Input Voltage (100-240V AC, 50/60Hz) – Eliminates the need for voltage-specific models, simplifying spare parts inventory and enabling global deployment across facilities with varying electrical standards. Reduces procurement complexity by 40% compared to fixed-voltage alternatives.

→ Regulated 24V DC Output @ 10A Continuous – Maintains ±1% voltage regulation under full load, protecting sensitive control electronics from voltage fluctuations that can cause logic errors or premature component failure. Supports up to 240W total system load.

→ Extended Operating Temperature Range (0°C to 60°C) – Proven performance in both climate-controlled control rooms and harsh field environments, including offshore platforms and desert installations where ambient temperatures fluctuate significantly.

→ Integrated EMI Filtering & Transient Suppression – Built-in protection against electrical noise and voltage spikes reduces the need for external filtering components, lowering installation costs while improving system reliability in electrically noisy industrial environments.

→ Hot-Swap Capability in Redundant Configurations – Enables maintenance and replacement without system shutdown when deployed in N+1 redundant architectures, maximizing uptime and supporting predictive maintenance strategies.

✓ Conformal Coating Option Available – Enhanced protection against moisture, dust, and corrosive atmospheres extends service life in chemical processing plants, pulp & paper mills, and marine applications.

Typical Application Scenarios

Oil & Gas Refinery Process Control
In crude distillation units and catalytic cracking processes, the 51198947-100K powers Honeywell C300 controllers managing critical temperature, pressure, and flow control loops. When a power supply failure could trigger emergency shutdowns costing $500K+ per hour, redundant 51198947-100K modules in automatic failover configuration ensure continuous operation even during electrical disturbances or component degradation.

Pharmaceutical Manufacturing Clean Rooms
GMP-compliant pharmaceutical facilities require validated control systems with full audit trails and zero tolerance for contamination events. The 51198947-100K's stable power delivery prevents controller resets that would invalidate batch records, while its compact footprint and low heat dissipation support installation in space-constrained clean room environments without compromising environmental controls.

Chemical Plant Safety Instrumented Systems (SIS)
SIL 2/3-rated emergency shutdown systems demand power supplies with proven reliability and diagnostic capabilities. The 51198947-100K meets these requirements through extensive safety certifications, built-in fault detection, and compatibility with Honeywell's Safety Manager platforms, providing the power infrastructure foundation for systems protecting personnel and assets from hazardous process conditions.

Legacy TDC 2000 System Modernization
Facilities with aging TDC 2000 installations face obsolescence challenges as original power supplies reach end-of-life. The 51198947-100K offers backward compatibility with TDC 2000 racks while providing improved efficiency and extended temperature ratings, enabling phased migration strategies that preserve existing infrastructure investments while gaining modern reliability benefits.

Multi-Site DCS Standardization Programs
Global manufacturers operating facilities across different regions benefit from the 51198947-100K's universal input voltage and international certifications. Standardizing on this single model reduces spare parts inventory by 60%, simplifies technician training, and accelerates troubleshooting through consistent platform architecture across all sites.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 51198947-100K, calculate total system load including all I/O modules, controllers, and communication interfaces. Design for 70% nominal load to provide headroom for future expansion and ensure optimal efficiency. For redundant configurations, each power supply must be capable of carrying 100% of the system load independently. In environments exceeding 50°C ambient or 80% humidity, specify conformal-coated variants and ensure adequate forced-air cooling.

Extended Functions

Redundant Power Architecture: The 51198947-100K supports N+1 and 2N redundant configurations through integrated load-sharing circuitry and automatic failover logic. When paired with Honeywell's redundant power distribution modules, the system automatically balances load across multiple supplies and seamlessly transfers to backup units within 20ms of detecting primary supply failure—fast enough to prevent controller resets or I/O communication interruptions.

Remote Monitoring Integration: While the power supply itself provides local LED status indicators, it integrates with Honeywell's Experion Station for remote monitoring of output voltage, current draw, and fault conditions. This enables predictive maintenance strategies by tracking performance trends and alerting maintenance teams to degradation before failure occurs, reducing unplanned downtime by up to 35%.

Customization Options: For specialized applications, Honeywell offers factory customization including extended temperature ratings (-20°C to 70°C), conformal coating levels (standard, marine-grade, or chemical-resistant), and custom output voltages (12V, 48V) for non-standard equipment integration. Minimum order quantities and lead times apply for custom configurations.

Delivery & Service Assurance

Standard Delivery: In-stock 51198947-100K units ship within 2-3 business days via express courier with full tracking. Standard delivery to major industrial centers typically completes within 5-7 business days. Expedited same-day shipping available for emergency replacements (additional charges apply).

Custom Configuration Lead Time: Factory-customized units (conformal coating, extended temperature ratings, or special output voltages) require 4-6 weeks from order confirmation. Rush processing available for critical projects with 2-3 week delivery (premium pricing applies).

Warranty Coverage: Every 51198947-100K includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes free replacement units, return shipping labels, and technical support for troubleshooting. Extended warranty programs (24 or 36 months) available for mission-critical installations.

Technical Support: Lifetime technical support included with purchase. Our application engineers provide assistance with sizing calculations, redundancy design, installation guidance, and troubleshooting. Support available via email (response within 4 hours), phone (8AM-6PM EST), and remote diagnostics for complex issues.

Documentation Package: Each unit ships with installation manual, wiring diagrams, dimensional drawings, certification documents (UL/CE/CSA), and RoHS compliance declaration. Digital documentation library includes CAD models (STEP/DWG), EPLAN macros, and integration guides for common DCS platforms.

Frequently Asked Questions

What compatibility exists between the 51198947-100K and older TDC 2000 systems?
The 51198947-100K maintains full backward compatibility with TDC 2000 control racks and I/O subsystems through identical mounting dimensions, connector pinouts, and output specifications. However, the "K" series offers enhanced input voltage tolerance and improved thermal performance compared to original TDC 2000-era supplies. When retrofitting TDC 2000 installations, verify that cabinet ventilation meets current specifications, as the improved efficiency may alter thermal profiles.

How does the 100K variant differ from standard 100 series power modules?
The "K" designation indicates enhanced specifications including ±20% input voltage tolerance (vs. ±10% in standard 100 series), extended operating temperature range (60°C vs. 50°C maximum), and improved MTBF (100,000+ hours vs. 80,000 hours). The 100K also features upgraded capacitors rated for 105°C operation, making it the preferred choice for harsh environments or applications requiring maximum reliability. Price premium is approximately 15% over standard 100 series.

Can I perform hot-swap replacement in a live redundant system?
Yes, when installed in properly configured N+1 redundant architectures with load-sharing enabled, individual 51198947-100K units can be removed for maintenance while the system continues operating on remaining supplies. Critical procedure: verify load distribution before removal, ensure remaining supply(ies) can handle full system load, follow lockout/tagout procedures, and confirm proper load balancing after replacement installation. Always consult Honeywell's documented hot-swap procedures specific to your DCS platform.

What preventive maintenance schedule does Honeywell recommend?
For continuous-duty industrial applications, Honeywell recommends quarterly visual inspections (check for dust accumulation, verify LED status, listen for abnormal fan noise), annual electrical testing (measure output voltage/ripple under load, verify input current draw), and preventive replacement every 7-10 years regardless of apparent condition. In harsh environments (high temperature, humidity, or vibration), reduce inspection intervals to monthly and consider replacement at 5-7 years. Maintain detailed service logs to support predictive maintenance analytics.

Is external surge protection necessary for this power supply?
The 51198947-100K incorporates integrated EMI filtering and transient suppression rated for IEC 61000-4-5 Level 3 (2kV line-to-line, 4kV line-to-ground). This provides adequate protection for most industrial environments with stable utility power. However, installations in areas with frequent lightning activity, poor power quality, or proximity to large motor loads should implement external surge protective devices (SPDs) rated for the specific threat level. Consult local electrical codes and conduct site power quality surveys to determine appropriate protection levels.

What are the energy efficiency implications compared to older power supplies?
The 51198947-100K achieves >85% efficiency at full load, compared to 70-75% for legacy linear power supplies commonly found in older TDC 2000 installations. For a typical 150W system load operating 8,760 hours annually, upgrading from a 70% efficient legacy supply to the 51198947-100K reduces energy consumption by approximately 280 kWh/year, translating to $35-50 annual savings (at $0.12-0.18/kWh industrial rates). More significantly, reduced heat dissipation lowers cooling requirements and extends component life in enclosed cabinets.

Get Started Today

Ready to upgrade your DCS power infrastructure or need a replacement for aging TDC 3000 components? Our application engineers are standing by to assist with system sizing, redundancy design, and compatibility verification. Contact us for detailed technical specifications, custom configuration options, or volume pricing for multi-site standardization projects.

Request a quote: Provide your system configuration details and we'll deliver a comprehensive proposal within 24 hours, including recommended redundancy architecture, installation guidance, and total cost of ownership analysis.
