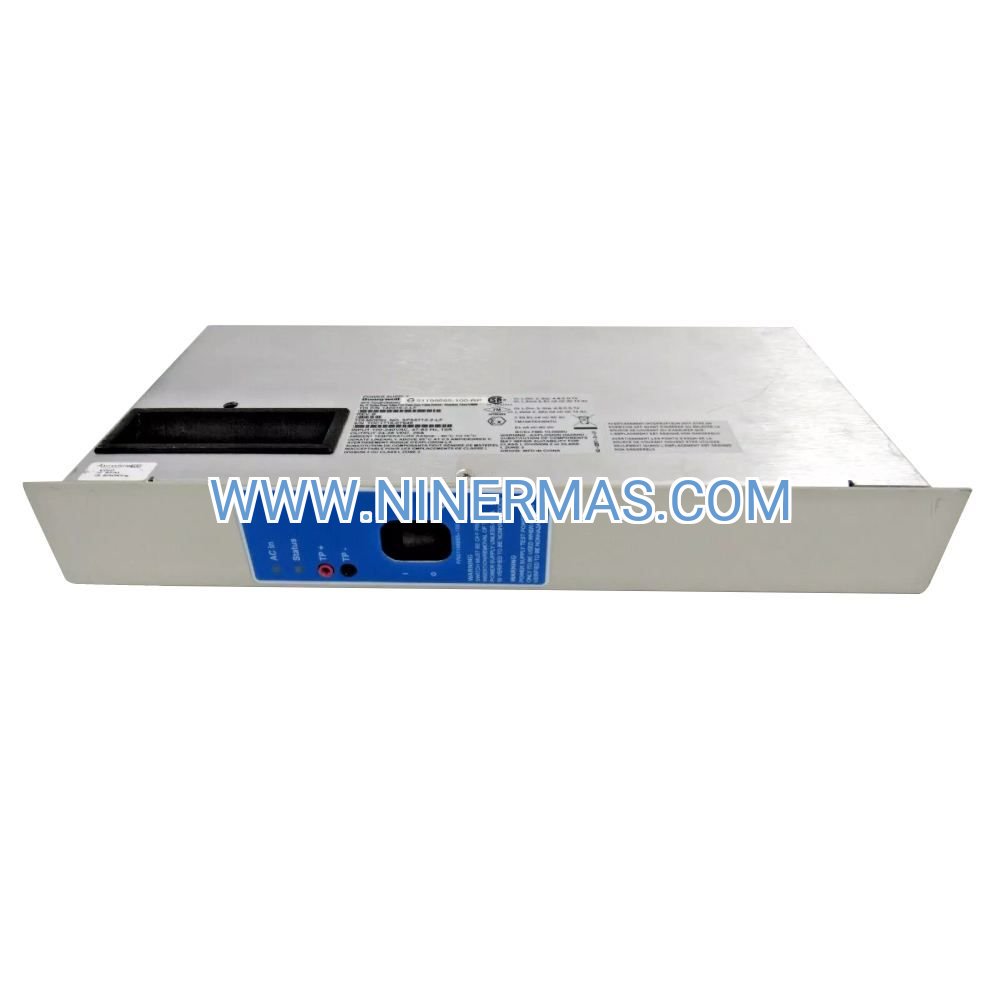

Industrial 24VDC 20A Power Module (Honeywell 51198685-100 Series C)

The Honeywell 51198685-100 represents a mission-critical power solution engineered specifically for distributed control systems and process automation infrastructure. This Series C power module delivers consistent 24-volt DC output at 20 amperes, providing the backbone for reliable operation in refineries, chemical plants, and manufacturing facilities where downtime translates directly to revenue loss.

Designed for integration with Honeywell TDC 2000 and TDC 3000 platforms, this SPS5710-2-LF power supply addresses the fundamental challenge faced by plant engineers: maintaining stable voltage under variable load conditions while protecting sensitive control electronics from power anomalies. Whether you're managing legacy system upgrades or building new control architectures, this module serves as the foundation for dependable 24/7 operation.

With built-in protection circuits, wide input voltage tolerance, and proven field reliability, the 51198685-100 eliminates the guesswork from power system design. Plant managers choose this module when system uptime isn't negotiable and when compatibility with existing Honeywell infrastructure is essential.

Core Features & Benefits

→ High-Current 20A Output Capacity
Supports multiple I/O modules, controllers, and field devices from a single power source, reducing cabinet complexity and installation costs while maintaining voltage stability across distributed loads.

→ Universal Input Voltage Range (100-240 VAC)
Eliminates the need for voltage-specific inventory management and simplifies international deployments, allowing the same module to operate across global facilities without modification.

→ Triple-Layer Protection Architecture
Integrated overvoltage, overcurrent, and short-circuit safeguards protect downstream control equipment worth thousands of dollars, preventing cascade failures that could halt production lines.

→ 85%+ Energy Efficiency Rating
Reduces heat generation in control cabinets by 15-20% compared to older linear supplies, lowering cooling requirements and extending component lifespan in high-temperature environments.

→ DIN Rail & Panel Mount Flexibility
Adapts to existing cabinet configurations without custom mounting hardware, accelerating installation timelines and reducing labor costs during retrofits or expansions.

→ Series C Design Compatibility
Maintains form-fit-function equivalence with legacy Honeywell power modules, enabling drop-in replacements during maintenance windows without system reconfiguration.

Typical Application Scenarios

✓ Petrochemical Refinery Control Systems
In crude distillation units and catalytic crackers, the 51198685-100 powers distributed I/O racks monitoring temperature, pressure, and flow parameters. The module's wide operating temperature range (0-60°C) handles the thermal extremes of process areas, while its protection features prevent shutdowns caused by electrical transients from motor starters and variable frequency drives.

✓ Pharmaceutical Manufacturing Clean Rooms
Batch control systems in sterile production environments rely on this power supply to maintain precise environmental controls. The module's low electromagnetic interference profile ensures compliance with FDA 21 CFR Part 11 validation requirements, while its compact footprint preserves valuable clean room real estate.

✓ Water Treatment SCADA Networks
Municipal water facilities use the SPS5710-2-LF to power remote telemetry units and PLC controllers across pump stations and filtration plants. The universal input voltage accommodates utility power variations, and the high current capacity supports communication gateways, analog transmitters, and valve actuators from a single source.

✓ Power Generation Turbine Control
Gas and steam turbine control panels integrate this module to ensure uninterrupted power to critical safety systems. Redundant configurations using dual 51198685-100 units provide N+1 reliability for emergency shutdown logic and vibration monitoring systems where failure is not an option.

✓ Food Processing Automation Upgrades
Plants modernizing from relay-based controls to PLC systems leverage this power supply's backward compatibility with existing 24VDC field devices, allowing phased migrations that minimize production interruptions while meeting FSMA compliance standards.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total current draw by summing all connected devices plus 25% safety margin. For loads exceeding 16A continuous, ensure adequate cabinet ventilation (minimum 50 CFM). When deploying in ambient temperatures above 50°C, consider forced-air cooling or select the next higher current rating. For redundant configurations, use external diode modules (not included) to prevent backfeed between parallel supplies.

Extended Functions

Remote Monitoring Integration: The module's DC OK relay contact enables integration with building management systems or SCADA platforms for real-time power status monitoring. Connect this dry contact to PLC digital inputs or alarm panels to receive immediate notification of power supply faults before they impact process control.

Parallel Operation Capability: Multiple 51198685-100 units can be configured in parallel using external current-sharing modules to achieve higher output currents or implement N+1 redundancy. This architecture is particularly valuable in critical applications where a single power supply failure cannot be tolerated.

Customization Options: For OEM integrators requiring modified output voltages, conformal coating for harsh environments, or extended temperature ratings, contact our engineering team. Minimum order quantities apply for custom configurations, with typical lead times of 8-12 weeks.

Delivery & Service Guarantee

Standard Lead Time: In-stock units ship within 1-2 business days via your preferred carrier. For orders placed before 2:00 PM CST, same-day dispatch is available for express service.

Custom Configuration Lead Time: Modified units or bulk orders (10+ pieces) typically require 4-6 weeks. Expedited production is available for critical projects with surcharge.

Warranty Coverage: Every 51198685-100 module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty service includes advance replacement for qualified failures, minimizing your system downtime.

Technical Support: Our applications engineers provide pre-sale sizing assistance, installation guidance, and troubleshooting support throughout the product lifecycle. Support is available via email, phone, and remote desktop sessions for complex integration challenges.

Documentation Package: Each module ships with installation manual, wiring diagrams, dimensional drawings, and compliance certificates. CAD files (STEP, DXF) and 3D models are available for download to streamline panel design workflows.

Frequently Asked Questions

What is the recommended wire gauge for 20A output connections?
Use minimum 12 AWG (4 mm²) copper wire for output connections to minimize voltage drop. For runs exceeding 50 feet, upsize to 10 AWG. Always terminate with ferrules or ring terminals rated for 75°C minimum.

Can this power supply operate in hazardous area classifications?
The standard 51198685-100 is rated for general-purpose locations only (Class I, Division 2 at best). For Class I, Division 1 or Zone 1 applications, the module must be installed in a purged enclosure meeting NFPA 496 requirements or use intrinsically safe barriers on all field wiring.

How does this module compare to the older 51196653-100 model?
The 51198685-100 Series C offers 15% higher efficiency, improved transient response, and RoHS compliance compared to the legacy 51196653-100. Mounting dimensions and output specifications are identical, making it a direct replacement during system upgrades.

What is the inrush current during power-up?
Typical inrush is 30A peak for less than 5 milliseconds. Size input circuit breakers for 10A continuous (Type C or D curve) to avoid nuisance tripping. For applications with multiple power supplies on a common branch circuit, use sequential start-up delays.

Does the module support hot-swap replacement?
No, the 51198685-100 is not designed for hot-swap operation. Always de-energize input power and disconnect output loads before removing or installing the module. For applications requiring online replacement, implement redundant power architectures with external diode isolation.

What maintenance intervals are recommended?
Inspect terminal connections annually for tightness (torque to 0.5-0.6 Nm). Clean ventilation slots semi-annually in dusty environments. Electrolytic capacitors have a design life of 10 years at 40°C ambient; consider preventive replacement at 8-year intervals in critical applications.

Ready to Secure Your Power Infrastructure?

The Honeywell 51198685-100 SPS5710-2-LF power supply module is available for immediate shipment. Our inventory includes factory-sealed units with full traceability documentation suitable for regulated industries. For technical specifications, compatibility verification, or volume pricing, contact our industrial automation specialists today.

Request a quote now or speak with an applications engineer to discuss your specific power system requirements. We provide complete system design support including load calculations, redundancy planning, and compliance documentation.
