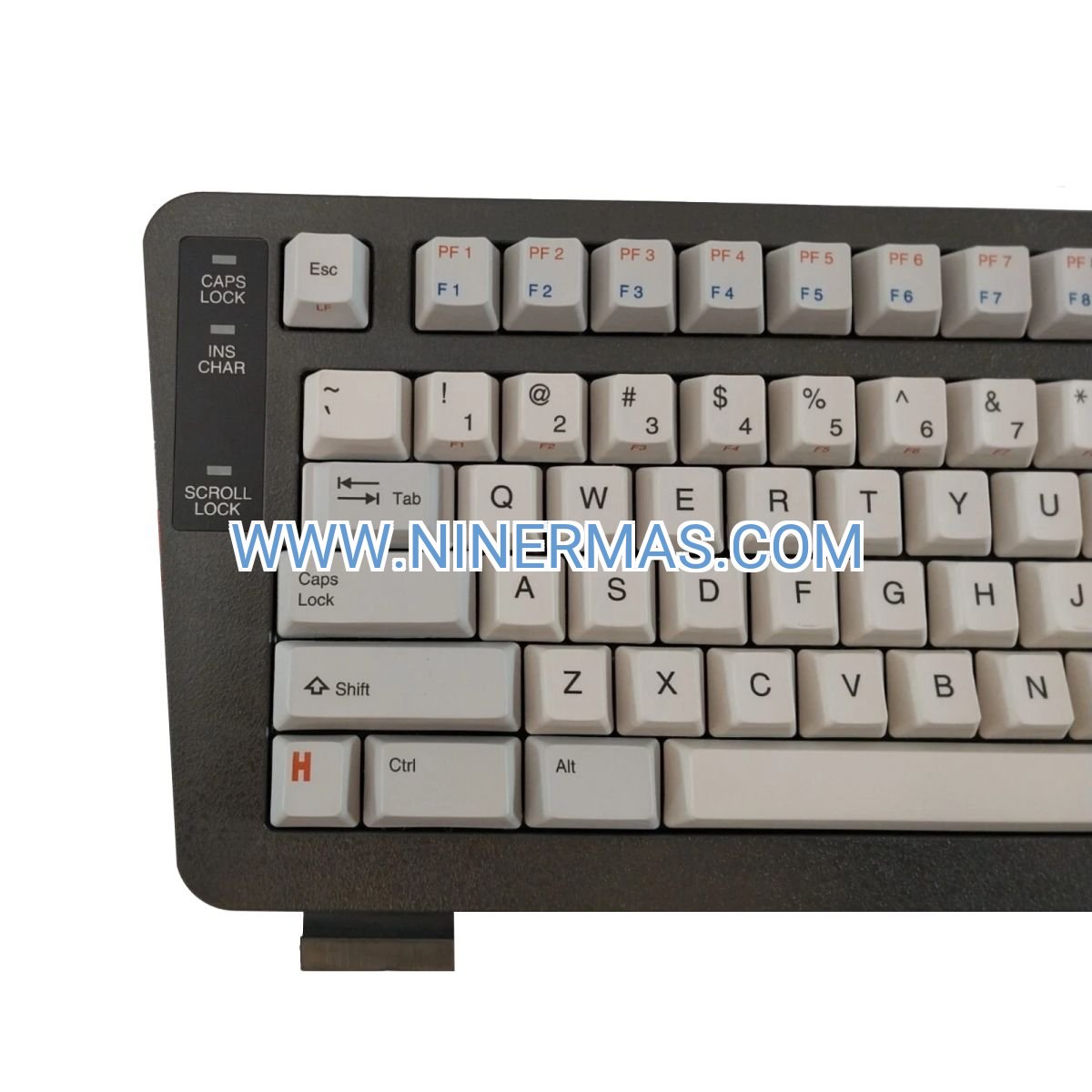

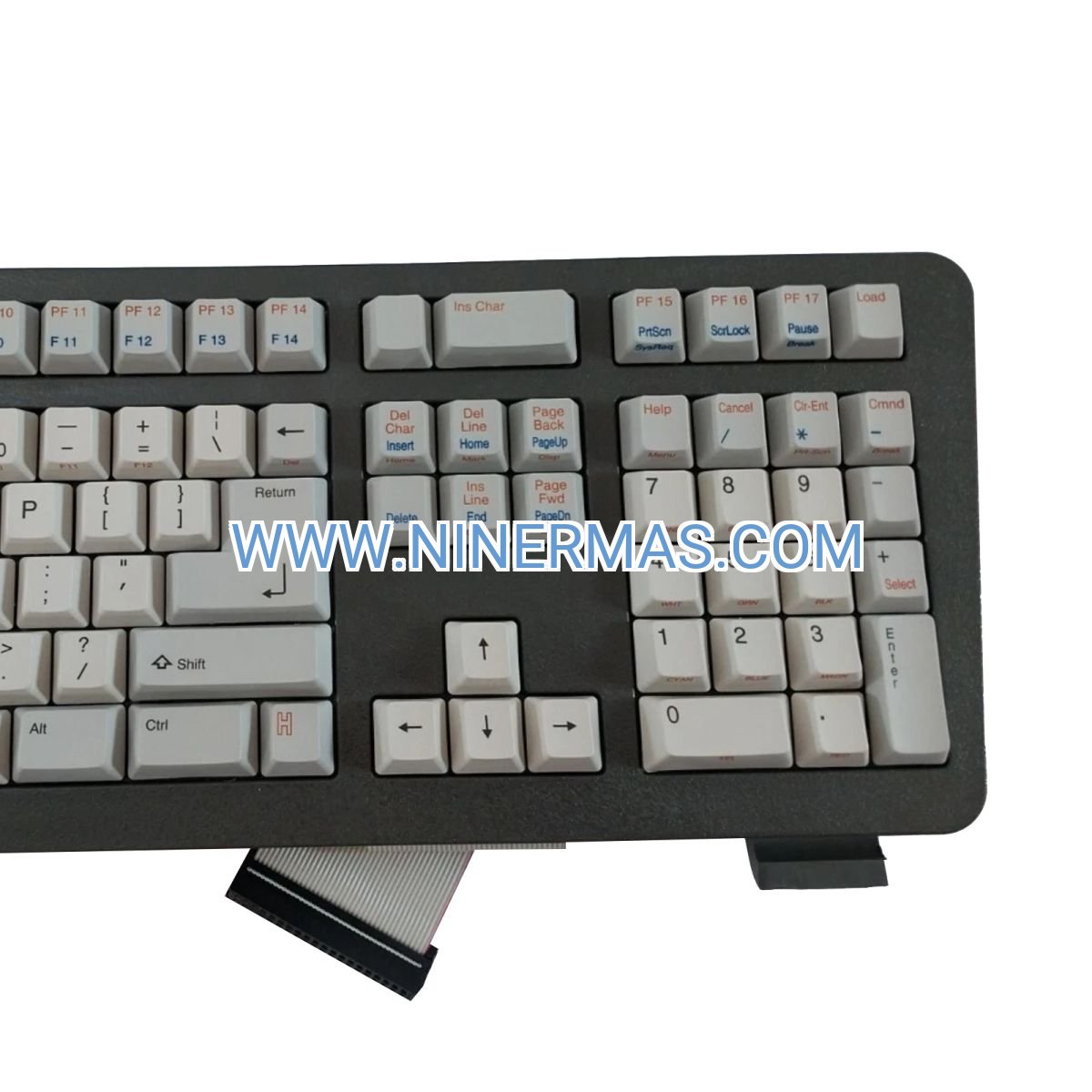

51196694-904 Industrial-Grade Keyboard with Trackball (TDC 3000 Universal Station)

Engineered for mission-critical distributed control environments, the Honeywell 51196694-904 represents a field-proven operator interface solution combining tactile keyboard input with precision trackball navigation. This OEM-certified component integrates seamlessly into TDC 3000 Universal Station architectures, delivering the ergonomic efficiency and system reliability demanded by continuous process industries worldwide.

Designed to withstand the rigors of round-the-clock industrial operations, this integrated keyboard addresses the operational challenges faced by refineries, chemical processors, power utilities, and manufacturing facilities requiring uninterrupted human-machine communication. The unified design eliminates peripheral clutter while maintaining the responsive control essential for safe, efficient process management.

Whether you're maintaining legacy TDC 3000 infrastructure or ensuring spare parts availability for critical control rooms, the 51196694-904 delivers drop-in compatibility with proven performance metrics. Our factory-tested units arrive ready for immediate deployment, minimizing operational disruption and preserving your team's established workflows.

Core Features & Benefits

→ Unified Operator Interface
Integrated trackball eliminates external pointing devices, streamlining workstation layout and reducing cable management complexity. Operators gain faster response times through single-surface control, critical during abnormal situations requiring rapid intervention.

→ TDC 3000 Native Compatibility
Direct chassis integration ensures plug-compatible installation with Universal Station hardware. No driver updates, configuration changes, or system recalibration required—maintain operational continuity during replacement cycles.

→ Industrial Durability Standards
Constructed to withstand continuous operation in control room environments with temperature fluctuations, electromagnetic interference, and extended duty cycles. Tactile key mechanisms resist wear from repetitive use across multi-year service life.

→ Ergonomic Efficiency
Reduced operator fatigue through optimized key travel distance and trackball positioning. Supports extended monitoring sessions without compromising input accuracy or response speed—essential for 12-hour shift operations.

→ Simplified Maintenance Protocol
Like-for-like replacement capability enables rapid swap-out procedures, reducing mean time to repair (MTTR). Standardized spare parts inventory management across multiple Universal Station installations.

Application Scenarios

✓ Petroleum Refining Operations
Control room operators managing crude distillation, catalytic cracking, and hydroprocessing units rely on responsive keyboard interfaces for setpoint adjustments, alarm acknowledgment, and trend analysis. The 51196694-904 provides the tactile feedback and cursor precision required for safe, efficient refinery operations where process deviations demand immediate operator response.

✓ Chemical Manufacturing Plants
Batch recipe execution, reactor temperature control, and material transfer sequencing require constant operator interaction with DCS graphics and control loops. This integrated keyboard supports the rapid navigation between process displays and data entry tasks essential for maintaining product quality and batch consistency.

✓ Power Generation Facilities
Boiler control, turbine monitoring, and emissions compliance systems depend on reliable operator interfaces for load following, startup/shutdown procedures, and emergency response. The trackball-keyboard combination enables efficient multi-screen monitoring and control point access during critical operational transitions.

✓ Pharmaceutical Production
GMP-compliant manufacturing environments demand documented control system interactions and audit trail integrity. The 51196694-904 facilitates accurate data entry for batch records, recipe parameters, and process annotations while maintaining the system validation status of TDC 3000 installations.

Technical Parameters & Selection Guide

Selection Criteria: Verify your Universal Station model designation and current IKB part number before ordering. The 51196694-904 is designed for specific TDC 3000 configurations—consult your system documentation or contact our technical team to confirm compatibility with your installed base. For multi-station installations, consider ordering spare units to minimize downtime risk during unplanned failures.

Extended Functions

Multi-Station Standardization: Deploying identical keyboard models across multiple Universal Stations reduces operator training requirements and simplifies spare parts logistics. Standardized interfaces improve operator mobility between control consoles during shift rotations or emergency coverage scenarios.

Retrofit Compatibility: Supports upgrade paths for aging TDC 3000 installations requiring operator interface refresh without full system migration. Maintains backward compatibility with existing Universal Station hardware revisions, protecting capital investment in proven control infrastructure.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-2 business days via international courier services. We maintain inventory buffers for critical TDC 3000 components to support emergency replacement requirements.

Expedited Options: Express shipping available for urgent outage situations requiring next-flight-out delivery. Our logistics team coordinates with global carriers to minimize transit time for time-sensitive orders.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures under normal operating conditions. Warranty terms align with industrial automation industry standards.

Technical Support: Pre-sales compatibility verification, installation guidance, and post-installation troubleshooting assistance available from our experienced technical team. We provide documentation support for maintenance records and spare parts justification.

Quality Documentation: Each unit ships with test certification and traceability documentation suitable for maintenance record-keeping and audit requirements.

Frequently Asked Questions

What TDC 3000 Universal Station models work with this keyboard interface?
The 51196694-904 is engineered for TDC 3000 Universal Station platforms. Compatibility depends on your specific station hardware revision and chassis configuration. We recommend verifying your current IKB part number or consulting your system documentation. Our technical team can cross-reference your station model to confirm fitment.

How does the integrated trackball compare to using a separate mouse for DCS navigation?
The integrated trackball eliminates cable routing challenges and reduces workstation footprint while providing equivalent cursor control precision. Operators benefit from single-surface interaction, reducing hand movement between keyboard and pointing device. This design proves particularly valuable during alarm flood conditions requiring rapid acknowledgment and response.

Can I install this keyboard myself or does it require factory-trained technicians?
Replacement installation follows straightforward procedures suitable for qualified instrumentation technicians familiar with TDC 3000 hardware. The process involves chassis mounting and connector engagement—no software configuration or system programming required for like-for-like replacement. We provide installation guidance documentation with each shipment.

What is your return policy if the keyboard doesn't fit my Universal Station?
We accept returns of unused, uninstalled units within 30 days of delivery. To avoid compatibility issues, we strongly recommend confirming your station model and current IKB part number before ordering. Our sales team can assist with pre-purchase verification to ensure correct part selection.

Do you stock keyboards for other Honeywell DCS platforms besides TDC 3000?
Yes, we maintain inventory for multiple Honeywell control system generations including TDC 2000 components and related operator interface products. Browse our Honeywell collection or contact our team with your specific platform requirements for availability and pricing.

How should I store spare keyboards to maintain their operational readiness?
Store units in their original packaging in a clean, dry environment away from extreme temperatures and humidity. Avoid exposure to corrosive atmospheres or electromagnetic fields. Properly stored units maintain full functionality for extended periods, ensuring readiness when replacement needs arise.

Ready to Secure Your TDC 3000 Operator Interface?

Maintain operational continuity for your critical process control infrastructure. Contact our team today for availability confirmation, technical compatibility verification, and volume pricing for multi-unit orders. We're ready to support your TDC 3000 maintenance requirements with fast global shipping and expert technical assistance.
