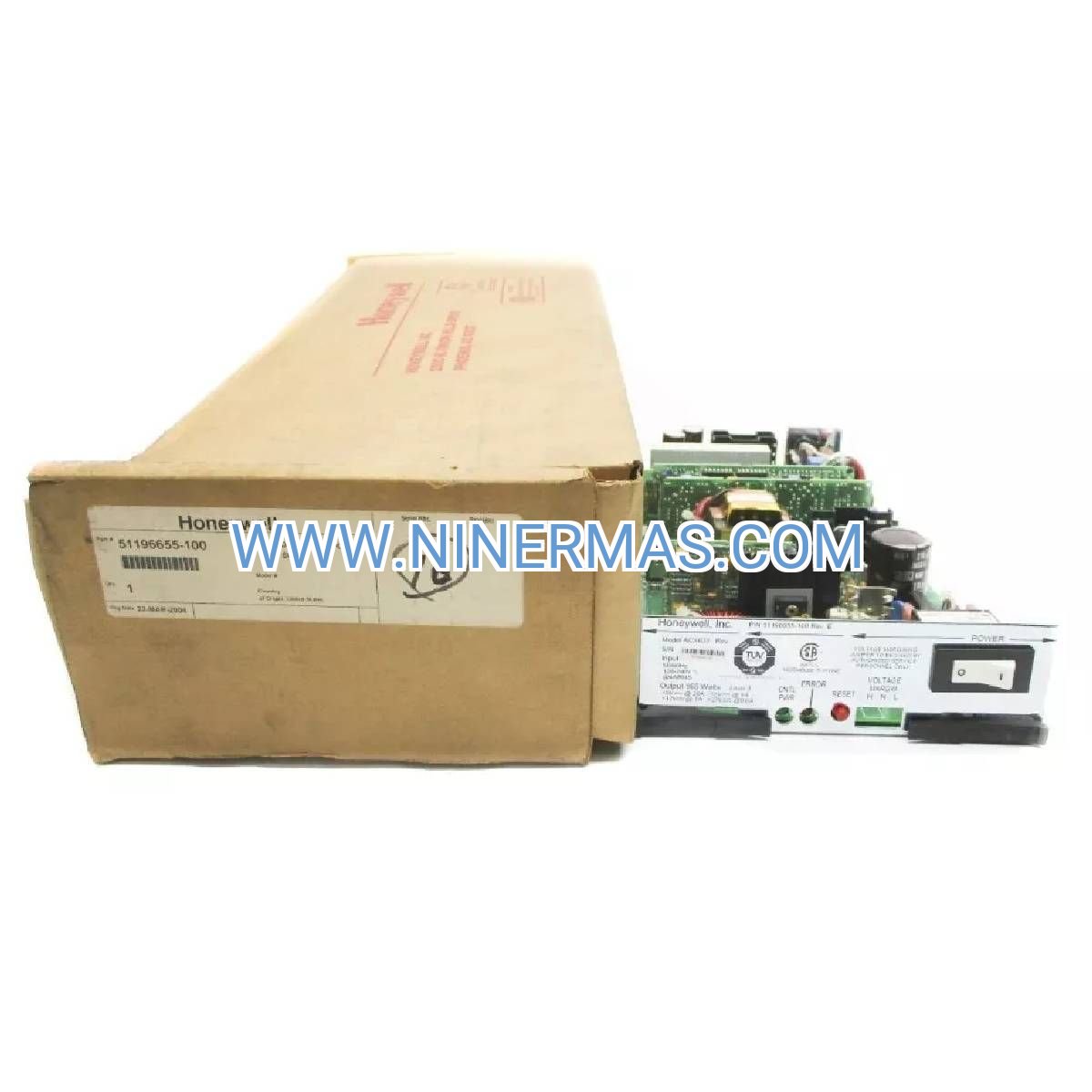

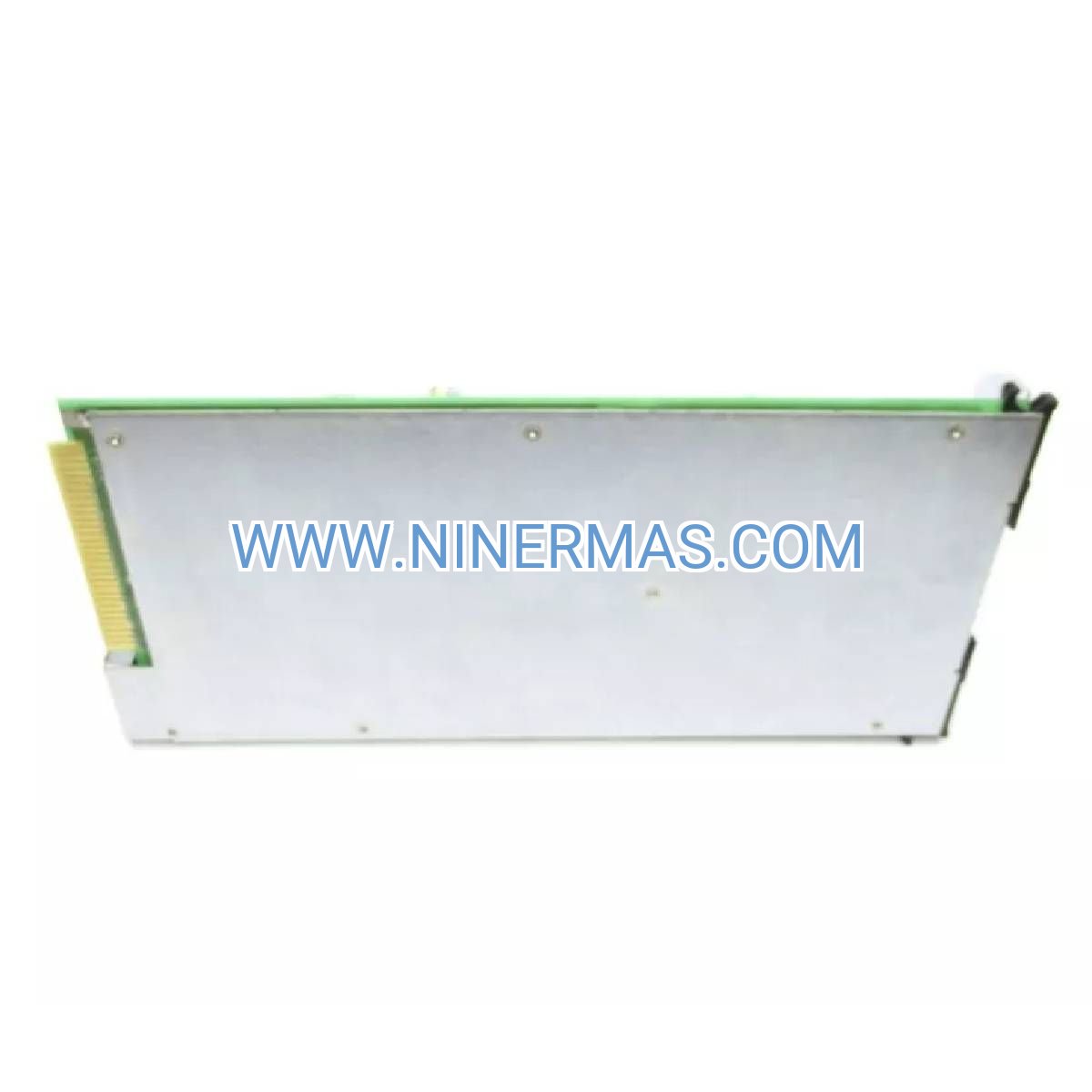

51196655-100 Dual Node Power Supply Module (Industrial-Grade Redundancy for TDC 3000 Control Systems)

The 51196655-100 represents a mission-critical power distribution solution engineered for Honeywell TDC 3000 distributed control architectures. Designed to eliminate single points of failure, this dual node configuration delivers continuous, stable power to process automation infrastructure across oil & gas, chemical processing, power generation, and pharmaceutical manufacturing environments.

Industrial facilities demand zero-tolerance uptime. This module addresses that challenge through intelligent redundancy—two independent power circuits monitor each other continuously, with automatic failover occurring in milliseconds when anomalies are detected. Operators gain peace of mind knowing their control systems remain energized even during component degradation or maintenance cycles.

Built to Honeywell's exacting standards, the 51196655-100 combines robust EMI shielding, wide-range input compatibility, and hot-swap serviceability into a compact form factor. Whether you're retrofitting legacy TDC 3000 installations or specifying components for greenfield projects, this power supply delivers the reliability your operations require.

Core Capabilities & Business Value

→ Automatic Failover Protection
Dual independent power circuits with real-time health monitoring ensure seamless transition during component failure. Your process control logic continues executing without interruption, preventing costly production stoppages and maintaining product quality consistency.

→ Hot-Swap Serviceability
Replace degraded power supplies during scheduled maintenance windows—no system shutdown required. Maintenance teams swap modules in under 5 minutes while the redundant unit carries full load, maximizing equipment availability and reducing mean time to repair (MTTR).

→ Universal Input Compatibility
100-240VAC input range with automatic voltage detection accommodates global electrical standards. Deploy identical hardware across multi-site operations in North America, Europe, and Asia-Pacific without voltage-specific inventory management.

✓ Overload & Surge Protection
Integrated circuit breakers and transient voltage suppressors safeguard downstream control modules from electrical anomalies. Protects your investment in processors, I/O cards, and communication interfaces from damage caused by lightning strikes, grid fluctuations, or equipment faults.

✓ Visual Diagnostics
Front-panel LED indicators provide instant status confirmation—AC input health, DC output voltage levels, and redundancy mode. Technicians diagnose power issues in seconds without requiring test equipment or system interface access.

✓ Industrial-Hardened Construction
Conformal-coated PCBs and sealed connectors withstand temperature extremes (0-60°C), humidity, vibration, and electromagnetic interference common in heavy industrial settings. Meets stringent reliability requirements for hazardous area installations.

Industry Applications & Problem-Solving

Refining & Petrochemical Operations
Crude distillation units, catalytic crackers, and alkylation processes rely on TDC 3000 systems for precise temperature, pressure, and flow control. The 51196655-100 ensures these safety-critical loops remain energized during electrical disturbances, preventing emergency shutdowns that cost $500K-$2M per incident in lost production and restart procedures.

Chemical Batch Manufacturing
Recipe-driven batch reactors require uninterrupted controller power to maintain product specifications and prevent off-spec material. Redundant power architecture eliminates the risk of batch loss due to power supply failure, protecting profit margins in high-value specialty chemical production.

Combined-Cycle Power Plants
Gas turbine control systems, heat recovery steam generators (HRSG), and emissions monitoring depend on stable DC power rails. This module's failover capability keeps generation assets online during grid transients, maximizing capacity factor and avoiding regulatory penalties for unplanned outages.

Pharmaceutical Clean Manufacturing
Environmental control systems maintaining ISO Class 5-8 cleanrooms cannot tolerate power interruptions that compromise sterility or product integrity. The 51196655-100's redundancy ensures HVAC controls, pressure cascades, and particle monitoring remain operational during facility electrical maintenance.

Municipal Water Treatment
SCADA systems controlling clarifiers, filtration, and disinfection processes serve populations requiring 24/7 potable water availability. Dual node power supplies prevent service disruptions that trigger boil-water advisories and regulatory compliance issues.

Technical Parameters & Selection Criteria

Selection Guidance: Calculate total system power consumption by summing all processor cards, I/O modules, and communication interfaces in your TDC 3000 rack. The 51196655-100 supports up to 150W continuous load per module. For systems exceeding 120W (80% derating recommended), consider parallel power supply configurations or consult our engineering team for load distribution strategies.

Advanced Integration & Customization

IoT & Remote Monitoring: While the 51196655-100 provides local LED diagnostics, integration with TDC 3000's system-level monitoring enables remote power status visibility through SCADA interfaces. Configure alarm notifications for AC input loss, DC voltage deviation, or redundancy degradation to enable predictive maintenance workflows.

Parallel Redundancy Configurations: Large-scale TDC 3000 installations may require multiple power supply pairs distributed across equipment racks. Our application engineers provide load balancing calculations and wiring diagrams for complex multi-rack topologies ensuring proper current sharing and fault isolation.

Battery Backup Integration: Pair with UPS systems or DC battery banks for ride-through capability during extended utility outages. The module's wide input range accommodates battery-backed AC sources, maintaining control system operation during grid failures until generators stabilize.

Delivery, Warranty & Technical Support

Lead Times: Stock items ship within 2-3 business days via expedited carriers (DHL, FedEx, UPS). Custom configurations or volume orders (10+ units) typically require 4-6 weeks—contact our sales team for project-specific scheduling.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service—we ship your replacement before receiving the failed unit to minimize downtime.

Technical Support: Our certified Honeywell specialists provide installation guidance, troubleshooting assistance, and lifecycle management consulting. Support includes pre-sale application engineering, commissioning support, and post-sale optimization recommendations.

Documentation Package: Each module ships with installation manual, wiring diagrams, dimensional drawings, and compliance certificates. Digital resources include CAD models, spare parts lists, and preventive maintenance schedules.

Frequently Asked Questions

How does the automatic failover mechanism detect power supply degradation?
Each module continuously monitors its partner's DC output voltages and current delivery. When voltage drops below 95% of nominal or current delivery becomes asymmetric, the healthy module assumes full load within 20 milliseconds while triggering diagnostic alarms. This prevents brownout conditions from affecting control logic execution.

What is the recommended replacement interval for preventive maintenance?
Under typical industrial conditions (40°C ambient, 60% average load), electrolytic capacitors represent the primary wear component. We recommend inspection at 5-year intervals and replacement at 8-10 years to maintain optimal reliability. Facilities operating in high-temperature environments (>50°C sustained) should reduce intervals by 30%.

Can I mix different firmware revisions in a dual node configuration?
Yes, the 51196655-100 uses hardware-based redundancy logic without firmware dependencies. However, we recommend matching hardware revisions when possible to ensure identical electrical characteristics and simplify spare parts inventory management.

What diagnostic data is accessible through the TDC 3000 system interface?
The system reports AC input voltage, DC output voltages (+5V, +15V, -15V), total current draw, operating temperature, and redundancy status. Advanced diagnostics include power-on hours, fault event logs, and voltage ripple measurements useful for predictive maintenance analytics.

Does this module support operation in hazardous area classifications?
The 51196655-100 is designed for installation in control room environments (non-hazardous areas). For Division 2 or Zone 2 installations, consult our application engineering team regarding purged enclosure requirements and appropriate certifications.

How do I size circuit breakers for the AC input?
Each module draws approximately 2.5A at 120VAC or 1.3A at 240VAC under full load. Use 5A slow-blow circuit breakers for 120VAC installations or 3A breakers for 240VAC to accommodate inrush current during power-on while providing adequate fault protection.

Order Your 51196655-100 Power Supply Today

Eliminate power-related downtime in your TDC 3000 control infrastructure. The 51196655-100 dual node power supply delivers the redundancy, reliability, and serviceability your critical processes demand. Contact our team for volume pricing, technical specifications, or application-specific configuration guidance.

Ready to enhance your system reliability? Request a quote, schedule a technical consultation, or place your order through our secure checkout. Our industrial automation specialists are available to answer questions and ensure you select the optimal power solution for your application.
