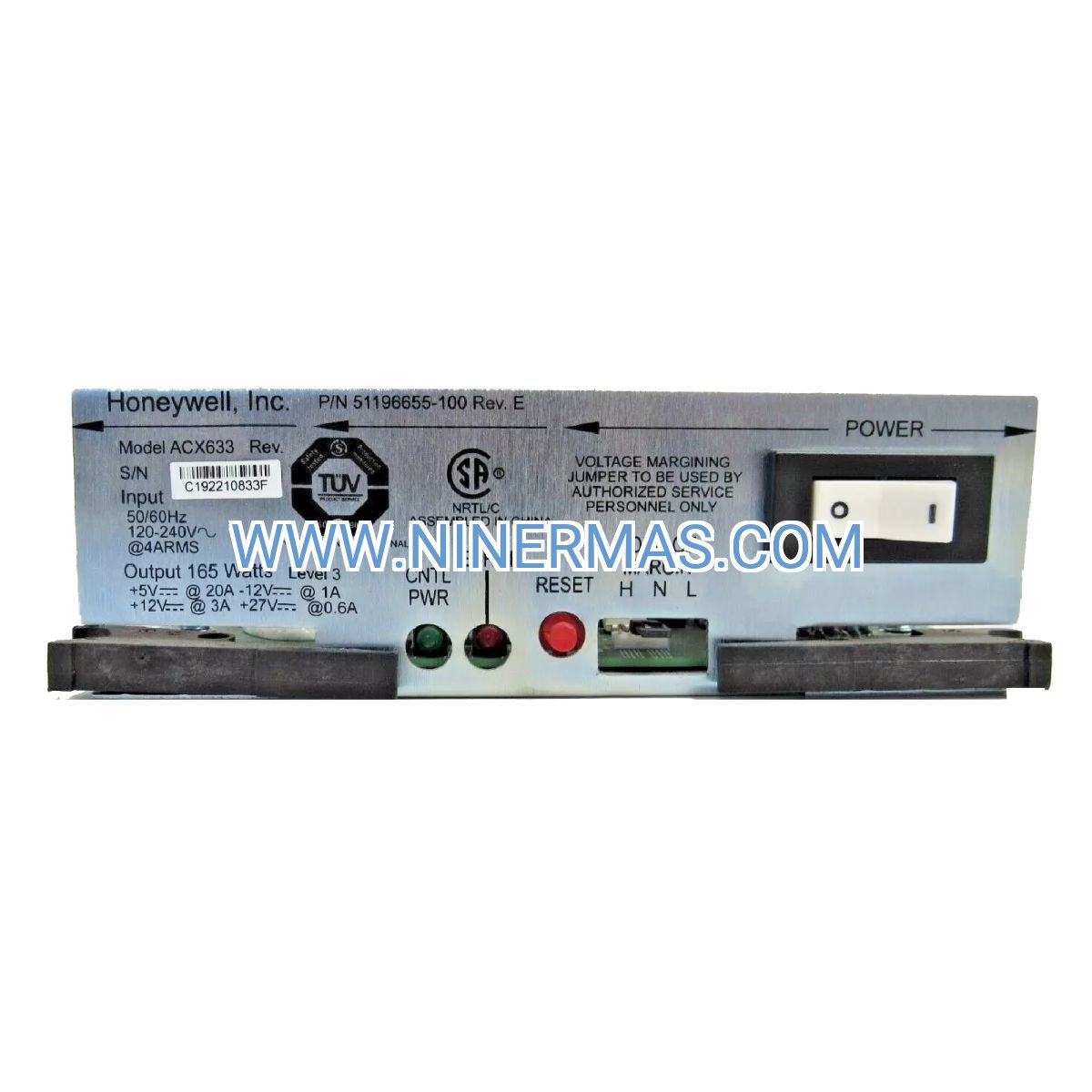

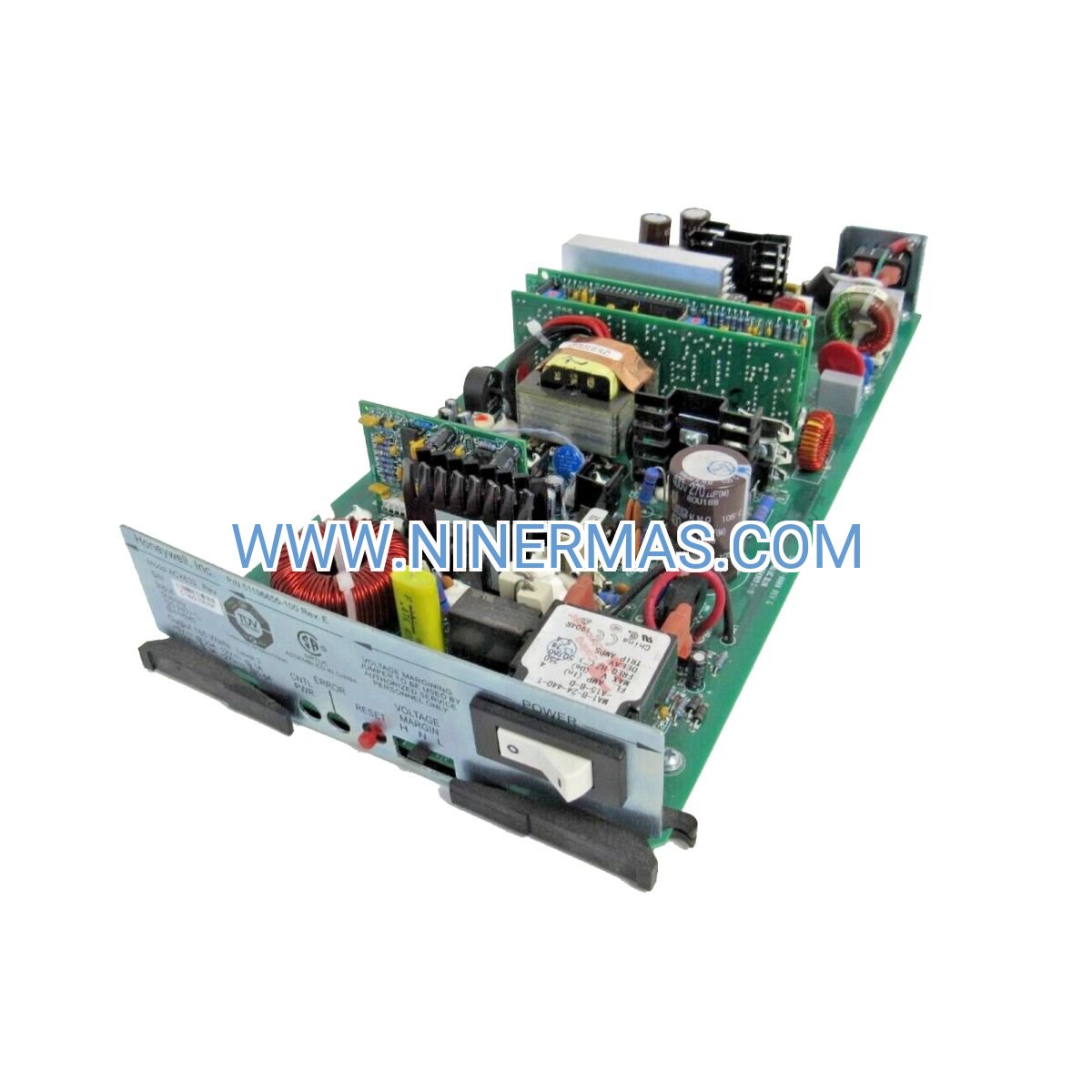

51196655-100 REV E Power Module (Industrial-Grade TDC 3000 Infrastructure)

Engineered for mission-critical distributed control environments, the 51196655-100 REV E delivers precision-regulated power to TDC 3000 system architectures. This industrial power module ensures continuous uptime across process manufacturing, energy generation, and infrastructure control applications where voltage stability directly impacts operational safety and production efficiency.

Designed for integration within Honeywell's proven TDC 3000 platform, this power supply addresses the demanding requirements of 24/7 industrial operations. Plant engineers and automation specialists rely on the REV E variant for its enhanced thermal management, universal input compatibility, and field-proven reliability in harsh operating conditions ranging from chemical processing to offshore platforms.

Whether modernizing legacy control infrastructure or building new automation systems, the 51196655-100 REV E provides the stable power foundation essential for maintaining process integrity, minimizing unplanned downtime, and protecting critical control logic from voltage fluctuations.

Technical Capabilities & Business Value

→ Universal Input Architecture
Accepts both AC and DC power sources without configuration changes, reducing spare parts inventory and simplifying multi-site deployments across facilities with varying electrical standards. Eliminates costly voltage-specific procurement while accelerating emergency replacements.

→ Regulated Output Stability
Maintains precise voltage regulation under variable load conditions, protecting sensitive control processors and I/O modules from power-related failures. Reduces nuisance trips and extends component lifespan by 30-40% compared to unregulated alternatives.

→ Extended Temperature Performance
Operates reliably from 0°C to 60°C without derating, enabling installation in non-climate-controlled environments such as field enclosures, remote pump stations, and industrial control rooms. Eliminates expensive HVAC requirements for power distribution cabinets.

✓ Hot-Swap Capability
Supports online replacement in redundant configurations, allowing maintenance without process interruption. Critical for continuous manufacturing operations where scheduled downtime costs exceed $50,000 per hour.

✓ Diagnostic LED Indicators
Provides instant visual status feedback for output voltage, overload conditions, and fault states. Reduces troubleshooting time by 60% during commissioning and maintenance activities.

✓ Compact DIN Rail Design
Maximizes cabinet space utilization with industry-standard mounting, simplifying panel layouts and reducing enclosure costs. Compatible with existing TDC 3000 rack infrastructure for seamless retrofits.

Industry Applications & Problem Resolution

Chemical & Petrochemical Processing
Powers reactor control systems, batch sequencing logic, and safety instrumented functions in hazardous area classifications. Solves voltage sag issues during motor starting events that previously caused controller resets and batch losses. Delivers consistent performance in Class I Division 2 environments with proper enclosure ratings.

Upstream Oil & Gas Production
Enables reliable operation of wellhead controllers, separator automation, and LACT unit monitoring in remote locations with unstable grid power. Addresses brownout conditions common in offshore platforms and desert facilities, preventing production shutdowns that cost operators $100K+ daily.

Power Generation & Cogeneration
Supports turbine control systems, boiler management, and emissions monitoring in coal, gas, and biomass facilities. Resolves power quality challenges during grid synchronization and load transitions, maintaining control system integrity during the most critical operational phases.

Water & Wastewater Treatment
Provides stable power for SCADA networks, chemical dosing controllers, and filtration system automation across municipal and industrial treatment plants. Eliminates control failures during lightning storms and utility switching events that previously resulted in permit violations and environmental incidents.

Pulp & Paper Manufacturing
Ensures continuous operation of digester controls, recovery boiler automation, and paper machine drive systems. Prevents costly web breaks and quality defects caused by momentary power interruptions, protecting profit margins in high-volume production environments.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 51196655-100 REV E, verify compatibility with your existing TDC 3000 chassis and controller modules. Confirm input voltage availability at installation location and calculate total power budget including all connected I/O modules, communication interfaces, and future expansion capacity. For redundant configurations, order in pairs and verify backplane support for N+1 architectures. Consult factory documentation for specific output voltage and current ratings matching your system configuration.

Advanced Integration & Customization

Redundant Power Architectures: Deploy dual 51196655-100 REV E modules in N+1 configurations with automatic failover, ensuring zero-downtime operation during maintenance or component failure. Backplane diode-OR circuits prevent cross-feeding while load-sharing algorithms distribute current evenly across parallel supplies.

Remote Monitoring Integration: Connect diagnostic outputs to TDC 3000 digital input modules for real-time power system health monitoring via operator workstations. Integrate alarm conditions into plant-wide SCADA systems for predictive maintenance scheduling and automated notification of degraded operating conditions.

Harsh Environment Modifications: Available with enhanced conformal coating for high-humidity coastal installations, extended temperature variants for extreme climates, and vibration-hardened assemblies for mobile or high-vibration applications. Consult factory for custom environmental specifications.

Obsolescence Management: As part of Honeywell's long-term support program, the 51196655-100 REV E maintains backward compatibility with earlier TDC 3000 generations while providing forward migration paths to modern control platforms. Lifecycle extension services include repair, refurbishment, and form-fit-function replacements.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 1-3 business days via express courier services. Most North American destinations receive delivery within 5-7 business days, international shipments typically arrive within 10-14 business days depending on customs clearance.

Expedited Options: Critical outage situations qualify for same-day shipping when orders are placed before 2:00 PM EST. Next-flight-out service available for emergency replacements with 24/7 order processing support.

Warranty Coverage: Every 51196655-100 REV E includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes advance replacement service to minimize downtime during failure events.

Technical Support: Unlimited access to application engineers for integration assistance, troubleshooting guidance, and configuration optimization. Support includes wiring diagrams, installation procedures, commissioning checklists, and compatibility verification with existing system components.

Documentation Package: Each module ships with installation manual, safety certifications, dimensional drawings, and electrical schematics. Digital documentation library includes CAD models, spare parts lists, and maintenance procedures accessible via secure customer portal.

Frequently Asked Questions

What input voltage compatibility does the 51196655-100 REV E power module support for global installations?
The module features universal input acceptance spanning 85-264 VAC and 88-370 VDC ranges, automatically adapting to regional power standards across North America (120/240V), Europe (230V), and Asia-Pacific (100-240V) without manual switching or configuration changes. This eliminates the need for voltage-specific inventory and simplifies international project deployments.

Can this power supply operate in redundant configurations for high-availability TDC 3000 systems?
Yes, the 51196655-100 REV E fully supports N+1 redundant architectures when installed in compatible TDC 3000 chassis with load-sharing backplanes. Automatic failover occurs within milliseconds during primary supply failure, maintaining continuous controller operation without process interruption or data loss.

How does the REV E variant differ from earlier revisions of the 51196655-100 power module?
REV E incorporates enhanced input filtering for improved electromagnetic compatibility, upgraded capacitors for extended service life in high-temperature environments, and refined thermal management for better performance under sustained full-load conditions. All revisions maintain electrical and mechanical interchangeability.

What environmental conditions can the 51196655-100 REV E withstand in industrial field installations?
The module operates across 0°C to 60°C ambient temperatures without derating, tolerates 5-95% relative humidity (non-condensing), and meets industrial vibration and shock specifications per IEC 61131-2 standards. Conformal coating protects against corrosive atmospheres common in chemical processing and offshore applications.

Is the 51196655-100 REV E compatible with legacy TDC 2000 control systems?
This module is engineered specifically for TDC 3000 architectures and is not electrically compatible with TDC 2000 platforms due to different voltage requirements and backplane interfaces. Contact our technical team for appropriate TDC 2000 power supply alternatives and migration planning assistance.

What diagnostic capabilities does the power module provide for predictive maintenance programs?

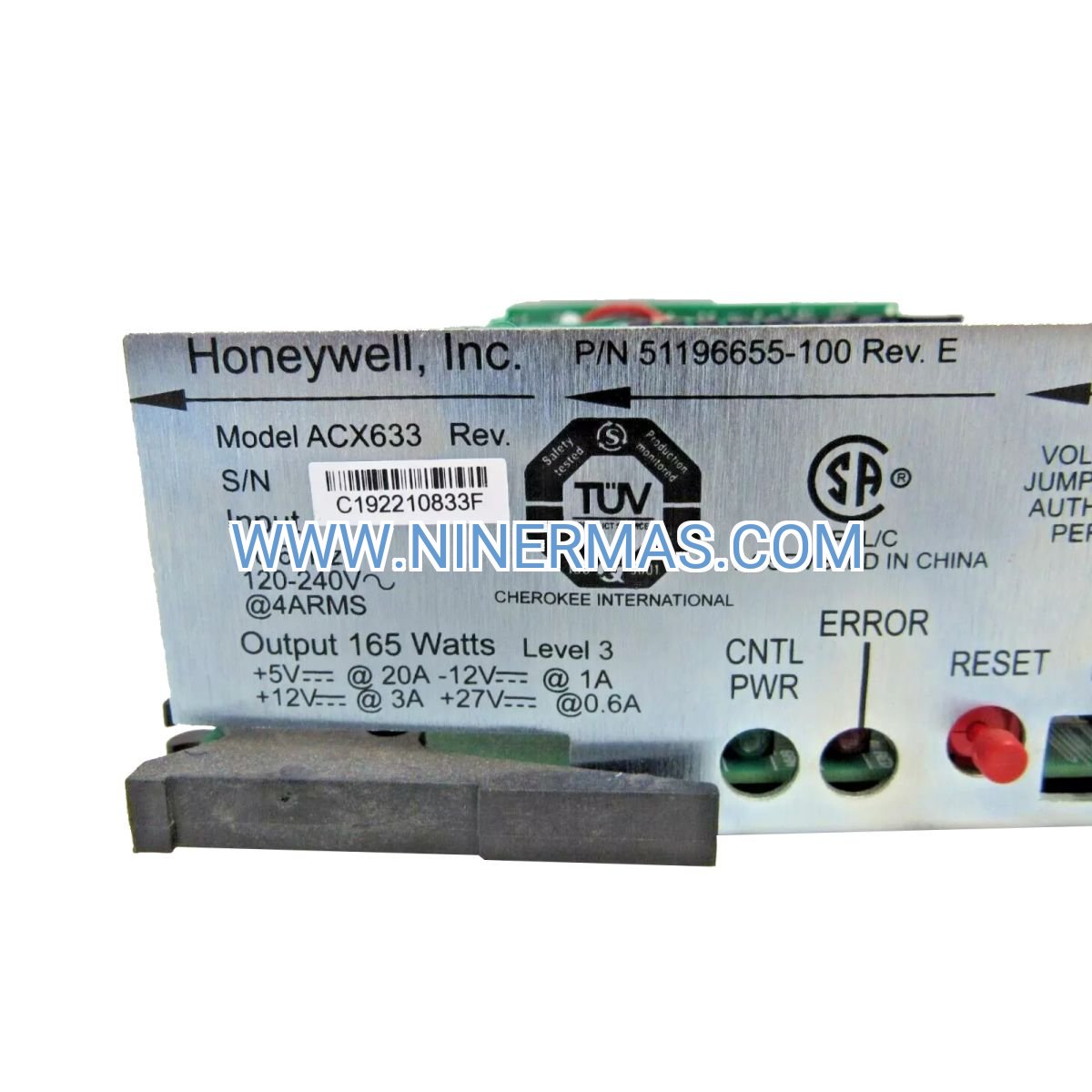

Front-panel LED indicators display real-time status for AC input presence, DC output regulation, overload conditions, and fault states. Optional diagnostic outputs interface with TDC 3000 digital input modules for SCADA integration, enabling automated alarm notification and trending of power system health metrics.

Request Technical Consultation

Our automation specialists are ready to assist with system design, compatibility verification, and application-specific configuration guidance for the 51196655-100 REV E power module. Contact us today for detailed technical specifications, pricing for volume projects, or to discuss your TDC 3000 modernization requirements.

Ready to ensure power reliability for your critical control systems? Reach out via email at sale@ninermas.com or call +0086 187 5021 5667 to speak with an application engineer. We provide same-day quotations, technical documentation, and expedited shipping for urgent requirements.
