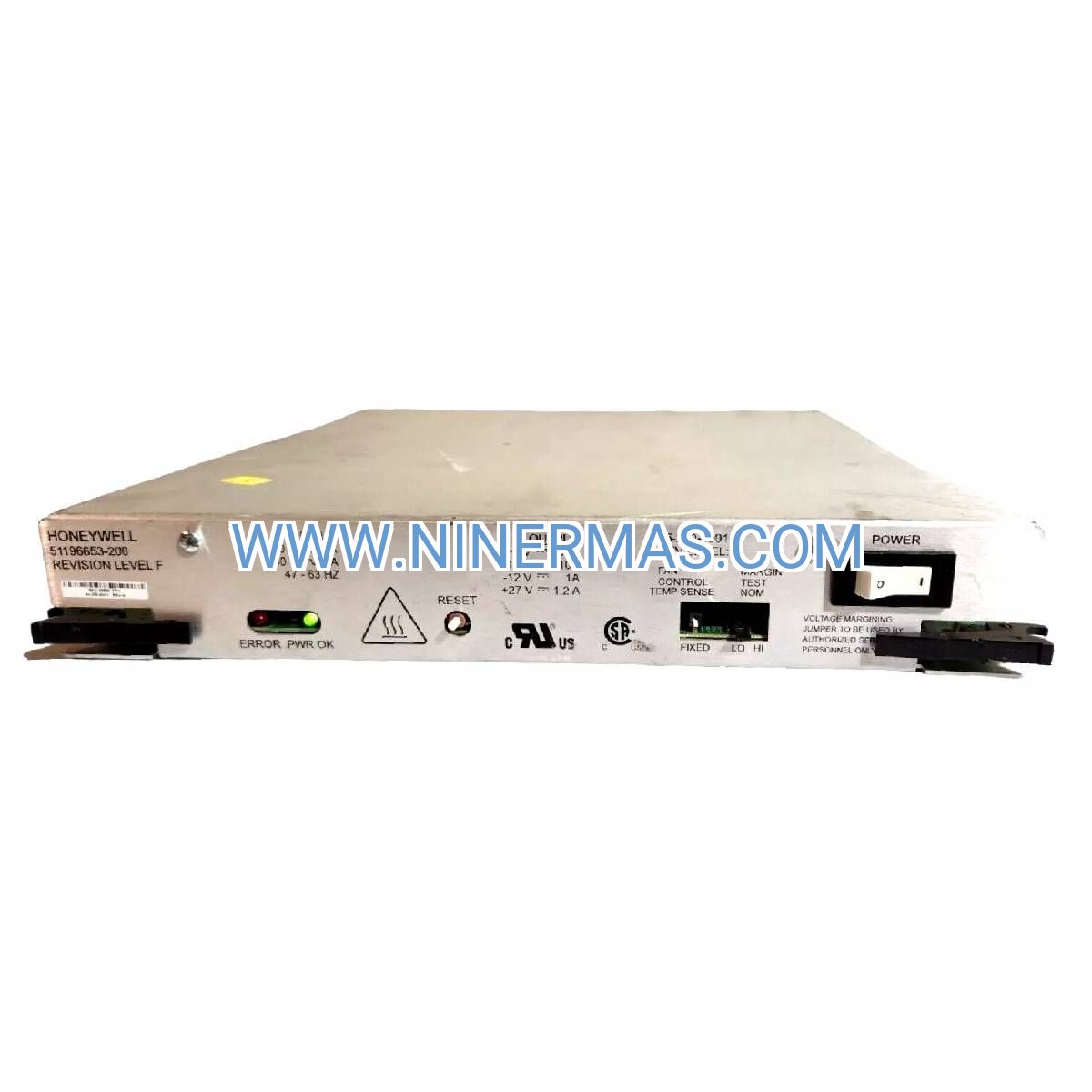

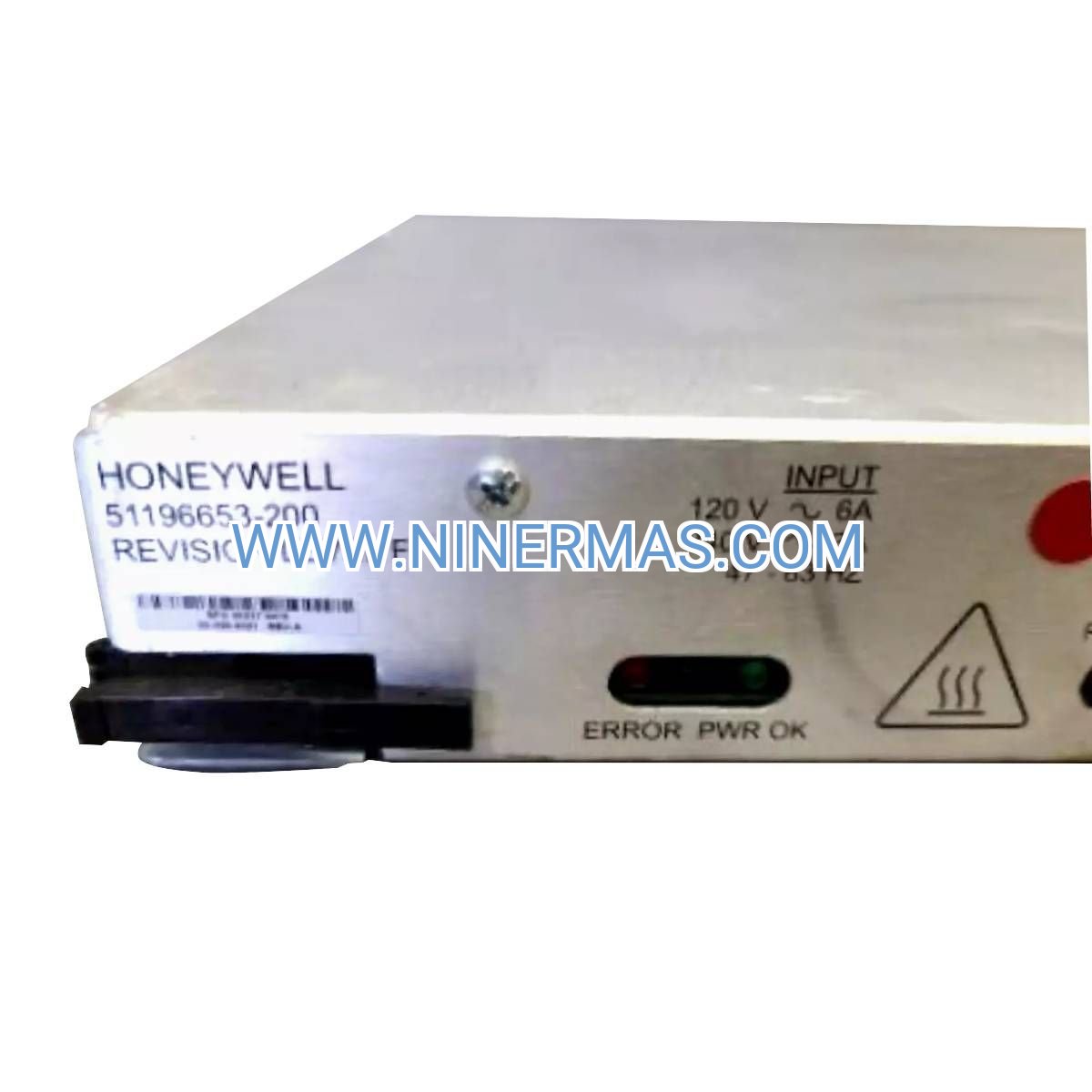

51196653-200 Power Supply Module (Industrial-Grade TDC 3000 DCS Solution)

The 51196653-200 represents a mission-critical power distribution component engineered specifically for Honeywell TDC 3000 distributed control architectures. This industrial power supply module delivers stable 24V DC regulated output with 240W capacity, ensuring uninterrupted operation across process automation, petrochemical refineries, and manufacturing control systems where power reliability directly impacts production continuity and safety compliance.

Designed for environments demanding zero-downtime performance, this module addresses the fundamental challenge of maintaining consistent voltage supply to field termination assemblies, I/O racks, and controller networks. Target users include plant engineers managing legacy TDC 3000 infrastructure, system integrators upgrading aging power distribution systems, and maintenance teams requiring drop-in replacements for failing PSU units.

Key differentiators include universal 85-265 VAC input compatibility eliminating regional voltage concerns, hot-swappable redundant configuration enabling maintenance without process interruption, and proven >100,000-hour MTBF backed by comprehensive safety certifications (UL/CE/CSA). The module's compact DIN-rail footprint maximizes cabinet space utilization while built-in EMI/RFI filtering protects sensitive control signals from electrical noise.

Technical Parameters & Selection Guide

Selection Recommendations: For systems requiring >192W continuous load, deploy redundant 51196653-200 modules in parallel configuration. Installations exceeding 60°C ambient temperature necessitate forced-air cooling or cabinet ventilation upgrades. When migrating from TDC 2000 legacy systems, consult compatibility matrices to verify backplane interface requirements.

Application Scenarios

→ Petrochemical Refinery Control Rooms
Scenario: Distributed control of distillation columns, reactor vessels, and pipeline networks requiring 24/7 uptime.
Pain Point Solved: Eliminates single-point power failures through redundant PSU architecture, preventing costly process shutdowns averaging $50,000-$200,000 per hour in lost production.
Value Delivered: Hot-swappable design enables preventive maintenance during scheduled turnarounds without interrupting active control loops.

→ Chemical Manufacturing Batch Processing
Scenario: Powering field I/O modules monitoring temperature, pressure, and flow in hazardous classified areas.
Pain Point Solved: Universal input voltage accommodates facilities with inconsistent utility power quality, preventing nuisance trips and batch rejections.
Value Delivered: Built-in surge protection and EMI filtering maintain signal integrity in electrically noisy environments with VFD motor drives.

→ Power Generation SCADA Systems
Scenario: Supporting turbine control, emissions monitoring, and grid synchronization equipment in combined-cycle plants.
Pain Point Solved: Addresses aging infrastructure where original PSU components exceed 15-year service life and face obsolescence risks.
Value Delivered: Direct form-fit-function replacement minimizes engineering redesign and reduces installation labor by 60% versus custom solutions.

→ Water Treatment Facility Automation
Scenario: Operating pump stations, chemical dosing systems, and filtration control in municipal wastewater plants.
Pain Point Solved: Compact footprint fits space-constrained retrofit applications where cabinet real estate is limited.
Value Delivered: DIN-rail mounting simplifies integration with existing terminal blocks and reduces wiring complexity by 40%.

Core Features & Benefits

✓ Wide-Range Input Acceptance: 85-265 VAC universal compatibility eliminates voltage-specific inventory SKUs and supports international deployments without transformer modifications—reducing procurement complexity and spare parts costs by consolidating to single part number.

✓ Redundant Hot-Swap Architecture: Parallel operation with automatic load balancing enables online module replacement during scheduled maintenance windows—achieving 99.99% uptime targets critical for continuous process industries and avoiding unplanned downtime penalties.

✓ Multi-Layer Protection Circuitry: Integrated overcurrent limiting, thermal shutdown, and reverse-polarity safeguards protect downstream control modules from damage—preventing cascading failures that could propagate through entire I/O racks and reducing mean-time-to-repair by isolating faults.

✓ High-Efficiency Conversion: >85% power efficiency minimizes heat dissipation (36W maximum at full load)—reducing HVAC cooling requirements in control rooms and extending component lifespan through lower operating temperatures.

✓ Front-Panel LED Diagnostics: Real-time visual indicators for AC input, DC output, and fault conditions—enabling rapid troubleshooting without multimeter testing and reducing diagnostic time from 30 minutes to under 5 minutes per incident.

✓ Industrial EMI/RFI Suppression: Integrated filtering meets EN 55011 Class A emissions standards—preventing interference with analog 4-20mA signals and ensuring measurement accuracy within ±0.1% specification even in high-noise environments.

Extended Functions

IoT Integration Readiness: While the 51196653-200 itself is a traditional power supply, it seamlessly powers modern IoT gateway modules and edge computing devices retrofitted into TDC 3000 systems. The stable 24V DC output supports Ethernet-enabled I/O modules, wireless sensor networks, and predictive maintenance monitoring equipment—enabling digital transformation initiatives without replacing legacy control infrastructure.

Advanced Monitoring Capabilities: When paired with optional current-sensing modules, the PSU enables real-time power consumption analytics for energy management programs. Track load trends to identify failing modules drawing excessive current before catastrophic failure occurs.

Customization Options: Available with conformal coating for harsh chemical environments, extended temperature ratings (-20°C to 70°C), and custom output voltages (12V/48V DC) for specialized applications. Consult factory for minimum order quantities on custom configurations.

Delivery & Service Assurance

Lead Time:
• Standard Configuration: 1-2 business days (in-stock items)
• Bulk Orders (10+ units): 5-7 business days
• Custom Specifications: 3-4 weeks (subject to factory scheduling)

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service for critical applications—minimizing downtime through cross-shipment of replacement units before defective module return.

Technical Support:
• 24/7 emergency hotline for critical system failures
• Application engineering consultation for system design
• On-site commissioning support available (minimum 5-unit orders)
• Remote diagnostics via phone/email within 2-hour response window

Documentation Package:
Each module ships with installation manual, wiring diagrams, dimensional drawings (DXF/PDF formats), compliance certificates (UL/CE/CSA), and material traceability documentation for quality audits.

Frequently Asked Questions

How do I configure redundant power supply operation for maximum uptime?
Install two 51196653-200 modules with outputs connected through isolation diodes (included in redundancy kit). Each module operates at 50% load during normal conditions. If one unit fails, the remaining module automatically assumes 100% load without interruption. Ensure total system load does not exceed 10A continuous to maintain N+1 redundancy margin.

What is the recommended replacement interval for preventive maintenance?
Based on 100,000-hour MTBF and typical 24/7 operation, plan replacement at 10-12 year intervals. However, perform annual output voltage verification and ripple testing. Replace immediately if output voltage drifts beyond ±3% tolerance or ripple exceeds 200mV peak-to-peak.

Can this power supply module operate in hazardous classified locations?
The standard 51196653-200 is rated for general industrial environments (non-classified). For Class I Division 2 or ATEX Zone 2 applications, specify conformal-coated version with appropriate enclosure ratings. Consult local electrical codes for installation requirements in hazardous areas.

Does the module support remote monitoring or alarm outputs?
Standard configuration provides front-panel LED status only. For remote monitoring integration, add optional relay contact module (part number 51196653-210) providing dry-contact alarm outputs for AC fail, DC fail, and overload conditions compatible with SCADA systems and building management platforms.

What tools are required for installation and commissioning?
Basic installation requires Phillips screwdriver, wire strippers, and torque screwdriver (0.5-0.6 Nm for terminal blocks). Commissioning verification needs digital multimeter (0.1% accuracy minimum) for output voltage measurement and oscilloscope for ripple analysis. No specialized programming tools required.

How does this module compare to newer Experion PKS power supplies?
The 51196653-200 is optimized for legacy TDC 3000 systems with ten-slot file architecture. Experion PKS systems use different backplane voltages and form factors. For migration projects, consult system integration guides—hybrid configurations may require voltage-level translation modules for interoperability.
