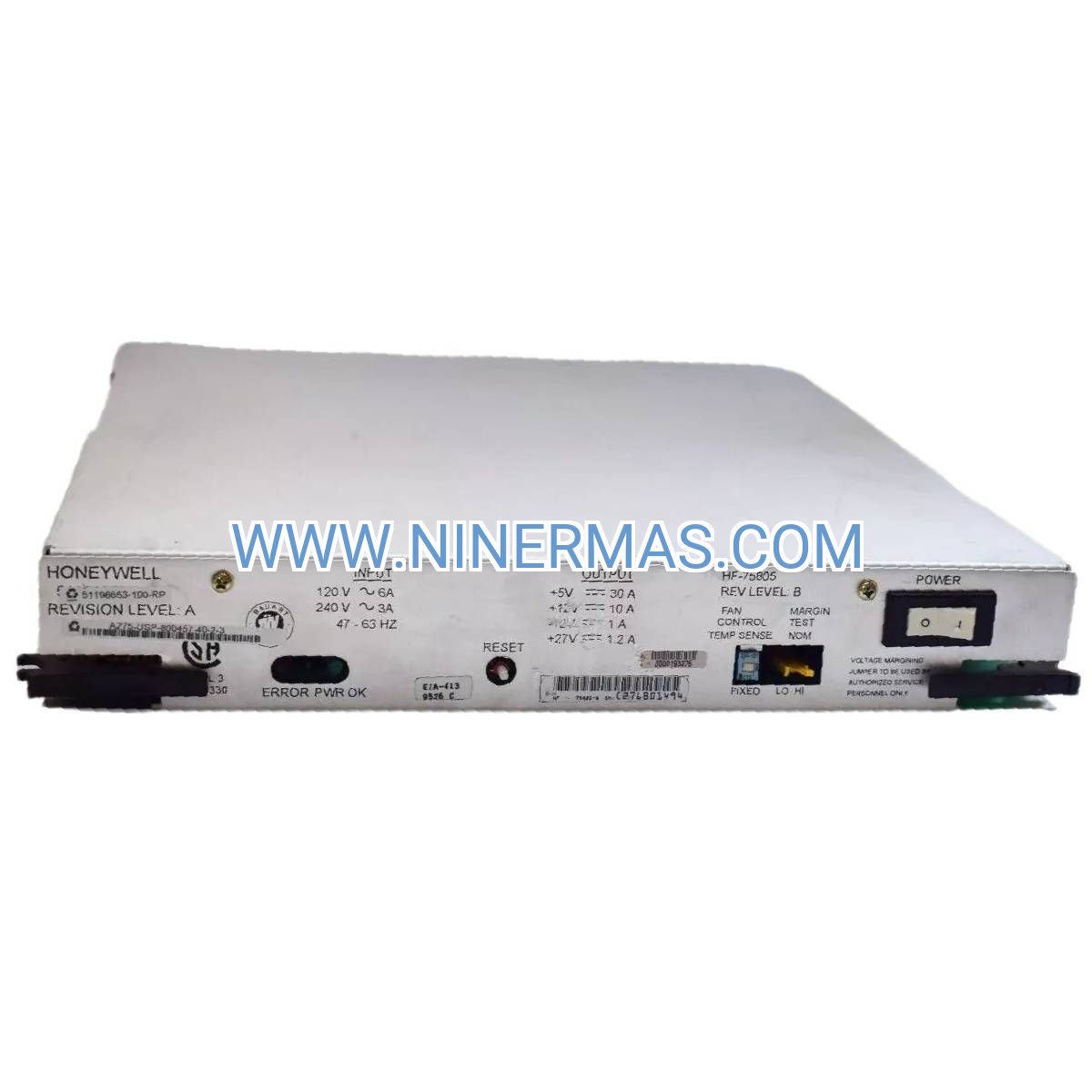

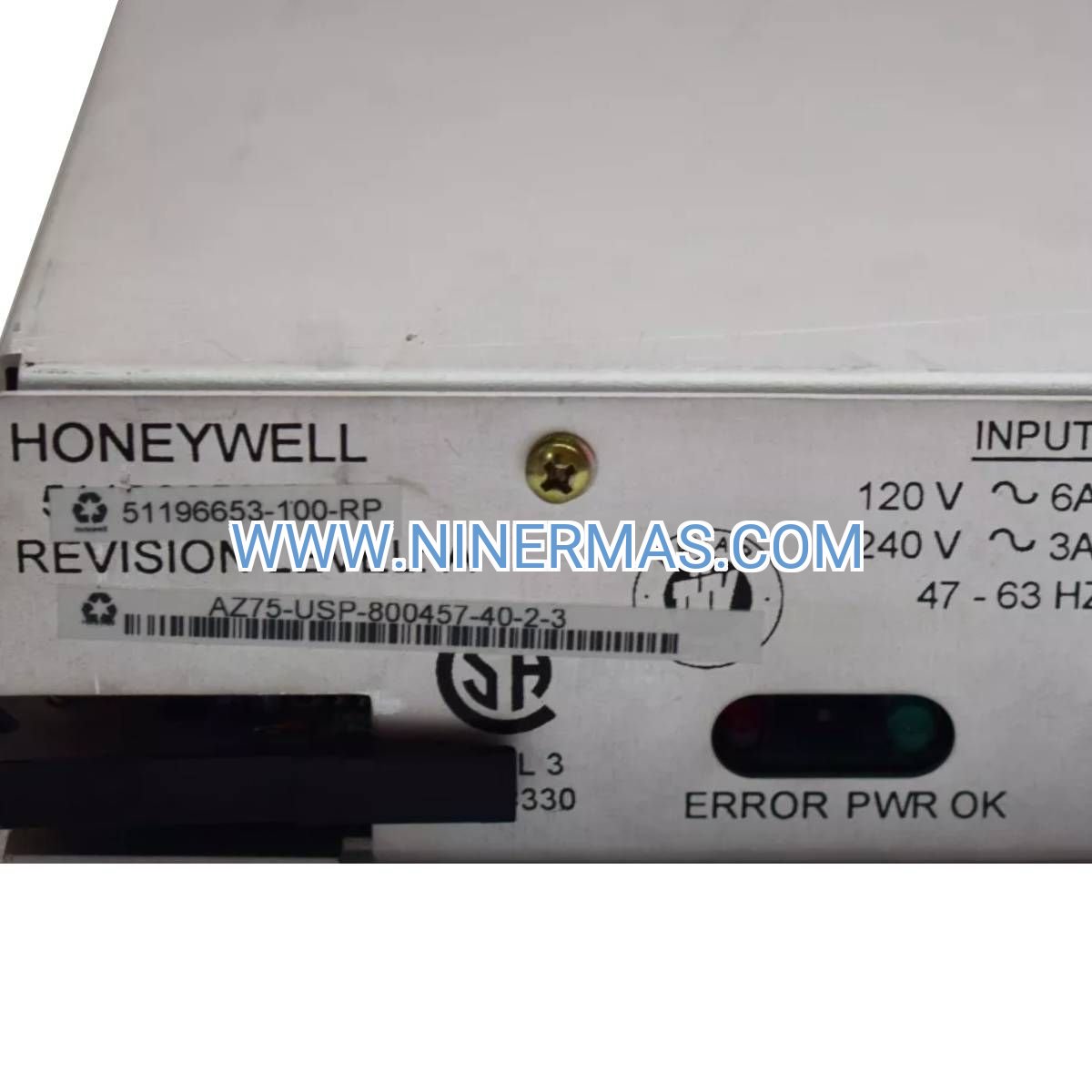

51196653-100 TDC 3000 Power Supply Module (Industrial-Grade DCS Component)

The 51196653-100 represents a mission-critical power distribution solution engineered for Honeywell's TDC 3000 distributed control architecture. Delivering regulated multi-rail DC output from universal AC input, this module ensures uninterrupted operation of process control networks in demanding industrial environments where downtime translates to significant operational and financial impact.

Designed for facilities requiring 24/7 uptime—from chemical processing plants to utility-scale power generation—this power supply integrates seamlessly into existing TDC 3000 infrastructures while providing the thermal management, fault protection, and diagnostic capabilities essential for modern industrial automation systems.

Whether you're maintaining legacy control systems, expanding production capacity, or implementing redundant power architectures, the 51196653-100 delivers the reliability and performance your operations demand with proven Honeywell engineering excellence.

Core Capabilities & Technical Advantages

→ Universal Input Compatibility
Accepts 100-240V AC at 50/60Hz, eliminating the need for voltage-specific inventory and simplifying global deployment across multi-site operations with varying electrical standards.

→ Dual-Rail Power Architecture
Simultaneously provides +5V DC at 20A and ±15V DC at 2A outputs, powering diverse TDC 3000 subsystems including logic circuits, analog interfaces, and communication modules from a single compact unit.

→ Comprehensive Fault Protection
Integrated overvoltage, overcurrent, and short-circuit safeguards automatically isolate faults to prevent cascading failures across connected control equipment, reducing mean time to recovery during electrical anomalies.

✓ Hot-Swap Serviceability
Enables field replacement without system shutdown in redundant configurations, minimizing planned maintenance windows and supporting continuous production schedules.

✓ Visual Diagnostic Indicators
Front-panel LED arrays provide real-time status feedback for output rails and fault conditions, accelerating troubleshooting and reducing diagnostic time by up to 40% compared to non-instrumented alternatives.

✓ High-Efficiency Conversion
Optimized switching topology achieves >85% efficiency across load ranges, reducing thermal dissipation requirements and lowering total cost of ownership through decreased cooling infrastructure demands.

Industrial Application Environments

Petrochemical & Refining Operations
In hydrocarbon processing facilities, the 51196653-100 powers safety-instrumented systems (SIS) and basic process control systems (BPCS) that monitor critical parameters including reactor temperatures, distillation column pressures, and flow rates. The module's wide operating temperature range (0-60°C) accommodates installation in climate-controlled equipment rooms and semi-conditioned field enclosures alike.

Utility Power Generation
Turbine control systems and boiler management applications rely on the 51196653-100's stable output regulation to maintain precise control loop performance. When paired with redundant configurations, the module supports N+1 availability architectures required for baseload generation facilities where unplanned outages carry six-figure hourly costs.

Pharmaceutical Manufacturing
Batch control systems governing fermentation, crystallization, and purification processes depend on the 51196653-100 for consistent power delivery that ensures regulatory compliance with FDA 21 CFR Part 11 and EU GMP Annex 11 requirements. The module's RoHS compliance supports pharmaceutical industry sustainability initiatives.

Water & Wastewater Treatment
SCADA systems controlling filtration, chemical dosing, and effluent monitoring leverage the 51196653-100's robust construction to withstand high-humidity environments (up to 95% non-condensing) typical of treatment plant control rooms.

Pulp & Paper Production
Continuous process lines for pulping, bleaching, and coating operations utilize the module's DIN-rail mounting for rapid integration into existing control cabinets, reducing installation labor costs by 30% compared to custom-mounted alternatives.

Technical Specifications & Selection Criteria

Selection Guidelines: Calculate total current draw across all +5V and ±15V loads in your TDC 3000 rack configuration. Ensure combined load does not exceed 80% of rated capacity (16A on +5V rail, 1.6A on ±15V rails) to maintain optimal thermal performance and extend service life. For systems requiring >120W continuous power, implement dual-module redundant configurations.

Advanced Integration & Expansion Options

Redundant Power Architectures
Deploy paired 51196653-100 modules with diode-OR load sharing to achieve N+1 redundancy. This configuration maintains full system operation during single-module failure or scheduled maintenance, critical for processes where control system downtime triggers emergency shutdown procedures.

Battery Backup Integration
Interface with UPS systems or DC battery banks through the module's wide input range to provide ride-through capability during utility power interruptions. Typical configurations support 15-30 minute backup duration for orderly process shutdown.

Remote Monitoring Capabilities
When connected to TDC 3000 network infrastructure, output voltage and current parameters can be monitored via system HMI, enabling predictive maintenance strategies based on load trending and thermal stress analysis.

Customization Services
For OEM applications or specialized installations requiring modified output voltages, extended temperature ratings, or conformal coating for harsh environments, consult our engineering team for custom configuration options with minimum order quantities.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical outage situations
Custom Configurations: 4-6 weeks for modified specifications or bulk orders >20 units
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures
Technical Support: Unlimited phone and email support from factory-trained engineers during warranty period
Documentation Package: Includes installation manual, wiring diagrams, dimensional drawings, and compliance certificates

Frequently Asked Questions

What is the recommended derating curve for elevated ambient temperatures?
Derate output current by 2.5% per °C above 50°C ambient. At maximum rated temperature (60°C), operate at 75% of nominal current capacity to maintain reliability targets.

Can this module replace earlier TDC 2000 power supplies?
The 51196653-100 is electrically compatible with most TDC 2000 racks but verify mechanical mounting compatibility and connector pinouts before substitution. Contact technical support with your specific TDC 2000 chassis model for confirmation.

How do I calculate total system power requirements for proper sizing?
Sum the current draw specifications from datasheets of all installed I/O modules, controller cards, and communication interfaces. Add 20% safety margin for inrush currents and future expansion capacity.

What maintenance procedures extend operational lifespan?
Inspect and clean air intake filters quarterly, verify terminal connection torque annually, and monitor output voltage regulation monthly. Replace electrolytic capacitors preventively at 7-year intervals in high-temperature installations.

Does the module support parallel operation for increased current capacity?
No, the 51196653-100 is not designed for current-sharing parallel operation. For loads exceeding single-module capacity, distribute circuits across multiple independent power supplies or upgrade to higher-capacity models.

What diagnostic information is available through system integration?
When networked via TDC 3000 LCN, the module reports output voltage levels, load current percentages, over-temperature warnings, and fault status codes accessible through operator workstations for centralized monitoring.

Order Your 51196653-100 Power Supply Today

Ensure continuous operation of your TDC 3000 control systems with genuine Honeywell power supply modules. Our technical sales team is ready to assist with system configuration, compatibility verification, and volume pricing for multi-unit deployments. Contact us now for same-day quotations and expedited delivery options.
