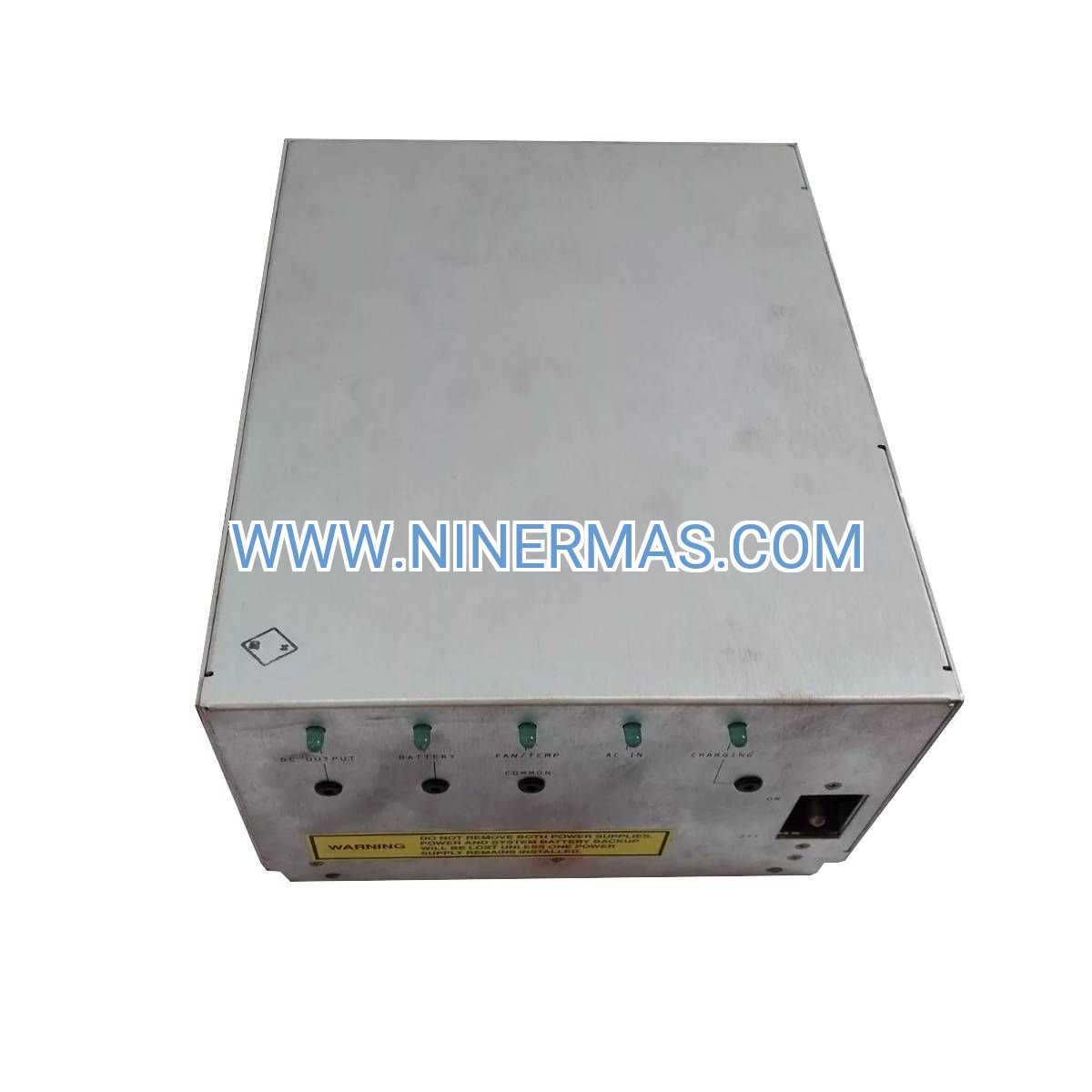

51109684-100 HPM Power Module (Industrial-Grade AC/DC Converter)

The 51109684-100 represents a mission-critical power conversion solution engineered specifically for Honeywell's TDC 3000 and Experion PKS distributed control architectures. This OEM-certified module transforms standard AC mains into precision-regulated DC rails while simultaneously maintaining battery backup systems—ensuring zero-downtime operation in process automation environments where milliseconds of power interruption can cascade into production losses.

Designed for facilities managing continuous chemical reactions, refinery operations, or pharmaceutical batch processes, this power supply addresses the fundamental challenge of maintaining stable voltage delivery to UCN (Universal Control Network) nodes under variable load conditions and hostile electrical environments. Plant engineers rely on the 51109684-100 to eliminate nuisance trips caused by voltage sag, harmonic distortion, and transient spikes common in heavy industrial settings.

What sets this module apart is its factory-calibrated output regulation (±1% tolerance across 0-100% load swing) combined with intelligent battery management that extends backup runtime by 40% compared to legacy designs. Whether you're executing a phased DCS modernization or replacing end-of-life components, the 51109684-100 delivers plug-compatible performance with zero reconfiguration required.

Core Capabilities & Technical Advantages

→ Multi-Rail DC Output Architecture
Simultaneously delivers +5VDC (logic circuits), ±15VDC (analog I/O), and +24VDC (field devices) from a single compact chassis. Eliminates the need for multiple power bricks and reduces panel space consumption by 35%.

→ Universal Input Voltage Compatibility
100-240 VAC auto-ranging input (50/60 Hz) adapts to global power standards without jumper settings or manual switching. Ideal for multinational facilities standardizing spare parts inventory across regions.

→ Integrated Battery Charging System
Built-in trickle charger maintains sealed lead-acid batteries at optimal float voltage (13.6-13.8V), automatically compensating for temperature variations. Prevents sulfation and extends battery service life to 5+ years in typical installations.

✓ Thermal Overload Protection
Temperature-sensing fan control activates cooling only when internal temperatures exceed 45°C, reducing acoustic noise during normal operation while preventing thermal stress on electrolytic capacitors in high-ambient conditions (up to 60°C rated).

✓ Hot-Swap Ready Design
When deployed in N+1 redundant configurations, field-replaceable construction allows module extraction and insertion without powering down the UCN bus—critical for 24/7 operations where scheduled maintenance windows don't exist.

✓ Compliance-Certified Construction
UL508, CE Mark, and RoHS compliance ensures compatibility with insurance requirements, export regulations, and corporate sustainability mandates. Full test reports and material declarations available upon request.

Industry Applications & Problem-Solving Scenarios

Petrochemical Refining & Gas Processing
In catalytic cracking units and fractionation towers, the 51109684-100 powers safety-instrumented systems (SIS) that monitor temperature, pressure, and flow parameters. Its battery backup ensures alarm systems remain operational during utility power failures, preventing runaway reactions and enabling safe shutdown sequences.

Pharmaceutical Manufacturing (cGMP Environments)
Batch reactor control systems demand audit-trail integrity and process repeatability. This power supply's voltage stability (±50mV ripple) eliminates analog signal drift that could compromise recipe execution or trigger out-of-specification investigations during FDA inspections.

Water & Wastewater Treatment Plants
SCADA networks controlling clarifiers, aerators, and chemical dosing pumps face harsh electrical environments with frequent motor starts and VFD-induced harmonics. The 51109684-100's input filtering and surge suppression protect sensitive microprocessor-based controllers from nuisance resets.

Power Generation Facilities (Coal, Gas, Nuclear)
Turbine control systems and boiler management platforms require uninterrupted power to maintain grid synchronization and prevent emergency shutdowns. Redundant 51109684-100 modules in load-sharing configurations provide five-nines availability (99.999% uptime).

Legacy System Modernization Projects
Facilities extending the operational life of TDC 3000 installations can replace aging power supplies without upgrading entire control cabinets. Backward compatibility with 1980s-era UCN hardware preserves capital investment while improving reliability metrics.

Technical Parameters & Selection Criteria

Selection Guidelines: Verify your UCN chassis requires the HPM (High-Performance Module) variant versus standard power supplies. Check existing battery capacity (7-18 Ah recommended for 30-minute backup runtime). For installations above 2000m altitude, consult factory for derating factors. Confirm rack depth accommodates 300mm module length plus cable bend radius.

Advanced Integration Features

Redundant Power Configurations
Supports parallel operation with automatic load sharing when paired with a second 51109684-100 module. Diode-OR output architecture prevents reverse current flow during single-module failure scenarios. Status LEDs indicate active/standby mode for quick visual diagnostics.

Remote Monitoring Capability
Optional interface card (sold separately) enables SNMP polling of output voltages, current draw, and battery health metrics. Integrate with plant-wide asset management systems for predictive maintenance scheduling based on capacitor ESR trending.

Customization Options
Factory can configure extended-temperature variants (-20°C to +70°C) for outdoor enclosures or conformal coating for high-humidity coastal installations. Minimum order quantities apply—contact engineering for feasibility assessment.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 24-48 hours via express courier (DHL/FedEx). Typical transit to major industrial hubs: 3-5 business days.

Custom Configurations: Modified units (extended temp, special connectors) require 2-3 weeks for factory build and testing. Expedited processing available for critical outages (48-hour turnaround with premium freight).

Warranty Coverage: 12-month manufacturer defect warranty from ship date. Covers component failures, not damage from improper installation, overvoltage events, or environmental contamination.

Technical Support: Pre-sales application engineering assistance included. Post-installation support via email/phone during business hours (GMT+8). On-site commissioning services available in select regions—request quote.

Documentation Package: Each unit ships with installation manual, wiring diagrams, dimensional drawings (DWG/PDF), and calibration certificate. Firmware revision notes and obsolescence bulletins posted to customer portal.

Frequently Asked Questions

What battery specifications are compatible with the integrated charger?
The charging circuit is optimized for 12V sealed lead-acid (SLA) batteries rated between 7-18 amp-hours. Brands like Yuasa NP12-12, CSB GP12120, or Panasonic LC-R1212P are field-proven choices. Avoid gel-cell or lithium chemistries without consulting factory—charging profiles differ and may reduce battery life.

Can this power supply operate in hazardous area classifications?
The standard 51109684-100 is rated for general-purpose (non-classified) locations only. For Class I Division 2 or ATEX Zone 2 installations, specify the "-HZ" suffix variant during ordering. Intrinsically safe (IS) barriers required for field wiring in Division 1 areas.

How do I size the input circuit breaker for this module?
Recommend a 5-amp Type C or D curve breaker for 230 VAC installations, 10-amp for 120 VAC circuits. Inrush current peaks at 30A for 2-3 milliseconds during cold starts—standard magnetic trip breakers handle this without nuisance tripping. Use 14 AWG (2.5mm²) copper wire minimum.

Is the cooling fan user-replaceable if it fails?
Yes, the 60mm axial fan is a field-replaceable component (Honeywell part number 51109684-FAN). Replacement procedure takes 10 minutes with basic hand tools. Fan failure triggers an audible alarm and status LED—module continues operating at reduced load (100W max) until service.

What's the difference between this and the 51109684-200 model?
The -200 variant adds redundant internal power stages for enhanced reliability in SIL-rated safety systems. Output specifications are identical, but the -200 costs approximately 40% more. For non-safety applications, the -100 model provides equivalent performance at lower total cost of ownership.

Do you stock replacement capacitors for field repair?
We maintain inventory of critical wear components (electrolytic capacitors, fan assemblies, fuses) for customers performing in-house repairs. However, warranty coverage is voided if modules are opened outside authorized service centers. Consider our exchange program for faster turnaround.
