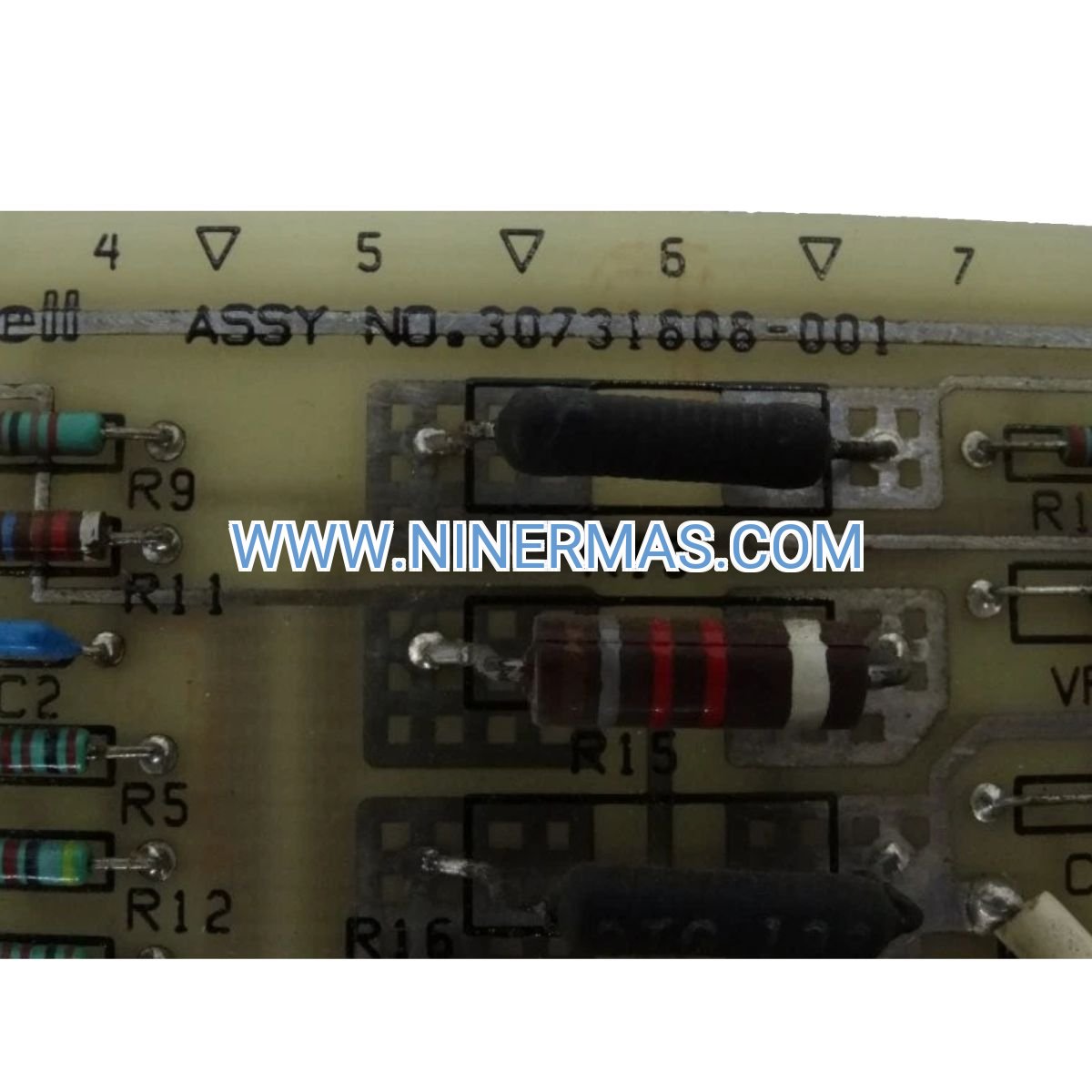

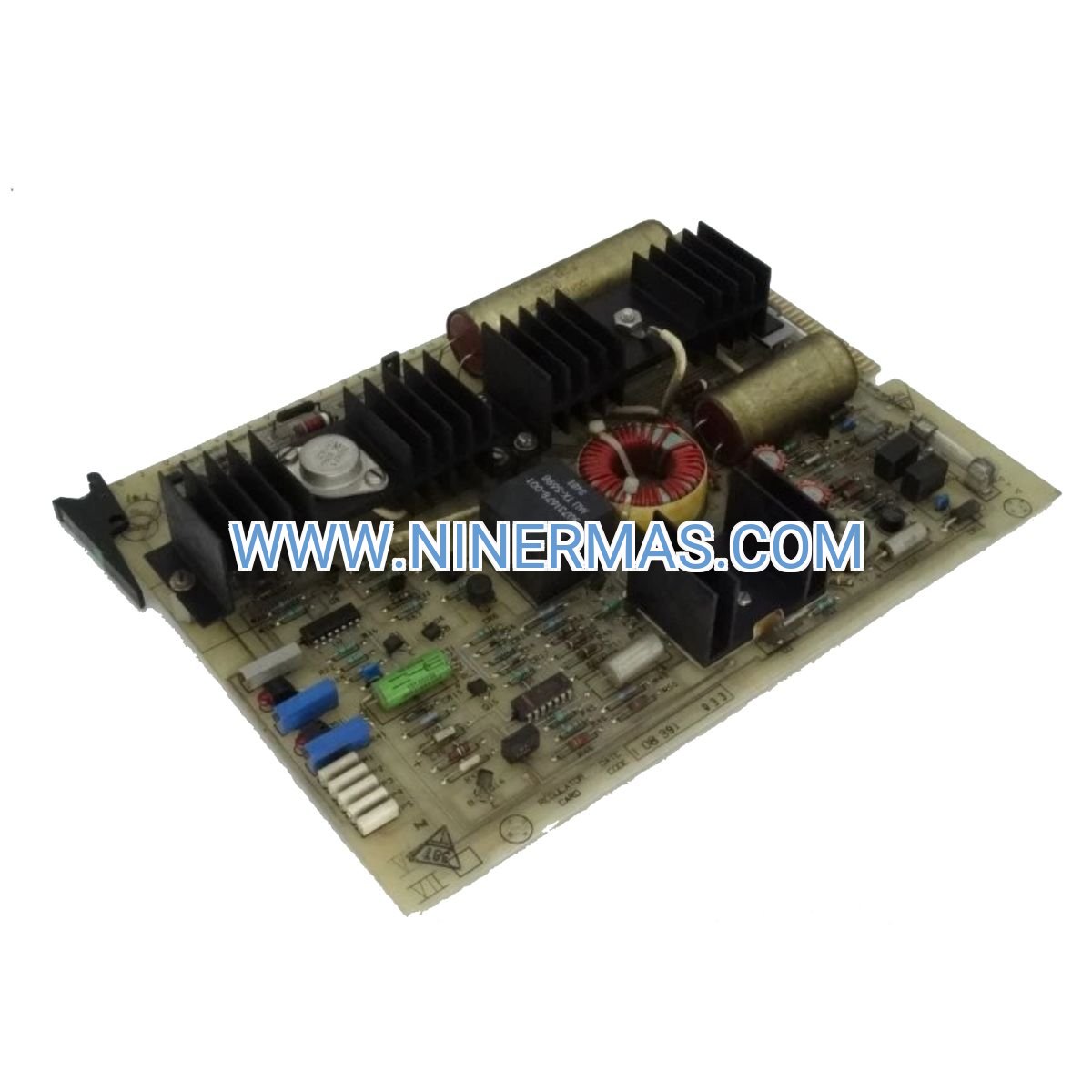

30731808-001 Signal Regulator Card (Industrial-Grade Interface Module)

The 30731808-001 is a precision-engineered signal regulator card designed for Honeywell System 57 distributed control systems. This industrial-grade interface module provides critical voltage regulation, electrical noise suppression, and reliable signal conditioning between field instrumentation and central processors. Built to withstand harsh process environments, it ensures uninterrupted control system operation in oil & gas, chemical processing, power generation, and pharmaceutical manufacturing facilities.

Process engineers and maintenance teams rely on this regulator card to maintain signal integrity in electrically noisy industrial settings where motor drives, VFDs, and switching equipment can compromise control accuracy. The card's robust isolation circuitry protects sensitive downstream electronics while delivering stable, clean signals for precise process control.

As a direct-fit replacement for aging System 57 regulator modules, the 30731808-001 offers plug-and-play installation with hot-swap capability, minimizing production downtime during maintenance activities. Each unit undergoes comprehensive factory testing and calibration to meet Honeywell's stringent quality standards.

Core Features & Technical Advantages

→ Advanced Signal Isolation Technology
Multi-stage filtering architecture eliminates electromagnetic interference from high-power equipment, ensuring measurement accuracy within ±0.1% across the operating range. Critical for maintaining tight process control in electrically demanding environments.

→ Hot-Swappable Architecture
Replace failed cards without shutting down the entire control system. Reduces mean time to repair (MTTR) by 75% compared to legacy fixed-mount designs, protecting production schedules and revenue streams.

→ Wide Operating Temperature Range
Certified for continuous operation from 0°C to 60°C (32°F to 140°F), accommodating control room temperature fluctuations and non-climate-controlled equipment shelters without performance degradation.

✓ Backward-Compatible Design
Direct replacement for original System 57 and 57X regulator cards. No firmware updates, configuration changes, or special tools required—simply insert and resume operation.

✓ Factory-Calibrated Precision
Each card ships with traceable calibration certificates. Voltage regulation accuracy maintained at ±50mV across full load range, meeting pharmaceutical GMP and ISO 9001 documentation requirements.

✓ Compact Card-Rack Form Factor
Standard Honeywell card dimensions ensure compatibility with existing chassis infrastructure. Optimizes cabinet space utilization in retrofit and expansion projects.

Industrial Application Scenarios

Petrochemical Refining Operations
In catalytic cracking units and distillation columns, the 30731808-001 maintains stable analog signals for temperature, pressure, and flow transmitters despite electrical noise from large motor starters and variable frequency drives. Prevents false alarms and improves control loop stability, reducing product quality variations by up to 15%.

Pharmaceutical Batch Processing
Clean-room manufacturing environments demand precise environmental control. This regulator card ensures accurate signal transmission from humidity sensors, differential pressure transmitters, and temperature probes, supporting FDA 21 CFR Part 11 compliance through reliable data acquisition.

Power Plant Turbine Control
Steam and gas turbine control systems require ultra-reliable interface cards for vibration monitoring, bearing temperature measurement, and governor control signals. The 30731808-001's isolation capabilities protect critical safety systems from electrical transients during grid disturbances.

Water & Wastewater Treatment
Municipal treatment facilities use this card to regulate signals from pH analyzers, chlorine residual monitors, and flow meters. Stable signal conditioning improves chemical dosing accuracy, reducing reagent costs by 8-12% while maintaining discharge permit compliance.

Chemical Reactor Control Systems
Exothermic reaction monitoring requires precise temperature and pressure signal processing. The card's noise rejection capabilities ensure accurate PID loop control, preventing thermal runaways and improving batch-to-batch consistency in specialty chemical production.

Technical Specifications & Selection Guide

Selection Criteria: Verify your System 57 chassis model and slot configuration before ordering. The 30731808-001 is designed for standard regulator card positions. For systems with custom I/O configurations or third-party integration requirements, consult your control system documentation or contact our technical team for compatibility verification.

Extended Capabilities & Integration Options

Redundancy Configuration Support
Deploy in redundant pairs for high-availability applications. Automatic failover ensures continuous operation during card replacement or failure events.

Diagnostic LED Indicators
Front-panel status LEDs provide instant visual confirmation of power status, signal health, and fault conditions, accelerating troubleshooting during maintenance activities.

Legacy System Modernization
Bridge aging System 57 infrastructure with modern field devices. The card's robust signal conditioning accommodates both legacy 4-20mA transmitters and newer HART-enabled smart instruments.

Custom Calibration Services
For specialized applications requiring non-standard voltage ranges or signal characteristics, factory custom calibration services are available with extended lead times.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 1-2 business days via express courier. Typical transit time to major industrial centers: 3-5 business days globally.

Custom Configuration: Special calibration or testing requirements add 3-5 business days to standard lead time. Expedited processing available for critical outage situations.

Warranty Coverage: Comprehensive 12-month warranty covers all manufacturing defects and component failures under normal operating conditions. Warranty includes free replacement and return shipping.

Technical Support: Unlimited access to our control systems engineering team for installation guidance, troubleshooting assistance, and application consulting. Average response time: <2 hours during business hours.

Documentation Package: Each shipment includes installation instructions, calibration certificate, dimensional drawings, and compatibility matrix for System 57/57X platforms.

Frequently Asked Questions

What is the typical lifespan of the 30731808-001 regulator card in continuous operation?
Under normal industrial conditions (controlled temperature, proper ventilation, clean power), expect 10-15 years of reliable service. Harsh environments with extreme temperatures or electrical noise may reduce service life to 7-10 years. Regular inspection of solder joints and connector integrity during annual maintenance extends operational life.

Can this card interface with third-party DCS systems or only Honeywell platforms?
The 30731808-001 is specifically engineered for Honeywell System 57 architecture with proprietary backplane communication protocols. It is not compatible with ABB, Emerson DeltaV, Siemens PCS7, or other third-party DCS platforms without custom interface modules.

How does the hot-swap capability work during card replacement procedures?
The card features spring-loaded ejector mechanisms and staggered connector pins that ensure power disconnection occurs last during removal and connects first during insertion. This sequencing prevents backplane voltage spikes. Simply pull the ejector handles, remove the failed card, insert the replacement, and push ejectors to lock—no system shutdown required.

What environmental certifications does this regulator card hold for hazardous area installation?
The card itself is rated for general-purpose control room installation (non-hazardous areas). For deployment in Class I Division 2 or ATEX Zone 2 environments, install within appropriately rated purged enclosures or intrinsically safe barriers per local electrical codes and NFPA 70 requirements.

Are firmware updates or configuration software required after installation?
No. The 30731808-001 operates as a hardware-based signal conditioning module without embedded firmware. Configuration is handled by the System 57 controller through backplane communication. Simply insert the card and verify LED status—no programming tools or software licenses required.

What is the recommended spare parts inventory level for critical process applications?
For single-point-of-failure applications, maintain one spare per 10 installed cards. High-availability systems with redundant configurations can reduce to one spare per 20 cards. Critical infrastructure (power generation, refining) should stock spares equal to 15% of installed base to ensure <4-hour mean time to repair.

Secure Your System 57 Reliability Today

Don't let aging regulator cards compromise your process control integrity. Order the 30731808-001 now to ensure uninterrupted operation of your Honeywell System 57 infrastructure. Our technical team is standing by to verify compatibility with your specific chassis configuration and answer any application questions.
