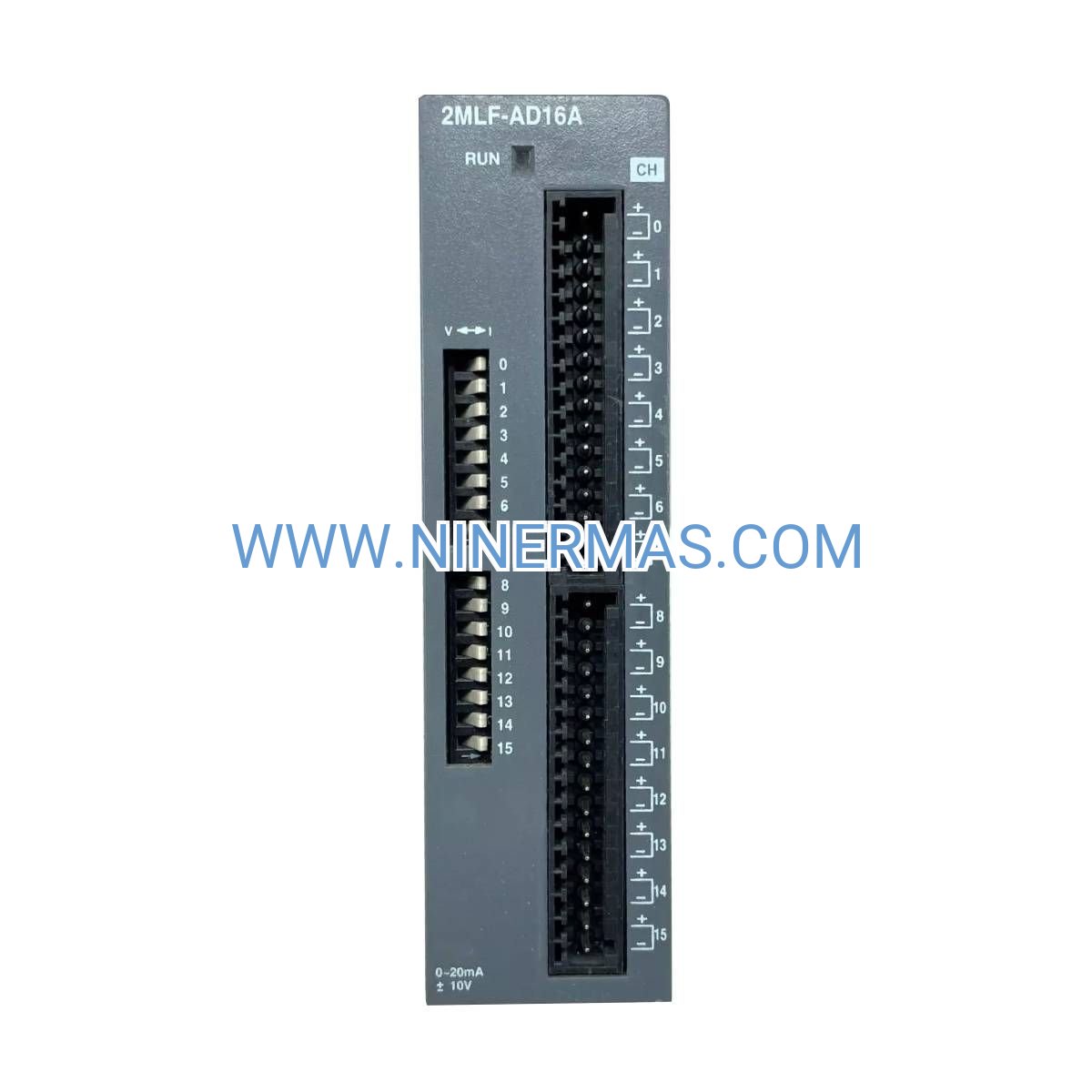

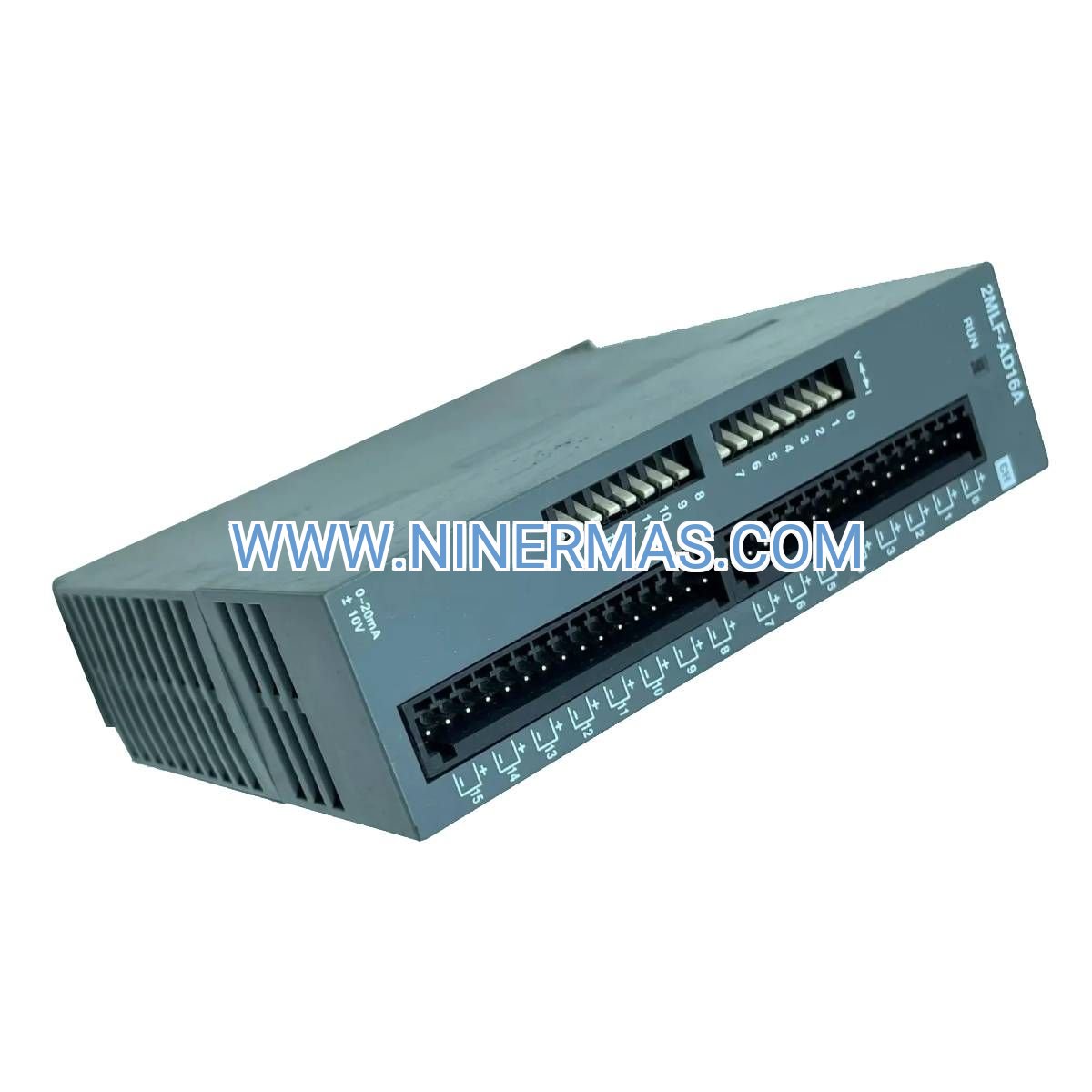

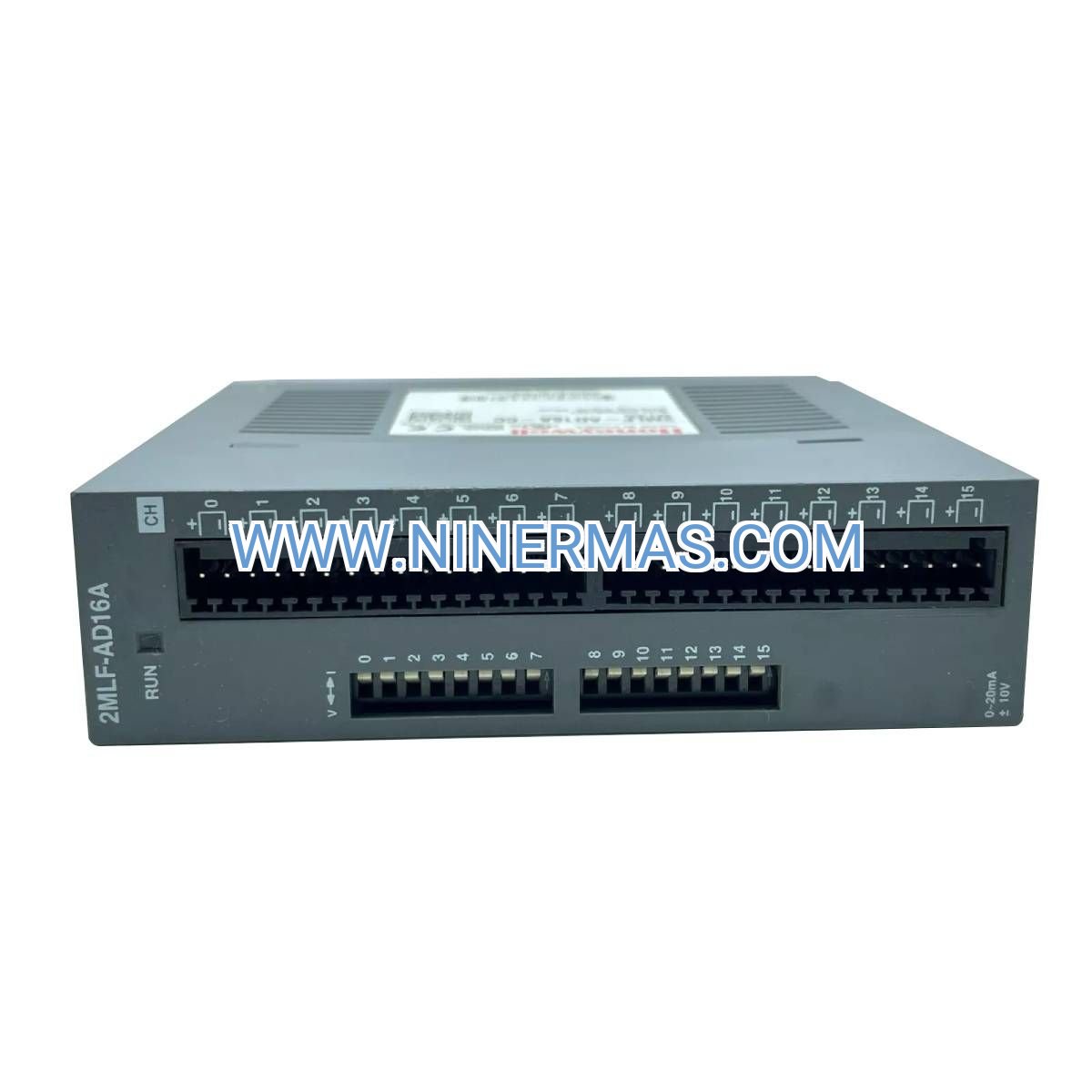

2MLF-AD16A-CC Multi-Channel Analog Input Module (Industrial-Grade Signal Acquisition)

The 2MLF-AD16A-CC represents a professional-tier analog signal acquisition solution designed for mission-critical industrial environments. This 16-channel input module combines flexible signal conditioning, high-resolution conversion, and robust isolation to deliver reliable data acquisition across process control, energy management, and manufacturing automation applications.

Built for system integrators and plant engineers who demand precision and uptime, this module addresses the challenge of consolidating diverse analog signals—from temperature transmitters to flow sensors—into a single, manageable I/O point. Its per-channel configurability eliminates the need for multiple specialized modules, reducing panel space, wiring complexity, and total system cost.

Whether you're retrofitting legacy systems or designing new installations, the 2MLF-AD16A-CC delivers the measurement accuracy, diagnostic transparency, and operational flexibility required for modern industrial control architectures.

Core Features & Benefits

✓ 16 Differential Analog Inputs – Maximize I/O density while maintaining signal integrity through true differential measurement that rejects common-mode noise.

✓ Dual Signal Mode Operation – Switch between voltage (0-10V, ±10V) and current (0-20mA, 4-20mA) on a per-channel basis via accessible DIP switches, enabling mixed-signal applications without additional hardware.

✓ 16-Bit A/D Conversion – Achieve ±0.1% full-scale accuracy at 25°C, providing the resolution necessary for precise process control and quality assurance applications.

✓ Comprehensive Isolation Architecture – Channel-to-channel and channel-to-backplane isolation protects against ground loops and electrical transients common in industrial power distribution systems.

✓ Hot-Swap Capability – Replace or add modules during live operation without system shutdown, minimizing production interruptions and maintenance windows.

✓ Extended Temperature Range – Operate reliably from -40°C to +70°C, suitable for outdoor enclosures, boiler rooms, and other harsh thermal environments.

Typical Application Scenarios

→ Chemical & Petrochemical Processing
Monitor reactor temperatures, distillation column pressures, and flow rates across multi-stage processes. The module's isolation prevents ground-referenced sensor signals from creating measurement errors in electrically noisy refinery environments.

→ Building Energy Management Systems
Aggregate data from chiller power meters, VAV damper position sensors, and outdoor air quality transmitters. Mixed voltage/current capability allows direct connection to both 0-10V modulating actuators and 4-20mA temperature sensors within the same module.

→ Water & Wastewater Treatment
Acquire pH, turbidity, dissolved oxygen, and chlorine residual measurements from submersible probes. The module's 1000-meter current loop capability supports long cable runs between remote lift stations and central control rooms.

→ Manufacturing Quality Control
Interface with load cells, pressure transducers, and dimensional measurement sensors for real-time SPC data collection. High-resolution conversion enables detection of process drift before out-of-spec conditions occur.

→ Renewable Energy Installations
Track solar array voltages, wind turbine vibration levels, and battery bank currents. Wide operating temperature range supports outdoor cabinet installations without climate control.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when your application requires consolidation of multiple analog sensor types, long-distance current loop transmission, or hot-swap serviceability. For applications with fewer than 8 channels, consider single-width modules to optimize panel space. For hazardous area installations, verify compatibility with intrinsic safety barriers.

Extended Functions

Integrated Loop Power Supply – Provides 24VDC excitation for two-wire transmitters, eliminating external power distribution requirements and simplifying field wiring.

Diagnostic LED Indicators – Per-channel status LEDs provide instant visual confirmation of signal presence, over-range conditions, and module health without requiring software tools.

SCADA Integration Ready – Compatible with Modbus RTU/TCP, OPC UA, and proprietary DCS protocols for seamless integration into existing supervisory control architectures.

Customization Options – Factory configuration services available for pre-set channel ranges, custom calibration points, and application-specific filtering parameters.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-configured modules

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship, with optional extended service agreements available

Technical Support: Application engineering assistance, system integration consulting, and troubleshooting support via phone and email during business hours

Documentation Package: Includes installation manual, wiring diagrams, calibration certificates (NIST-traceable), and configuration software utilities

Frequently Asked Questions

How do I configure individual channels for voltage versus current input mode?
Each channel features accessible DIP switches on the module front panel. Consult the quick-reference card included with the module for switch position diagrams. Configuration changes take effect immediately without power cycling.

What cable specifications are recommended for 4-20mA signal integrity?
Use 18-22 AWG shielded twisted-pair cable with drain wire. Maximum loop resistance should not exceed 600Ω. For runs beyond 500 meters, verify transmitter compliance voltage ratings.

Can this module interface with legacy 1-5V DC sensors?
Yes, the 0-10V range accommodates 1-5V signals. Scale the input in your control system software to match the reduced span. For optimal accuracy, consider signal conditioning to utilize the full 0-10V range.

Does the module support HART communication over 4-20mA loops?
The module passes HART digital signals transparently. A separate HART modem or multiplexer is required for protocol decoding and device configuration.

What is the recommended calibration interval for maintaining accuracy specifications?
Annual calibration verification is recommended for critical measurement applications. The module's solid-state design exhibits minimal drift; many installations operate 18-24 months between calibrations.

How does hot-swap functionality work without disrupting active channels?
The backplane architecture isolates module power and communication during insertion/removal. Active channels on other modules continue normal operation. The replaced module auto-initializes and resumes scanning within 2 seconds.

Get Started Today

Ready to upgrade your analog signal acquisition infrastructure? Contact our technical sales team for application-specific recommendations, system sizing assistance, and volume pricing. We provide same-day quotations and can expedite delivery for urgent projects.
