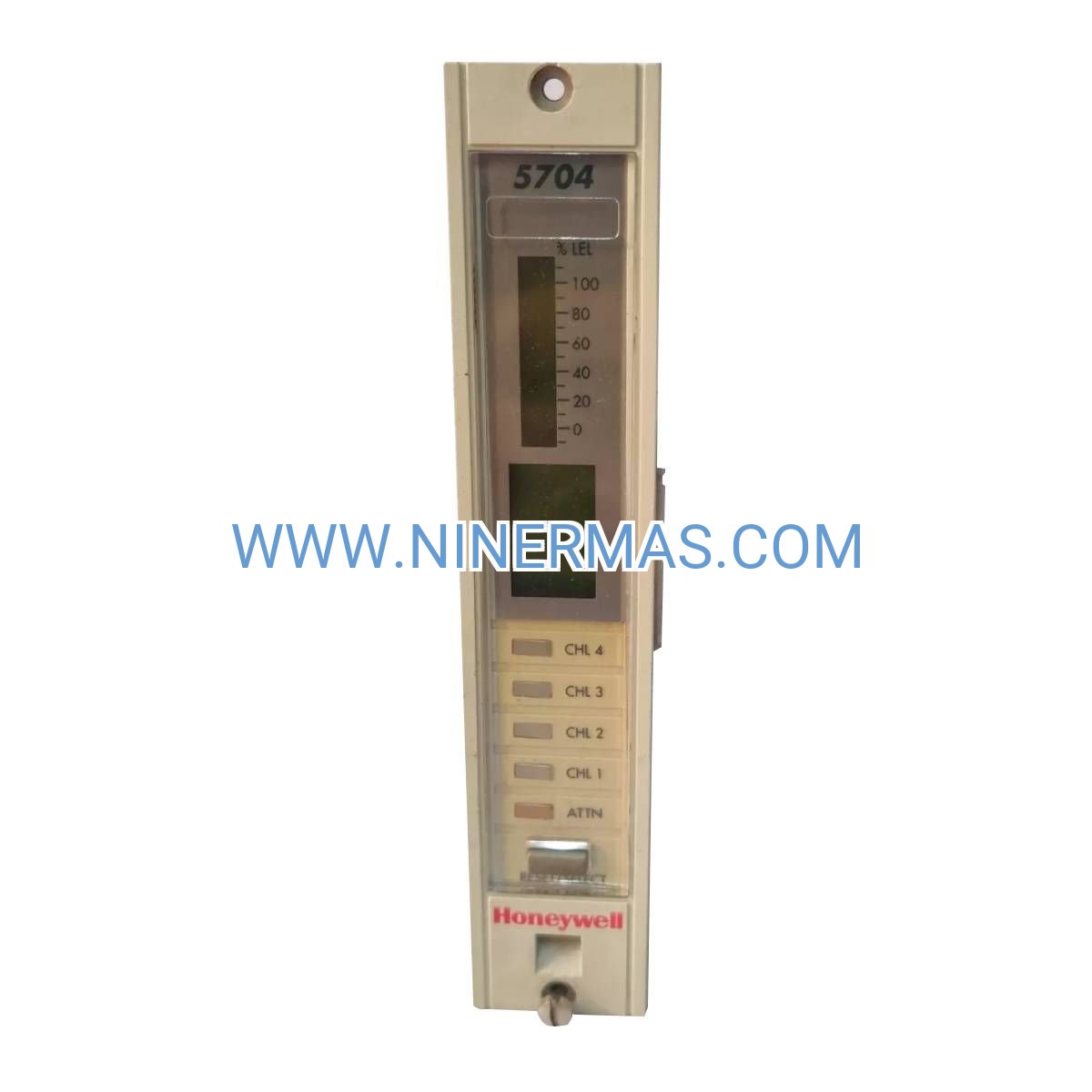

Honeywell 05704-A-0145 – Industrial-Grade 4-Channel Gas Detection Control Card

The 05704-A-0145 is a robust 4-channel control interface designed specifically for System 57 gas detection networks. Engineered to process simultaneous inputs from multiple sensors, this module provides real-time monitoring with integrated fault diagnostics, ensuring uninterrupted safety operations in hazardous industrial environments.

Built for petrochemical plants, offshore rigs, and manufacturing facilities, this control card addresses the critical need for reliable multi-point gas monitoring. It eliminates single-point failure risks while reducing installation complexity through its compact 4-channel architecture. Operators gain instant visibility into combustible gas levels, toxic vapor concentrations, and oxygen deficiency across distributed sensor arrays.

With hot-swappable capability and universal sensor compatibility, the 05704-A-0145 minimizes maintenance downtime and adapts to evolving safety requirements without system-wide reconfiguration.

Core Features & Business Value

→ Quad-Channel Processing Architecture
Simultaneously monitors four independent sensor inputs, reducing hardware costs by 75% compared to single-channel solutions while maintaining isolated signal integrity per channel.

✓ Real-Time Fault Diagnostics
Individual LED indicators per channel provide instant visual confirmation of sensor health, wiring integrity, and signal quality—eliminating guesswork during troubleshooting and reducing MTTR by up to 60%.

✓ Universal Sensor Compatibility
Supports catalytic bead, electrochemical, and infrared sensor technologies on the same card, enabling flexible deployment across diverse gas detection scenarios without inventory complexity.

✓ Hot-Swap Maintenance Design
Field-replaceable without powering down the entire system, ensuring continuous protection during scheduled maintenance or emergency repairs—critical for 24/7 operations.

✓ Industrial-Hardened Construction
Operates reliably in -20°C to +60°C environments with EMC compliance for high-noise industrial settings, protecting against false alarms and signal degradation.

✓ Configurable Alarm Logic
Programmable threshold settings and relay outputs enable customized response protocols aligned with site-specific safety procedures and regulatory requirements.

Application Scenarios

Petrochemical Refineries
Monitor hydrogen sulfide, methane, and volatile organic compounds across distillation units and storage tank farms. The 4-channel design covers critical zones with fewer rack slots, reducing panel footprint by 40%.

Offshore Oil & Gas Platforms
Detect combustible gas leaks in drilling modules, living quarters, and machinery spaces. Corrosion-resistant terminals and vibration-tolerant mounting withstand harsh marine conditions.

Wastewater Treatment Plants
Track methane buildup in digesters and hydrogen sulfide in confined spaces. Independent channel operation ensures partial system functionality even during sensor maintenance.

Chemical Manufacturing
Safeguard reactor vessels and solvent storage areas against toxic vapor releases. Fast response time (< 2 seconds) enables rapid shutdown sequences to prevent escalation.

Pharmaceutical Clean Rooms
Maintain oxygen level monitoring in nitrogen-blanketed storage areas. Low power consumption and minimal heat generation preserve environmental controls.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 05704-A-0145 when you need to monitor 2-4 gas detection points within a 100-meter radius. For larger installations exceeding 8 sensors, combine multiple cards in a single System 57 rack. Verify your existing power supply can deliver an additional 8W per card. If your application requires intrinsically safe circuits for Zone 0/1 areas, pair with approved barrier modules.

Extended Functions

IoT Integration Capability
When connected to System 57 controllers with Ethernet modules, the 05704-A-0145 enables remote monitoring via SCADA systems, cloud dashboards, and mobile apps. Historical data logging supports predictive maintenance and compliance reporting.

Advanced Alarm Management
Programmable latching/non-latching relay outputs allow integration with plant-wide emergency shutdown systems, ventilation controls, and audible/visual alarm devices. Configurable time delays prevent nuisance trips.

Customization Options
Factory configuration services available for pre-programmed alarm setpoints, custom terminal labeling, and application-specific firmware. Contact our engineering team for projects requiring 10+ units.

Delivery & Service Assurance

Lead Time
• Standard stock items: 3-5 business days
• Custom configurations: 10-15 business days
• Expedited shipping available for critical shutdowns

Warranty Coverage
12-month manufacturer warranty covering material defects and workmanship. Extended warranty plans available for up to 36 months.

Technical Support
Lifetime access to our application engineering team for installation guidance, troubleshooting, and system optimization. Phone, email, and remote desktop support included.

Documentation Package
Each unit ships with installation manual, wiring diagrams, configuration software, and calibration certificates. Digital resources available in our online knowledge base.

Frequently Asked Questions

Can this control card interface with non-Honeywell sensors?
Yes, any sensor with 4-20mA output can connect to the 05704-A-0145. However, calibration and alarm settings must be configured manually for third-party devices.

What is the maximum cable distance between sensors and the control card?
Up to 1,000 meters (3,280 feet) using shielded twisted-pair cable. For distances exceeding 500 meters, use 18 AWG or larger wire to minimize voltage drop.

Does the card support redundant power supplies?
The 05704-A-0145 accepts single 24V DC input. For redundant power, install dual power supplies with diode isolation at the rack level.

How do I identify which channel has triggered an alarm?
Each channel has a dedicated LED indicator that illuminates during fault or alarm conditions. The System 57 controller also logs event timestamps and channel identifiers.

Is field calibration required after installation?
No, the card is factory-calibrated. Only sensor-level calibration is needed using bump test gas or known concentration standards.

Can I upgrade firmware without removing the card?
Yes, firmware updates are performed via the System 57 controller interface without physical card removal, minimizing downtime.

Get Started Today

Enhance your facility's gas detection reliability with the Honeywell 05704-A-0145. Our team is ready to assist with technical specifications, compatibility verification, and volume pricing. Request a quote or speak with an application specialist to configure the optimal solution for your safety requirements.
