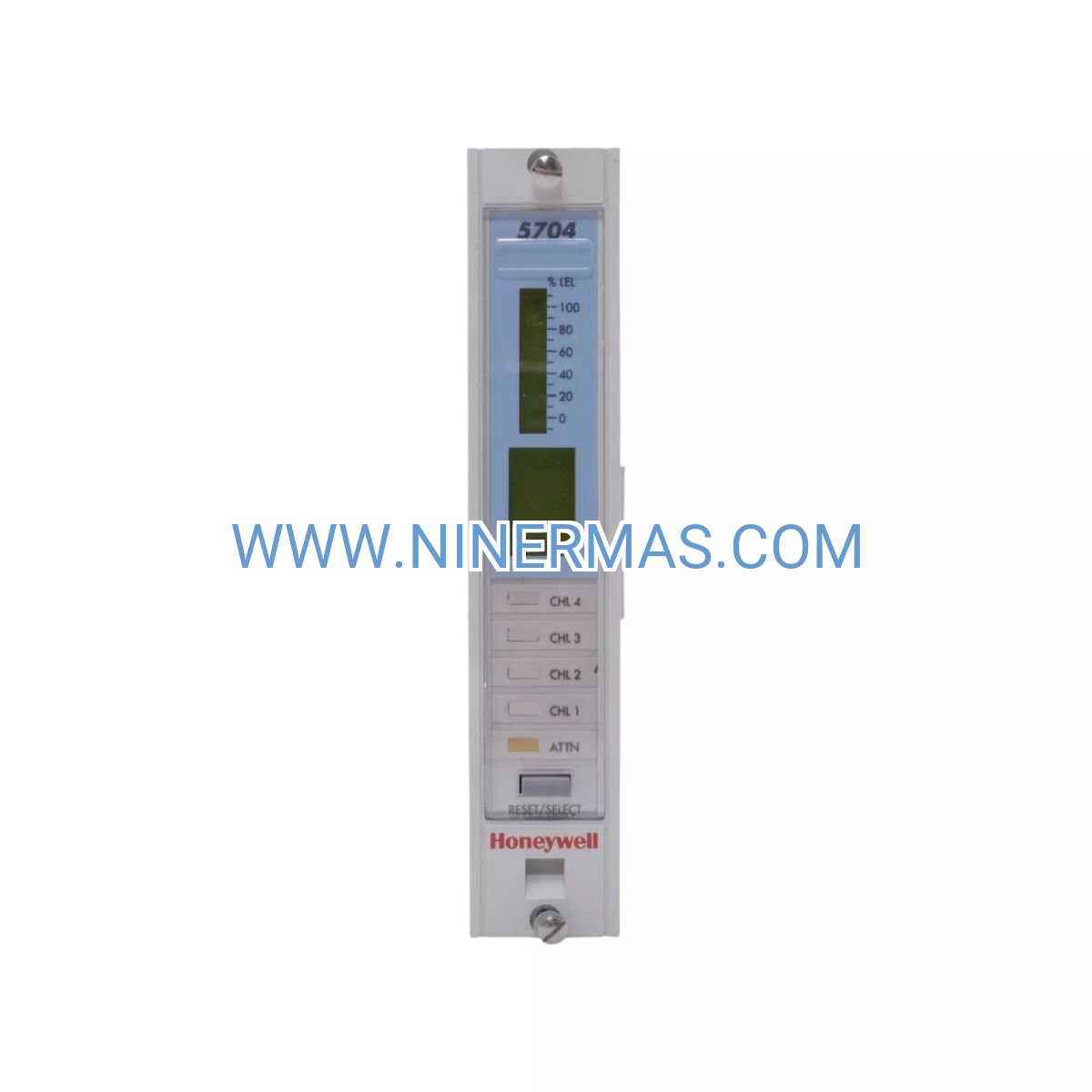

Industrial-Grade 4-Channel Gas Detection Controller (Honeywell 05704-A-0144)

The Honeywell 05704-A-0144 represents a critical safety component for multi-point flammable gas monitoring in hazardous industrial environments. Designed specifically for System 57 architectures, this quad-channel control module provides simultaneous signal processing for up to four catalytic bead sensors, enabling comprehensive area coverage with a single compact unit.

Engineered for refineries, chemical plants, offshore installations, and confined space applications, this control card addresses the fundamental challenge of distributed gas detection: maintaining continuous surveillance across multiple zones while minimizing installation complexity and system costs. Each independent channel delivers precision 4-20mA analog signaling with built-in diagnostics and fail-safe operation.

With factory calibration, wide operating temperature range (-40°C to +70°C), and proven compatibility with industry-standard DCS/SCADA platforms, the 05704-A-0144 streamlines safety system integration while meeting stringent reliability requirements for Class I hazardous locations.

Core Features & Technical Advantages

✓ Quad Independent Sensor Channels
Simultaneous monitoring of four catalytic gas sensors eliminates the need for multiple single-channel cards, reducing rack space requirements by 75% and simplifying wiring infrastructure. Each channel operates autonomously with dedicated alarm logic and output conditioning.

✓ Universal 4-20mA Analog Outputs
Industry-standard current loop signaling ensures seamless integration with PLCs, DCS systems, and SCADA networks from all major manufacturers. Linear signal scaling provides precise gas concentration mapping from 0-100% LEL (Lower Explosive Limit).

✓ Extended Environmental Operating Range
Rated for -40°F to +158°F (-40°C to +70°C) ambient conditions, the card maintains calibration accuracy across extreme temperature swings common in outdoor installations, unheated enclosures, and tropical/arctic climates.

✓ Integrated Diagnostic Capabilities
Continuous self-monitoring detects sensor degradation, wiring faults, and power anomalies before they compromise safety coverage. Fault indication via dedicated alarm contacts enables predictive maintenance scheduling.

✓ DIN Rail & Panel Mount Flexibility
Dual mounting options accommodate both System 57 rack assemblies and standalone enclosure installations. Tool-free removal supports rapid field replacement during maintenance windows.

✓ 24VDC Standard Power Supply
Compatible with common industrial power distribution systems, eliminating the need for specialized transformers or voltage converters in most installations.

Application Scenarios & Industry Solutions

→ Petrochemical Processing & Refineries
Monitor methane, propane, butane, and mixed hydrocarbon vapors across distillation units, storage tank farms, and loading racks. Four-channel architecture enables complete coverage of pump rooms, compressor stations, and process areas with minimal equipment footprint. Typical deployment: one card per process unit with sensors positioned at potential leak sources.

→ Offshore Oil & Gas Platforms
Provide redundant gas detection in drilling modules, production decks, and accommodation quarters where space constraints demand compact solutions. Salt-fog resistant construction and wide temperature tolerance ensure reliable operation in marine environments. Addresses regulatory requirements for multi-point monitoring in classified zones.

→ Chemical Manufacturing Facilities
Detect volatile organic compounds (VOCs), hydrogen, and specialty gases in reactor halls, solvent storage areas, and batch processing rooms. Independent channel operation allows simultaneous monitoring of different gas types when paired with appropriate sensor elements. Supports compliance with OSHA 1910.119 Process Safety Management standards.

→ Wastewater Treatment Plants
Continuous methane and hydrogen sulfide surveillance in digester buildings, pump stations, and enclosed clarifiers. Four-channel capacity covers multiple confined space entry points with centralized alarm management. Prevents explosive atmospheres in biogas collection systems.

→ Power Generation Facilities
Safeguard turbine halls, fuel oil storage bunkers, and natural gas metering stations against combustible gas accumulation. Real-time monitoring enables automatic ventilation activation and equipment shutdown sequences before concentrations reach hazardous levels.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the 05704-A-0144 when your application requires monitoring 2-4 detection points within a localized area (typical coverage radius: 50-100 feet depending on ventilation patterns). For single-point detection, consider the 05701-A series single-channel cards. For systems exceeding four zones, deploy multiple 05704-A-0144 units in a distributed architecture with centralized alarm aggregation.

Verify sensor compatibility before ordering—this card is optimized for catalytic bead sensors detecting combustible gases. For toxic gas monitoring (H2S, CO, Cl2), consult System 57 electrochemical sensor control cards.

Extended Functionality & Integration

SCADA/DCS Integration: The 4-20mA outputs interface directly with standard analog input modules from Siemens, Allen-Bradley, Schneider Electric, and other automation platforms. Signal scaling typically maps 4mA = 0% LEL and 20mA = 100% LEL, with fault conditions indicated by <3.6mA or >21mA.

Alarm Relay Expansion: Pair with System 57 relay modules to add local audible/visual alarms, ventilation fan control, or emergency shutdown (ESD) logic. Each channel supports independent low/high alarm setpoints with adjustable time delays.

Remote Display Options: Connect to System 57 LCD display panels for real-time gas concentration readouts and alarm status indication at operator stations or control rooms up to 1,000 feet from sensor locations.

Calibration Management: Field calibration performed via front-panel test points using certified gas standards. Calibration intervals typically range from 6-12 months depending on environmental conditions and regulatory requirements. The card retains calibration data through power cycles.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-3 business days via express courier. International orders typically deliver within 5-7 business days to major commercial centers.

Warranty Coverage: All 05704-A-0144 control cards include a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and factory calibration. Warranty service includes advance replacement to minimize downtime.

Technical Support: Our applications engineering team provides pre-sale consultation for system design, post-sale installation guidance, and ongoing troubleshooting assistance. Support includes wiring diagrams, configuration templates, and integration documentation.

Documentation Package: Each unit ships with installation manual, calibration certificate, wiring schematics, and dimensional drawings. Additional resources include System 57 integration guides and sensor compatibility matrices.

Frequently Asked Questions

Q: What is the maximum cable distance between the control card and remote sensors?
A: Standard installations support up to 1,000 feet (300 meters) of shielded twisted-pair cable per sensor channel. Longer distances may require signal conditioning or powered sensor housings. Always use 18 AWG minimum wire gauge for runs exceeding 500 feet.

Q: Can I mix different gas sensor types on the same 05704-A-0144 card?
A: No—this card is designed exclusively for catalytic bead sensors detecting combustible gases. Mixing sensor technologies (catalytic, electrochemical, infrared) on a single card will produce erratic readings and false alarms. Use dedicated control cards matched to each sensor type.

Q: How does the card indicate sensor failure or wiring faults?
A: Diagnostic circuits continuously monitor sensor resistance, heater current, and signal integrity. Fault conditions trigger dedicated alarm outputs and drive the 4-20mA signal outside normal range (<3.6mA or >21mA) to alert connected control systems. Front-panel LEDs provide local fault indication.

Q: Is this control card suitable for SIL-rated safety instrumented systems?
A: The 05704-A-0144 is an industrial-grade monitoring component but is not certified for Safety Integrity Level (SIL) applications per IEC 61508. For SIL 2/3 gas detection systems, consult Honeywell's Searchline or Optima Plus product lines with certified safety functions.

Q: What calibration gas concentrations are recommended for field verification?
A: Use 50% LEL certified span gas matching the target gas type (typically methane or pentane for general combustible gas detection). Zero calibration uses clean air or nitrogen. Perform bump tests monthly and full calibration every 6-12 months per manufacturer recommendations and local regulations.

Q: Can the card operate in explosive atmospheres without additional protection?
A: The control card itself requires installation in a suitable enclosure rated for the hazardous area classification (e.g., NEMA 4X, explosion-proof housing). When properly installed with approved barriers and conduit seals, the complete assembly meets Class I Division 1/2 requirements. Consult installation manuals for specific certifications.
