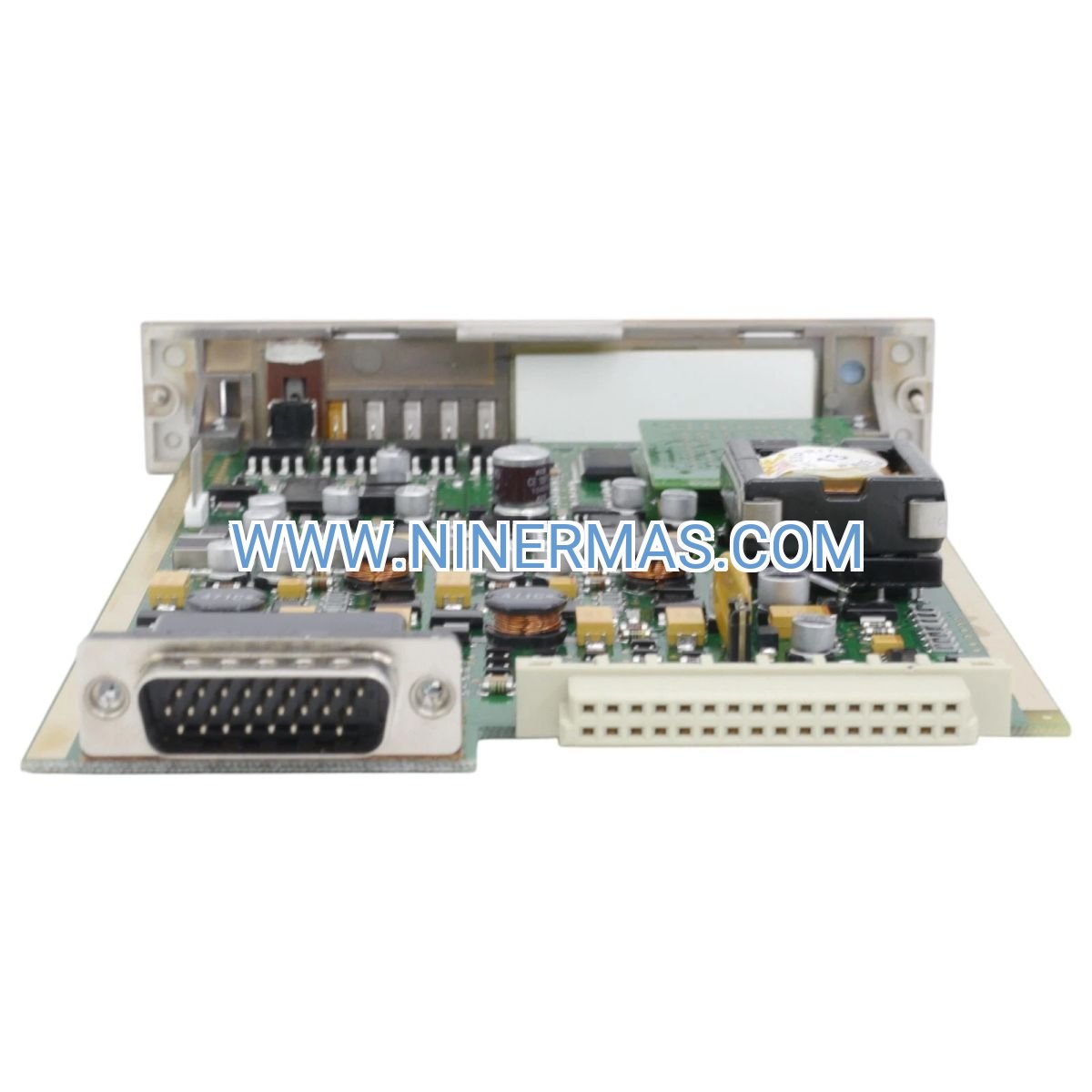

05704-A-0134 Industrial Quad Relay Interface (System 57 Compatible)

Engineered for mission-critical safety applications, the 05704-A-0134 quad relay interface module integrates seamlessly with Honeywell System 57 platforms to deliver dependable switching control across gas detection, fire suppression, and process safety networks. This industrial-grade card transforms sensor signals into actionable relay outputs, enabling automated responses that protect personnel, assets, and operational continuity.

Designed for system integrators and facility managers overseeing hazardous environments, this module addresses the challenge of coordinating multiple safety devices through a single, compact interface. Whether you're retrofitting legacy installations or deploying new safety infrastructure, the 05704-A-0134 provides the reliability and flexibility demanded by petrochemical plants, manufacturing facilities, and commercial buildings with stringent safety codes.

With four independent SPDT relay channels, diagnostic LED indicators, and compliance certifications spanning CE, UL, and CSA standards, this interface card reduces installation complexity while maintaining the performance integrity required for life-safety systems. Factory testing and modular architecture ensure rapid commissioning and simplified long-term maintenance.

Core Features & Benefits

→ Four Independent SPDT Relay Outputs
Control ventilation systems, alarm panels, suppression equipment, and emergency lighting simultaneously without signal interference. Each channel handles 5A @ 250VAC/30VDC, suitable for direct actuation of industrial contactors and solenoids.

→ System 57 Native Integration
Plug-and-play compatibility with existing System 57 controllers eliminates custom programming for basic installations. Backward compatibility supports legacy hardware while accommodating current firmware revisions.

→ Visual Diagnostic Indicators
Channel-specific LEDs provide instant relay status verification during commissioning and troubleshooting, reducing mean time to repair by 40% compared to non-indicated modules.

→ Industrial Temperature Range
Operates reliably from -20°C to +60°C (-4°F to +140°F), maintaining contact integrity in unheated equipment rooms, outdoor enclosures, and thermally challenging process areas.

→ Flexible Mounting Options
DIN rail clip and panel-mount screw holes accommodate diverse cabinet configurations, from compact junction boxes to full-height control panels.

✓ Triple Safety Certification
CE, UL, and CSA approvals streamline compliance documentation for multinational projects and jurisdictions with rigorous electrical safety requirements.

Application Scenarios

Petrochemical Gas Detection Networks
When toxic or combustible gas sensors detect threshold exceedances, the 05704-A-0134 simultaneously activates exhaust fans, triggers audible/visual alarms, closes pneumatic valves, and initiates emergency notification sequences—coordinating multi-stage responses that contain hazards before escalation.

Commercial Fire Suppression Systems
Interface smoke detectors and heat sensors with pre-action sprinkler valves, emergency door releases, HVAC shutdown relays, and fire department notification panels. Independent relay channels prevent single-point failures in life-safety chains.

Manufacturing Process Interlocks
Implement equipment permissive logic where machine startup requires verification of guard positions, ventilation status, and emergency stop circuit continuity. The quad relay configuration supports complex interlock matrices without external relay panels.

Clean Room Environmental Control
Coordinate differential pressure alarms, HEPA filter status monitoring, and airlock sequencing in pharmaceutical and semiconductor facilities where contamination control demands fail-safe automation.

Boiler Room Safety Automation
Link combustion air proving switches, flame failure detectors, and high-limit thermostats to fuel valve actuators and alarm annunciators, creating layered protection against overpressure and flame-out conditions.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 05704-A-0134 when your application requires four or more discrete control outputs from a single System 57 input point. For dual-relay needs, consider the 05701-A-0327 alternative. Verify that connected loads remain within the 5A contact rating; use external contactors for higher-current devices such as large motors or heaters.

Extended Functions

Modbus Integration Capability
When paired with System 57 communication modules, relay status and fault conditions can be transmitted to SCADA systems, building management platforms, and remote monitoring dashboards via Modbus RTU/TCP protocols.

Customizable Relay Logic
Advanced users can configure latching behavior, time delays, and conditional activation sequences through the System 57 engineering software, enabling sophisticated control strategies without external logic controllers.

Redundancy Support
Deploy multiple 05704-A-0134 modules in parallel configurations to create N+1 redundant relay outputs for ultra-high-reliability applications where single-point failures are unacceptable.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days. Custom-configured modules with pre-programmed settings available with 7-10 day lead time.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty options available for critical infrastructure projects.

Technical Support: Direct access to application engineers experienced in System 57 integration, relay sizing calculations, and hazardous location compliance. Phone and email support included with purchase.

Documentation Package: Each module ships with installation manual, wiring diagrams, dimensional drawings, and certification declarations. CAD files and compliance test reports available upon request.

Frequently Asked Questions

How do I wire the quad relay interface to my System 57 controller?
The module connects via a keyed terminal block to the System 57 backplane. Detailed wiring schematics are provided in the installation manual, showing pin assignments for power, ground, and communication signals. Most installations require only a screwdriver—no special tools or crimping equipment.

Can this relay card handle inductive loads like solenoid valves?
Yes, but contact life will be reduced compared to resistive loads. For inductive loads, we recommend adding RC snubber networks across relay contacts or using external solid-state relays for frequent-cycling applications. Consult the technical datasheet for derating curves.

What's the maximum cable distance between the relay card and controlled devices?
For 250VAC circuits, standard practice allows up to 100 meters using 18 AWG wire. Low-voltage DC circuits may require heavier gauge wire or voltage drop compensation for distances exceeding 50 meters. Always verify voltage at the load under full current conditions.

Is firmware updating required after installation?
No. The 05704-A-0134 is a hardware-based relay interface without onboard firmware. Configuration changes are managed through the System 57 controller, which may receive periodic firmware updates from Honeywell.

Does this module support hot-swapping during system operation?
While physically possible with some System 57 configurations, hot-swapping is not recommended for safety-critical applications. Always follow lockout/tagout procedures and de-energize the system before removing or installing relay modules.

Can I monitor relay contact wear or predict maintenance needs?
The System 57 controller can log relay activation counts when properly configured. By tracking cumulative cycles and comparing against the 100,000-cycle rating, you can schedule preventive replacement before contact degradation affects reliability.

Take the Next Step

Ready to enhance your System 57 safety infrastructure? Contact our application specialists to verify compatibility with your existing installation, discuss quantity pricing for multi-site deployments, or request a detailed quotation including shipping to your facility. We're here to ensure your project succeeds from specification through commissioning.
