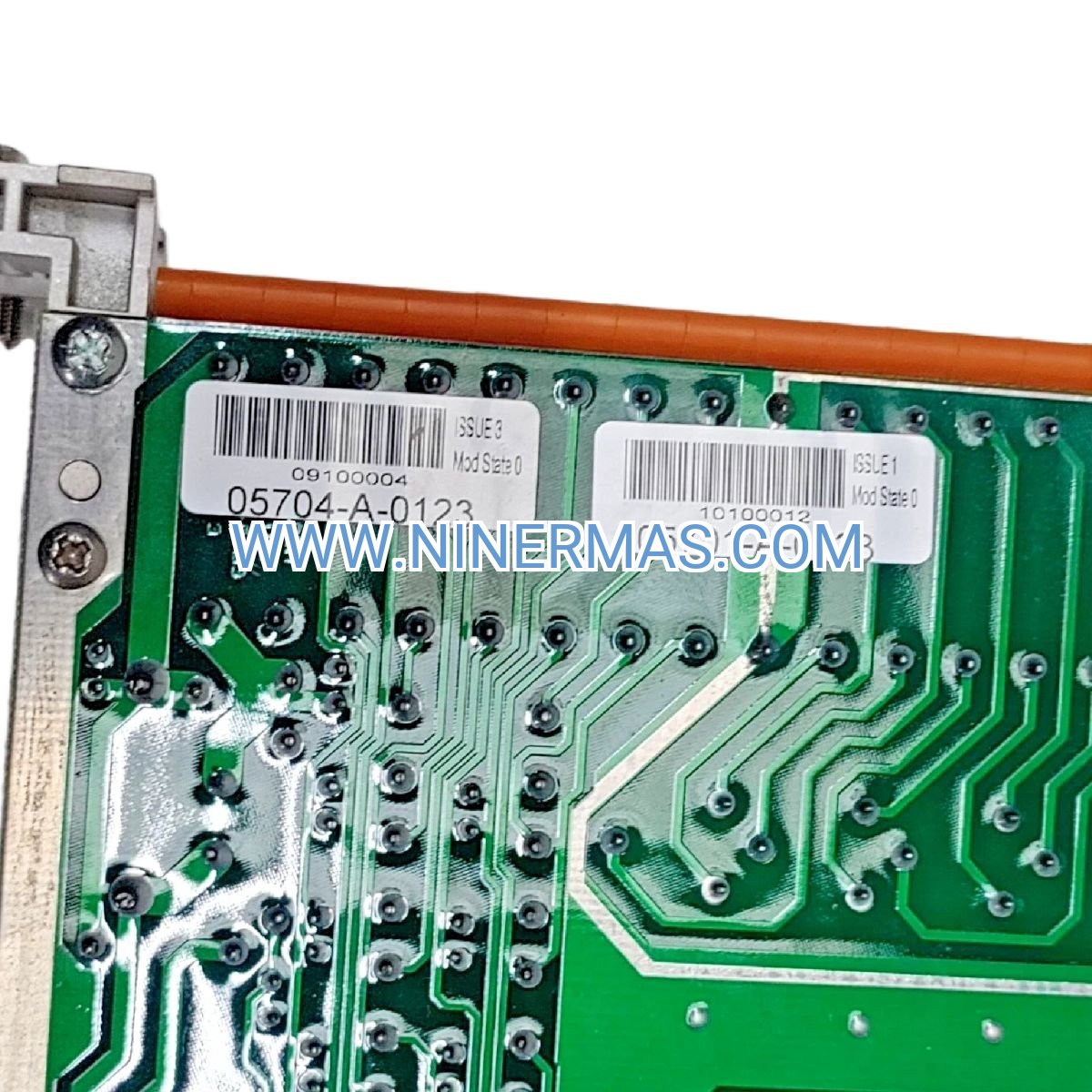

05704-A-0123 Fire Relay Interface Assembly (Industrial-Grade Expansion Module)

The 05704-A-0123 is a professional relay expansion assembly engineered for Honeywell System 57 fire control platforms, delivering up to 16 configurable single-pole changeover (SPCO) relay outputs for critical fire alarm and fault signaling applications. Designed for industrial facilities, commercial buildings, and mission-critical infrastructure, this interface module transforms your 5704F control card into a comprehensive multi-zone fire management system with robust contact ratings and flexible operational modes.

Built to meet stringent EN54-2, CE, UL, and CSA safety standards, the 05704-A-0123 addresses the challenge of limited relay outputs in complex fire detection networks. Whether you're managing multi-floor evacuation systems, integrating third-party suppression equipment, or coordinating distributed alarm panels, this assembly provides the scalability and reliability demanded by safety-critical environments. Its compact 1-inch form factor occupies just two System 57 rack slots while delivering enterprise-grade performance.

Ideal for system integrators, facility managers, and fire safety engineers seeking certified, field-proven relay expansion with minimal footprint and maximum configurability. Contact our technical team to verify compatibility with your existing System 57 infrastructure.

Core Capabilities & Technical Advantages

→ 16 Configurable SPCO Relay Outputs
Each relay supports independent configuration for latching/non-latching operation and energized/de-energized logic, enabling precise control over fire alarm bells, strobes, dampers, door releases, and suppression system triggers. Contact rating of 5A at 250V AC / 30V DC handles high-current loads directly.

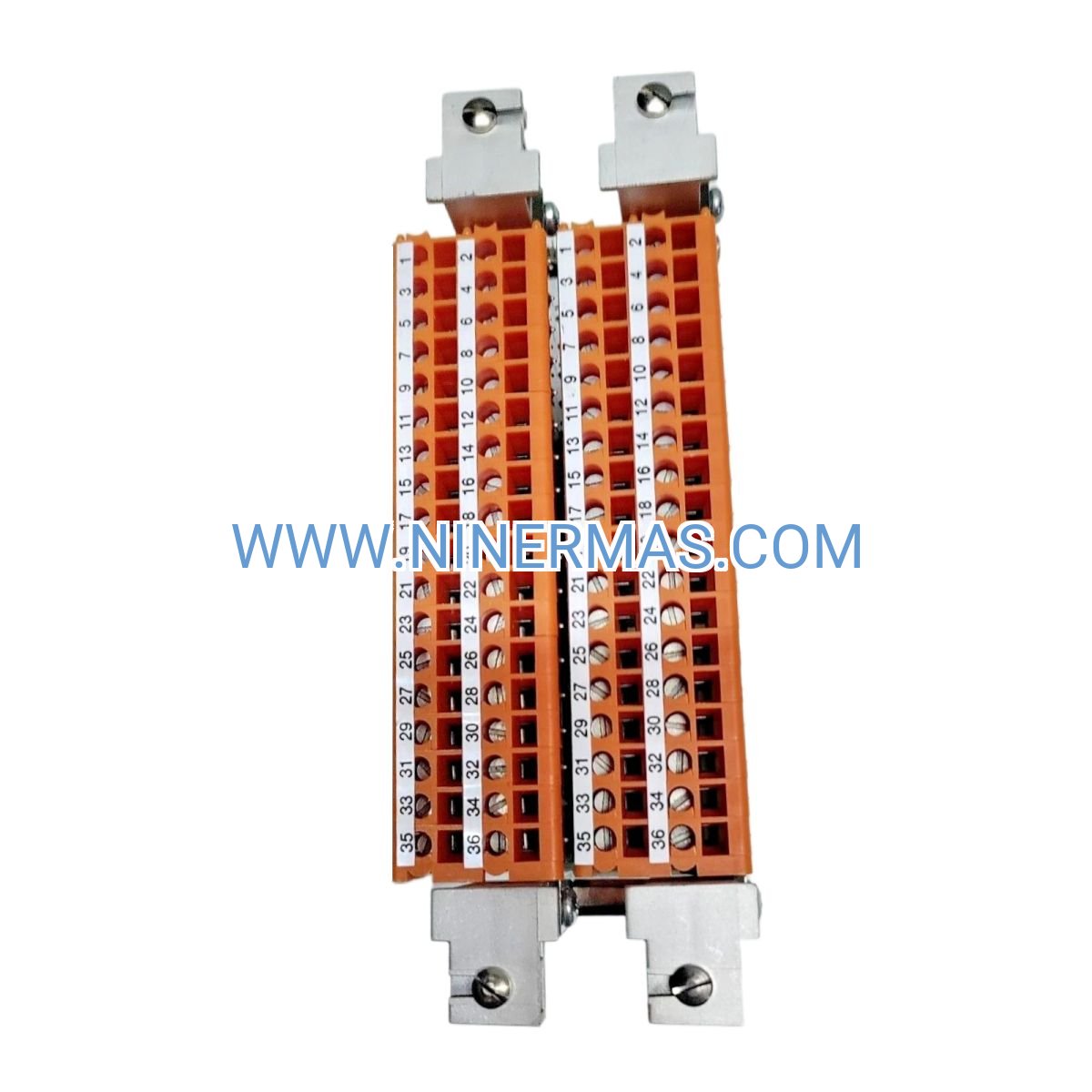

✓ Dual-Access Screw Terminals
Front and rear terminal blocks simplify installation in dense rack environments, reducing wiring time by up to 40% compared to single-access designs. Supports 14-22 AWG conductors with captive screw retention for vibration-resistant connections.

→ Integrated Fault Monitoring
End-of-line (EOL) resistor supervision (22kΩ standard) continuously monitors circuit integrity for open/short conditions, automatically reporting faults to the 5704F control card. Reduces false alarms and ensures compliance with NFPA 72 supervision requirements.

✓ Low Power Consumption
Typical draw of 1.7W per assembly minimizes heat generation and allows multiple interfaces on shared 18-32V DC rack power supplies without derating. Supports up to 8 assemblies per System 57 chassis for 128 total relay outputs.

→ Hot-Swappable Architecture
Field-replaceable design with keyed connectors prevents mis-insertion and enables maintenance without system shutdown. LED status indicators on each relay position provide instant visual diagnostics during commissioning and troubleshooting.

✓ Multi-Standard Certification
CE marked, EN54-2 compliant, UL/CSA listed for North American installations. Meets IEC 60950 safety requirements and RoHS environmental directives for global deployment.

Industrial Application Scenarios

Manufacturing & Process Control
In chemical plants and refineries, the 05704-A-0123 coordinates fire suppression systems across multiple hazard zones. When the 5704F detects flame or heat, designated relays activate foam deluge systems, shut down ventilation, and trigger emergency lighting—all within 500ms response time. Reduces equipment damage and downtime during fire events.

Commercial High-Rise Buildings
Property managers use this interface to synchronize elevator recall, stairwell pressurization, and HVAC smoke control across 20+ floors. Each relay maps to a specific floor or zone, enabling phased evacuation protocols. Integrates with existing BACnet/Modbus building automation for centralized monitoring.

Data Centers & Telecom Facilities
Critical infrastructure operators deploy multiple 05704-A-0123 assemblies to control pre-action sprinkler valves, gas suppression panels, and emergency power transfer switches. Latching relay mode maintains valve positions during power interruptions, while non-latching outputs reset automatically after alarm clearance.

Healthcare & Life Safety Systems
Hospitals leverage the assembly's fault monitoring to supervise smoke barrier doors, magnetic hold-opens, and nurse call integration. EOL resistor circuits detect wiring faults before they compromise patient safety, meeting Joint Commission inspection requirements.

Marine & Offshore Platforms
In corrosive saltwater environments, the module's conformal-coated PCB and sealed relay enclosures withstand humidity and vibration. Controls fire pumps, watertight door releases, and general alarm systems across distributed platform sections.

Technical Parameters & Selection Guide

Selection Criteria:
• Verify compatibility with 05704-A-0146 Four Channel Control Card
• Calculate total relay count: 16 relays per assembly × number of assemblies
• Confirm rack power budget: 2.5W × total assemblies ≤ available DC capacity
• Match relay mode to application: latching for fail-safe positions, non-latching for auto-reset
• Ensure EOL resistor values match system configuration (consult System 57 manual)

Extended Integration Capabilities

IoT & Remote Monitoring
When paired with Honeywell's Enterprise Buildings Integrator (EBI) or third-party SCADA systems, relay status and fault conditions stream to cloud dashboards via Modbus RTU/TCP gateways. Enables predictive maintenance alerts and remote acknowledgment of alarm conditions.

Customization Options
Factory-configurable relay assignments available for OEM integrators requiring pre-programmed logic. Custom terminal labeling and color-coded wiring harnesses reduce installation errors in large-scale deployments.

Redundancy & Failover
Deploy dual 05704-A-0123 assemblies in parallel for mission-critical outputs. Automatic switchover logic (configured via 5704F card) ensures continuous operation if primary relay fails. Ideal for nuclear facilities and pharmaceutical clean rooms.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations require 2-3 weeks for factory programming and testing.

Warranty: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended 5-year service plans available for critical infrastructure applications.

Technical Support: Access to Honeywell-certified engineers for system design review, commissioning assistance, and troubleshooting. Phone/email support available 24/7 for emergency service calls.

Documentation Package: Includes installation manual, wiring diagrams, relay configuration worksheets, CE/UL certificates, and AutoCAD DWG files for panel layout planning.

Frequently Asked Questions

How do I connect the 05704-A-0123 to my existing 5704F control card?
The assembly plugs directly into the System 57 backplane using the keyed edge connector. No external cabling required between the interface and control card—all communication occurs via the rack bus. Refer to installation manual section 3.2 for slot assignment guidelines.

What is the maximum number of relay assemblies I can install in one system?
A single System 57 chassis supports up to 8 × 05704-A-0123 assemblies (128 total relays), limited by available rack slots and power budget. For larger systems, deploy multiple chassis with networked 5704F cards.

Can I mix latching and non-latching relay modes on the same assembly?
Yes. Each of the 16 relays is independently configurable via DIP switches or software programming (depending on firmware version). This allows simultaneous control of fail-safe devices (latching) and auto-reset alarms (non-latching).

Does the interface support supervised circuits for fire alarm compliance?
Absolutely. Install a 22kΩ end-of-line resistor across the normally closed (NC) contacts of each supervised relay. The 5704F card monitors circuit continuity and reports open/short faults within 10 seconds, meeting NFPA 72 Class B supervision requirements.

What maintenance is required for long-term reliability?
Inspect screw terminals annually for tightness (torque to 0.5 Nm). Test relay operation quarterly using the 5704F manual activation function. Replace assemblies showing >5% relay failure rate or visible contact arcing. Typical service life exceeds 15 years in controlled environments.

Is the 05704-A-0123 compatible with third-party fire panels?
No. This interface is designed exclusively for Honeywell System 57 architecture and requires the 05704-A-0146 control card for communication. For integration with non-Honeywell systems, consider using the relay outputs to trigger universal alarm inputs via dry contacts.

Secure Your Fire Safety Infrastructure Today

Expand your Honeywell System 57 capabilities with certified relay expansion. Our technical team is ready to assist with system design, compatibility verification, and volume pricing for multi-site deployments. Request a quote now or contact us for same-day technical consultation.
