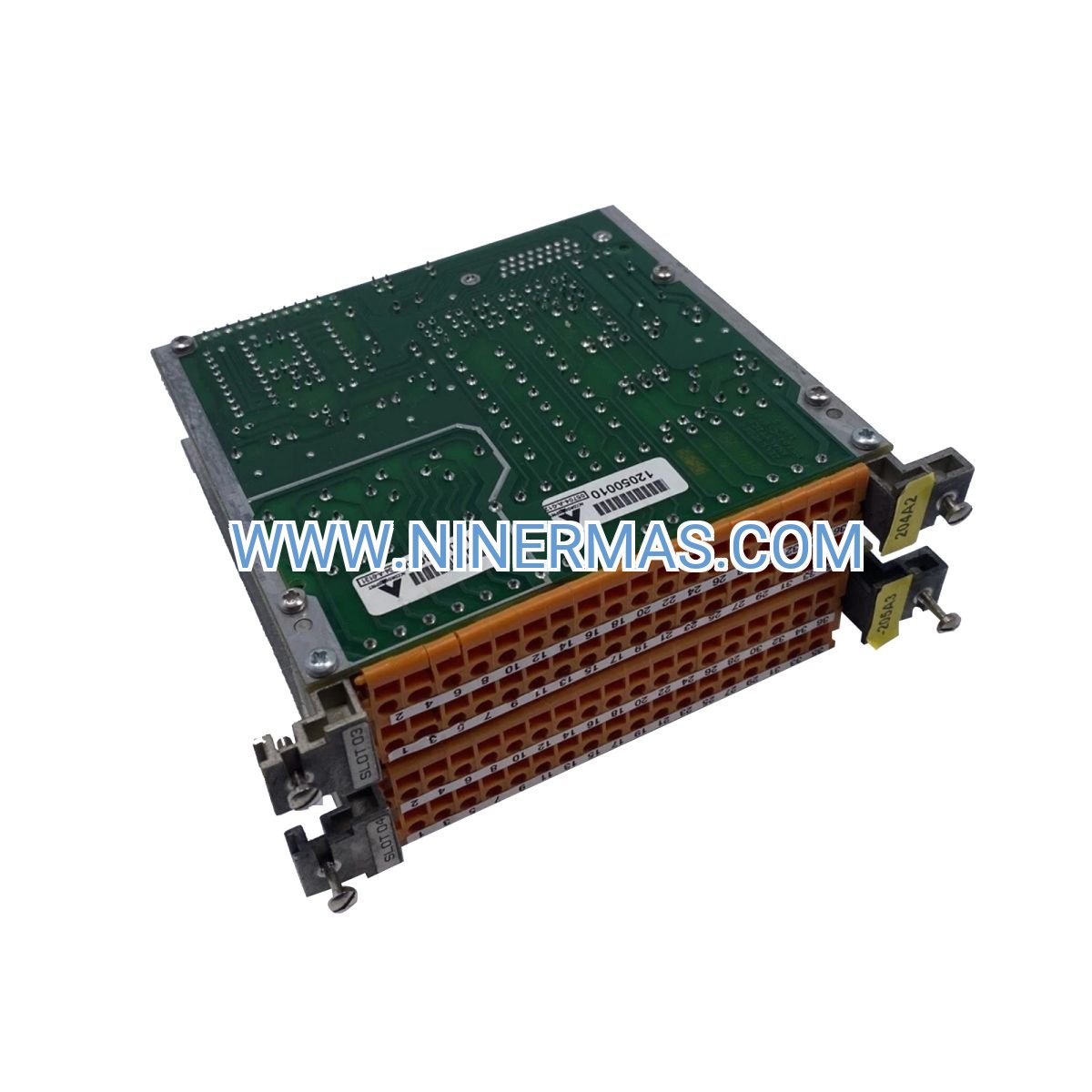

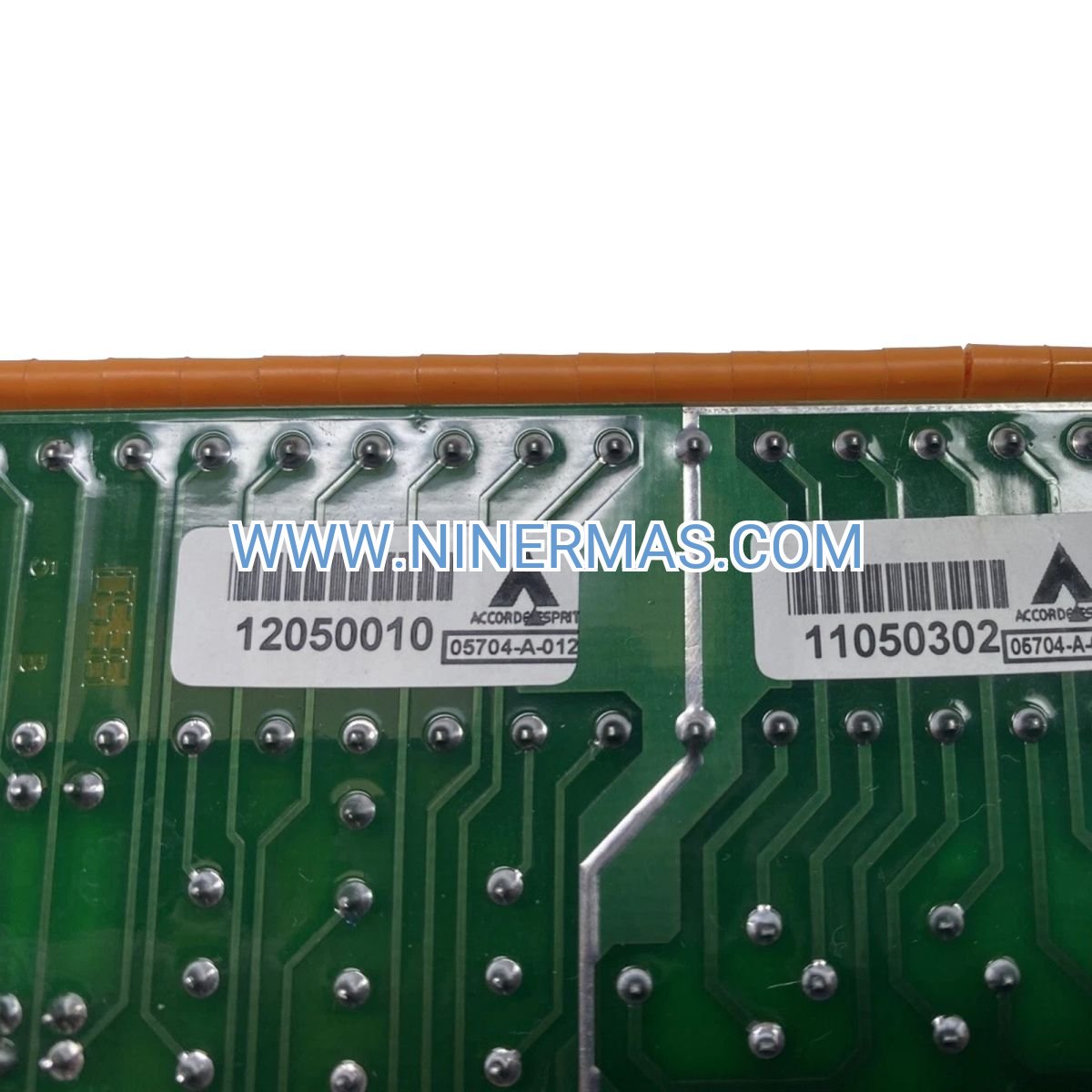

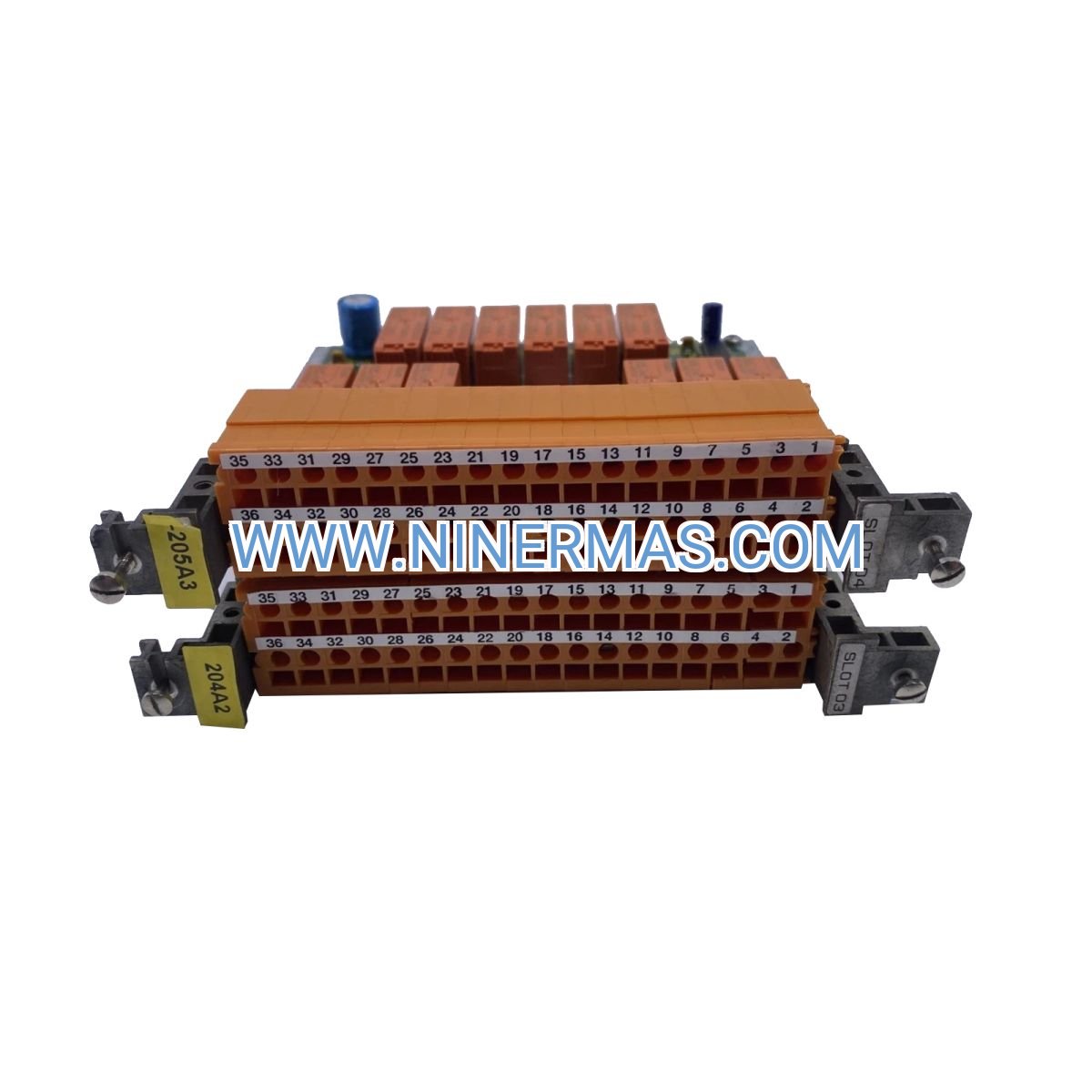

05704-A-0122 Four-Channel Relay Expansion PCB (Industrial-Grade Fire Safety Control)

The 05704-A-0122 represents a critical expansion component for System 57 fire alarm control panels, delivering four independently controlled relay outputs in a compact PCB assembly format. Engineered for mission-critical fire safety applications, this module enables facility managers and system integrators to extend control capacity for auxiliary devices including HVAC shutdown sequences, elevator recall systems, electromagnetic door holders, and emergency notification equipment. Designed for commercial buildings, healthcare facilities, and industrial complexes requiring enhanced fire safety automation, the module integrates seamlessly into existing System 57 architectures while maintaining full UL and FM compliance. With proven reliability in demanding 24/7 environments and straightforward installation procedures, the 05704-A-0122 solves the common challenge of insufficient relay outputs in expanding fire safety networks.

Core Capabilities & Technical Advantages

→ Quad Relay Architecture: Four Form-C relay contacts rated 2A@30VDC / 1A@125VAC provide versatile switching for both low-voltage control circuits and line-voltage auxiliary loads, eliminating the need for external relay amplification in most applications.

→ System 57 Native Integration: Direct compatibility with all System 57 panel revisions ensures plug-and-play installation without firmware updates or configuration changes, reducing commissioning time by up to 60% compared to third-party expansion solutions.

→ Visual Diagnostics: Individual LED status indicators for each relay channel enable rapid troubleshooting during installation and maintenance, minimizing system downtime and reducing service call duration.

→ Industrial Environmental Rating: Operates reliably across 0°C to 49°C temperature range with 0-93% non-condensing humidity tolerance, meeting the demanding environmental conditions of mechanical rooms, rooftop installations, and industrial facilities.

→ Flexible Mounting Options: Dual mounting capability (DIN rail or panel mount) accommodates various enclosure configurations and retrofit scenarios, providing installation flexibility for both new construction and upgrade projects.

→ Certified Safety Compliance: UL Listed, FM Approved, and CE Marked certifications ensure code compliance across North American and international jurisdictions, simplifying authority having jurisdiction (AHJ) approval processes.

Industry Application Scenarios

Healthcare Facility Fire Safety Networks: Hospitals and medical centers deploy the 05704-A-0122 to control smoke dampers, magnetic door locks on fire-rated corridors, and medical gas system shutdown sequences. The module's relay outputs trigger these life-safety devices while maintaining isolation between fire alarm circuits and building automation systems, ensuring fail-safe operation during emergency conditions.

High-Rise Building Elevator Recall: Commercial towers utilize the expansion module to implement Phase I elevator recall functions, where relay contacts interface with elevator controllers to return cars to designated floors during fire alarm activation. The 2A contact rating handles elevator control circuit loads directly without intermediate relays, reducing system complexity and potential failure points.

Manufacturing Plant HVAC Shutdown: Industrial facilities integrate the 05704-A-0122 into fire alarm systems to execute coordinated HVAC shutdown sequences that prevent smoke migration through ductwork. Relay outputs control air handling unit contactors, damper actuators, and exhaust fan circuits, creating smoke containment zones that protect evacuation routes and critical equipment areas.

Educational Institution Mass Notification: Schools and universities employ the module to activate visual strobes, audible horns, and emergency communication systems across distributed campus buildings. The four relay channels enable zone-specific notification patterns that guide occupants to appropriate exits based on fire location and building layout.

Data Center Fire Suppression Integration: Mission-critical facilities use the expansion module to interface fire alarm panels with clean agent suppression systems, emergency power-off (EPO) circuits, and HVAC isolation dampers. The relay contacts provide the critical control signals that coordinate suppression agent discharge with ventilation shutdown and power disconnection sequences.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 05704-A-0122 when your System 57 fire alarm panel requires 1-4 additional relay outputs for auxiliary device control. For applications demanding higher contact ratings (>2A DC), consider external relay amplification or contactor interfaces. When expanding beyond four outputs, multiple modules can be installed within the same panel enclosure, limited only by available mounting space and the panel's auxiliary power budget (verify total current draw does not exceed panel specifications). For applications requiring fail-safe normally-closed contacts during power loss, verify that your control logic accommodates the relay's de-energized state behavior.

Advanced Integration & Customization Options

✓ Building Management System (BMS) Integration: Relay outputs can interface with BACnet, Modbus, or proprietary BMS controllers to provide fire alarm status to centralized monitoring platforms, enabling coordinated facility-wide emergency response protocols.

✓ Redundant Control Paths: Deploy dual 05704-A-0122 modules in parallel configurations for critical applications requiring backup relay capacity, ensuring continued operation even if one module experiences component failure.

✓ Custom Terminal Labeling: Field-configurable terminal identification allows system integrators to document specific device connections, simplifying future maintenance and reducing troubleshooting time during emergency service calls.

✓ Remote Monitoring Capability: When paired with System 57 network communication modules, relay status can be transmitted to remote monitoring stations, enabling off-site verification of auxiliary device activation during alarm conditions.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock units ship within 24 business hours via expedited carrier services, with typical delivery to major metropolitan areas within 3-5 business days. International shipments clear customs within 7-10 business days depending on destination country import procedures.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Warranty includes replacement module shipment and technical support for installation-related issues.

Technical Support Services: Pre-sales application engineering assistance helps specify appropriate relay configurations for your specific fire safety requirements. Post-installation support includes wiring verification, troubleshooting guidance, and integration assistance with third-party systems.

Documentation Package: Each module ships with installation manual, wiring diagrams, terminal assignment charts, and dimensional drawings. Digital documentation library provides access to CAD files, specification sheets, and integration guides for system design purposes.

Frequently Asked Questions

What is the maximum wire gauge compatible with the terminal blocks on the 05704-A-0122 relay expansion module?
The screw terminals accept 14-22 AWG solid or stranded copper conductors. For optimal connection reliability, use ferrules on stranded wire and torque terminals to 4.5-5.0 in-lbs. Avoid exceeding 14 AWG as larger conductors may not seat properly, creating high-resistance connections.

Can this expansion module operate with System 57 panels running on backup battery power during AC mains failure?
Yes, the module draws power from the panel's regulated 24VDC supply which remains operational during battery backup mode. However, verify that total system current draw (panel + all expansion modules + field devices) does not exceed the battery capacity calculations to ensure adequate standby duration per NFPA 72 requirements.

How many 05704-A-0122 modules can be installed in a single System 57 control panel enclosure?
Installation quantity is limited by available mounting space and the panel's auxiliary power budget. Each module consumes approximately 85mA when all relays are energized. Consult the System 57 panel specifications to determine maximum auxiliary current capacity, then calculate: (Panel Aux Current Capacity - Existing Load) ÷ 85mA = Maximum Additional Modules.

Does the relay expansion module require programming or configuration after installation?
No field programming is required. The module provides four relay outputs that are controlled directly by the System 57 panel's programmable logic. Relay activation is configured through the main panel's programming interface using standard System 57 programming procedures—the expansion module itself is a passive output device.

What is the expected operational lifespan of the relay contacts under typical fire alarm duty cycles?
Relay contacts are rated for 100,000 mechanical operations at rated load. In typical fire alarm applications where relays activate only during alarm conditions and periodic testing (approximately 50 operations per year), expected service life exceeds 20 years. Applications with frequent cycling (e.g., daily HVAC control) may require earlier replacement.

Are replacement modules available for emergency situations, and what is the lead time?
Yes, we maintain inventory of 05704-A-0122 modules specifically for emergency replacement scenarios. Critical replacement orders receive priority processing with same-day shipment for orders placed before 2:00 PM EST, and overnight delivery options are available to minimize system downtime during module failures.

Ready to Expand Your Fire Safety Control Capacity?

Contact our fire safety systems specialists to discuss your System 57 expansion requirements, verify compatibility with your existing panel configuration, and receive application-specific wiring guidance. Our team provides complimentary pre-sales engineering support to ensure proper module selection and integration planning for your facility's unique fire protection needs.
