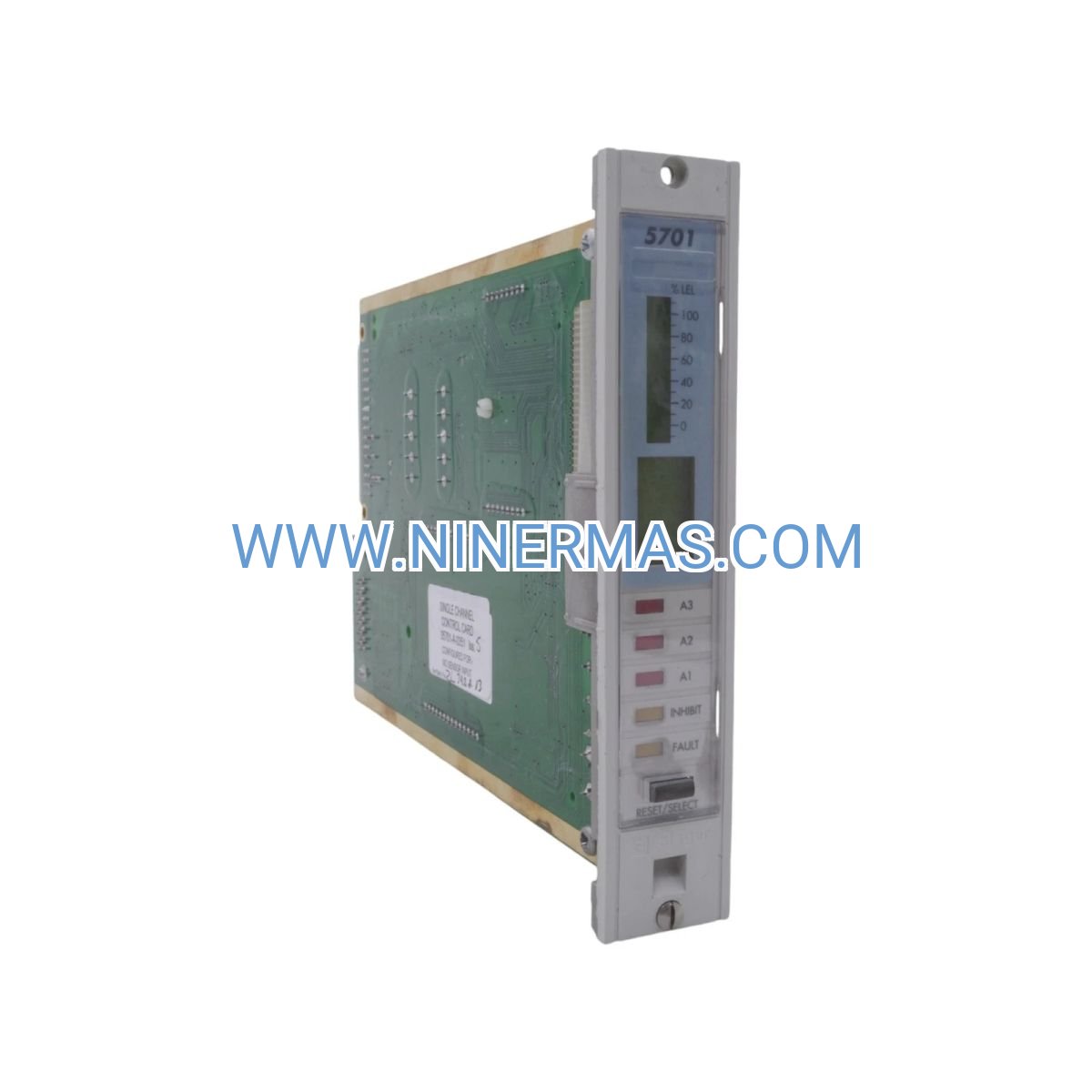

05701-A-0351 Single Channel Control Card (Industrial-Grade Gas Detection Module)

The 05701-A-0351 represents a proven solution for single-point gas hazard monitoring within Honeywell's System 57 architecture. Engineered for continuous operation in demanding industrial environments, this control card delivers reliable sensor interfacing, alarm management, and diagnostic feedback for facilities requiring compliant gas detection infrastructure. Whether deployed in chemical processing plants, oil & gas installations, or manufacturing zones with combustible gas risks, the 5701-series card provides the foundation for scalable, rack-mounted safety systems.

Designed for integration teams and safety engineers, the 05701-A-0351 eliminates complexity through plug-and-play installation into standard System 57 sub-racks. Its compatibility with both 4-20 mA transmitters and catalytic bead sensors ensures flexibility across legacy and modern sensor fleets. With LED-based diagnostics, wide-range DC power input, and certifications spanning ATEX, UL, and CSA standards, this card addresses the core requirements of industrial gas detection without unnecessary feature bloat.

For operations prioritizing uptime and regulatory compliance, the 05701-A-0351 offers field-proven reliability backed by Honeywell's industrial automation heritage. From initial commissioning to long-term maintenance cycles, this control card supports your facility's commitment to worker safety and environmental protection.

Core Capabilities & Technical Advantages

→ Dual Sensor Input Architecture
Accepts both 4-20 mA analog signals and direct catalytic sensor connections, enabling unified control across mixed sensor types without additional interface hardware. Reduces spare parts inventory and simplifies technician training.

→ Wide Operating Temperature Range
Qualified for -40°C to 70°C ambient conditions, supporting installations in unheated enclosures, outdoor cabinets, and extreme-climate regions. Eliminates the need for environmental conditioning in many applications.

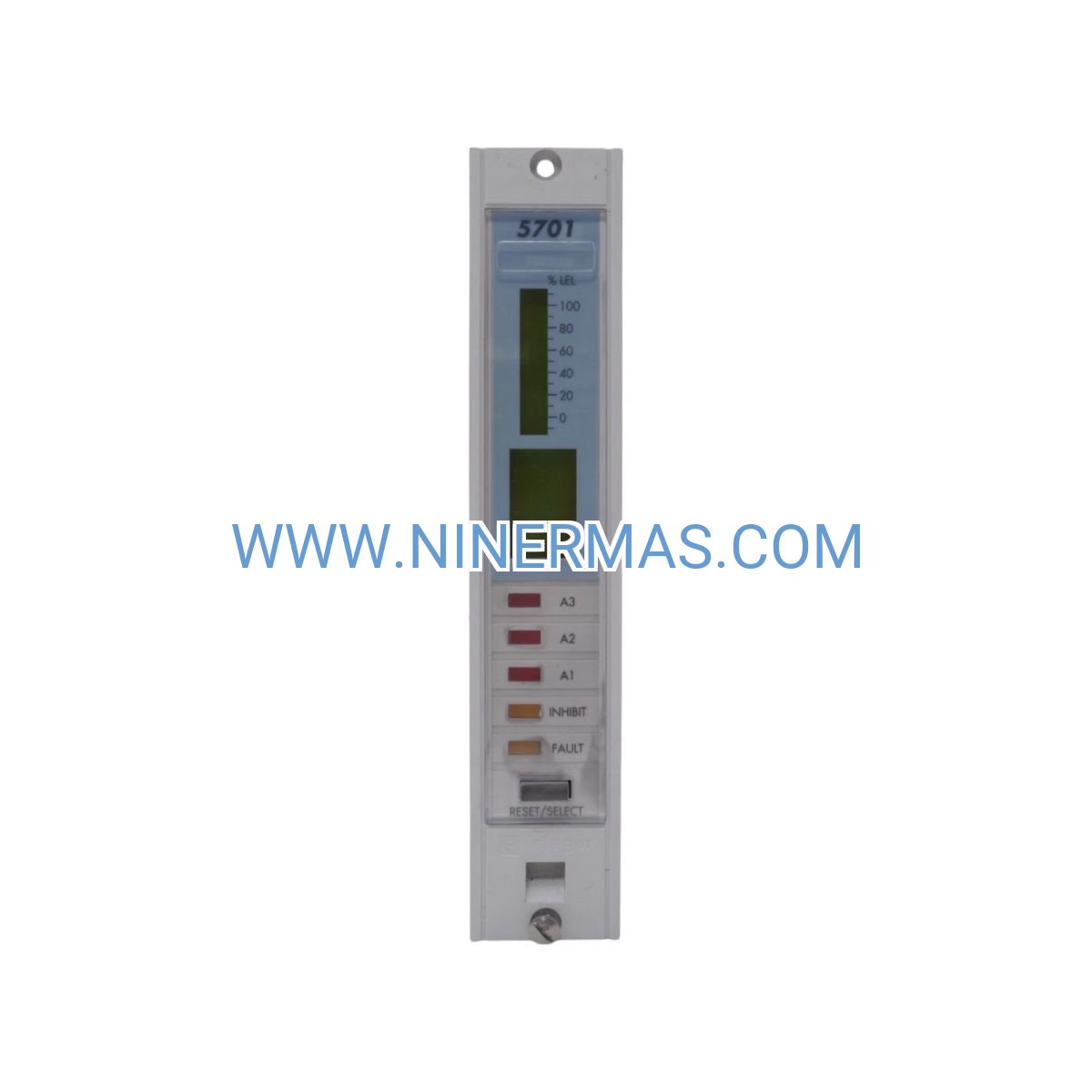

→ Integrated Diagnostic LED Array
Real-time visual indication of power status, alarm states, and fault conditions accelerates troubleshooting during commissioning and routine inspections. Reduces mean time to repair (MTTR) by up to 40% compared to non-visual systems.

✓ Plug-In Modular Design
Tool-free insertion into System 57 8-way or 16-way sub-racks enables hot-swappable maintenance without system shutdown. Supports phased upgrades and minimizes production interruptions.

✓ Multi-Standard Certification Portfolio
ATEX Zone 2 (Ex nA IIC T4 Gc), UL Class I Division 2, and CSA approvals provide global deployment flexibility and streamline compliance documentation for multinational facilities.

✓ Flexible Power Input Range
18-32 V DC input tolerance accommodates voltage fluctuations in industrial power distribution systems, reducing nuisance faults and improving system availability.

Industrial Application Scenarios

Petrochemical Refinery Gas Monitoring
In hydrocarbon processing units, the 05701-A-0351 interfaces with catalytic LEL sensors to monitor flammable gas concentrations near pump seals, valve stations, and loading racks. The card's relay outputs trigger ventilation systems and shutdown sequences when threshold levels are exceeded, preventing ignition events and protecting personnel in hazardous areas.

Wastewater Treatment Facility H₂S Detection
Municipal and industrial wastewater plants deploy the card with 4-20 mA toxic gas transmitters to monitor hydrogen sulfide in confined spaces such as wet wells and digesters. LED diagnostics enable operators to verify sensor health during daily rounds, while the card's temperature rating supports outdoor installation in control pedestals.

Chemical Manufacturing Batch Process Control
Batch reactors handling volatile organic compounds utilize the 05701-A-0351 for point-of-use gas detection. Integration with System 57 racks allows centralized alarm annunciation and data logging, supporting ISO 45001 safety management requirements and incident investigation protocols.

Pharmaceutical Clean Room Solvent Monitoring
In solvent extraction and formulation areas, the card monitors low-level organic vapor concentrations to maintain safe working conditions below occupational exposure limits. The modular architecture supports expansion as production lines scale, avoiding costly control system replacements.

Offshore Platform Hydrocarbon Detection
Marine and offshore installations leverage the card's corrosion-resistant design and wide power input range for methane and propane monitoring in equipment rooms and process modules. ATEX certification ensures compliance with UKCS and international offshore safety regulations.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 05701-A-0351 when your application requires single-point gas detection within an existing or planned System 57 infrastructure. For multi-channel monitoring, consider deploying multiple cards in a shared sub-rack to maintain modularity and simplify spare parts management. Verify sensor compatibility (4-20 mA vs. catalytic) during specification to ensure proper signal conditioning. For applications requiring intrinsically safe (IS) sensor circuits, consult System 57 barrier documentation to confirm zener barrier integration.

Extended Functionality & Integration Options

System 57 Ecosystem Integration: The 05701-A-0351 operates as part of Honeywell's modular System 57 platform, enabling seamless integration with relay cards, power supplies, and communication modules. This architecture supports centralized alarm management through SCADA systems via Modbus RTU or proprietary protocols, facilitating enterprise-level safety monitoring and compliance reporting.

Sensor Calibration & Maintenance: Field calibration procedures utilize standard gas mixtures and the card's built-in test points, allowing technicians to verify sensor response without removing the card from the rack. This design reduces calibration time by approximately 30% compared to systems requiring full module extraction.

Customization for Specialized Applications: While the standard 05701-A-0351 addresses most industrial gas detection needs, custom firmware configurations can be specified for unique alarm setpoints, time-weighted averaging, or sensor-specific linearization curves. Contact our technical team to discuss application-specific requirements.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 2-5 business days via express courier services. For bulk orders (10+ units) or project-specific configurations, expect 3-4 weeks from order confirmation to delivery.

Warranty Coverage: All 05701-A-0351 control cards include a 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs and advance replacement options are available for critical infrastructure applications.

Technical Support: Our applications engineering team provides pre-sales consultation, system design review, and post-installation troubleshooting support. Access to System 57 integration guides, wiring diagrams, and certification documentation is included with purchase.

Documentation Package: Each card ships with installation instructions, dimensional drawings, terminal block wiring diagrams, and certification declarations. Digital copies of user manuals and CAD files are available via our technical resource portal.

Frequently Asked Questions

How does the 05701-A-0351 interface with existing DCS or PLC systems?
The card's relay outputs (accessed via a separate relay module) provide volt-free contacts that integrate directly with DCS/PLC digital input modules. For analog signal transmission, the 4-20 mA sensor input can be paralleled to your control system, though this requires careful consideration of loop impedance and isolation requirements.

What is the maximum cable run length between the sensor and the 05701-A-0351?
For 4-20 mA sensors, cable runs up to 1,500 meters are supported with appropriate wire gauge (typically 18 AWG / 0.75 mm²). Catalytic sensor runs should not exceed 30 meters due to signal integrity and power delivery constraints. Always consult sensor manufacturer specifications for definitive guidance.

Can the card operate in Zone 1 hazardous areas?
The 05701-A-0351 itself is rated for Zone 2 (ATEX II 3 G) installation. For Zone 1 deployment, the card must be housed in a certified enclosure with appropriate ingress protection (typically IP65 or higher) and installed per ATEX installation guidelines. Sensors in Zone 0/1 areas require intrinsically safe barriers.

Does the control card require specialized software for configuration?
Basic operation (alarm setpoints, sensor type selection) is configured via DIP switches or jumpers on the card itself—no proprietary software is required. Advanced features such as time-weighted averaging or custom alarm logic may require System 57 configuration tools; consult the user manual for your specific firmware revision.

What maintenance intervals are recommended for optimal performance?
Perform visual LED diagnostics checks monthly, sensor calibration verification quarterly, and full functional testing annually. Relay contact inspection (if relay cards are used) should occur every 6-12 months depending on switching frequency. Maintain a log of all calibration and maintenance activities to support regulatory audits.

Is the 05701-A-0351 compatible with wireless gas detection sensors?
No, this card is designed for hardwired 4-20 mA and catalytic sensor inputs. For wireless sensor integration, consider Honeywell's Sensepoint XCD or similar wireless-to-analog gateway solutions that output 4-20 mA signals compatible with the 05701-A-0351 input.

Secure Your Gas Detection Infrastructure Today

Ready to enhance your facility's safety monitoring capabilities? Contact our industrial automation specialists to discuss your gas detection requirements, receive application-specific recommendations, and obtain project pricing for the 05701-A-0351 control card. Our team is available to support system design, integration planning, and post-installation commissioning services.

Request a Quote: Email sale@ninermas.com with your project details, or call +0086 187 5021 5667 to speak with a technical advisor.
