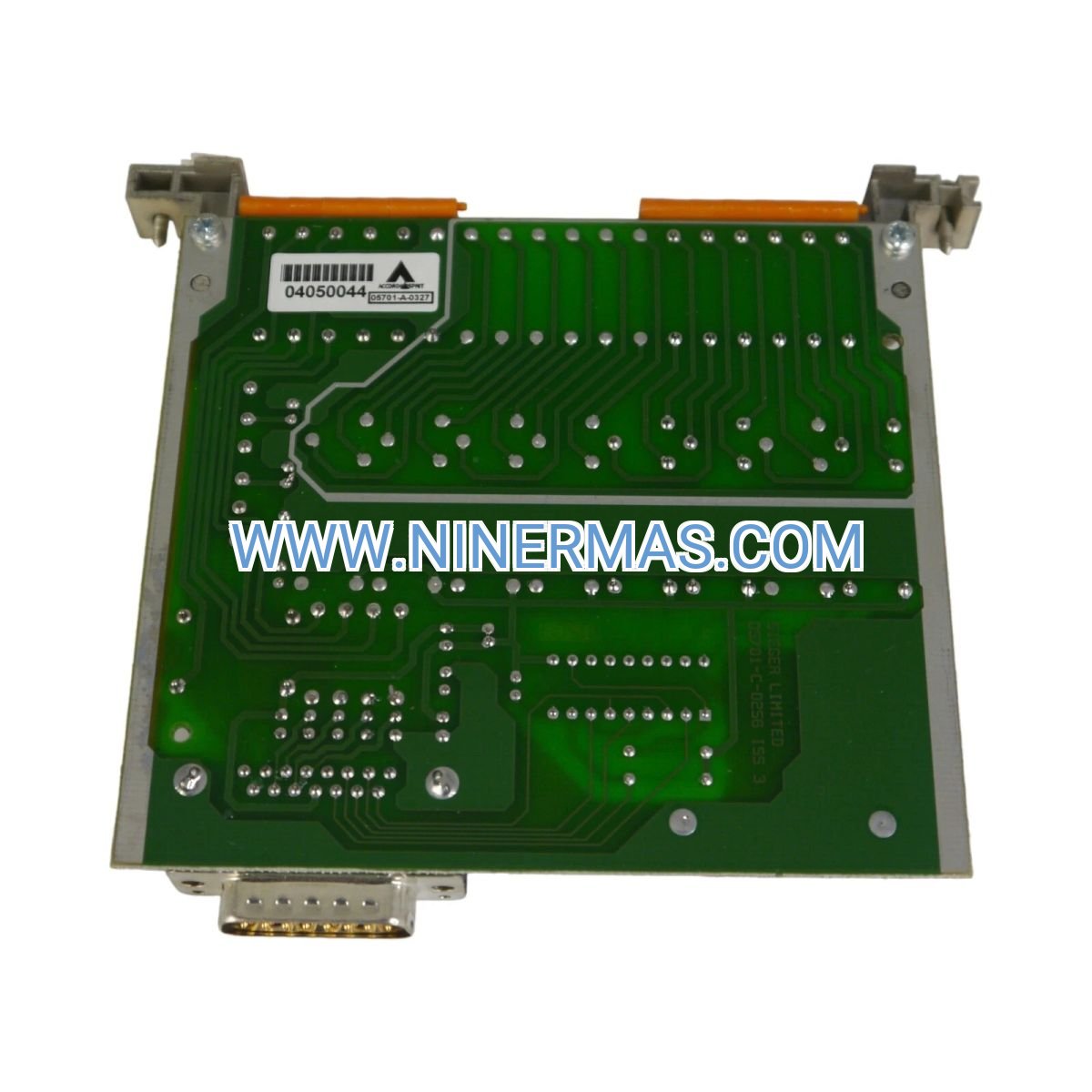

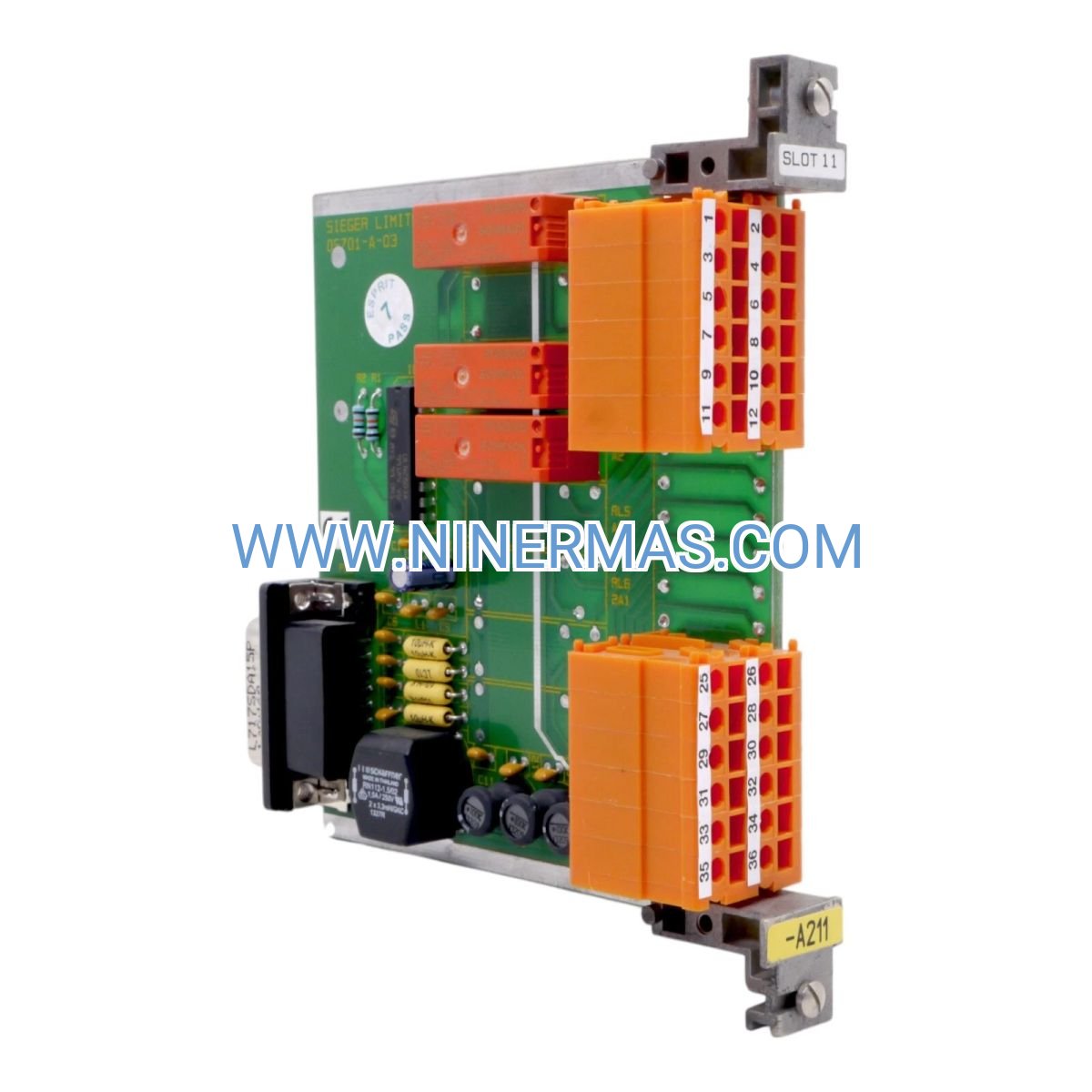

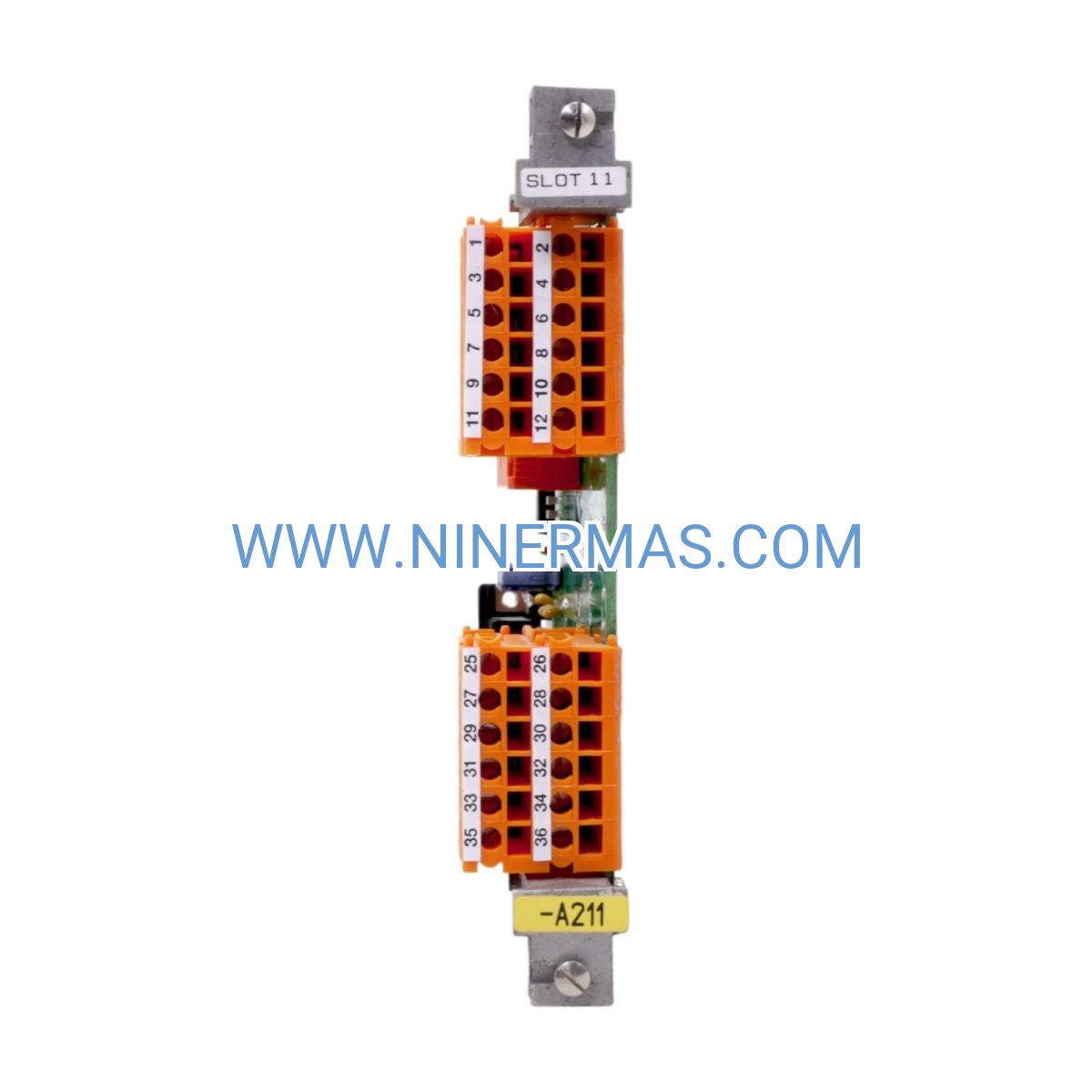

Honeywell 05701-A-0327 Relay Card (Industrial-Grade Safety Control Module)

The Honeywell 05701-A-0327 is a high-reliability relay output module engineered for System 57 gas detection platforms, delivering fail-safe switching control for alarm circuits, emergency shutdown systems, and ventilation interlocks in hazardous industrial environments. This rack-mounted relay card transforms gas concentration signals into actionable control outputs, enabling automated safety responses across petrochemical, oil & gas, and manufacturing facilities.

Designed for mission-critical applications where equipment failure is not an option, the 05701-A-0327 addresses the challenge of coordinating multiple safety devices through a single, certified control interface. Process engineers and safety managers rely on this module to bridge gas detection sensors with downstream safety equipment, eliminating manual intervention during emergency events while maintaining compliance with international safety standards.

With Form C relay contacts rated for 5A switching capacity and global hazardous area certifications (FM, CSA, ATEX, IECEx), this relay card delivers the performance and regulatory compliance demanded by safety-critical installations. Its modular architecture integrates seamlessly into existing System 57 infrastructures, providing scalable relay expansion without system redesign.

Technical Capabilities & Business Value

→ Form C (SPDT) Relay Architecture
Provides normally-open and normally-closed contact configurations for versatile alarm logic implementation, supporting both fail-safe and fail-active control strategies that adapt to your facility's safety philosophy.

→ 5A @ 250VAC Contact Rating
Direct switching of industrial loads including solenoid valves, alarm horns, and ventilation fan starters eliminates the need for intermediate relay stages, reducing installation costs by 30-40% compared to low-power relay solutions.

→ -40°C to +70°C Operating Range
Maintains reliable operation in extreme temperature environments from Arctic offshore platforms to desert refineries, ensuring continuous safety monitoring regardless of ambient conditions.

→ Multi-Certification Compliance
FM, CSA, ATEX, and IECEx approvals streamline global project deployment, eliminating costly re-certification processes when expanding operations across international jurisdictions.

→ System 57 Native Integration
Plug-and-play compatibility with all System 57 control cards and rack assemblies accelerates commissioning timelines, with typical installation completed in under 15 minutes per module.

✓ Hot-Swappable Module Design
Field-replaceable architecture enables maintenance without system shutdown, maximizing uptime in continuous process operations where production interruptions cost $5,000-$15,000 per hour.

Typical Application Scenarios

Petrochemical Refinery Emergency Shutdown
In catalytic cracking units, the 05701-A-0327 relay card monitors combustible gas levels and triggers automated valve closure sequences when LEL concentrations exceed 20% threshold. Paired with multi-channel control cards, the system coordinates shutdown of feed pumps, isolation of process vessels, and activation of deluge systems—reducing incident response time from 45 seconds (manual) to 3 seconds (automated), preventing potential loss events exceeding $2M.

Offshore Platform Ventilation Control
On FPSO vessels and fixed platforms, this relay module manages HVAC interlock systems that activate high-volume ventilation fans when hydrogen sulfide or methane detection occurs in confined spaces. The relay's 5A contact rating directly controls 230VAC fan contactors, eliminating intermediate relay panels and reducing electrical cabinet footprint by 40%.

Chemical Manufacturing Process Isolation
Manufacturing facilities handling volatile organic compounds deploy the 05701-A-0327 to control pneumatic valve actuators and process isolation dampers. When toxic gas concentrations exceed workplace exposure limits, the relay card triggers immediate area isolation while simultaneously activating audible/visual alarm devices, protecting personnel and containing hazardous releases.

Wastewater Treatment Facility Safety
Municipal and industrial wastewater plants utilize this relay module to manage hydrogen sulfide and methane monitoring systems in digester buildings and pump stations. The relay outputs control exhaust blowers and restrict personnel access via electromagnetic door locks, preventing exposure incidents in confined space environments.

Battery Energy Storage System (BESS) Fire Suppression
Emerging lithium-ion battery installations integrate the 05701-A-0327 for thermal runaway gas detection, triggering clean agent fire suppression systems when off-gas concentrations indicate cell failure. The relay's fast response time (<100ms) enables suppression activation before thermal propagation to adjacent battery modules.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 05701-A-0327 relay card, verify that connected load current does not exceed 5A continuous rating. For inductive loads (solenoid valves, motor contactors), apply a 0.6 derating factor or install external RC snubber networks to suppress contact arcing. Ensure rack assembly provides adequate ventilation to maintain ambient temperature below 60°C for maximum relay lifespan. For applications requiring more than one relay output per detection zone, multiple 05701-A-0327 modules can be installed in parallel within the same System 57 rack.

Extended Functions & Integration Capabilities

SCADA System Integration: The 05701-A-0327 relay contacts interface directly with distributed control system (DCS) and SCADA digital input modules, providing hardwired alarm status feedback independent of communication network availability. This architecture ensures safety-critical signals remain operational during Ethernet or Modbus network failures.

Redundant Safety Logic: Deploy dual 05701-A-0327 modules in 1oo2 (one-out-of-two) voting configurations for SIL-rated safety instrumented systems. The relay card's independent contact operation enables diverse shutdown paths that meet IEC 61511 functional safety requirements for process industries.

Remote Monitoring Compatibility: When paired with System 57 engineering cards and Honeywell's ControlEdge gateway devices, relay status and diagnostic data can be transmitted to cloud-based asset management platforms for predictive maintenance scheduling and compliance documentation.

Custom Alarm Sequencing: Advanced users can program time-delayed relay activation sequences through System 57 control logic, creating staged alarm responses such as pre-alarm warnings (visual only) followed by full evacuation alarms (audible + visual) based on gas concentration escalation rates.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock 05701-A-0327 relay cards ship within 2-3 business days via express courier (DHL/FedEx), with typical transit time of 5-7 days to major industrial centers worldwide. All modules undergo factory calibration verification and functional testing before shipment.

Custom Configuration: Pre-programmed relay cards with customer-specific alarm setpoints and logic sequences available with 10-15 business day lead time. Custom configurations include detailed test reports and as-built documentation for regulatory compliance files.

Warranty Coverage: 12-month comprehensive warranty covers all manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service with cross-shipment of replacement modules to minimize downtime during failure events.

Technical Support: Unlimited access to application engineering team for installation guidance, troubleshooting assistance, and system integration consulting. Support includes wiring diagram review, relay contact load calculations, and compatibility verification with third-party equipment.

Documentation Package: Each relay card ships with installation manual, dimensional drawings, terminal wiring diagrams, and certification documents (FM/ATEX/IECEx certificates). Digital documentation library includes CAD files, EPLAN macros, and PLC integration examples.

Frequently Asked Questions

How does the 05701-A-0327 relay card integrate with existing System 57 gas detection controllers?
The relay module installs directly into any System 57 rack assembly (6U or 3U format) and receives control signals from associated gas detection control cards via the rack backplane. No external wiring is required between the relay card and control cards—all inter-module communication occurs through the rack's internal bus architecture. Configuration is performed using the System 57 engineering interface, where you assign which detection channel(s) trigger the relay output and define alarm setpoints.

What is the maximum load current that can be switched by the relay contacts?
The Form C relay contacts are rated for 5 amperes continuous at 250VAC (resistive load) or 30VDC. For inductive loads such as solenoid valves or contactor coils, apply a 60% derating factor (3A maximum) to account for inrush current and contact arcing. Loads exceeding 5A require an external interposing relay or solid-state relay controlled by the 05701-A-0327 output.

Can multiple relay cards be installed in a single System 57 rack for multi-zone alarm control?
Yes, System 57 rack assemblies support multiple relay cards alongside control cards and power supply modules. A standard 16-slot rack can accommodate up to 12 relay cards (after reserving slots for power supply, control cards, and engineering card), enabling independent alarm outputs for 12 separate detection zones or redundant relay pairs for critical shutdown functions.

What hazardous area classifications are covered by the relay card's certifications?
The 05701-A-0327 holds FM approval for Class I Division 2 Groups A, B, C, D installations, CSA certification for Class I Division 2, ATEX certification for Zone 2 (II 3G Ex nA IIC T4), and IECEx certification for Zone 2 applications. These certifications permit installation in non-hazardous control rooms monitoring hazardous process areas, or in Division 2/Zone 2 classified locations when installed in appropriate enclosures.

Does the relay card require periodic calibration or maintenance?
The 05701-A-0327 relay module is a passive switching device that does not require calibration. Recommended maintenance consists of annual functional testing (verify relay operation by simulating alarm conditions) and visual inspection of terminal connections for tightness. Relay contact resistance should be measured every 2-3 years; contacts exhibiting >1 ohm resistance should be replaced to prevent voltage drop issues with sensitive loads.

What is the typical response time from alarm signal to relay contact closure?
Relay operate time (from energization command to contact closure) is less than 10 milliseconds, with release time (contact opening) also under 10ms. This fast response enables the 05701-A-0327 to meet emergency shutdown system requirements where total loop response time (detection + processing + actuation) must be under 2 seconds for high-consequence scenarios.

Request Technical Consultation

Our application engineering team is available to assist with System 57 relay card selection, wiring diagram development, and integration planning for your gas detection project. Contact us with your facility layout, detection zone requirements, and controlled equipment specifications to receive a customized relay card configuration proposal within 24 hours.

Ready to enhance your gas detection safety system?
Submit your technical inquiry or request a quotation for the Honeywell 05701-A-0327 relay card. Our team responds to all inquiries within 4 business hours with pricing, availability, and application guidance.
