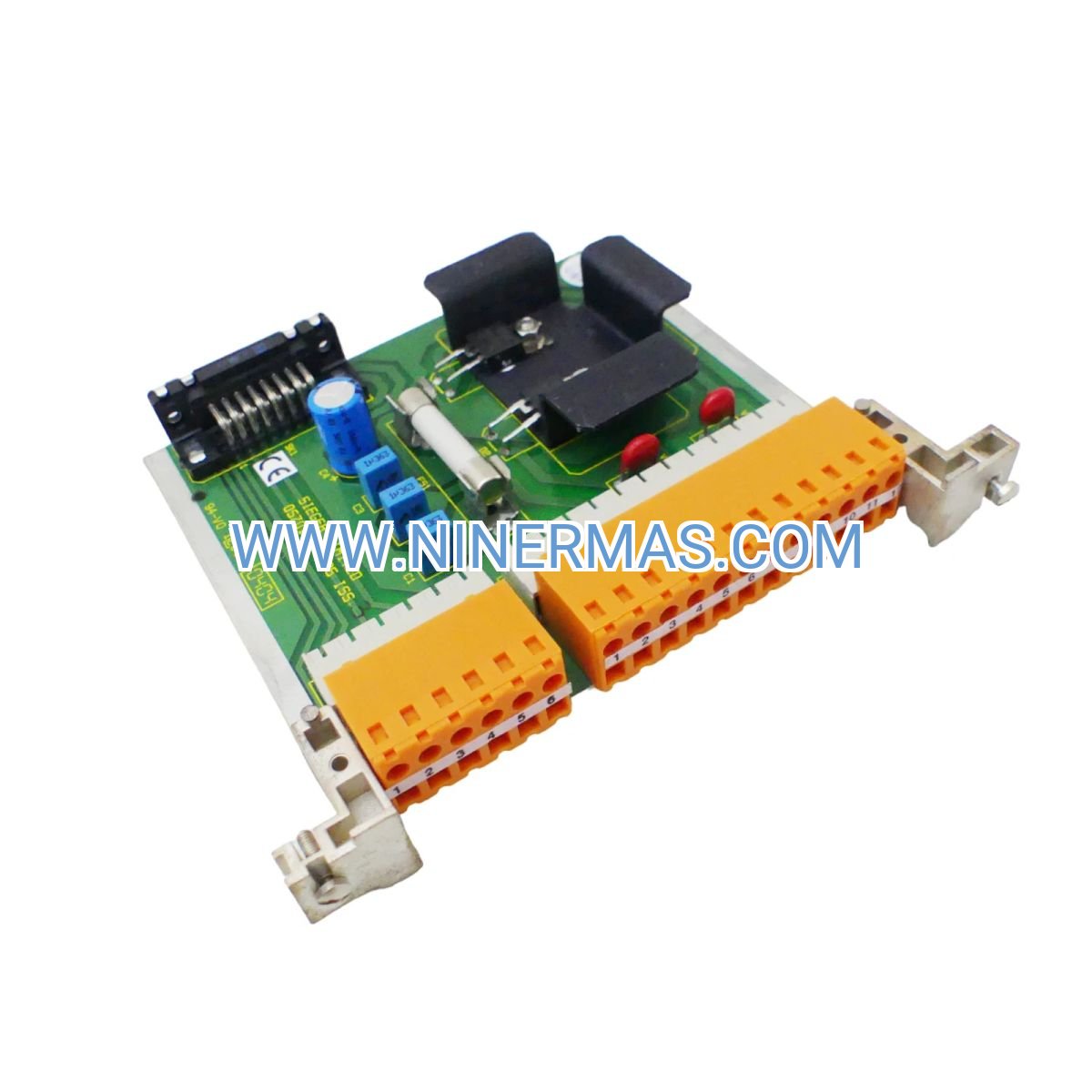

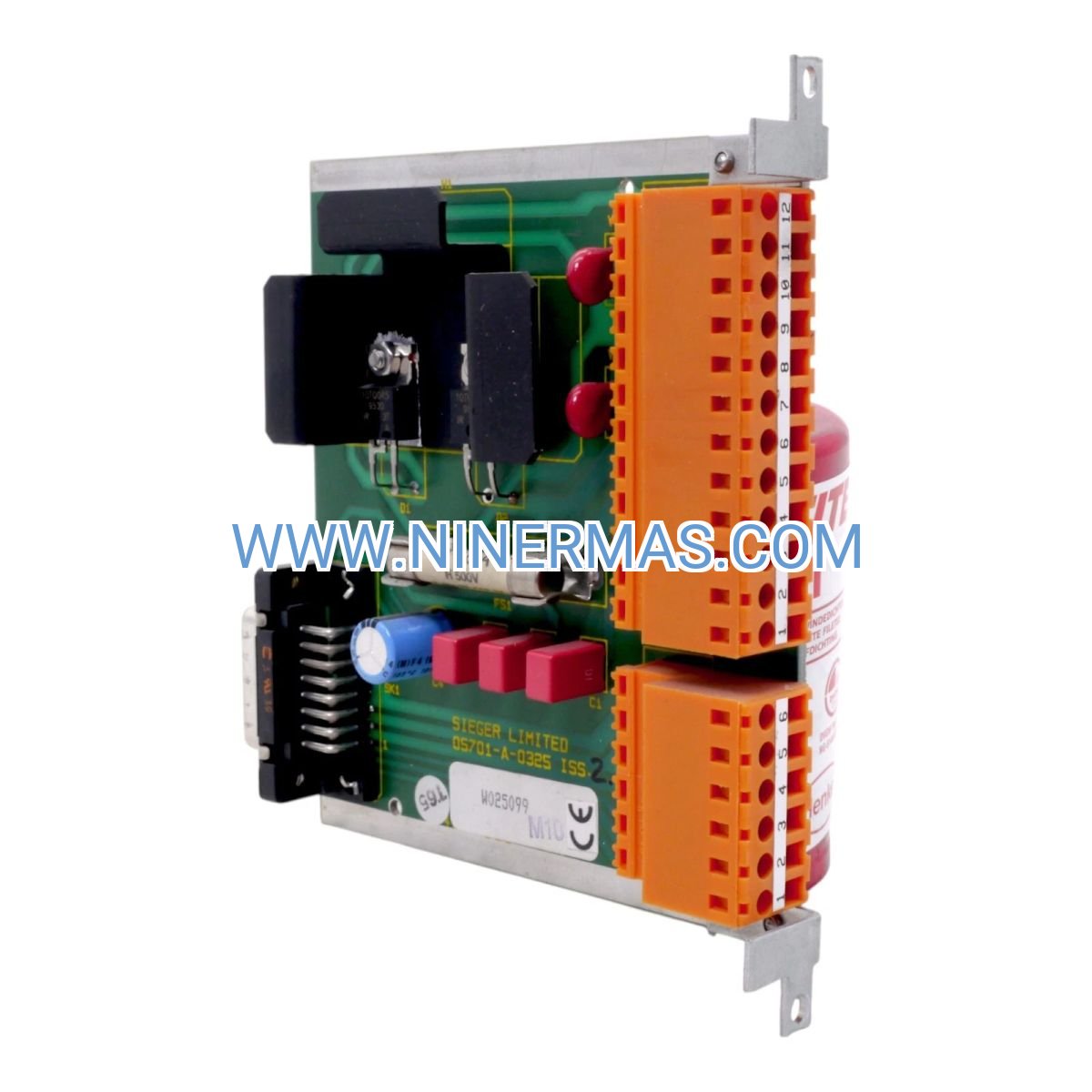

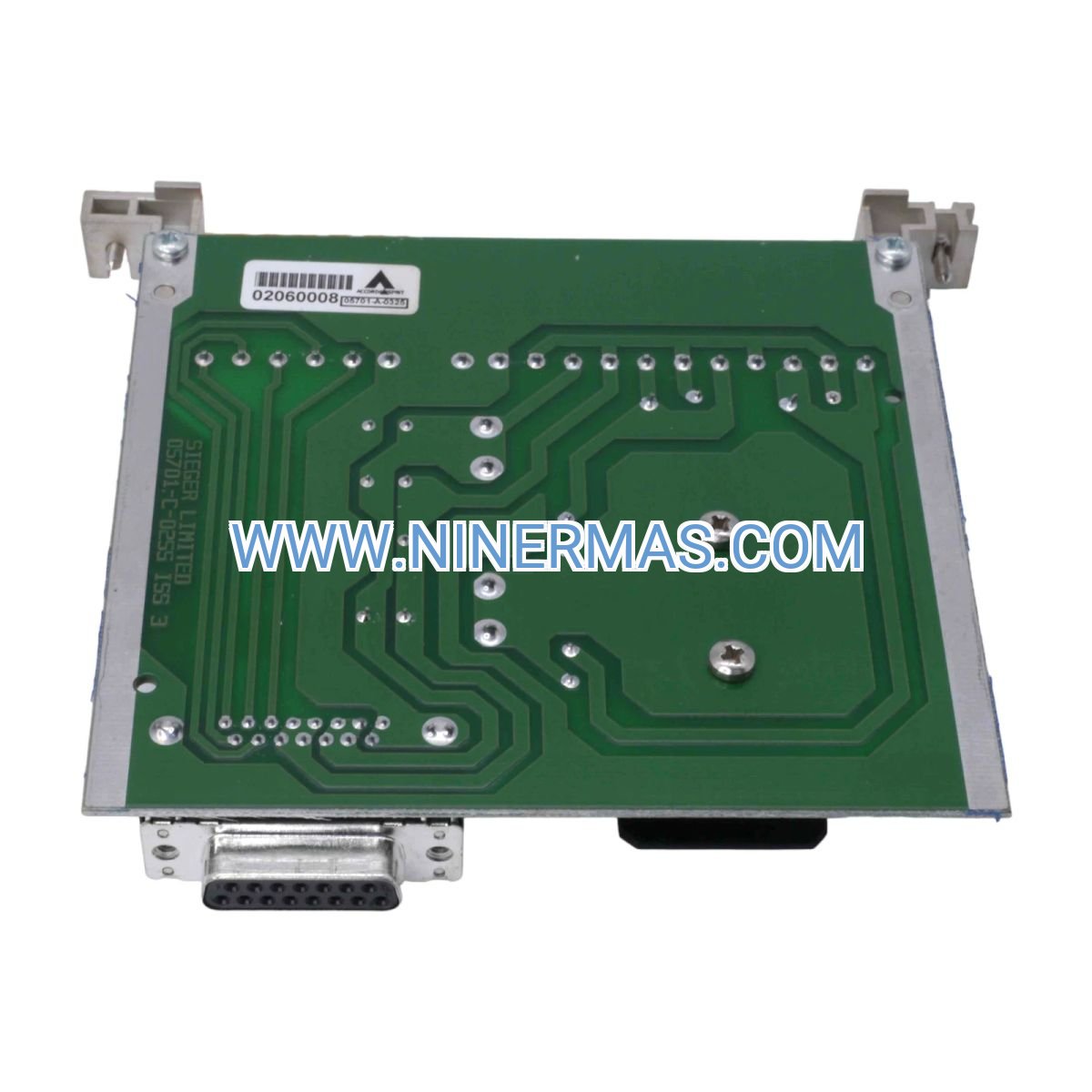

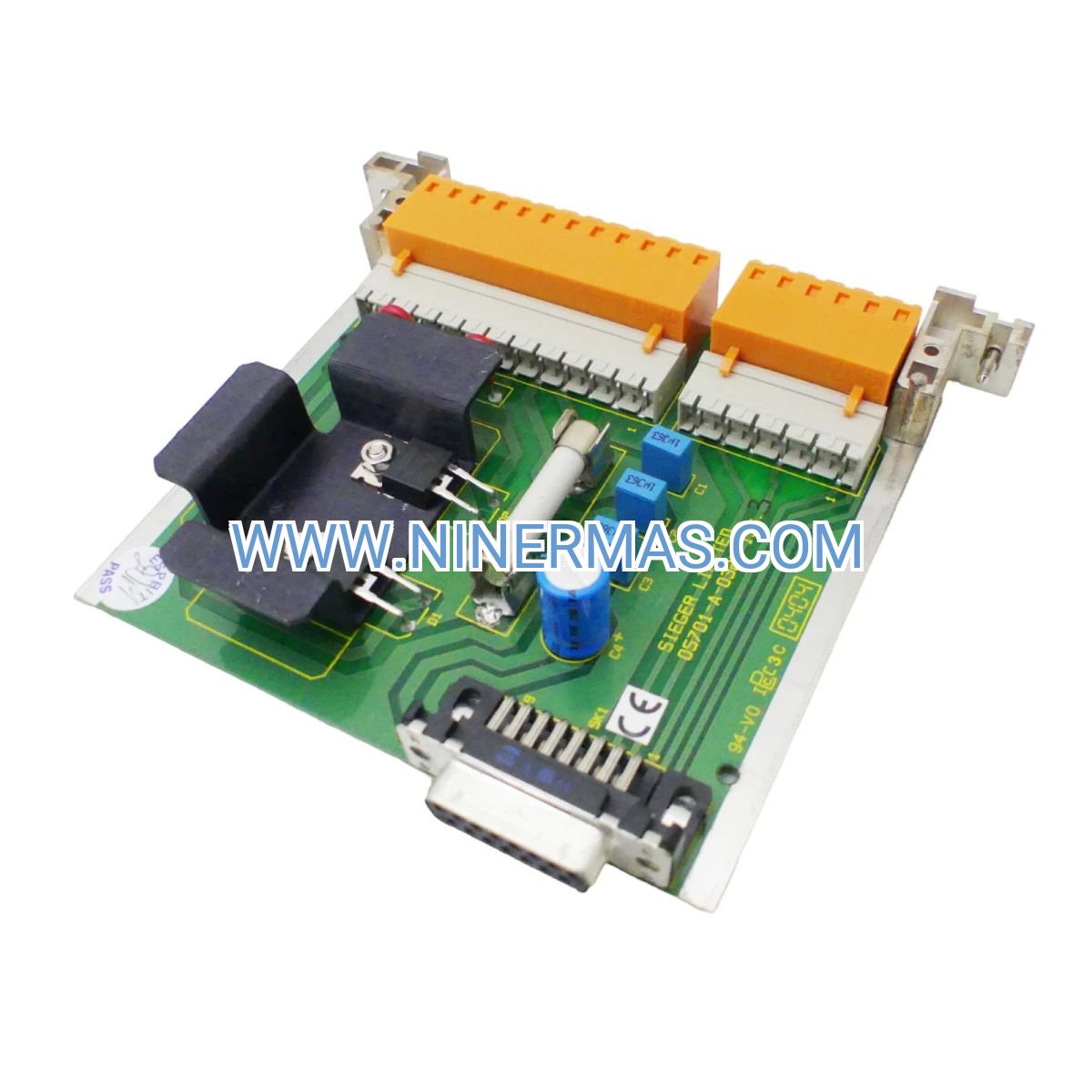

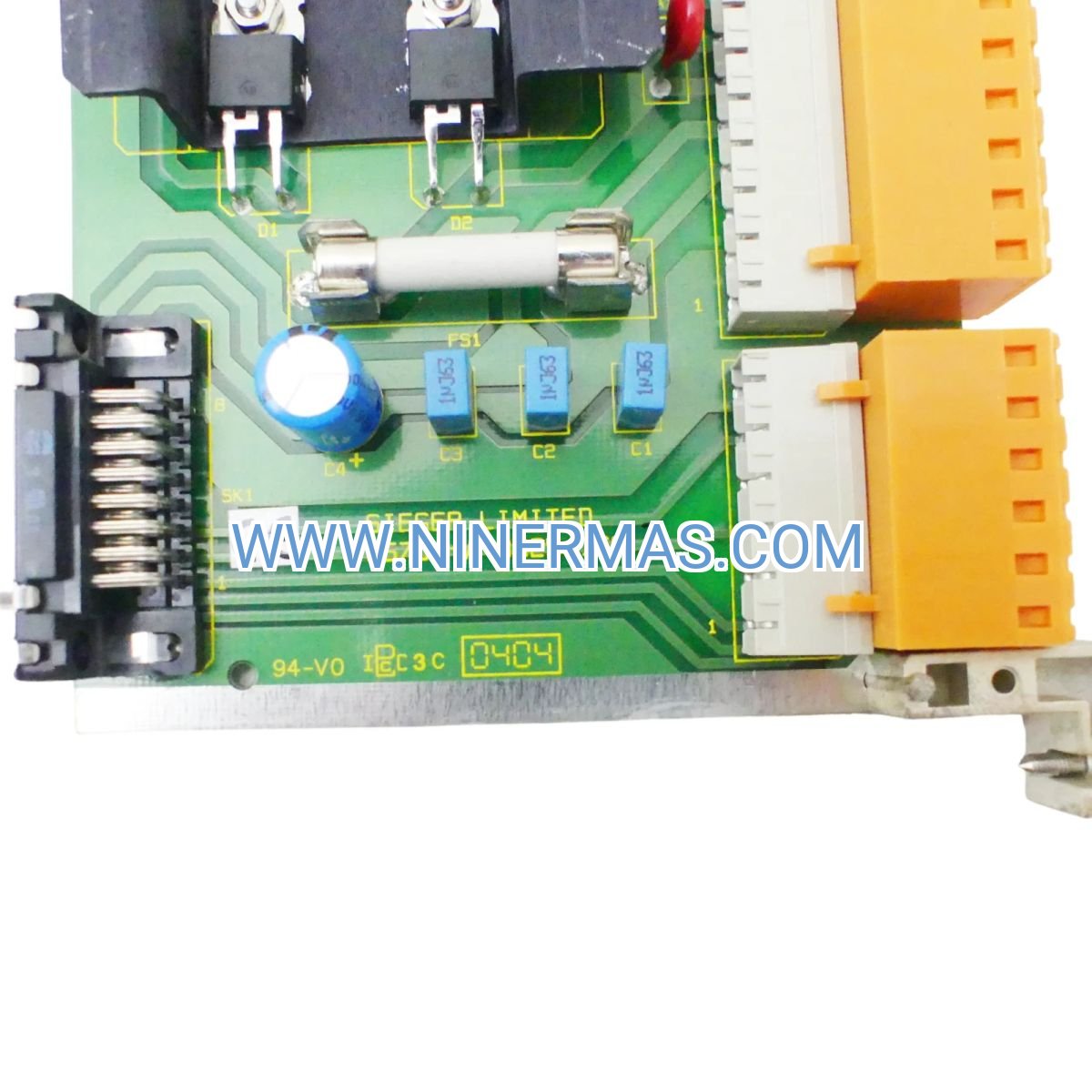

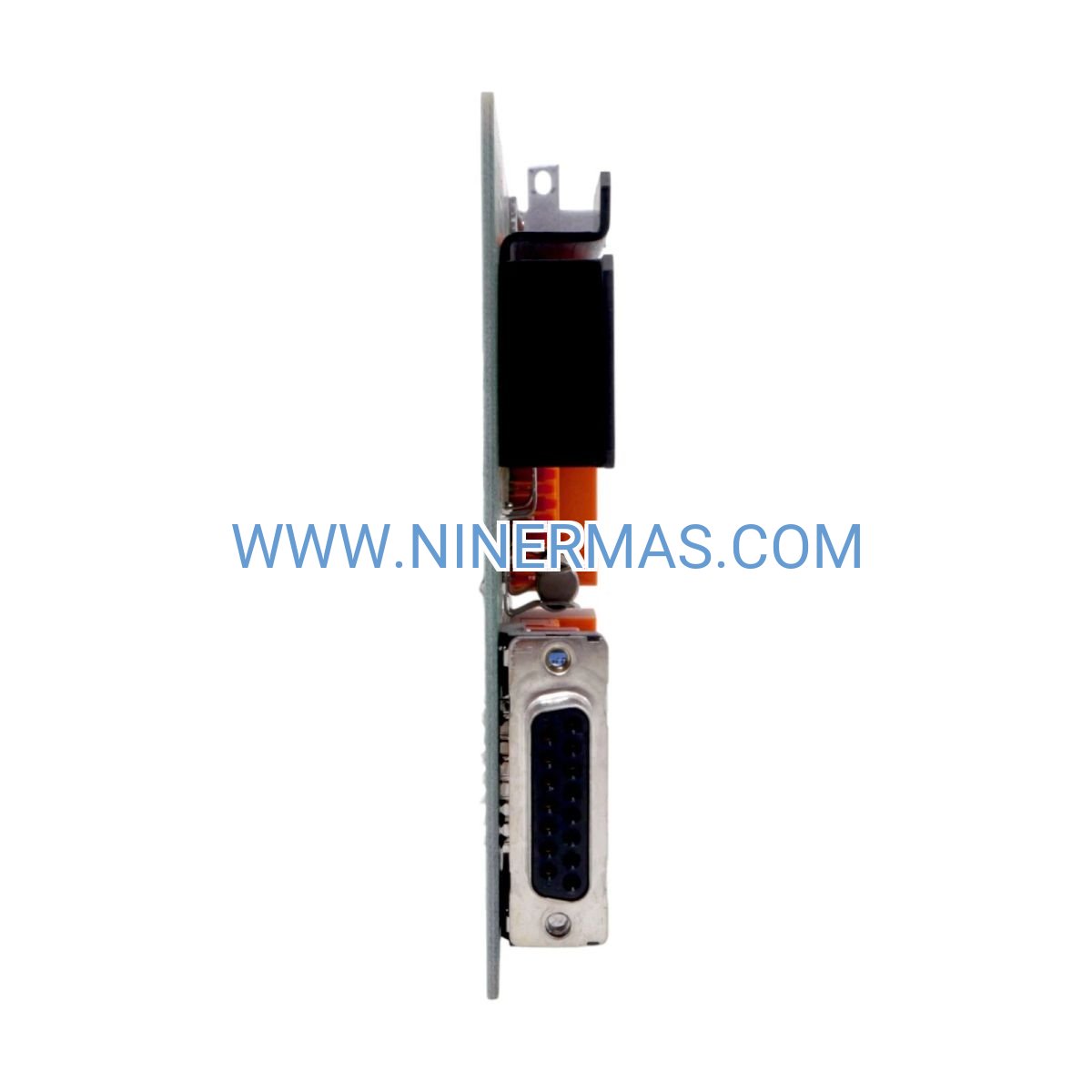

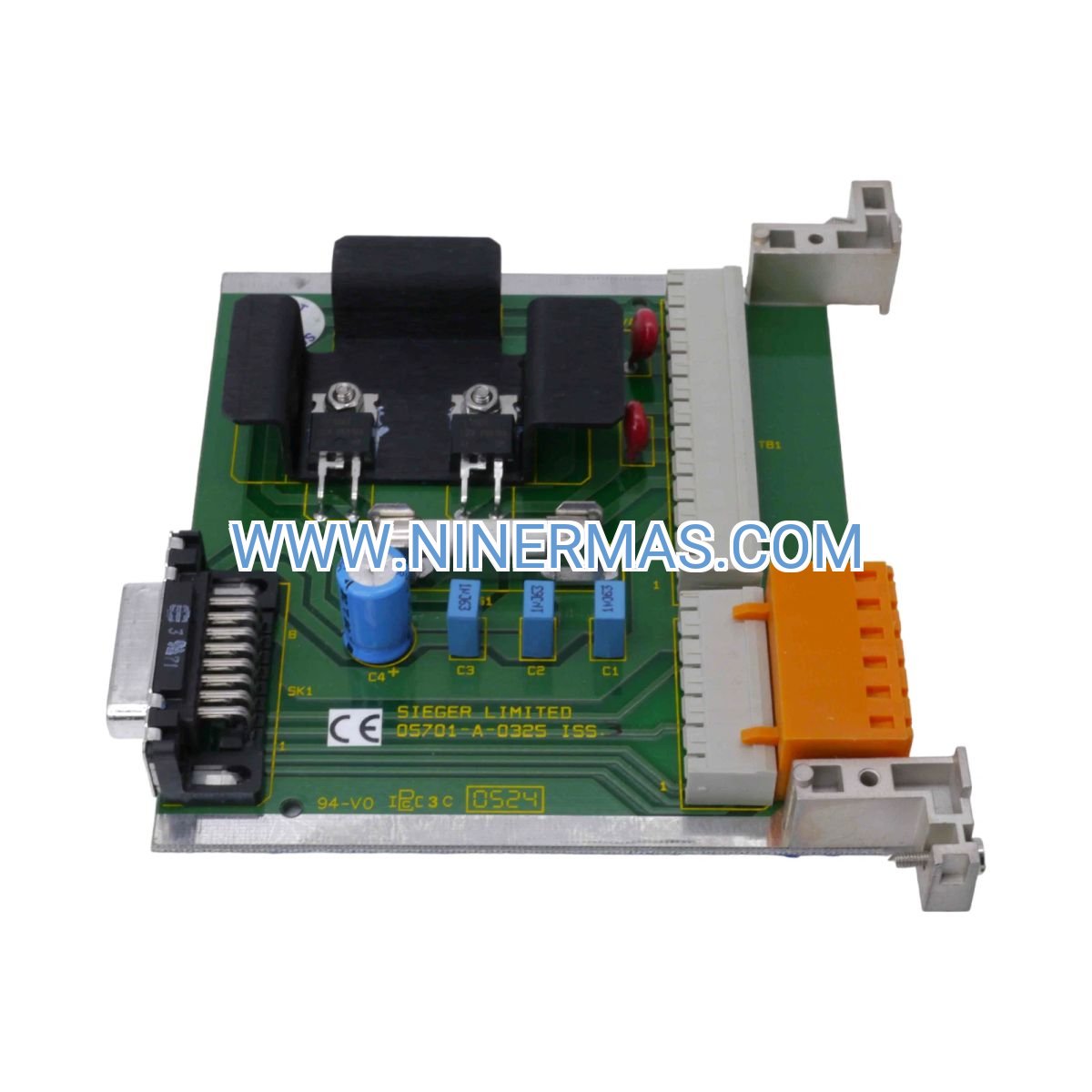

05701-A-0325 DC Input Card (Industrial-Grade Power Distribution Module)

The Honeywell 05701-A-0325 represents a critical power infrastructure component engineered specifically for System 57 distributed control architectures. Designed to deliver stable 18-32V DC power across multiple control channels, this input card combines robust voltage regulation with electromagnetic interference suppression, ensuring uninterrupted operation in electrically noisy industrial environments where power quality directly impacts system uptime and process reliability.

Built for engineers and system integrators managing complex automation networks, the 05701-A-0325 addresses the fundamental challenge of maintaining clean, consistent power delivery to sensitive control electronics, sensors, and interface modules. Whether you're retrofitting legacy System 57 installations or designing new process control systems, this DC input card provides the foundation for reliable multi-device power coordination across refineries, chemical processing plants, power generation facilities, and manufacturing operations.

With factory-validated performance specifications and comprehensive electromagnetic compatibility, the 05701-A-0325 eliminates common power-related failures while simplifying installation through standard rack-mount integration. Every unit ships with full technical documentation and backed by our 12-month warranty, giving you confidence in both immediate deployment and long-term operational continuity.

Core Capabilities & Technical Advantages

→ Wide Input Voltage Tolerance (18-32V DC)
Accommodates voltage fluctuations typical in industrial power supplies, maintaining stable output even during grid variations or generator switchover events—reducing nuisance shutdowns by up to 40% compared to narrow-range alternatives.

→ Multi-Channel Power Distribution Architecture
Simultaneously powers control cards, relay modules, and field sensors from a single input source, eliminating the need for multiple power supplies and reducing cabinet space requirements by 25-35% in typical configurations.

✓ Integrated RFI/EMI Filtering
Built-in electromagnetic interference suppression protects downstream components from electrical noise generated by VFDs, motor starters, and high-power switching equipment—critical for maintaining signal integrity in process control loops.

✓ Extended Temperature Range (-40°C to +85°C)
Operates reliably in extreme ambient conditions from Arctic installations to desert climates, supporting outdoor enclosures and non-climate-controlled industrial environments without derating.

✓ System 57 Native Compatibility
Seamless integration with Honeywell's System 57 ecosystem including relay cards, interface modules, and I/O expansion units—no custom adapters or voltage converters required.

✓ Rack-Mount Standardization
Drop-in replacement for existing System 57 power cards with identical form factor and connector pinouts, enabling rapid field upgrades during planned maintenance windows.

Industrial Application Scenarios

Oil & Gas Process Control
In refinery distributed control systems, the 05701-A-0325 powers critical safety instrumented systems (SIS) and emergency shutdown logic, where power interruptions could trigger false alarms or compromise safety integrity levels. The card's RFI filtering prevents interference from nearby high-voltage motor control centers.

Chemical Manufacturing Automation
Batch process controllers in pharmaceutical and specialty chemical plants rely on the 05701-A-0325 to maintain consistent power to recipe management systems and analytical instrumentation, where voltage sags could corrupt batch data or cause out-of-spec production runs.

Power Generation SCADA Networks
Utility-scale power plants use System 57 platforms for turbine control and grid synchronization, with the 05701-A-0325 ensuring uninterrupted power to protective relay systems and sequence-of-events recorders during grid disturbances and fault conditions.

Water Treatment Facilities
Municipal water and wastewater treatment operations depend on the 05701-A-0325 to power PLC-based SCADA systems controlling pump stations, chemical dosing, and filtration processes—applications where power quality directly affects regulatory compliance and public health protection.

Food & Beverage Processing Lines
Automated packaging and filling systems in food production environments utilize the card's wide temperature range and EMI immunity to maintain control system stability near high-power conveyors, induction heaters, and RF sealing equipment.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 05701-A-0325 when your System 57 installation requires centralized DC power distribution with electromagnetic interference immunity. Ideal for environments with variable input voltage (generator backup systems, solar hybrid installations) or high electrical noise (motor control centers, welding operations, RF equipment). For applications requiring isolated power channels or redundant supplies, consult our engineering team for alternative configurations.

Extended Integration Capabilities

SCADA & HMI Connectivity: The 05701-A-0325 powers System 57 communication modules that interface with Honeywell Experion PKS, Siemens WinCC, Rockwell FactoryTalk, and other industrial SCADA platforms via Modbus RTU, Ethernet/IP, and proprietary protocols.

Redundancy Configuration: Deploy in parallel with secondary power cards for N+1 redundancy in critical applications where single-point power failures are unacceptable—common in pharmaceutical clean rooms and semiconductor fabrication facilities.

Remote Monitoring Integration: When paired with System 57 diagnostic modules, enables real-time power quality monitoring and predictive maintenance alerts through cloud-based asset management platforms, reducing unplanned downtime by 30-45%.

Custom Engineering Support: Our technical team provides application-specific configuration guidance for non-standard voltage requirements, harsh environment enclosures, and integration with third-party control systems.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier with full tracking and insurance coverage.

Custom Configuration: 10-15 business days for factory-programmed units with specific voltage settings or extended temperature testing.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Advance replacement available for critical applications.

Technical Support: Lifetime access to our engineering support team for installation guidance, troubleshooting assistance, and system integration consulting. Phone, email, and remote diagnostic support included.

Documentation Package: Every unit ships with installation manual, wiring diagrams, dimensional drawings, and compliance certificates. CAD models and EPLAN macros available for download.

Frequently Asked Questions

How does the 05701-A-0325 DC input card integrate with existing System 57 control modules?
The card uses standard System 57 backplane connectors and follows Honeywell's native power distribution architecture, allowing plug-and-play installation without rewiring or adapter boards. Simply insert into an available chassis slot and connect your DC power source—the card automatically distributes power to adjacent control cards through the backplane.

What is the maximum current capacity for powering multiple control cards simultaneously?
The 05701-A-0325 supports typical System 57 configurations with 8-12 control cards depending on individual card power consumption. For precise load calculations, sum the current draw of your specific control cards (typically 50-150mA each) and verify against the card's rated output capacity in the technical datasheet.

Can this DC power card operate in hazardous area classifications?
The standard 05701-A-0325 is designed for general industrial environments (Zone 2/Division 2 when properly enclosed). For Class I Division 1 or ATEX Zone 1 applications, the card must be installed in certified explosion-proof enclosures with appropriate barriers and intrinsic safety interfaces.

What installation tools and skills are required for field deployment?
Basic electrical installation capabilities are sufficient—you'll need standard screwdrivers, wire strippers, and a multimeter for voltage verification. No specialized programming tools or software required. Installation typically takes 15-20 minutes per card including power-up testing.

How does the RFI filtering protect against electromagnetic interference?
The integrated filtering uses multi-stage LC networks to attenuate conducted EMI from 150kHz to 30MHz, preventing noise from VFDs, switching power supplies, and radio transmitters from corrupting control signals. This reduces false trips and improves analog input accuracy by 15-25% in electrically noisy environments.

Is the 05701-A-0325 compatible with 24V DC industrial power supplies?
Yes, standard 24V DC industrial power supplies fall within the card's 18-32V input range, providing optimal compatibility with DIN-rail power supplies from Phoenix Contact, Weidmuller, and similar manufacturers commonly used in control panels.

Ready to Upgrade Your System 57 Power Infrastructure?

Contact our industrial automation specialists today for application-specific guidance, volume pricing, and technical support. Whether you're replacing aging power cards or designing new control systems, we'll help you specify the right configuration for your operational requirements.
