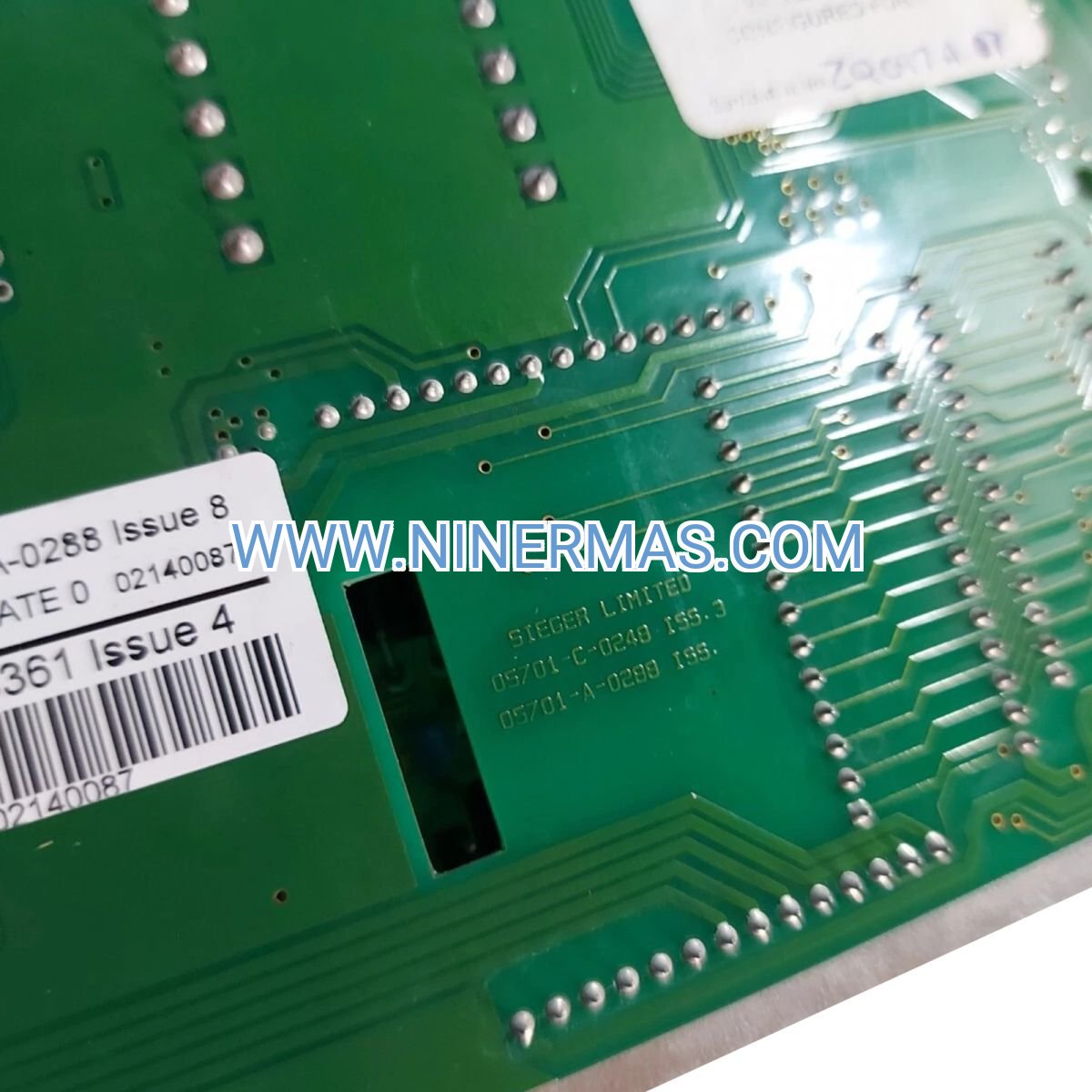

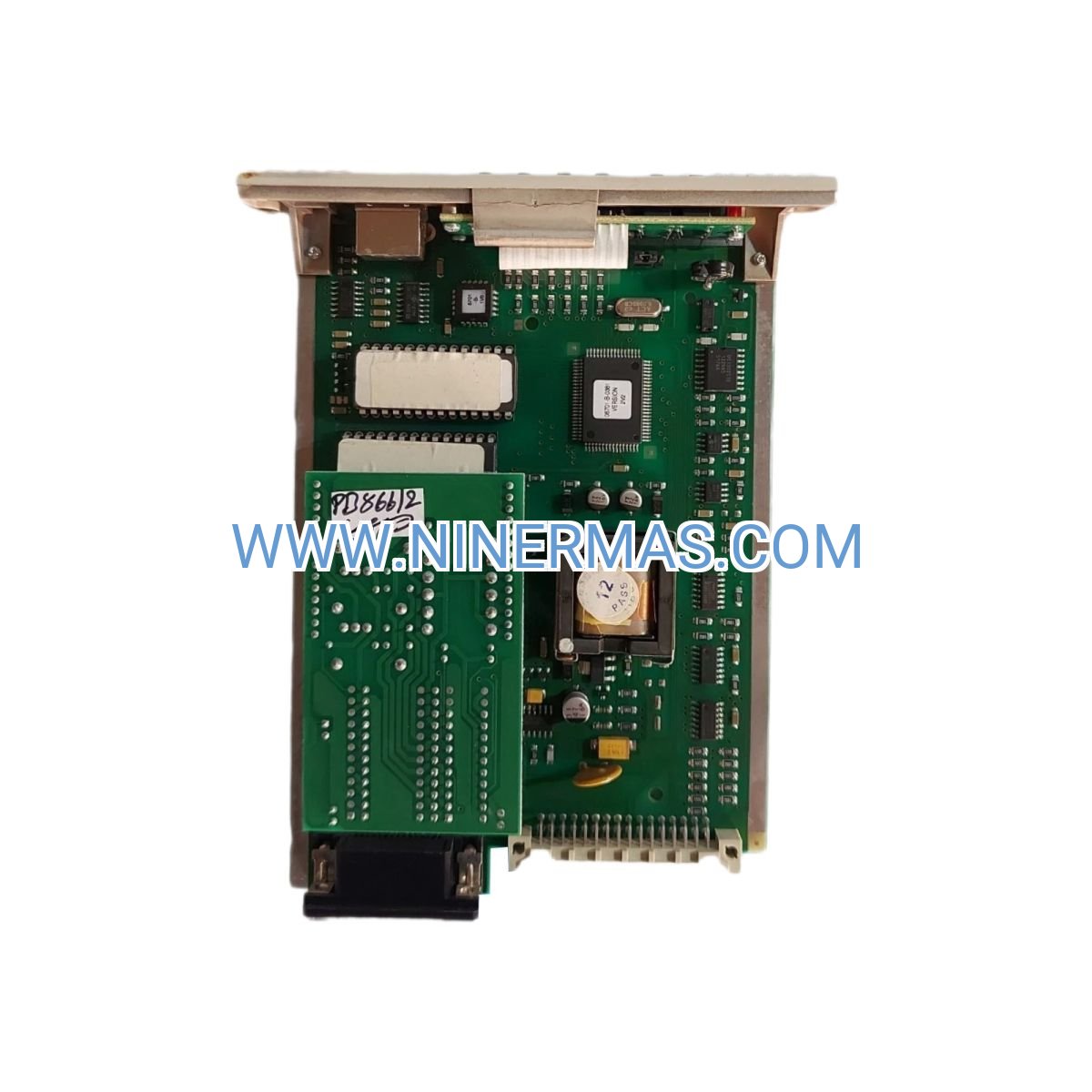

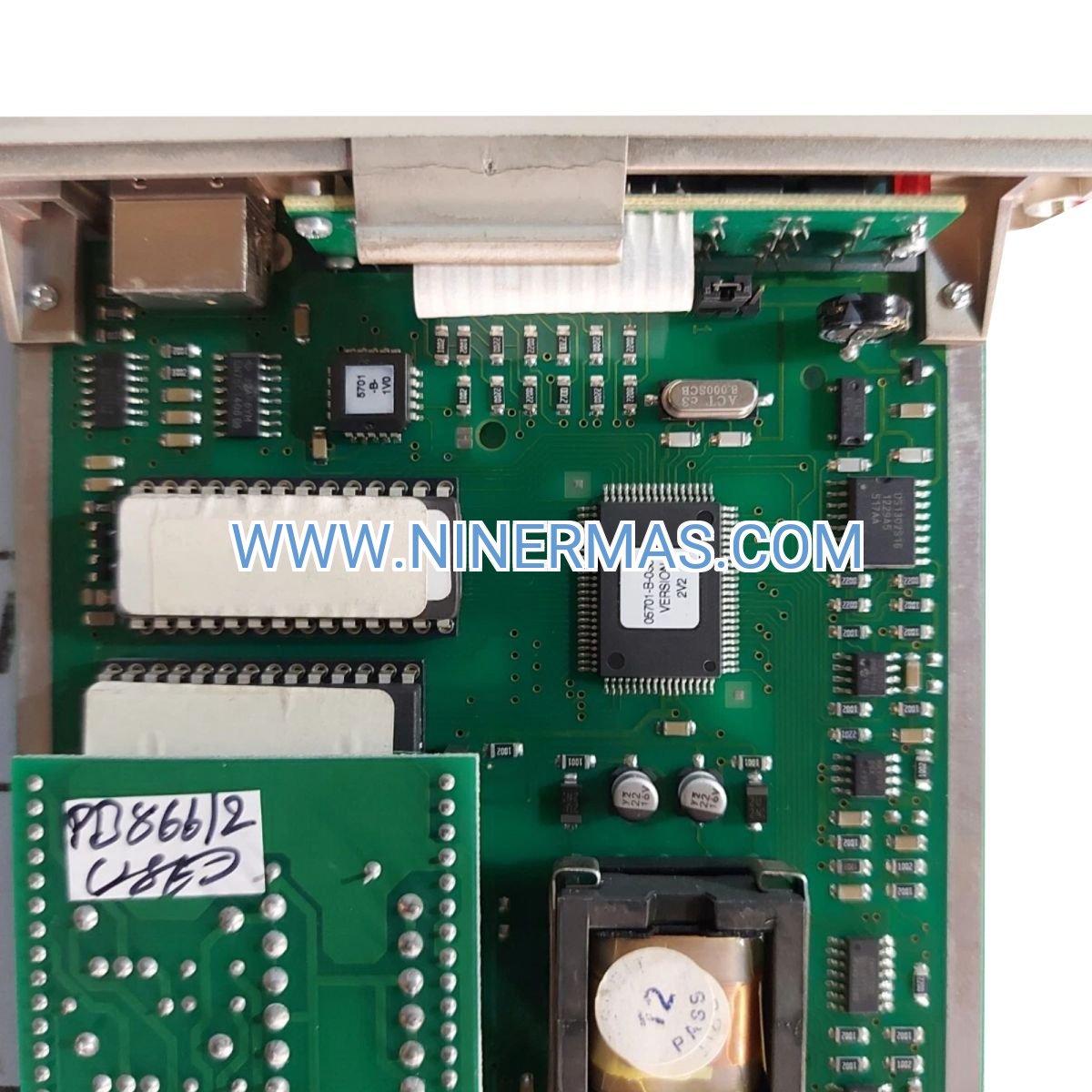

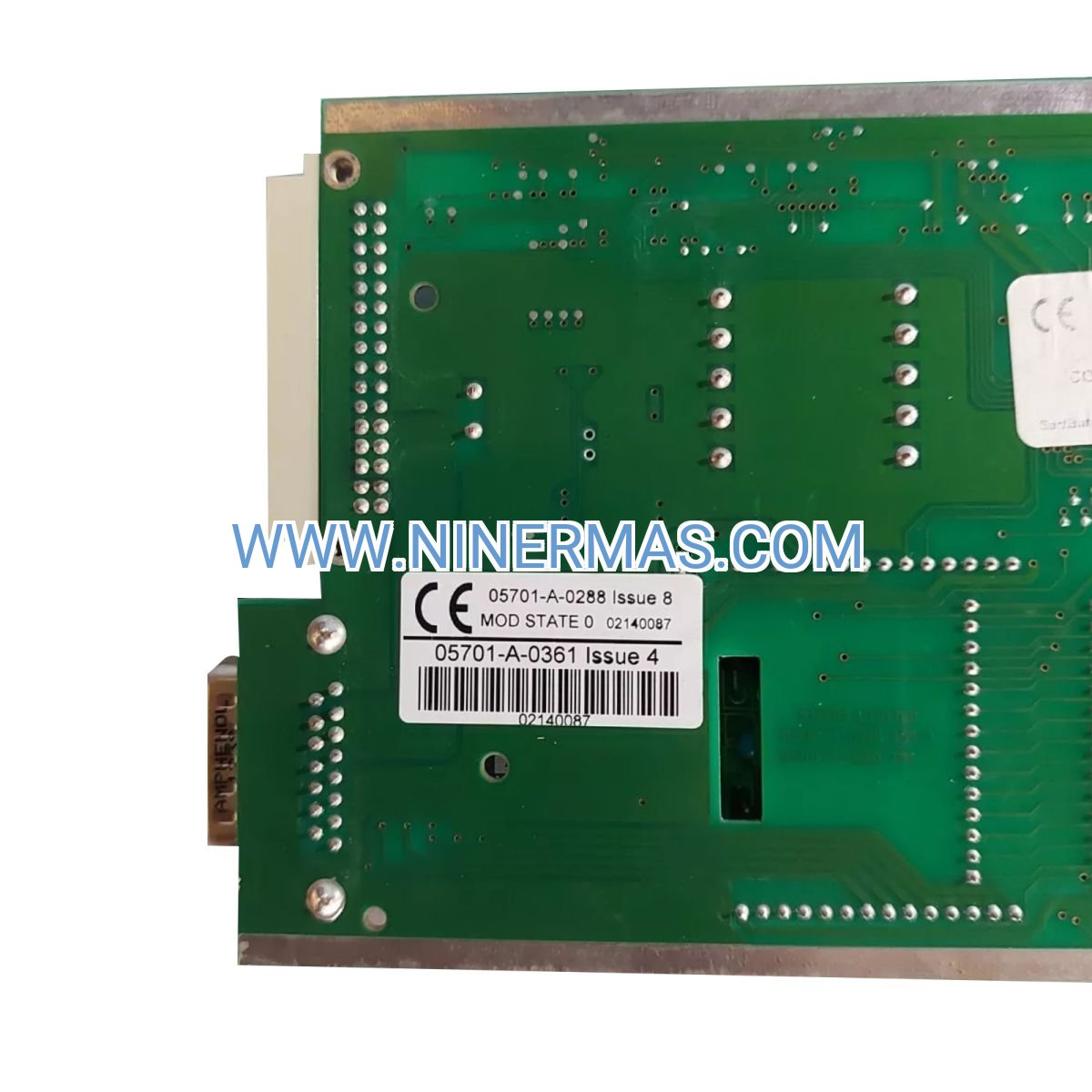

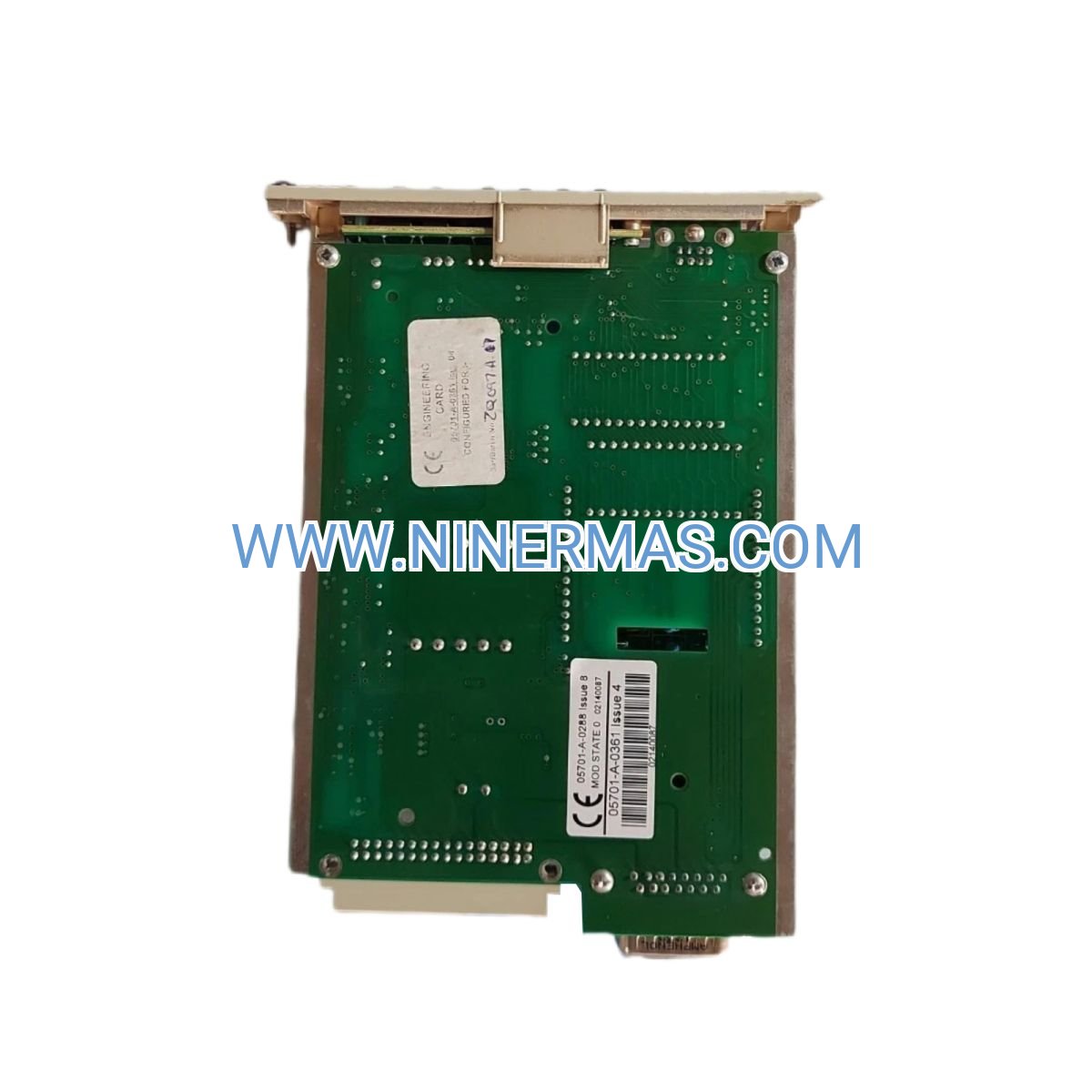

05701-A-0288 System 57 Communication Interface Module (Industrial-Grade)

The 05701-A-0288 represents Honeywell's advanced communication interface solution engineered specifically for System 57 gas detection architectures. This industrial-grade module facilitates critical signal conversion and data exchange between sensor networks and supervisory control systems, ensuring uninterrupted safety monitoring across hazardous industrial operations. Designed for process industries requiring certified safety instrumentation, this interface card delivers field-proven reliability in environments where detection accuracy directly impacts personnel protection and regulatory compliance.

Industrial facilities operating continuous gas monitoring systems face persistent challenges: signal degradation over distance, electromagnetic interference in heavy electrical environments, and integration complexity with legacy control infrastructure. The 05701-A-0288 addresses these operational pain points through robust signal conditioning, galvanic isolation, and universal protocol compatibility. Plant engineers, safety managers, and instrumentation technicians rely on this module to maintain detection system integrity across refineries, chemical plants, and confined space monitoring applications.

What distinguishes this interface card is its dual-mode signal processing capability combined with hot-swappable architecture—enabling maintenance without system shutdown. Factory-calibrated to OEM specifications and backed by comprehensive technical documentation, the 05701-A-0288 reduces commissioning time by up to 40% compared to field-configured alternatives while ensuring long-term measurement consistency critical for audit compliance.

Core Capabilities & Business Value

✓ Dual-Protocol Signal Processing: Simultaneous 4-20mA analog and digital relay outputs enable parallel integration with DCS, PLC, and standalone alarm panels—eliminating the need for external signal converters and reducing cabinet space requirements by 30%.

✓ Hazardous Area Certification: CE, UL, and CSA approvals for Class I Division 2 environments ensure regulatory compliance across global jurisdictions, streamlining project approval processes and reducing certification delays that typically extend commissioning timelines.

✓ Extended Temperature Performance: Operational range from -20°C to +50°C maintains signal accuracy in extreme climates—from Arctic offshore platforms to Middle Eastern desert facilities—without requiring environmental enclosures that add $800-1,200 per installation point.

✓ Diagnostic LED Array: Real-time visual indicators for power status, communication health, and fault conditions accelerate troubleshooting by 60%, reducing mean time to repair (MTTR) and minimizing safety system downtime during critical production periods.

✓ Backward-Compatible Design: Seamless integration with legacy System 57 racks installed since 1998 protects existing infrastructure investments, enabling phased modernization strategies that avoid costly full-system replacements averaging $45,000-75,000 per detection zone.

✓ Modular Hot-Swap Architecture: Field-replaceable design allows maintenance during scheduled outages rather than emergency shutdowns, preventing unplanned production losses that cost process industries $15,000-50,000 per hour in lost throughput.

Industrial Application Scenarios

→ Petrochemical Refining Operations
In fluid catalytic cracking units and alkylation plants, the 05701-A-0288 interfaces between toxic gas sensors (H₂S, SO₂, benzene) and emergency shutdown systems. When detection thresholds are exceeded, the card triggers automated valve closures and ventilation activation within 2-second response windows—meeting API RP 752 safety standards while preventing exposure incidents that average $2.3M in regulatory fines and remediation costs.

→ Wastewater Treatment Facilities
Municipal and industrial treatment plants deploy this interface module to monitor methane, hydrogen sulfide, and chlorine levels across digester buildings and chemical dosing areas. The card's corrosion-resistant construction withstands high-humidity environments (up to 95% RH non-condensing), extending service life to 12+ years versus standard electronics that fail within 5-7 years in similar conditions.

→ Pharmaceutical Manufacturing Clean Rooms
GMP-compliant production environments utilize the 05701-A-0288 for solvent vapor monitoring (isopropanol, acetone, methanol) where detection system validation is mandatory for FDA audits. The module's factory calibration certificates and traceable serial numbers streamline 21 CFR Part 11 documentation requirements, reducing validation effort by 25-30 engineering hours per installation.

→ Underground Mining Ventilation Systems
Coal and metal mining operations integrate this card with methane and carbon monoxide detection networks controlling main ventilation fans. The interface module's vibration-resistant mounting (tested to IEC 60068-2-6 standards) ensures reliable operation despite continuous mechanical stress from nearby heavy equipment, preventing false alarms that disrupt production and erode operator confidence in safety systems.

→ Power Generation Turbine Halls
Combined-cycle and cogeneration facilities employ the 05701-A-0288 for hydrogen cooling system leak detection and natural gas monitoring around fuel delivery infrastructure. Integration with plant SCADA systems enables centralized alarm management across multiple generation units, consolidating safety oversight and reducing staffing requirements by 1-2 full-time monitoring positions.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 05701-A-0288 when your application requires multi-protocol output flexibility for integration with both modern digital control systems and legacy analog infrastructure. For installations exceeding 8 detection points per zone, consider pairing with the 05704-A-0144 control card to optimize rack space utilization. In explosive atmosphere applications (Zone 1/Division 1), specify the ATEX-certified variant during ordering to ensure intrinsic safety compliance.

Advanced Integration Features

IoT Connectivity Readiness: While the 05701-A-0288 operates as a standalone interface module, its standardized output signals integrate seamlessly with Honeywell's Experion PKS and Safety Manager platforms. When combined with optional Ethernet gateway modules, detection data becomes accessible to cloud-based analytics platforms for predictive maintenance algorithms that identify sensor drift patterns 4-6 weeks before calibration failures occur.

Configurable Alarm Logic: Internal DIP switch settings allow field technicians to customize alarm setpoints, time delays, and failsafe behaviors without programming tools—reducing commissioning complexity and enabling rapid reconfiguration when process conditions change or detection strategies evolve.

Custom Engineering Support: For applications requiring non-standard signal ranges, specialized environmental protection (IP66/67 enclosures), or integration with third-party control systems, our technical team provides application engineering assistance including wiring diagrams, loop calculations, and pre-commissioning configuration to accelerate project delivery.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units | 12-15 business days for factory-direct orders requiring calibration certificates or custom configuration

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and calibration drift beyond ±2% of span—significantly exceeding industry-standard 90-day coverage

Technical Support: Lifetime access to application engineers for installation guidance, troubleshooting assistance, and system optimization recommendations via email, phone, and remote diagnostic sessions

Documentation Package: Each shipment includes installation manual, wiring diagrams, calibration certificate (when applicable), dimensional drawings, and compliance declarations—ensuring complete project documentation for regulatory audits

Frequently Asked Questions

How does the 05701-A-0288 interface card integrate with existing PLC-based safety systems?
The module provides industry-standard 4-20mA analog outputs that connect directly to PLC analog input cards (e.g., Allen-Bradley 1756-IF16, Siemens SM 331). For discrete alarm signaling, the onboard Form C relay contacts interface with digital input modules. Most installations require only basic terminal block wiring without specialized programming, reducing integration time to 2-4 hours per card versus protocol converter solutions requiring 8-12 hours of configuration.

What are the power consumption requirements and backup power considerations?
Each 05701-A-0288 card draws 3.5W typical (145mA @ 24VDC) from the System 57 backplane power supply. For critical safety applications, we recommend UPS-backed power supplies rated for minimum 4-hour runtime to maintain detection capability during utility outages. A fully-populated 16-slot chassis consuming 56W requires a 100W UPS for adequate reserve capacity.

Can this interface module withstand high-vibration industrial environments?
Yes—the card is tested to IEC 60068-2-6 vibration standards (10-150 Hz, 1g acceleration) and IEC 60068-2-27 shock resistance (15g, 11ms duration). DIN rail mounting with locking clips prevents displacement during seismic events or nearby impact loads. For extreme vibration applications (reciprocating compressor rooms, stamping presses), additional chassis-level vibration isolation may be specified.

What diagnostic capabilities help reduce troubleshooting time during system faults?
Front-panel LEDs provide instant status indication: green for normal operation, amber for communication warnings, red for critical faults. The card also generates diagnostic codes accessible through System 57 controller displays, identifying specific failure modes (sensor open circuit, output overload, power supply deviation) that guide technicians directly to root causes without multimeter testing.

Is the 05701-A-0288 compatible with wireless gas detection sensor networks?
While the interface card itself processes wired sensor signals, it integrates with Honeywell's Sensepoint wireless gateway modules that convert RF sensor data to standard 4-20mA outputs. This hybrid architecture enables cost-effective monitoring of remote or difficult-to-wire locations (outdoor tank farms, temporary construction sites) while maintaining centralized System 57 alarm management.

How frequently does the interface card require calibration or preventive maintenance?
The 05701-A-0288 is a passive signal conditioning device that does not require periodic calibration—unlike gas sensors that need quarterly or semi-annual verification. Recommended maintenance consists of annual visual inspection for terminal tightness and LED functionality testing, typically completed in 10-15 minutes per card during scheduled plant outages.

Take the Next Step

Ensure your gas detection infrastructure delivers the reliability and integration flexibility your operations demand. Contact our industrial automation specialists today for application-specific recommendations, compatibility verification with your existing control systems, and volume pricing for multi-site deployments. Our team provides complimentary pre-sales engineering support including loop diagrams, bill of materials development, and project timeline planning to accelerate your safety system modernization.
