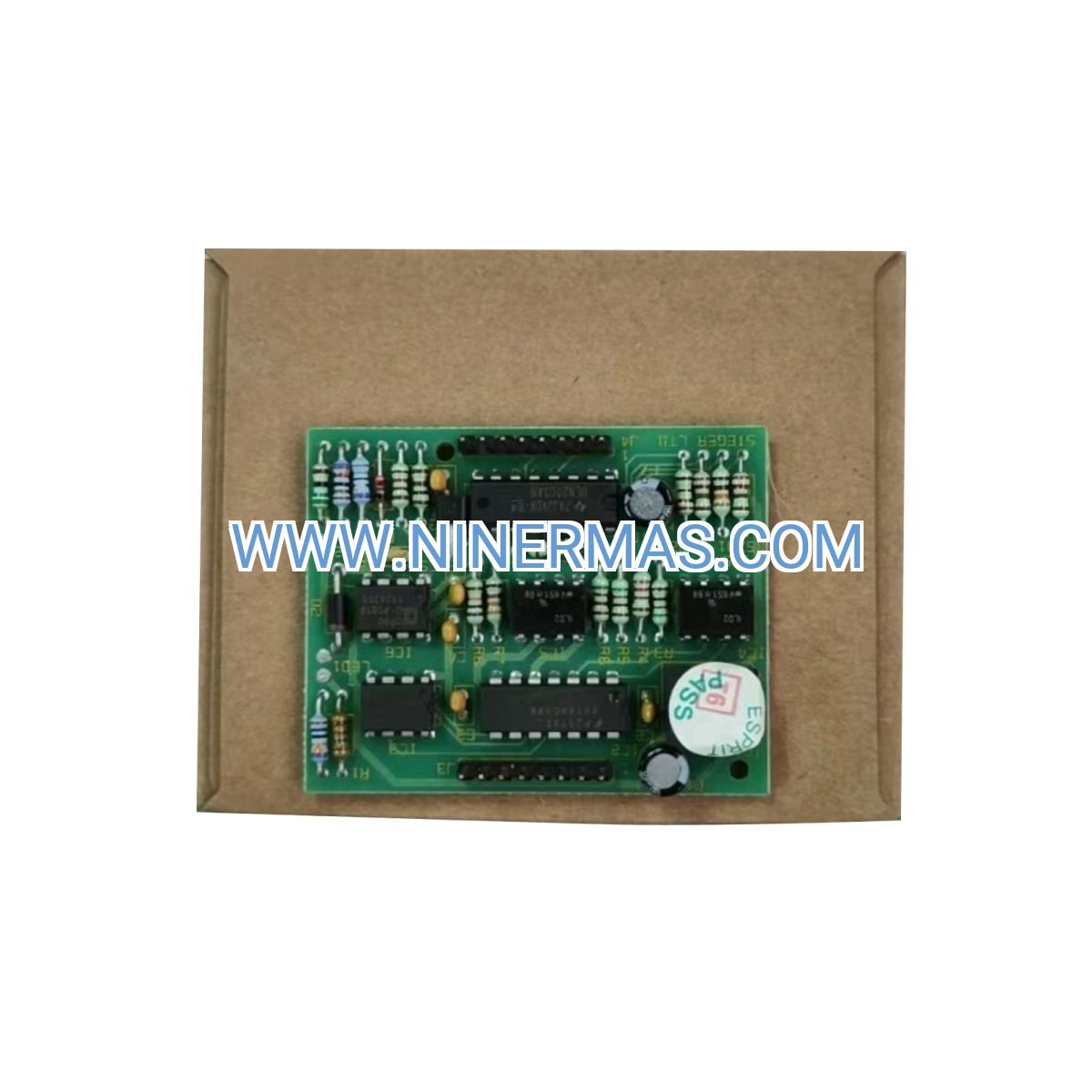

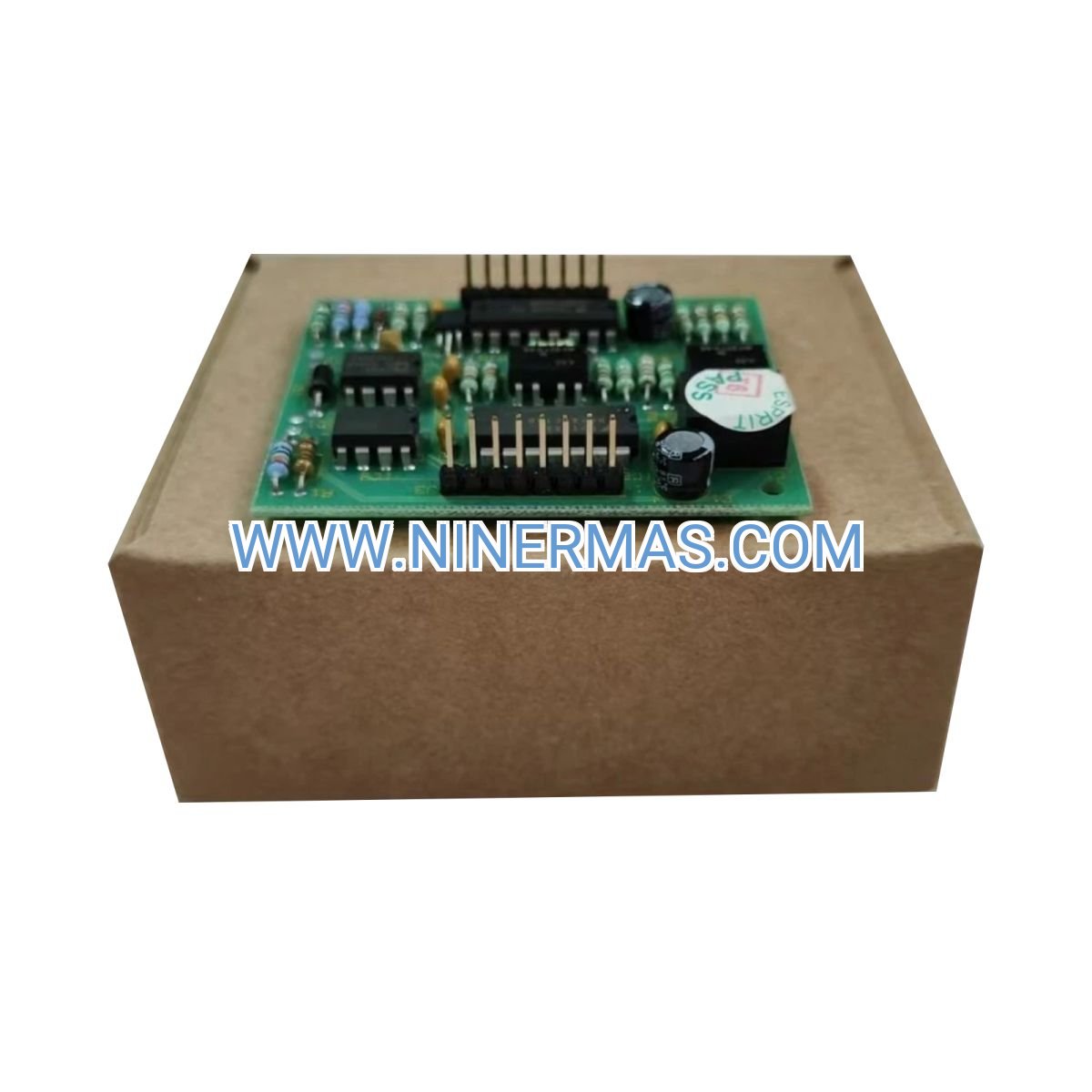

05701-A-0285 Industrial Current Output Module (High-Precision Analogue Control)

Engineered for mission-critical process automation, the Honeywell 05701-A-0285 represents a proven solution in industrial current loop technology. This analogue output module transforms digital control signals into precise 4-20mA or 0-20mA current outputs, enabling seamless communication between your distributed control system and field instrumentation. Designed for continuous operation in harsh industrial environments, it serves as the critical interface between control logic and physical processes across manufacturing, energy, and infrastructure sectors.

Process engineers and automation specialists rely on the 05701-A-0285 when system uptime and signal integrity are non-negotiable. Whether you're retrofitting legacy equipment or designing new control architectures, this module delivers the reliability and performance standards expected in pharmaceutical production, petrochemical processing, and utility operations. Its field-proven design minimizes commissioning time while maximizing long-term operational stability.

Key differentiators include robust short-circuit protection that prevents cascade failures, 40V compliance voltage supporting extended cable runs up to 1 kilometer, and ±0.1% accuracy ensuring tight process control. Factory calibration eliminates field setup complexity, while channel isolation protects against electrical interference—critical advantages that reduce total cost of ownership and accelerate ROI in demanding industrial applications.

Core Features & Benefits

✓ Dual-Range Current Output: Field-selectable 0-20mA or 4-20mA operation provides flexibility to match existing instrumentation standards without inventory duplication—reducing spare parts costs by 40% in multi-vendor environments.

✓ Extended Compliance Voltage (40V): Supports loop resistances exceeding 2000Ω, enabling installations with long cable runs, multiple junction boxes, or series-connected devices—eliminating the need for costly signal boosters in distributed facilities.

✓ Integrated Fault Protection: Short-circuit and open-circuit detection with automatic recovery prevents equipment damage and reduces unplanned downtime by up to 60%, while diagnostic feedback accelerates troubleshooting during maintenance windows.

→ 12-Bit DAC Resolution: Delivers 4096 discrete output levels for smooth, stepless control of proportional valves, VFDs, and pneumatic positioners—critical for maintaining product quality in batch processing and continuous manufacturing.

→ Industrial Temperature Range (-40°C to +70°C): Operates reliably in extreme climates from Arctic installations to desert refineries without derating or auxiliary cooling, ensuring consistent performance across global deployments.

→ Channel-to-Channel Isolation: Electrical isolation prevents ground loops and cross-talk between control loops, maintaining signal integrity in electrically noisy environments with VFDs, welding equipment, or high-power switching.

Application Scenarios

Chemical Processing & Refining: Control reactor temperature profiles and distillation column pressure through precise valve positioning. The module's accuracy and repeatability ensure product consistency while meeting safety instrumented system (SIS) requirements in hazardous area classifications.

Water & Wastewater Treatment: Regulate chemical dosing pumps, pH control systems, and clarifier mechanisms with reliable 4-20mA signals. Extended compliance voltage accommodates remote pump stations and distributed treatment facilities without signal degradation.

Power Generation & Utilities: Interface with turbine control systems, boiler feedwater regulation, and emissions control equipment. The module's fault detection capabilities support compliance with NERC reliability standards and reduce forced outage rates.

Food & Beverage Manufacturing: Drive mixing speed controllers, pasteurization temperature loops, and CIP (clean-in-place) system valves with hygienic design compatibility. Factory calibration ensures batch-to-batch consistency critical for quality assurance protocols.

Pharmaceutical Production: Maintain precise environmental controls in cleanrooms, bioreactor temperature regulation, and sterile filtration systems. The module's validation documentation package supports FDA 21 CFR Part 11 compliance and GMP requirements.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 05701-A-0285 when your application requires proven reliability in Honeywell System 57 or TDC 3000 architectures, when cable runs exceed 500 meters, or when operating environments present temperature extremes beyond commercial-grade specifications. For applications requiring voltage outputs (0-10V, 1-5V), consider alternative modules in the Honeywell analogue I/O family. Consult factory documentation for hazardous area certifications if deploying in Class I Division 2 or ATEX Zone 2 locations.

Extended Functions

Remote Diagnostics Integration: Status registers provide real-time fault reporting to SCADA systems via Modbus, OPC, or proprietary protocols. Diagnostic data includes output current verification, power supply monitoring, and channel health indicators—enabling predictive maintenance strategies that reduce emergency callouts by 35%.

Redundancy Configuration: Deploy in hot-standby or load-sharing configurations with automatic failover logic for critical control loops. Bumpless transfer capability ensures process continuity during module replacement or system upgrades without production interruption.

Customization Options: Factory configuration services available for non-standard output ranges, special calibration certificates (NIST-traceable), and extended temperature testing. Custom firmware modifications support unique protocol requirements or legacy system integration challenges.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days from our certified distribution center. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited processing available for emergency replacements with 24-hour dispatch service.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for up to 5 years, including advance replacement and on-site swap services for critical applications.

Technical Support: Access to certified Honeywell application engineers for pre-sales consultation, installation guidance, and troubleshooting assistance. Phone and email support available during business hours, with emergency hotline for 24/7 critical system failures.

Documentation Package: Each module includes installation manual, wiring diagrams, configuration guide, and calibration certificate. Digital resources include CAD drawings (DWG/DXF), 3D STEP models, and sample PLC code for common integration scenarios.

Frequently Asked Questions

What cable specifications are recommended for optimal signal integrity in long-distance installations?
Use shielded twisted-pair instrumentation cable (18-22 AWG) with drain wire grounded at the module end only. For runs exceeding 300 meters, specify cable capacitance below 100pF/meter to maintain response time specifications. Belden 8761 or equivalent meets these requirements for most industrial environments.

How does this module integrate with third-party DCS platforms beyond Honeywell systems?
The 05701-A-0285 accepts standard digital input signals (parallel or serial) and generates industry-standard current outputs compatible with any DCS, PLC, or SCADA system. Interface cards or protocol converters may be required depending on your control platform—consult our integration team for specific compatibility verification.

Can the output range be changed without powering down the entire control rack?
Range selection requires physical jumper repositioning, necessitating module removal and power-down. For applications requiring hot-swappable range changes, consider software-configurable modules in the CC-TAON series. Always follow lockout/tagout procedures during any hardware modifications.

What energy efficiency improvements can be expected compared to older analogue output technologies?
Modern solid-state design reduces power consumption by approximately 40% versus relay-based or vacuum tube predecessors. At 24VDC nominal supply, typical power draw is under 3W per channel, contributing to reduced cooling requirements and lower operating costs in large-scale installations.

Are there specific mounting orientation requirements for thermal management in high-temperature environments?
Vertical mounting with convection cooling is recommended for ambient temperatures above 50°C. Maintain 50mm clearance above and below the module for adequate airflow. Forced-air cooling or heat sinks may be required in enclosed cabinets exceeding 60°C—refer to installation manual thermal derating curves.

How do I verify proper operation during commissioning without disrupting connected field devices?
Use a precision current meter in series with the output loop, or employ a current loop simulator to inject test signals. Most DCS platforms support output forcing modes that override process control while maintaining safe device states. Always coordinate testing with operations personnel to prevent process upsets.

Take the Next Step

Ready to enhance your process control reliability? Contact our industrial automation specialists today for application-specific recommendations, volume pricing, or technical consultation. Our team can assess your existing infrastructure and provide integration roadmaps that minimize downtime during upgrades.

Request a quote now or speak with an engineer about your specific control challenges. We offer same-day quotations, technical drawings, and compatibility verification for seamless project execution.
