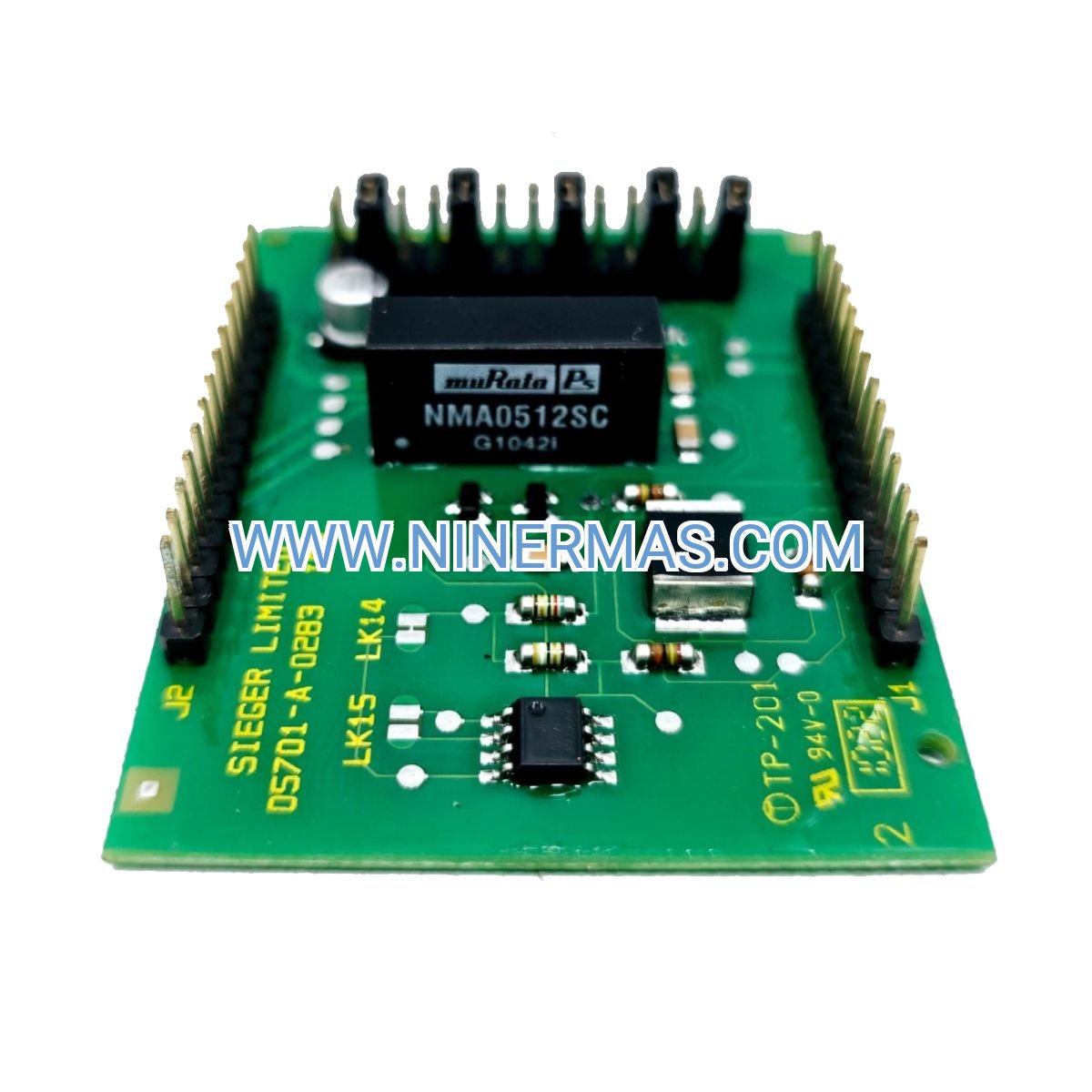

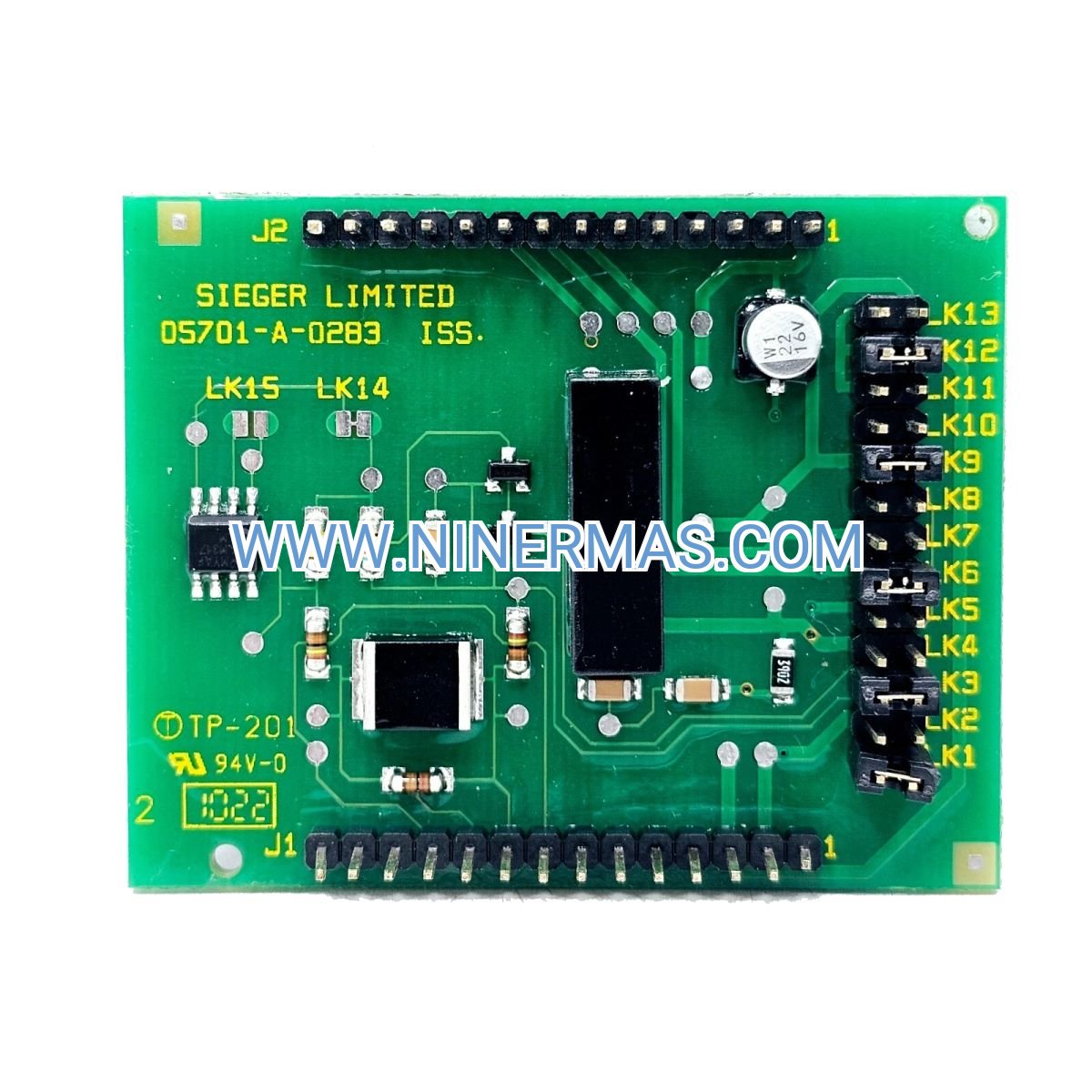

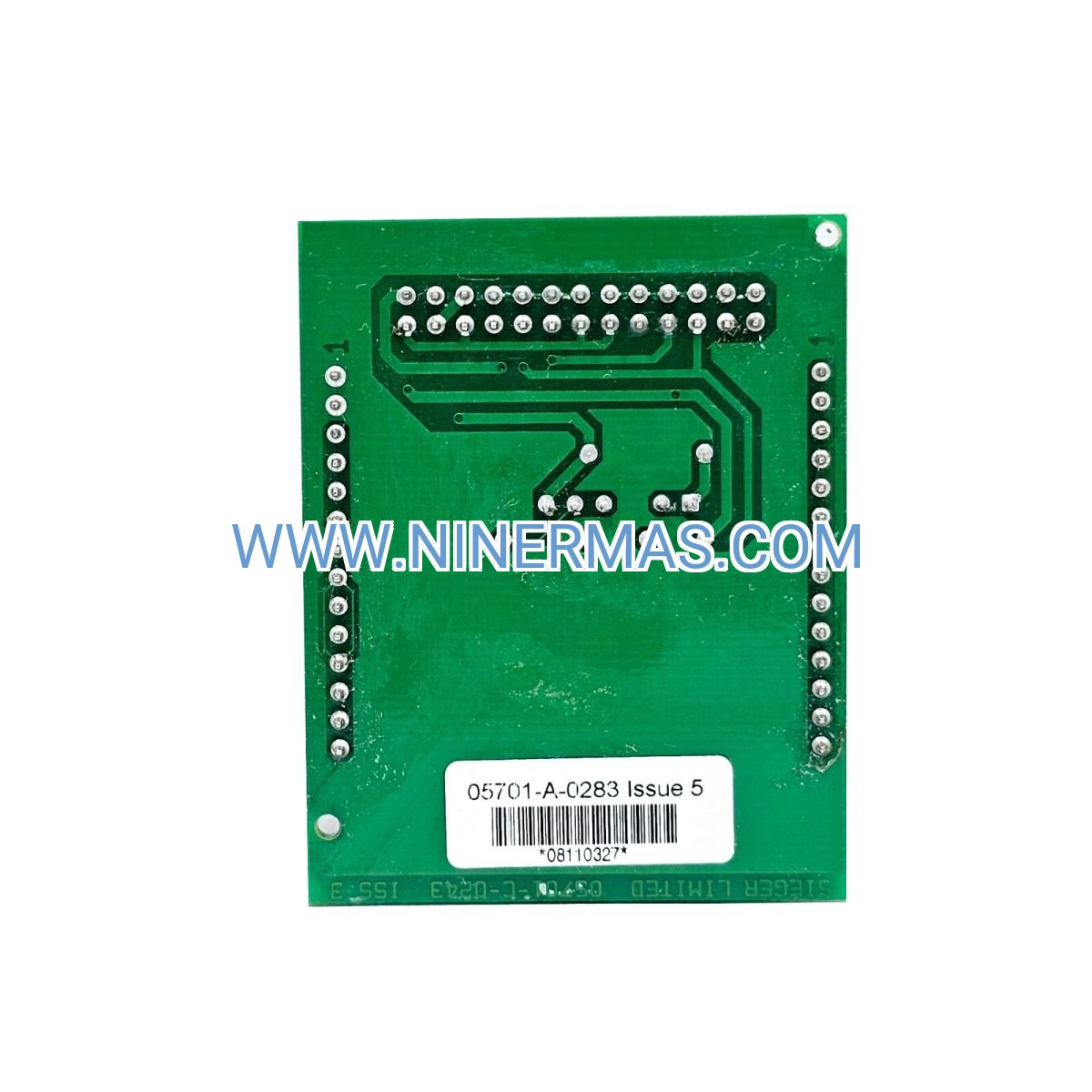

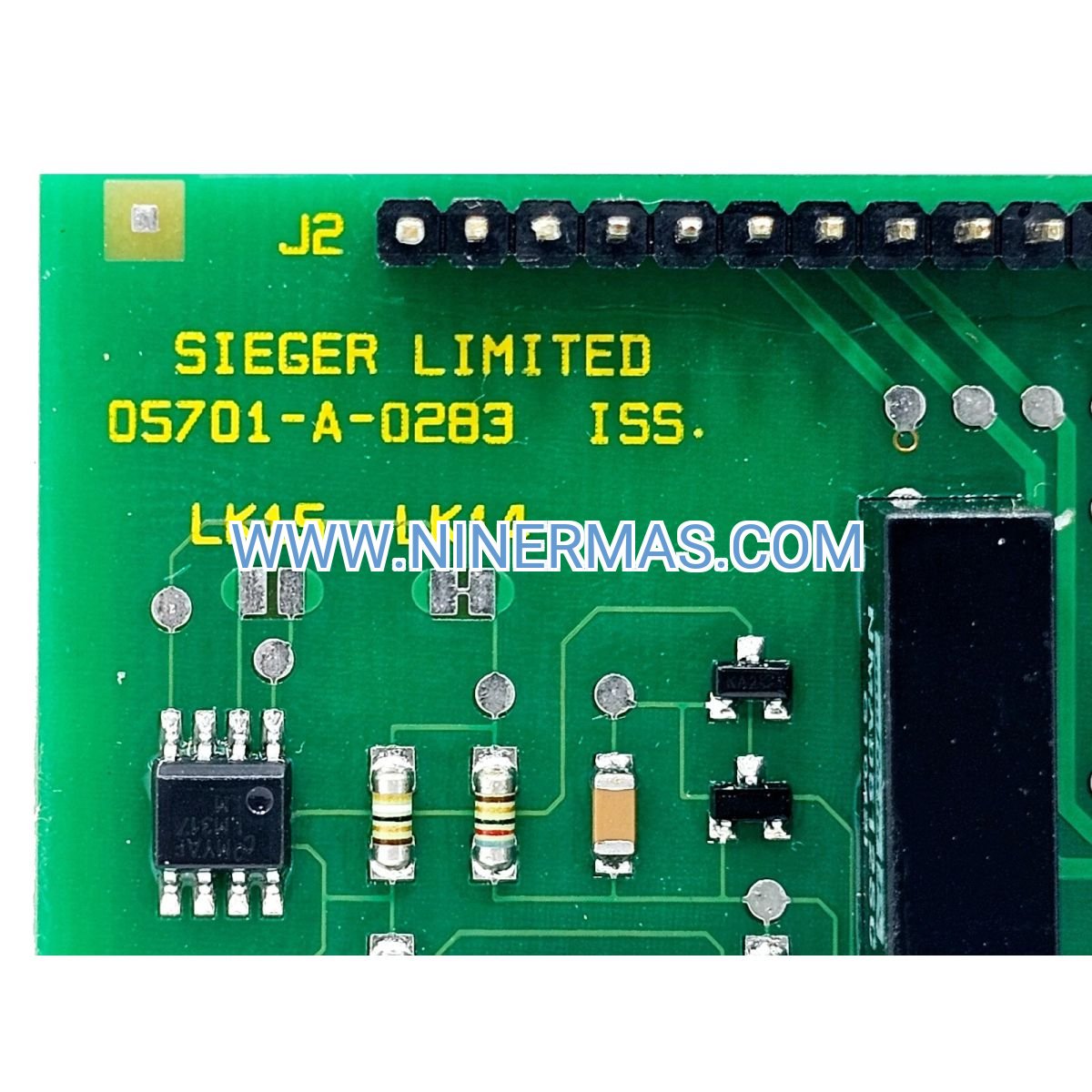

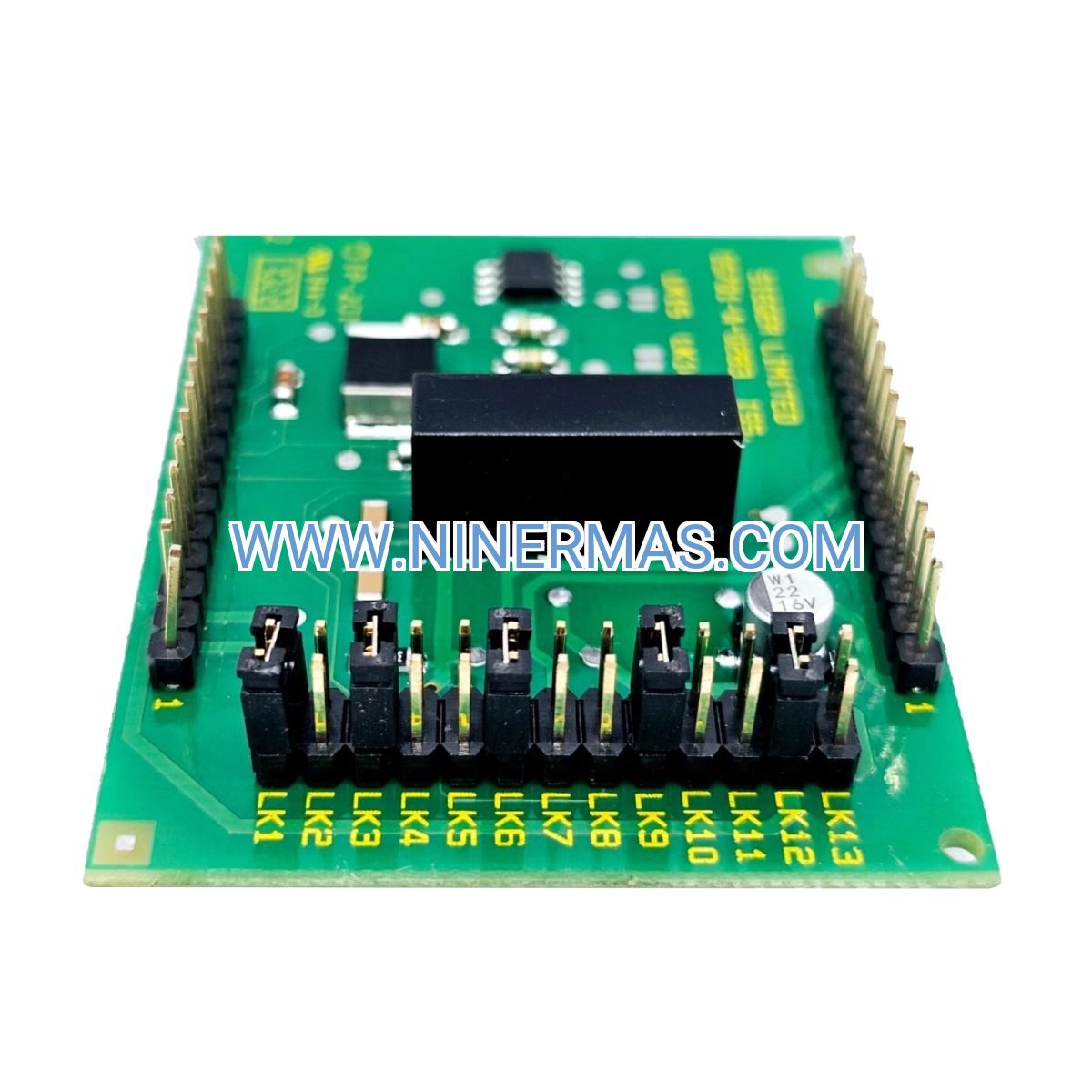

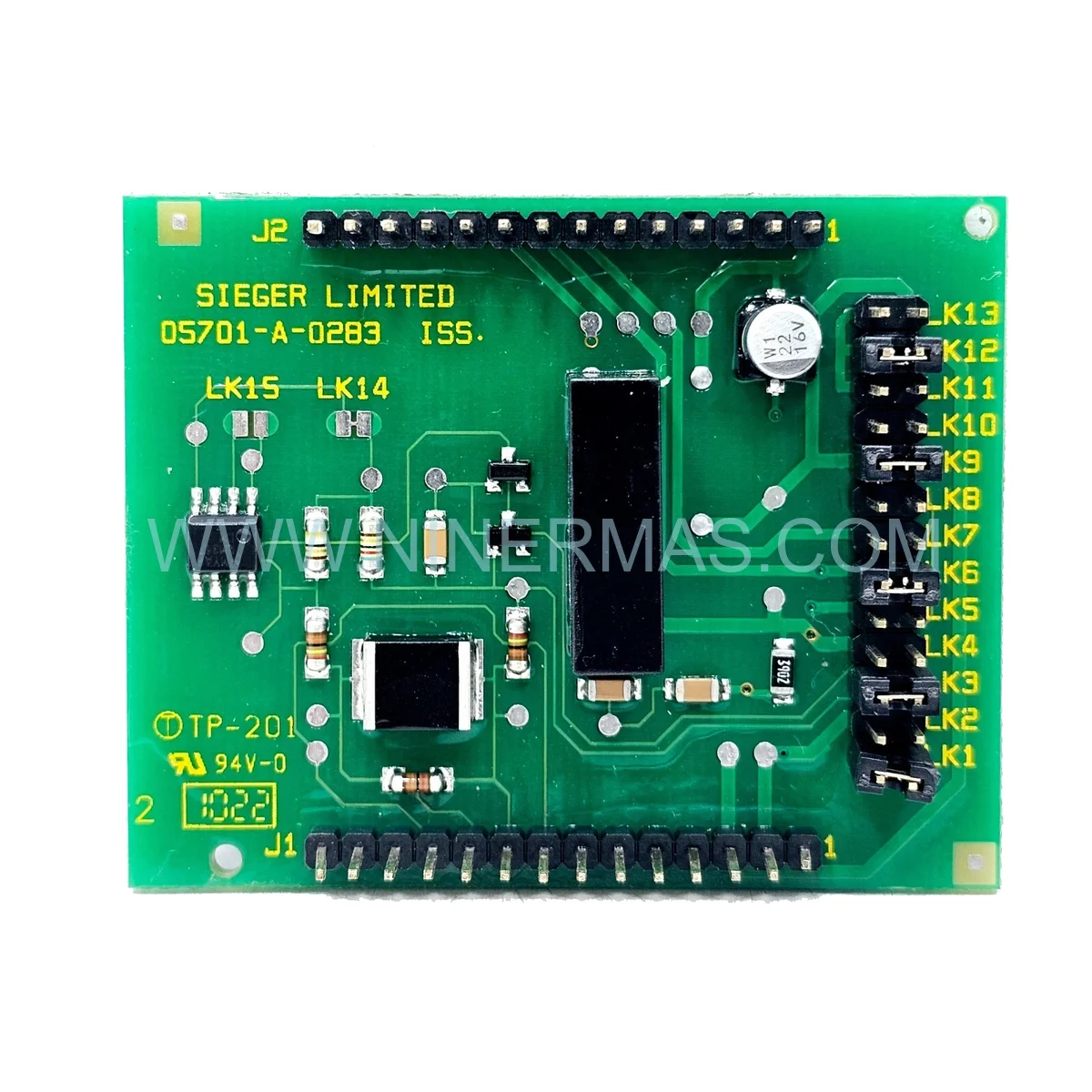

Industrial-Grade 4-20mA Sensor Drive Module (05701-A-0283)

The 05701-A-0283 represents a precision-engineered signal conditioning solution designed specifically for industrial gas detection and process control environments. This sensor drive module transforms raw 4-20mA current signals into calibrated inputs compatible with single-channel control cards, ensuring reliable measurement accuracy across demanding operational conditions. Built for System 57 architectures, it serves as the critical interface between field-mounted transmitters and central control systems, delivering both power supply regulation and signal integrity in a compact, plug-in format.

Process engineers and automation specialists rely on this module to eliminate signal degradation in long cable runs while maintaining galvanic isolation from system ground. Whether you're monitoring toxic gas concentrations in chemical plants, tracking combustible vapors in refineries, or managing oxygen levels in confined spaces, the 05701-A-0283 provides the foundation for accurate, repeatable measurements. Its dual power output configuration supports both loop-powered and separately-powered transmitters, offering exceptional flexibility for diverse sensor topologies.

With proven compatibility across Honeywell's control card ecosystem and robust protection against common field faults, this module reduces installation complexity while enhancing system uptime. The isolated 20V regulated output and 500-ohm loop resistance capacity make it ideal for installations requiring extended wiring distances or electrically noisy environments.

Core Capabilities & Technical Advantages

→ Dual Power Architecture: Delivers isolated 20V ±5% regulated output (25mA max) for loop-powered devices plus filtered 24V DC backplane supply (500mA max) for transmitters requiring separate excitation—eliminating the need for external power distribution modules.

→ Comprehensive Loop Protection: Engineered with short-circuit safeguards and ±50V open-circuit voltage tolerance, protecting both the module and connected sensors from installation errors, wiring faults, and transient overvoltage events common in industrial settings.

→ Flexible Signal Configuration: Supports both current sink and current source sensor topologies with 0-25mA measurement range, accommodating legacy 4-20mA transmitters and modern smart sensors without reconfiguration or adapter hardware.

✓ Galvanic Isolation: Maintains >±50V DC breakdown voltage to system ground, preventing ground loop interference and ensuring measurement integrity in multi-point grounding scenarios typical of large-scale process installations.

✓ Extended Loop Resistance: Handles up to 500 ohms total loop resistance including sensor impedance, enabling cable runs exceeding 2,500 feet with standard 18 AWG instrumentation wire—critical for distributed monitoring applications.

✓ Plug-In Simplicity: Direct insertion into 05701-A-0301 or 05701-A-0351 single-channel control cards eliminates terminal block wiring and reduces installation time by 60% compared to traditional DIN-rail mounted signal conditioners.

Industrial Application Scenarios

Chemical Processing & Petrochemical Facilities: In chlorine production plants and ammonia synthesis units, the module conditions signals from toxic gas detectors monitoring H₂S, Cl₂, and NH₃ concentrations. The isolated power supply prevents electrical noise from variable frequency drives and motor starters from corrupting low-level sensor signals, while the robust loop protection withstands the harsh electromagnetic environment of pump rooms and compressor stations.

Oil & Gas Upstream Operations: Offshore platforms and wellhead facilities deploy this module to interface combustible gas detectors monitoring methane, propane, and hydrogen sulfide levels. The 500-ohm loop capacity supports sensor placement in remote hazardous zones up to half a mile from control rooms, while the dual power outputs accommodate both 2-wire loop-powered detectors and 4-wire smart transmitters with HART communication.

Wastewater Treatment Plants: Municipal and industrial treatment facilities use the 05701-A-0283 to condition signals from dissolved oxygen sensors, chlorine residual analyzers, and methane detectors in digester buildings. The module's ability to handle both sink and source configurations simplifies integration of mixed sensor brands, while galvanic isolation protects against stray currents from cathodic protection systems.

Pharmaceutical Manufacturing: Clean room environments and API production areas require precise monitoring of oxygen depletion and solvent vapor concentrations. This module's compact plug-in design minimizes panel space consumption in crowded control cabinets, while the filtered 24V supply reduces electromagnetic emissions that could interfere with sensitive analytical instruments.

Food & Beverage Processing: Breweries, wineries, and CO₂-rich fermentation environments depend on oxygen and carbon dioxide monitoring to ensure product quality and worker safety. The module's 0-25mA range accommodates both standard 4-20mA transmitters and legacy 1-5V sensors converted to current loop, providing upgrade paths without complete system replacement.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 05701-A-0283 when your application requires conditioning of standard 4-20mA sensor signals for integration with System 57 control cards. Verify that total loop resistance (sensor internal resistance + cable resistance) remains below 500Ω—for example, a 250Ω sensor with 1,000 feet of 18 AWG twisted pair (12.8Ω per 1,000 ft) yields 263Ω total, well within limits. For sensors requiring more than 25mA loop power, consider external power supplies. If your control card is not part of the 05701-A-030x or 05701-A-035x series, verify mechanical and electrical compatibility before ordering.

Advanced Integration Features

Multi-Sensor Coordination: When deployed in multi-channel configurations, the module's isolated architecture prevents crosstalk between adjacent sensor circuits, enabling accurate simultaneous monitoring of multiple gas species without signal interference or common-mode voltage errors.

Diagnostic Capability: The 0-25mA measurement range extends beyond the standard 4-20mA span, allowing detection of sensor faults indicated by <3.6mA (wire break) or >20.5mA (sensor failure) conditions—critical for safety-instrumented systems requiring proof-of-life verification.

Retrofit Compatibility: Designed for seamless integration into existing System 57 installations, the module maintains backward compatibility with legacy control cards while supporting modern HART-enabled smart transmitters through transparent analog signal pass-through.

Environmental Hardening: Conformal coating and industrial-grade components ensure reliable operation in high-humidity, corrosive-atmosphere environments typical of chemical plants and offshore platforms, with MTBF exceeding 150,000 hours under normal operating conditions.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 1-2 business days via express courier, with typical transit times of 3-5 days to major industrial centers across North America, Europe, and Asia-Pacific regions. Expedited same-day shipping available for critical outage situations.

Warranty Coverage: Each module includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for installations requiring 3-year or 5-year coverage periods.

Technical Support: Our applications engineering team provides pre-sale consultation for system design, loop resistance calculations, and compatibility verification. Post-sale support includes troubleshooting assistance, configuration guidance, and replacement coordination with 4-hour response time commitments.

Documentation Package: Every shipment includes installation quick-start guide, wiring diagrams, dimensional drawings, and calibration certificates. Complete technical manuals, loop calculation spreadsheets, and CAD models available for download from our technical library.

Frequently Asked Questions

Q: How do I connect this sensor drive module to my existing control system?
A: The 05701-A-0283 plugs directly into compatible single-channel control cards (05701-A-0301 or 05701-A-0351) without requiring terminal block wiring. Simply align the module's edge connector with the card's receptacle and press firmly until seated. Connect your 4-20mA sensor to the module's screw terminals observing polarity markings for sink or source configuration.

Q: What is the maximum cable distance I can run between the sensor and this module?
A: Maximum distance depends on cable gauge and sensor resistance. With 18 AWG shielded twisted pair (6.4Ω per 1,000 ft round-trip) and a typical 250Ω sensor, you can achieve approximately 2,000 feet. For 16 AWG cable (4.0Ω per 1,000 ft), distances extend to 3,100 feet. Always verify total loop resistance stays below 500Ω using the formula: R_total = R_sensor + (cable length × cable resistance per foot × 2).

Q: Does this module support HART communication protocol for smart transmitters?
A: Yes, the 05701-A-0283 passes HART digital signals transparently while conditioning the underlying 4-20mA analog signal. The module's frequency response and impedance characteristics do not interfere with HART FSK modulation, allowing full access to transmitter diagnostics and configuration through compatible HART communicators or multiplexers.

Q: Can I use this module with 1-5V DC output sensors instead of 4-20mA?
A: No, the 05701-A-0283 is designed exclusively for current loop signals. Voltage output sensors require different signal conditioning with high input impedance. Consider using a voltage-to-current converter (such as a 2-wire transmitter) to interface 1-5V sensors, or select an alternative module specifically designed for voltage input signals.

Q: What power consumption should I budget for this module in my panel design?
A: The module draws power from the control card's backplane. Budget 25mA for the loop power circuit plus the actual sensor current (typically 4-20mA), plus up to 500mA if using the auxiliary 24V output for separately-powered transmitters. Total maximum consumption is approximately 550mA at 24V DC (13.2 watts) under full load conditions.

Q: Is this sensor drive module suitable for SIL-rated safety instrumented systems?
A: The 05701-A-0283 can be incorporated into SIL-rated systems when used as part of a certified safety loop architecture. Consult the System 57 safety manual (document 51-52-25-58) for specific SIL capability ratings, proof test intervals, and redundancy requirements. Individual component SIL certification depends on the complete loop configuration including sensors, logic solvers, and final elements.

Get Your Precision Signal Conditioning Solution Today

Ensure measurement accuracy and system reliability in your critical gas detection and process control applications. Our industrial automation specialists are ready to assist with technical specifications, compatibility verification, and volume pricing for multi-unit installations. Contact us for same-day quotations and expedited delivery options.
