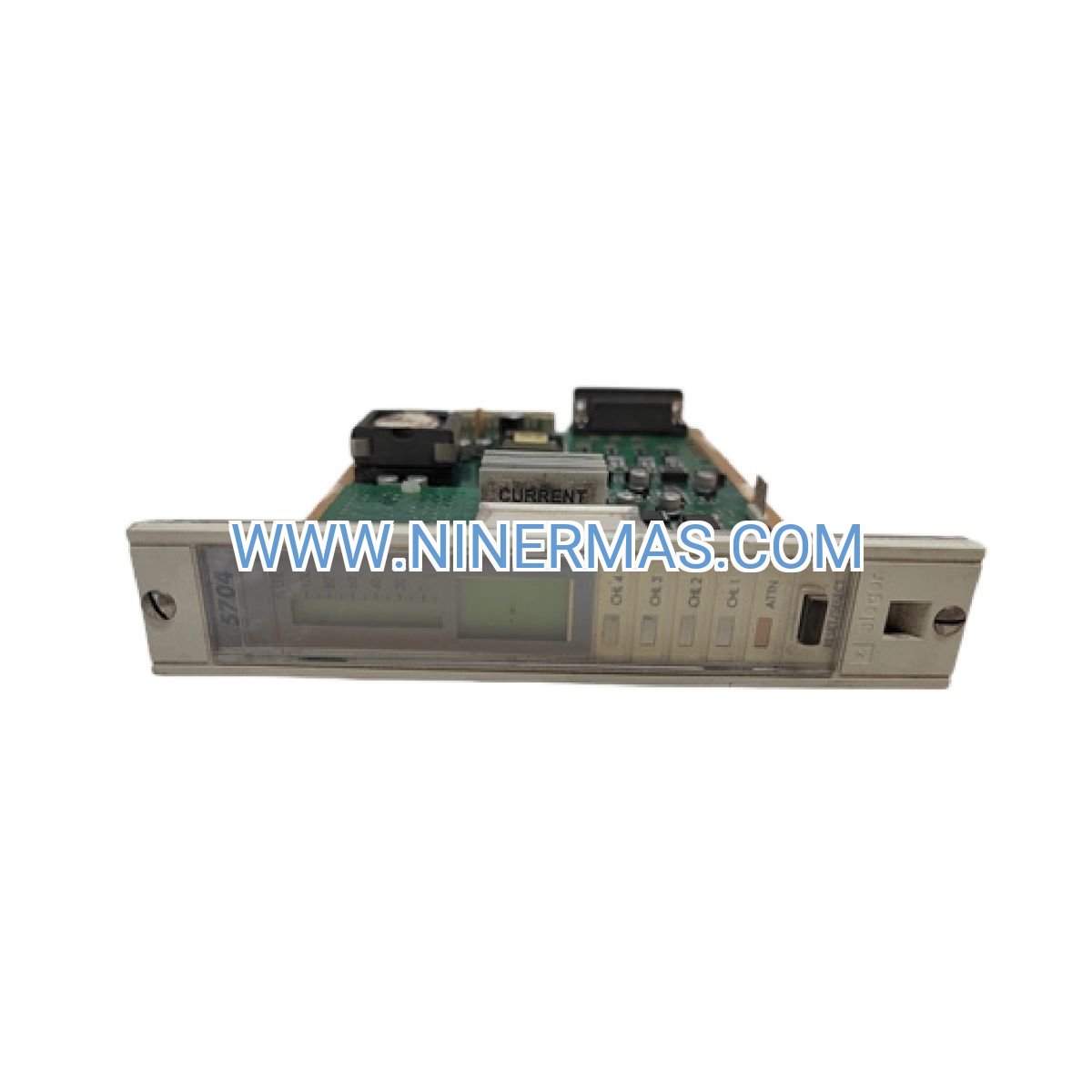

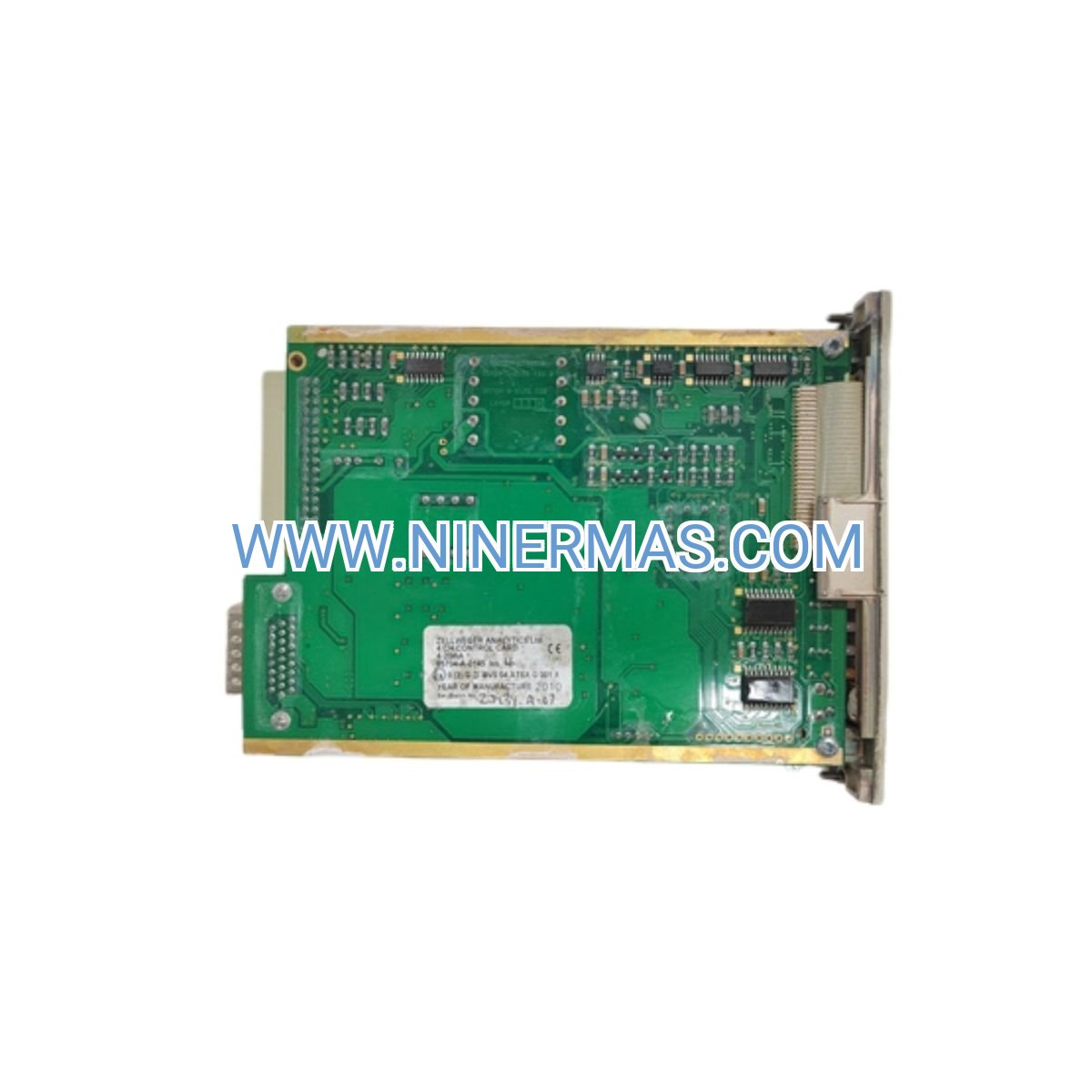

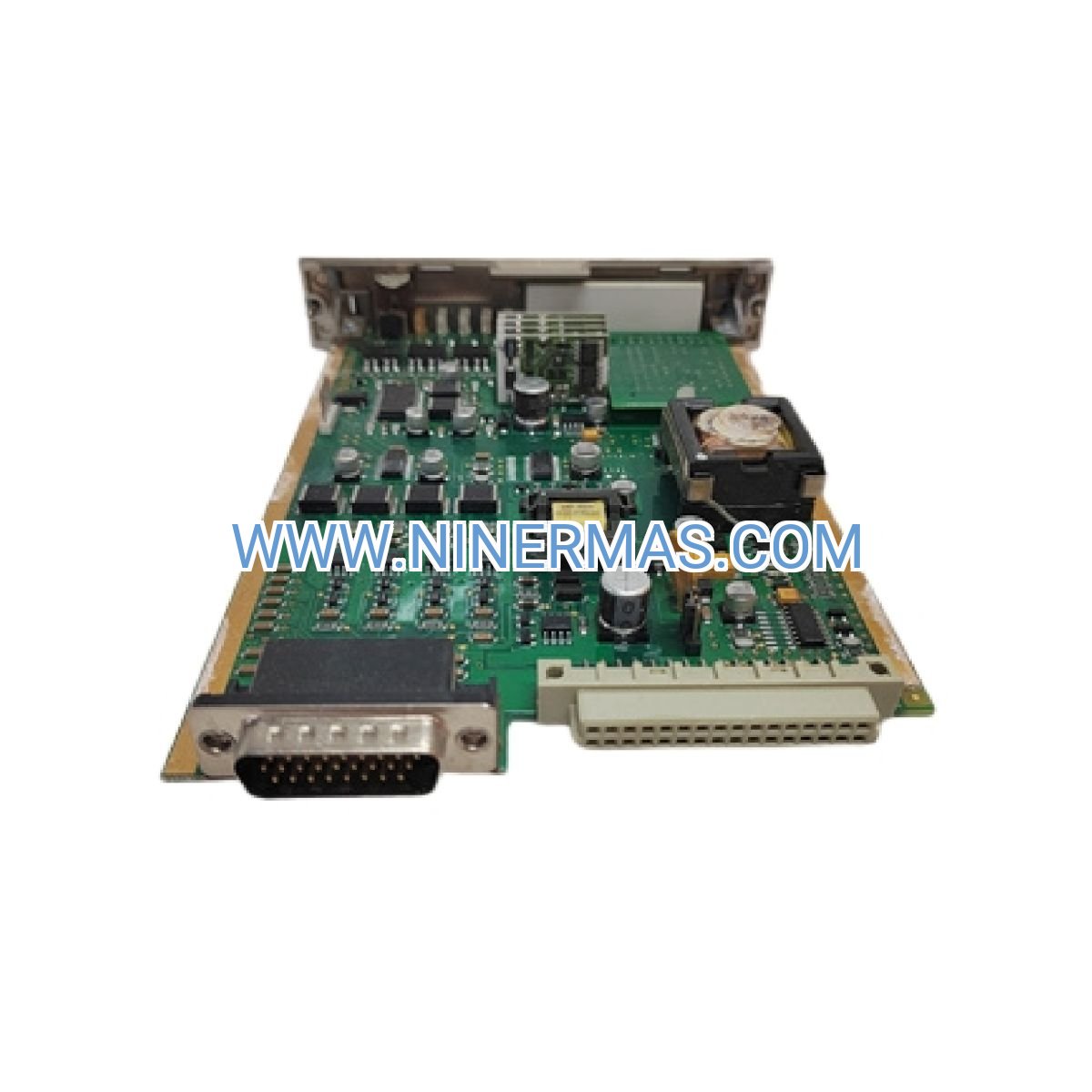

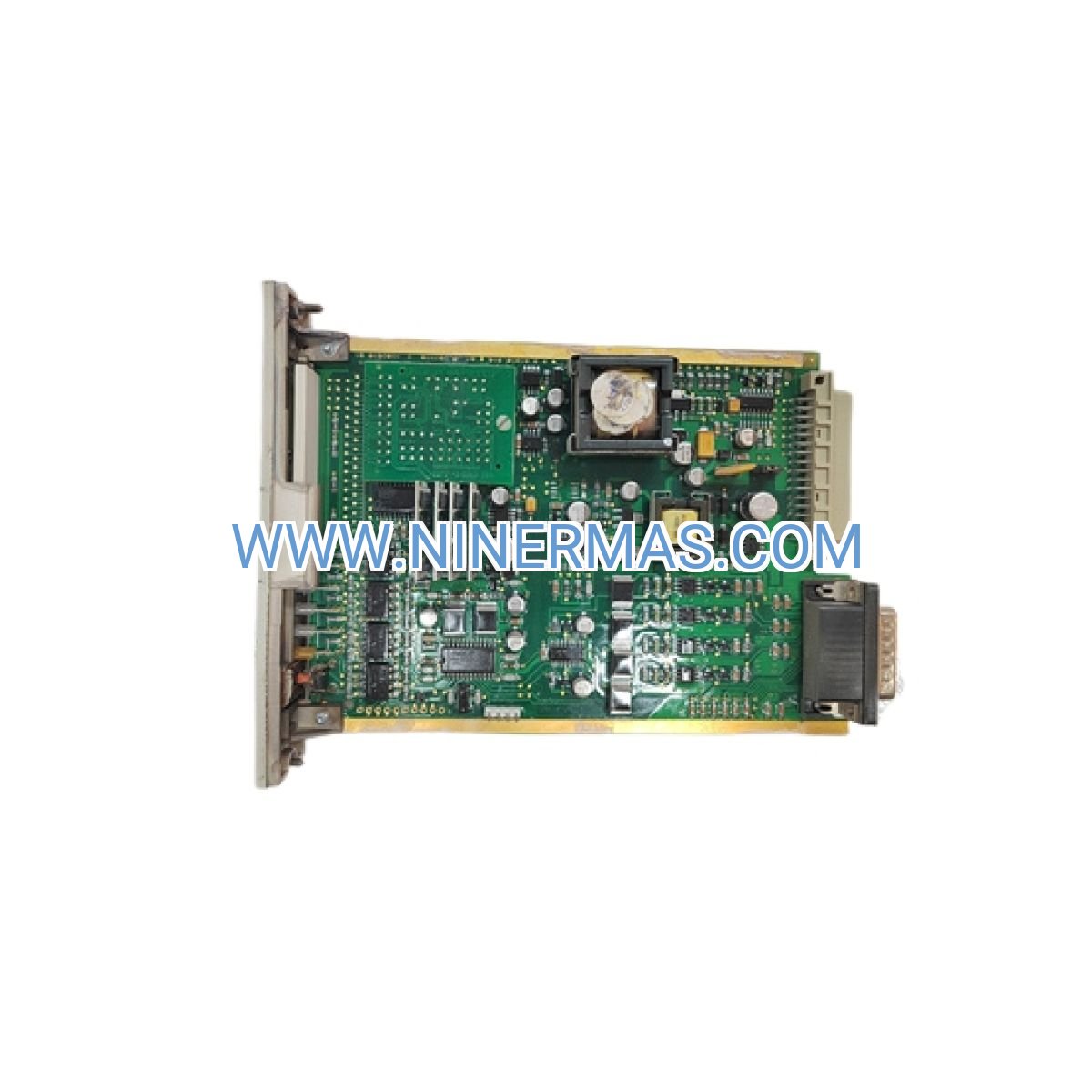

05701-A-0145 Multi-Channel Gas Detection Controller (Industrial-Grade Safety Module)

The 05701-A-0145 represents Honeywell's advanced control architecture for System 57 gas detection networks, engineered to deliver continuous monitoring, intelligent alarm processing, and seamless integration across industrial safety infrastructures. This control module serves as the operational backbone for facilities requiring real-time hazardous gas surveillance with mission-critical reliability.

Designed for petrochemical plants, manufacturing complexes, and confined-space operations, the 05701-A-0145 addresses the fundamental challenge of coordinating multiple sensor inputs while maintaining fail-safe alarm protocols. Industrial safety managers and facility engineers rely on this controller to bridge legacy sensor networks with modern SCADA architectures, ensuring compliance with OSHA, NFPA, and international safety standards.

Key differentiators include field-proven Modbus communication, hot-swappable component design, and environmental hardening for -40°C to +70°C operation. The module's non-volatile configuration memory and auto-diagnostic routines minimize unplanned downtime while maximizing personnel protection across 24/7 operations.

Core Capabilities & Business Value

✓ Multi-Sensor Integration: Processes 4-20mA signals from catalytic, electrochemical, and infrared detectors simultaneously—reduces hardware complexity and installation costs by consolidating control functions into a single platform.

✓ Modbus RTU/ASCII Protocol: Native RS-485 communication enables plug-and-play connectivity with Allen-Bradley, Siemens, and Schneider PLCs—eliminates custom gateway requirements and accelerates system commissioning timelines.

✓ Configurable Alarm Logic: Independent threshold programming for low/high/fault conditions per channel—allows tailored response strategies for different hazard zones without additional hardware investment.

✓ Continuous Self-Diagnostics: Real-time verification of sensor health, wiring integrity, and communication status—prevents false alarms and identifies maintenance needs before critical failures occur.

✓ Hot-Swap Modularity: Field-replaceable components without system shutdown—reduces mean time to repair (MTTR) from hours to minutes, protecting production uptime.

✓ Hazardous Area Certification: FM, CSA, ATEX, and IECEx approvals for Class I Division 1 environments—ensures regulatory compliance across North American, European, and global installations.

Industry Applications & Problem Resolution

→ Refinery Tank Farms: Monitors benzene and hydrogen sulfide concentrations around storage vessels and loading racks. Solves the challenge of coordinating distributed sensors across acre-sized facilities while maintaining centralized alarm visibility. Delivers automated shutdown signals to prevent vapor cloud ignition.

→ Chemical Manufacturing: Tracks chlorine, ammonia, and volatile organic compounds in reactor halls and process areas. Addresses the need for multi-gas detection with differentiated alarm setpoints per production zone. Provides audit trails for environmental compliance reporting.

→ Wastewater Treatment Plants: Detects methane and H2S buildup in digester buildings, wet wells, and pump stations. Resolves confined-space entry safety by triggering ventilation systems before personnel access. Integrates with existing SCADA for remote monitoring.

→ Power Generation Facilities: Safeguards turbine enclosures and fuel storage against natural gas leaks. Eliminates single-point failure risks through redundant sensor inputs and backup power compatibility. Supports predictive maintenance through trend logging.

→ Pharmaceutical Clean Rooms: Monitors solvent vapors and sterilant gases in controlled environments. Meets stringent calibration documentation requirements for FDA validation. Enables zone-specific alarm routing to minimize production disruptions.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 05701-A-0145 when upgrading legacy System 57 installations, expanding existing gas detection networks, or integrating standalone sensors into centralized monitoring systems. Ideal for applications requiring Modbus connectivity, multi-threshold alarm management, and hazardous area certification. Verify sensor compatibility (4-20mA output) and available panel space before ordering.

Advanced Integration Features

SCADA Connectivity: Pre-configured Modbus register mapping accelerates DCS integration, with support for up to 247 addressable devices on a single RS-485 network. Compatible with Wonderware, Ignition, and FactoryTalk visualization platforms.

Remote Configuration: Optional PC-based software enables off-site alarm setpoint adjustments, calibration scheduling, and event log retrieval—reduces site visit frequency for multi-location operations.

Redundancy Options: Supports dual-controller configurations with automatic failover for critical safety applications. Maintains alarm state synchronization across primary and backup units.

Custom Alarm Routing: Programmable relay logic allows differentiated responses (e.g., local horn for low alarm, plant-wide evacuation for high alarm)—tailors emergency protocols to facility-specific procedures.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; expedited shipping available for emergency replacements.

Custom Configuration: 7-10 business days for pre-programmed setpoints and Modbus addressing per customer specifications.

Warranty Coverage: 12-month manufacturer defect protection from shipment date, covering materials, workmanship, and factory calibration accuracy.

Technical Support: Lifetime access to application engineers for installation guidance, troubleshooting assistance, and system optimization recommendations. Phone and email support available during business hours (GMT+8).

Documentation Package: Includes installation manual, Modbus register map, wiring diagrams, and dimensional drawings in PDF format. Calibration certificates available upon request.

Frequently Asked Questions

How does the 05701-A-0145 interface with existing PLC systems for alarm integration?
The controller communicates via Modbus RTU protocol over RS-485, using standard function codes (03, 04, 06, 16) to read sensor values and alarm states. Most modern PLCs include native Modbus master functionality—simply configure the PLC's serial port parameters (baud rate, parity, stop bits) to match the 05701-A-0145 settings, then map Modbus registers to PLC tags for real-time data exchange.

What is the maximum sensor cable distance supported by this control card?
For 4-20mA analog sensors, cable runs up to 1,000 meters (3,280 feet) are supported using 18 AWG shielded twisted-pair wiring. Longer distances may require signal conditioners or loop-powered isolators to maintain accuracy. RS-485 communication supports up to 1,200 meters with proper termination resistors.

Can the module reduce false alarms in high-vibration environments like compressor rooms?
Yes—the 05701-A-0145 includes programmable alarm delay timers (typically 5-30 seconds) that filter transient spikes caused by mechanical vibration or electrical noise. Additionally, the controller's digital filtering algorithms smooth sensor readings before comparing against alarm thresholds, significantly reducing nuisance trips.

Does installation require specialized tools or certified technicians?
Basic installation requires standard electrician tools (screwdrivers, wire strippers, multimeter) and familiarity with industrial control wiring practices. However, hazardous area installations must comply with local electrical codes (NEC Article 500 in North America, IEC 60079 internationally) and may require certified technicians depending on jurisdiction.

How is remote monitoring capability enabled for off-site facility management?
Connect the 05701-A-0145's RS-485 port to a Modbus-to-Ethernet gateway (e.g., Moxa, Red Lion), then configure your SCADA system or cloud platform to poll the gateway's IP address. This enables real-time alarm visibility, historical trending, and email/SMS notifications from any internet-connected device.

What maintenance intervals are recommended to ensure continuous reliability?
The control card itself requires minimal maintenance—annual inspection of terminal connections and firmware verification. Connected gas sensors typically need calibration every 6-12 months depending on gas type and exposure levels. The controller's self-diagnostic features will alert operators to sensor drift or component faults between scheduled maintenance windows.

Take the Next Step in Gas Detection Safety

Upgrade your facility's hazardous gas monitoring infrastructure with proven System 57 technology. Our technical team is ready to assist with compatibility verification, system design consultation, and integration planning tailored to your specific application requirements.

Request a quote today: Contact our sales engineers at sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance. Volume pricing available for multi-unit projects.
