Handheld Interrogator SHC-1 (Industrial-Grade Diagnostic Tool)

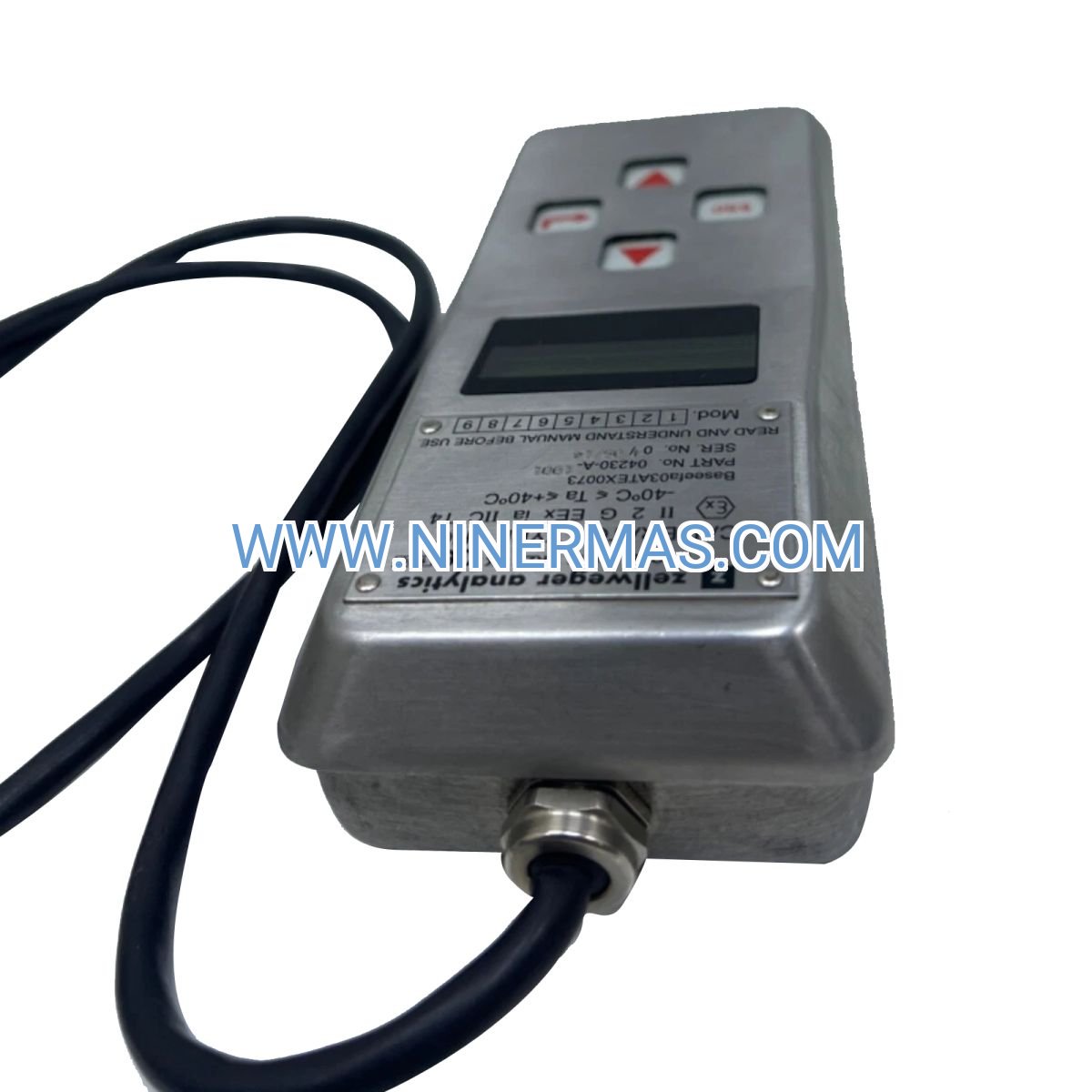

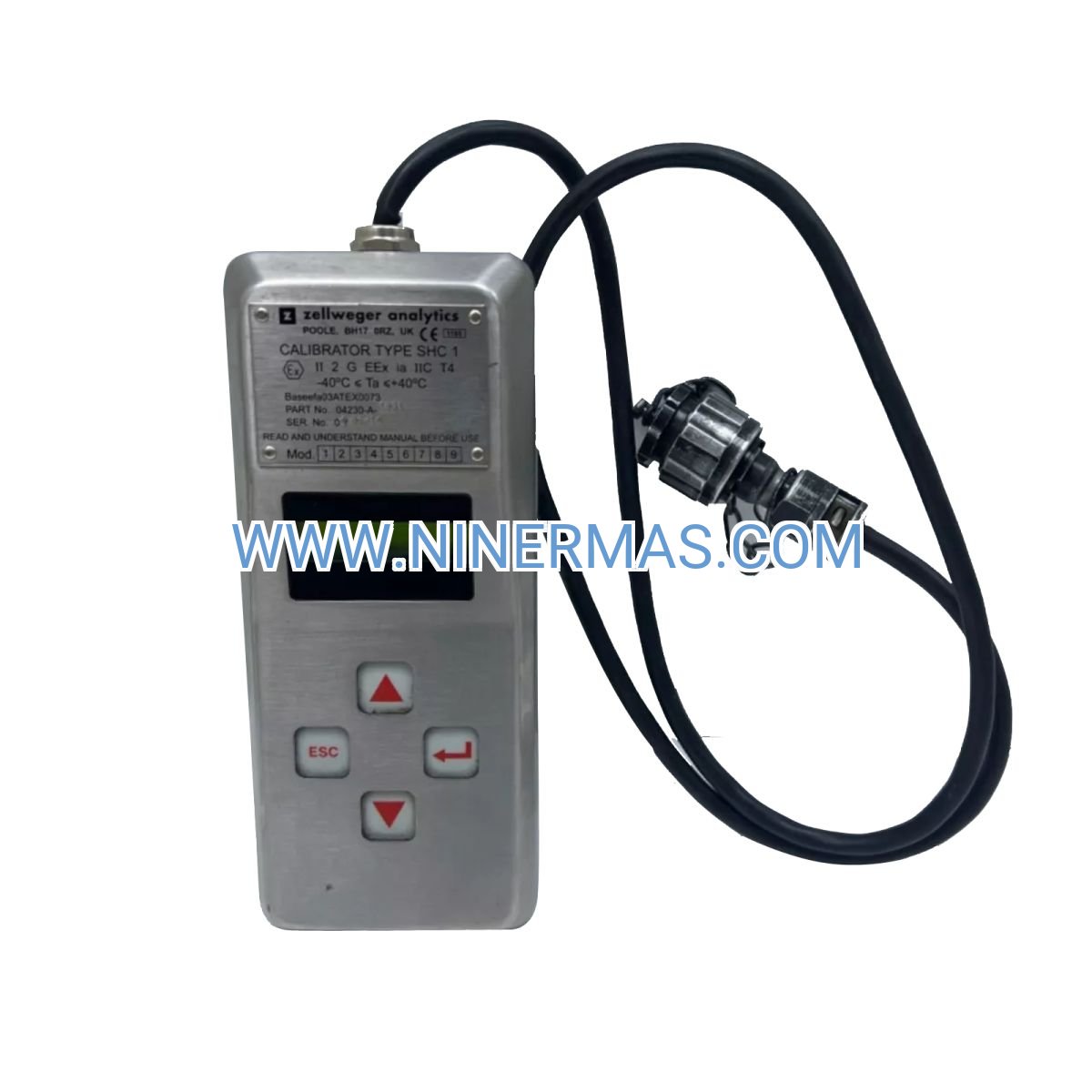

The Honeywell 04230-A-1001 is a battery-powered handheld interrogator engineered for commissioning, alignment, and diagnostics of Searchline Excel, Optima, and Optima Plus open-path gas detection systems. Designed for hazardous industrial environments, this ATEX-certified device delivers menu-driven RS485 communication, enabling technicians to configure detector parameters, perform zero calibration, and troubleshoot faults without requiring external power sources. Built with ANSI 316 stainless steel housing and rated for -25°C to +55°C operation, the SHC-1 ensures reliable performance in oil & gas facilities, chemical plants, and offshore platforms where combustible gas monitoring is mission-critical.

Field engineers rely on this interrogator to reduce commissioning time by up to 40% through its Instrument Assisted Alignment (IAA) feature, which displays real-time signal strength versus target thresholds. The device eliminates guesswork during installation by providing visual confirmation when alignment meets the minimum 70% signal requirement, preventing costly rework and ensuring compliance with safety standards from day one.

With auto power-off functionality, intrinsically safe design (Ex ia IIC T4 Gb), and compatibility across three detector families, the 04230-A-1001 serves as the universal configuration tool for facilities standardizing on Honeywell gas detection infrastructure. Whether you're performing routine maintenance, upgrading detector firmware, or diagnosing intermittent faults, this interrogator streamlines workflows while maintaining full regulatory compliance.

Core Capabilities & Technical Advantages

✓ Multi-Platform Compatibility
Operates seamlessly with Searchline Excel, Optima, and Optima Plus detectors through software mode switching. Eliminates the need for multiple configuration tools, reducing equipment inventory costs by 60% for multi-site operations.

✓ Precision Alignment System
Dual bar graph display (SIG/TGT) provides real-time feedback during optical alignment. Supports both bayonet-style Trident and latch-style telescopes, ensuring accurate beam positioning across path lengths from 5 to 200 meters with ±2% signal accuracy.

✓ Advanced Calibration Control
Executes zero calibration with automatic 4-20mA output inhibition to prevent false alarms during maintenance. Adjustable output from 1-21mA in 0.1mA increments enables precise loop testing and verification of control system integration.

✓ Comprehensive Diagnostics
Displays active faults, warnings, and configuration status in plain text. Retrieves gas type, user settings, and installation parameters for documentation and compliance auditing, reducing troubleshooting time by 50% compared to manual methods.

✓ Intrinsically Safe Design

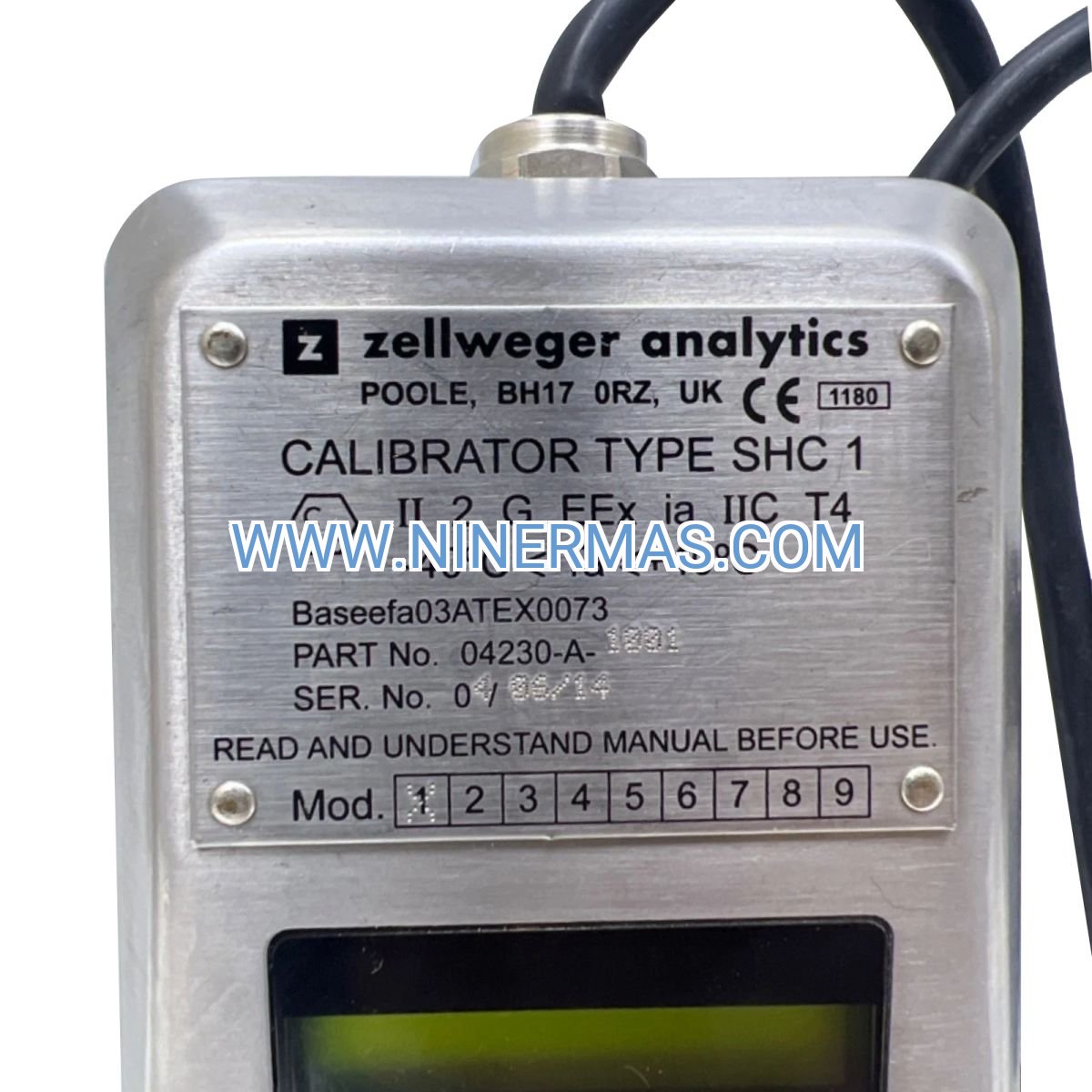

ATEX/IECEx certified for Zone 1 hazardous areas (II 2G Ex ia IIC T4 Gb). Battery-powered operation eliminates hot work permits, enabling maintenance during live operations without production shutdowns.

✓ Rugged Construction

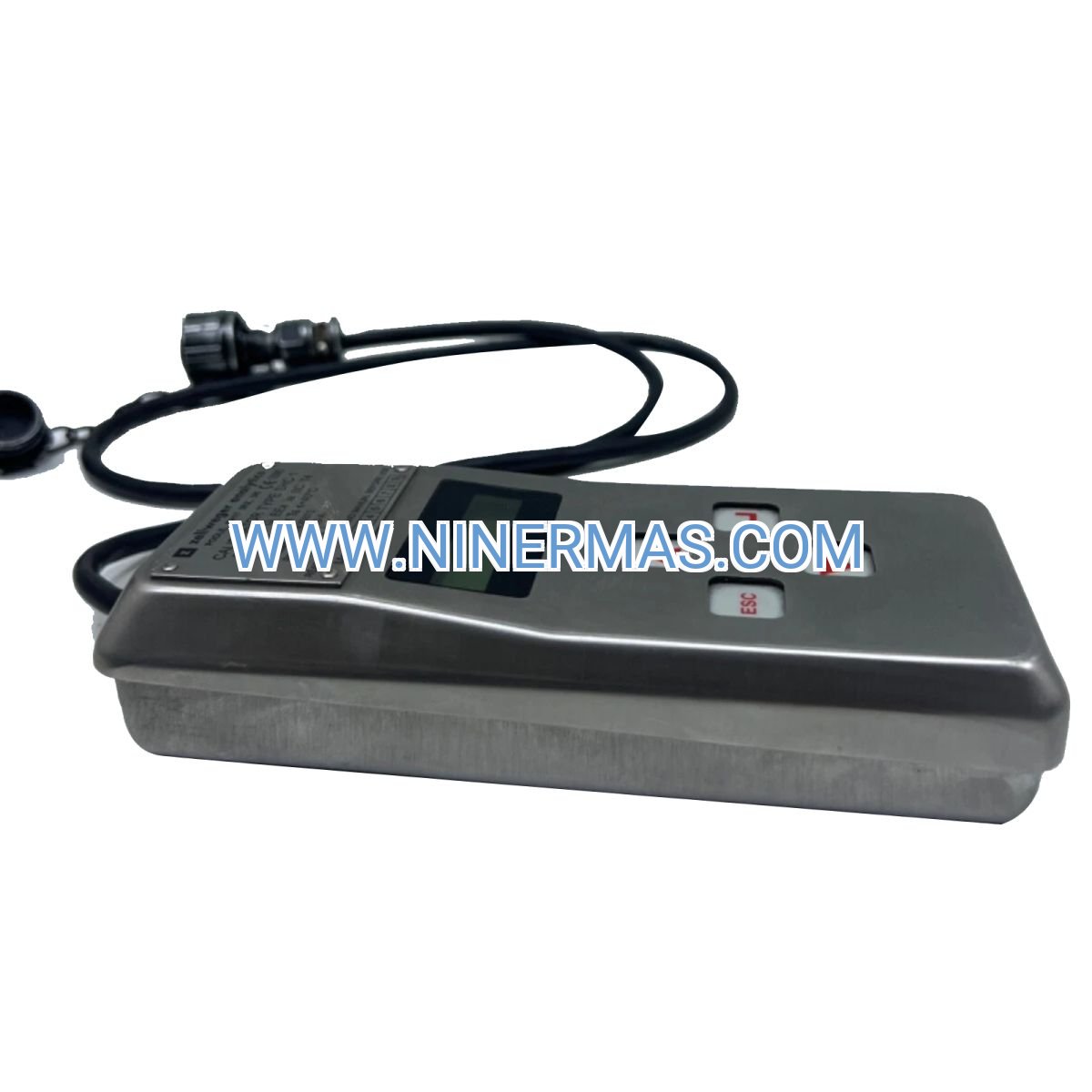

Stainless steel ANSI 316 housing withstands corrosive atmospheres, vibration, and mechanical impact. IP-rated enclosure operates in 0-99% RH non-condensing environments, proven in offshore and tropical installations.

Industrial Application Scenarios

→ Petrochemical Refinery Commissioning
During turnaround projects, maintenance teams use the SHC-1 to commission 50+ Searchline detectors across process units within tight schedules. The IAA feature reduces alignment time from 45 minutes to 15 minutes per detector, accelerating project completion while ensuring each unit meets the 70% signal threshold before handover.

→ Offshore Platform Preventive Maintenance
Quarterly calibration programs on FPSO vessels leverage the interrogator's battery operation to service detectors in classified areas without shutdown permits. Technicians verify zero calibration, check fault logs, and document configuration parameters for ISM Code compliance, all within weather windows.

→ Chemical Plant Retrofit Integration
When upgrading legacy gas detection systems, the SHC-1 enables side-by-side configuration of Excel and Optima Plus detectors during phased migrations. Mode switching capability allows a single technician to service both detector generations, reducing contractor costs and training requirements.

→ Pipeline Compressor Station Troubleshooting
Remote facilities experiencing intermittent detector faults use the interrogator to retrieve diagnostic data, force output tests, and perform soft resets without dispatching specialized vendors. Real-time signal monitoring identifies alignment drift caused by structural settlement or thermal expansion.

→ LNG Terminal Safety Audits
Compliance inspectors verify detector configuration against design specifications by extracting gas type, alarm setpoints, and calibration dates. The interrogator's documentation capabilities support IEC 61511 functional safety assessments and third-party certification reviews.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the 04230-A-1001 when your facility operates in ATEX-regulated regions (EU, Middle East, Asia-Pacific). For North American installations, consider the UL-certified 2104B2351 or CSA/FM-certified 2104B2354 variants. If your detector fleet includes only Searchline Excel models, verify software version 4V0 compatibility with your detector firmware (consult MAN0530 Issue 12 technical handbook). For multi-site operations managing 20+ detectors, pair with the SHC Protection Device Module (04320-A-1025) and 10m calibrator connector (2104B6250) for extended reach applications.

Extended Functionality & Integration

Firmware Upgrade Path: The interrogator accepts EEPROM upgrades (part 2108B1455) to support future detector enhancements and protocol updates, protecting your investment as Honeywell releases new detector features.

Data Logging Capability: While the SHC-1 does not include onboard memory, configuration parameters can be manually recorded for asset management systems. Pair with Honeywell's Searchpoint Optima Plus detectors for integrated data logging at the detector level.

System Integration: The RS485 interface enables connection to building management systems (BMS) or distributed control systems (DCS) for centralized monitoring, though the interrogator is primarily designed for field commissioning rather than permanent installation.

Customization Options: Standard configuration supports all factory-default detector settings. For specialized gas types or custom alarm thresholds, consult Honeywell Analytics technical support to verify parameter compatibility before field deployment.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units shipped from our Shanghai distribution center to mainland China addresses. International shipments to Southeast Asia, Middle East, and Europe typically require 7-10 business days via DHL/FedEx express.

Custom Configuration: Pre-programmed interrogators with specific software versions or bundled accessory kits ship within 10-15 business days. Contact our technical sales team for project-specific requirements exceeding 10 units.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical infrastructure applications requiring 24/7 uptime.

Technical Support: Lifetime access to Honeywell-certified application engineers for configuration assistance, troubleshooting guidance, and firmware upgrade procedures. Remote support available via email, phone, and video consultation.

Documentation Package: Each unit ships with quick-start guide, ATEX/IECEx certificates, and digital access to MAN0530 Searchline Excel Technical Handbook. Calibration certificates and material traceability reports available upon request for nuclear/pharmaceutical applications.

Frequently Asked Questions

Q: How do I connect the interrogator to Searchline detectors in hazardous areas?

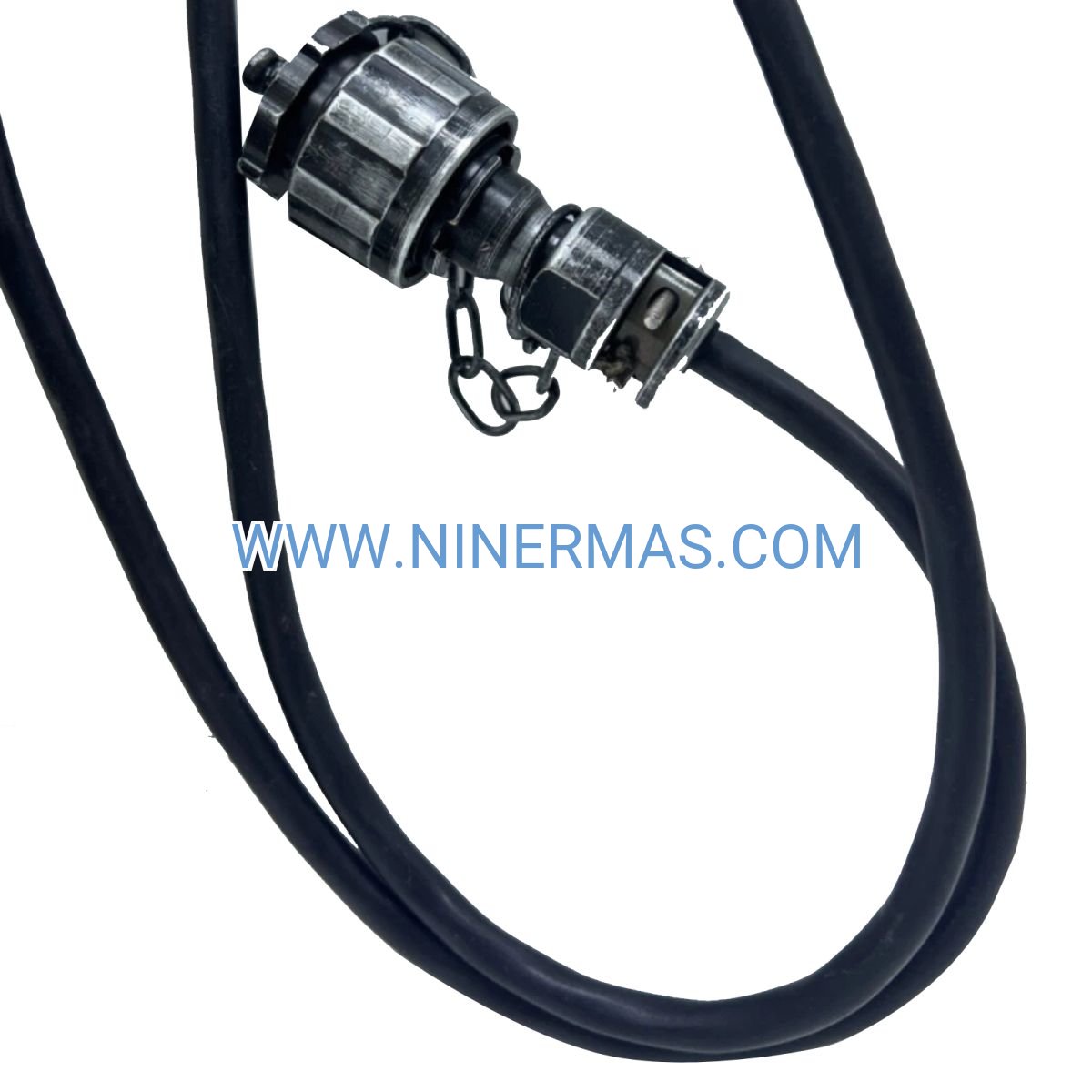

A: The SHC-1 connects via DX/DVC100(M) series termination units or junction boxes equipped with the SHC Protection Device Module (04320-A-1025). This intrinsically safe barrier ensures the interrogator's battery power remains below ignition thresholds for Zone 1 environments. Always verify the detector is de-energized or in safe mode before connecting.

Q: What is the typical battery life during field commissioning?
A: Under continuous use, the internal battery supports 6-8 hours of active operation. The auto power-off feature (5-minute timeout) extends standby time to 3-4 weeks for intermittent use during multi-day projects. Fast power-off (press ↓ + ESC) conserves battery when switching between detector locations.

Q: Can the interrogator perform span calibration with test gas?
A: The SHC-1 executes zero calibration (no gas in beam path) and verifies 4-20mA output accuracy. Span calibration requires the SHC Calibrator Connector System (2104B6250) and certified test gas cylinders, following procedures in the detector's technical manual. The interrogator displays calibration status but does not inject test gas.

Q: Is the device compatible with Searchline Optima Plus detectors manufactured after 2020?
A: Yes, software version 4V0 supports all Optima Plus variants through mode selection in the main menu. For detectors with firmware v5.0 or higher, verify compatibility by checking the detector's software version via the interrogator's configuration display before performing calibration.

Q: How do I troubleshoot alignment issues when SIG remains below TGT?
A: Low signal strength typically indicates optical misalignment, dirty lenses, or obstructions in the beam path. Use the IAA bar graphs to incrementally adjust the detector's vertical/horizontal positioning until SIG reaches ≥70% of TGT. If signal remains low after cleaning optics and verifying path clearance, check for excessive ambient light interference or detector hardware faults.

Q: What training is required for technicians to operate the interrogator?
A: Basic familiarity with RS485 communication and gas detector principles is recommended. Honeywell offers 2-day certification courses covering SHC-1 operation, alignment procedures, and troubleshooting. For experienced instrumentation technicians, the menu-driven interface and quick-start guide enable self-training within 2-3 hours.

Request Technical Consultation

Our application engineers are available to discuss your gas detection project requirements, recommend compatible accessories, and provide integration guidance for complex multi-detector installations. Contact us for:

→ Site-specific alignment strategies for long-path applications (100-200m)
→ Bulk procurement pricing for refinery turnaround projects
→ Custom training programs for in-house maintenance teams
→ Firmware upgrade planning and backward compatibility assessments

Get a detailed quotation within 24 hours — our team will verify stock availability, calculate shipping costs to your location, and provide technical datasheets tailored to your application.
