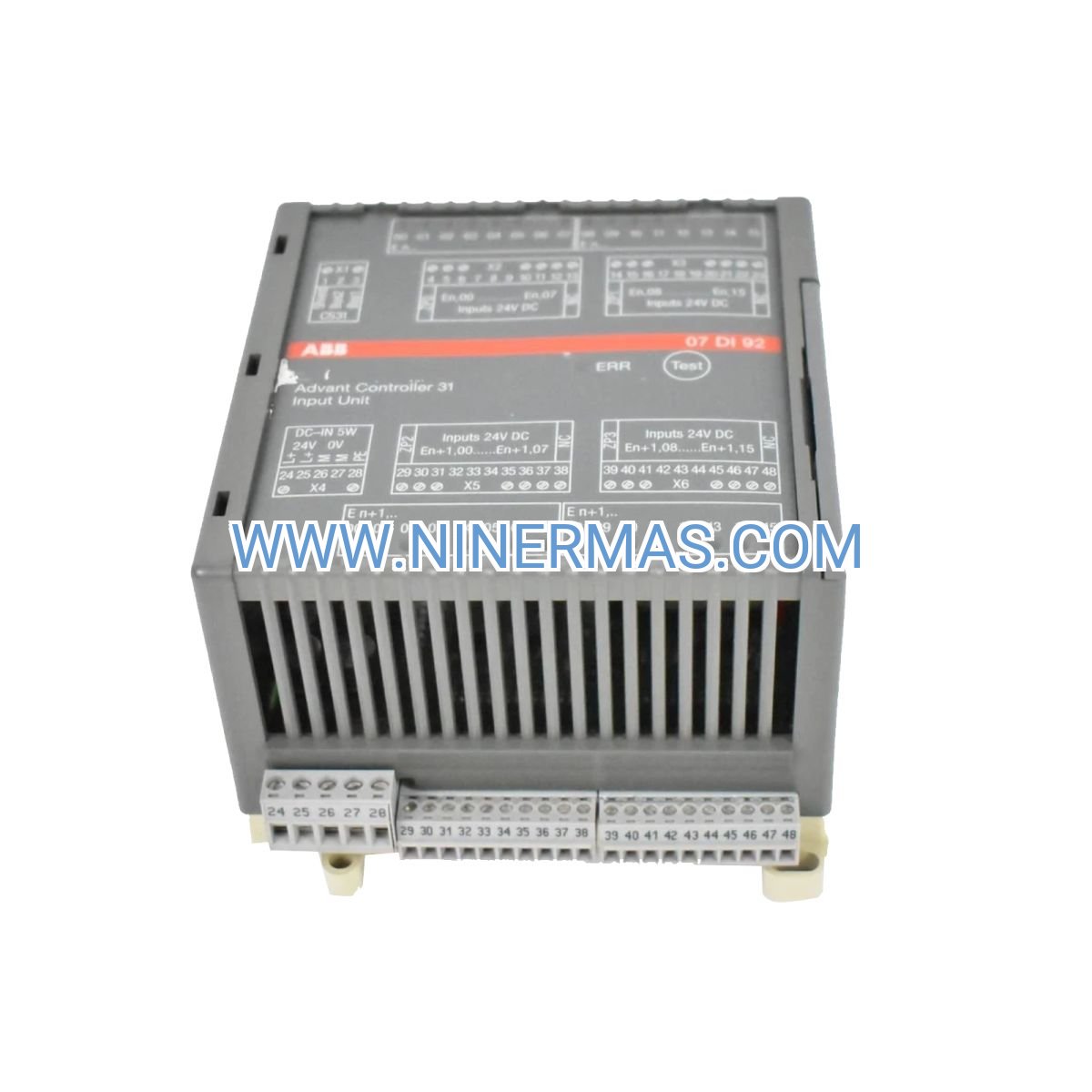

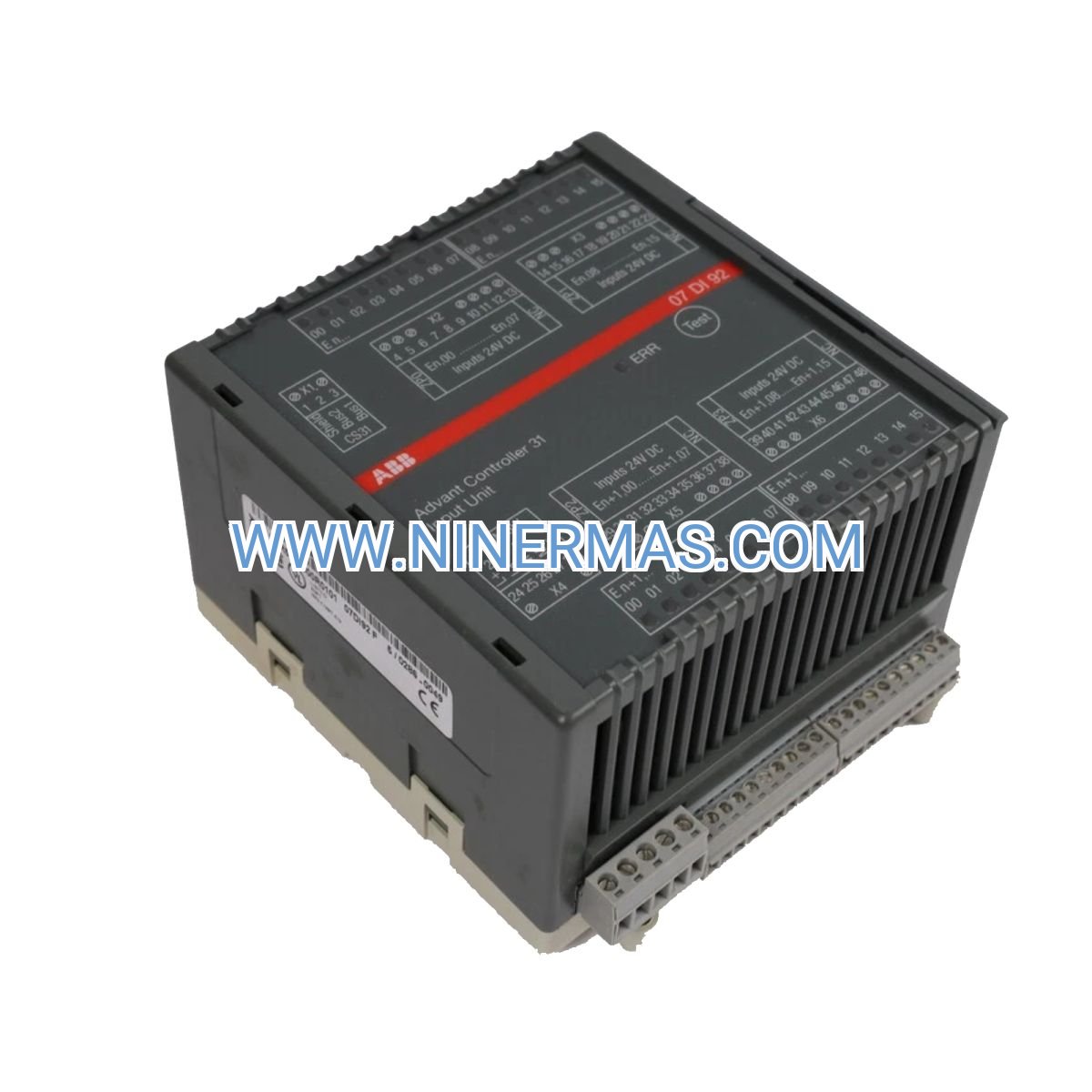

ABB 07DI92 Digital Input Module (Industrial-Grade 32-Channel Acquisition System)
The ABB 07DI92 represents a professional-grade digital signal acquisition solution engineered for mission-critical industrial control applications. Featuring 32 independent 24VDC input channels with dual galvanic isolation architecture, this module delivers reliable field device monitoring across process automation, safety systems, and discrete manufacturing environments.
Designed for seamless integration with ABB's AC31 control platform, the 07DI92 addresses the core challenge of high-density signal consolidation in space-constrained control cabinets. Its current-sourcing input design simplifies wiring topology while maintaining robust noise immunity—essential for installations subject to electromagnetic interference from variable frequency drives and heavy machinery.
Whether you're upgrading legacy Advant OCS infrastructure or deploying new 800xA DCS nodes, this German-manufactured module provides the proven reliability and diagnostic capabilities demanded by continuous process industries including chemical production, power generation, and oil & gas operations.
Core Capabilities & Business Value
→ Space-Optimized Architecture: Consolidate 32 discrete inputs into a single compact module, reducing panel footprint by up to 60% compared to traditional 8-channel designs while cutting installation labor costs through simplified wiring runs.
→ Dual Isolation Protection: Two independent 16-channel isolation groups safeguard control systems from ground loop faults and voltage transients, enabling mixed-voltage field device integration without cross-contamination risk—critical for multi-zone process areas.
→ Current-Sourcing Simplicity: Eliminate complex wiring schematics with 1-wire connection topology. Compatible with standard PNP sensors and dry contact devices, this design reduces commissioning time by 40% versus voltage-sourcing alternatives.
✓ Sub-2ms Response Time: Configurable input filtering (0.2-20ms range) balances noise rejection with rapid state change detection, ensuring accurate capture of high-speed events like emergency stop activations or product detection in packaging lines.
✓ Hot-Swap Capability: Maintain system uptime during module replacement in redundant configurations. Field-proven design supports online insertion/removal without disrupting adjacent I/O channels—minimizing planned maintenance windows.
✓ Extended Temperature Range: 0-55°C operational specification eliminates costly climate control requirements in industrial enclosures, reducing total cost of ownership for remote installations and harsh-environment deployments.
Proven Application Scenarios
Chemical Process Monitoring:
Acquire valve limit switch positions, pump run status, and level switch states across multi-stage reactors. The module's dual isolation prevents ground faults in hazardous area barriers from propagating to safe-area control systems, maintaining SIL-rated safety integrity.
Power Plant Auxiliary Systems:
Monitor breaker auxiliary contacts, turbine vibration trip relays, and cooling system alarms in combined-cycle facilities. Fast response time ensures protective relay signals trigger immediate DCS actions, preventing equipment damage during abnormal conditions.
Pharmaceutical Batch Control:
Interface clean-in-place (CIP) valve confirmations, agitator motor contactors, and temperature alarm contacts in FDA-regulated production. Diagnostic LEDs and online channel monitoring simplify 21 CFR Part 11 compliance documentation during validation campaigns.
Water Treatment SCADA:
Collect flow switch states, filter backwash indicators, and chemical feed pump status across distributed lift stations. Compatibility with TU8xx termination units enables cost-effective field wiring using existing junction boxes and marshalling cabinets.
Material Handling Conveyors:
Capture photoelectric sensor outputs, emergency stop chain status, and motor overload contacts in automated warehousing systems. High channel density reduces control panel size, freeing valuable space for VFDs and safety relays in compact machine-mounted enclosures.
Technical Specifications & Selection Criteria
| Specification | Value | Selection Notes |
|---|---|---|

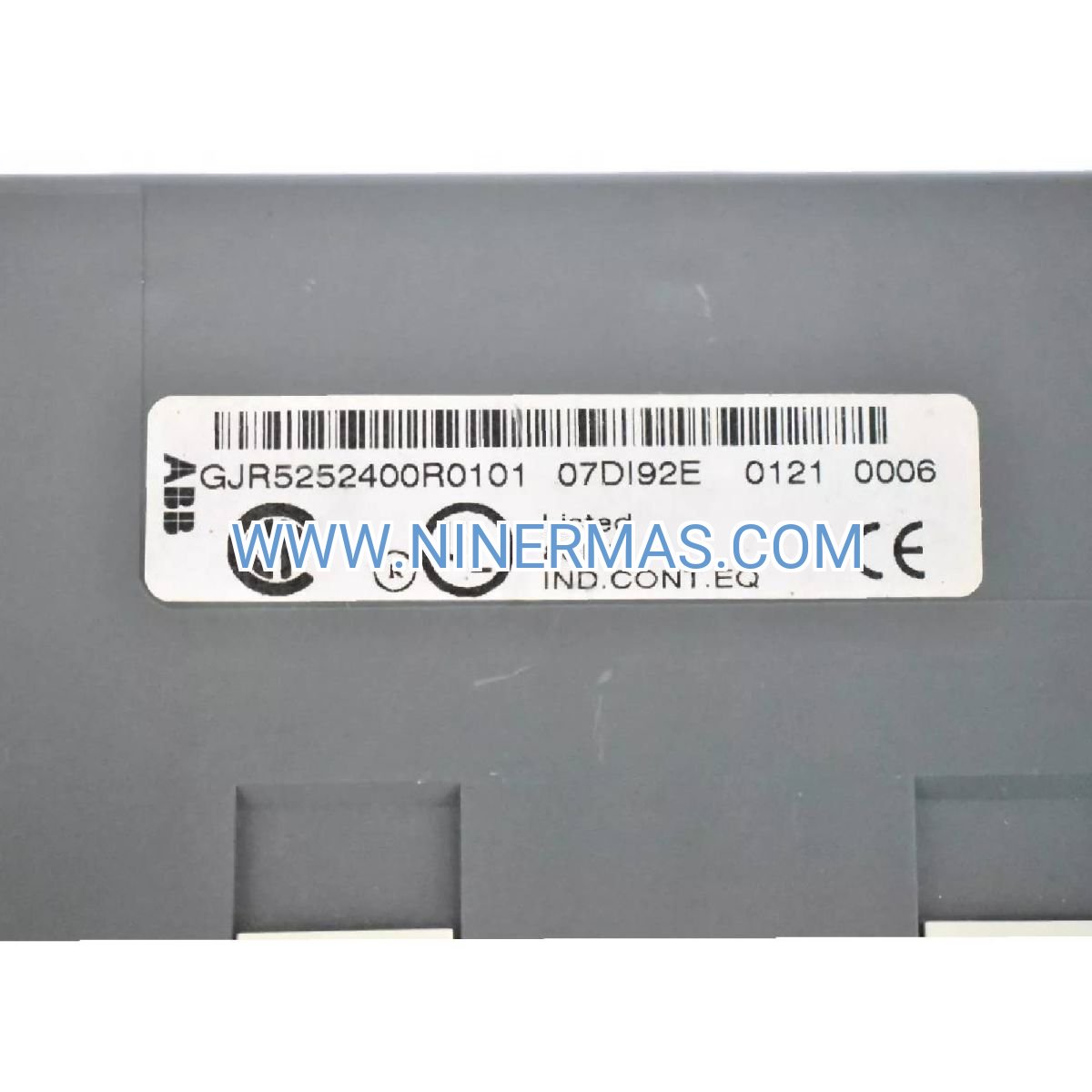

| Part Number | GJR5252400R0101 | Factory order code for procurement |
| Type Designation | 07DI92:AC31 | AC31 bus compatibility identifier |
| Input Channels | 32 × 24VDC | Choose vs. 07DI91 (16CH) based on density needs |
| Input Architecture | Current sourcing, 1-wire | Requires PNP sensors or dry contacts to +24V |
| Isolation Groups | 2 groups × 16 channels | Separate field power supplies per group |
| Logic Thresholds | Low: 0-5V | High: 15-30V | 10V hysteresis prevents false triggering |
| Input Current | ~7mA @ 24VDC | Total load: 224mA for all 32 channels active |
| Response Time | <2ms (configurable) | Adjust filtering for noise vs. speed tradeoff |
| Termination Units | TU810/812/814/830/833/838 | Select based on wiring density and IP rating |
| Operating Temp | 0°C to +55°C | Non-condensing; add cooling if >50°C ambient |
| Dimensions | 140×120×85mm (H×W×D) | Standard DIN rail mount, 85mm depth clearance |
| Weight | 0.59 kg | Lightweight for dense rack configurations |
| Certifications | CE, ABS 1SAA960000-0102 | Marine and industrial approvals |
Selection Guidance: For applications requiring <16 inputs, consider the 07DI91 to reduce costs. If output control is needed, pair with 07DC92 (32-channel output module) for balanced I/O distribution. Verify termination unit compatibility with existing field wiring infrastructure before ordering.
Advanced Integration Features
Diagnostic Intelligence: Onboard LEDs provide instant visual feedback for power status, bus communication health, and per-channel signal states. DCS-accessible diagnostics enable predictive maintenance by tracking input transition counts and detecting wiring degradation before failures occur.
Flexible Termination Ecosystem: Six compatible TU module variants support diverse installation requirements—from IP20 standard terminals (TU810) to IP67-rated field-mounted units (TU838). Mix termination types within the same system to optimize cost versus protection level.
Redundancy Support: Deploy in redundant AC31 configurations for high-availability applications. Automatic failover ensures continuous monitoring even during controller switchovers, with bumpless transfer maintaining process stability.
Legacy System Compatibility: Backward compatible with Advant OCS Master SW and MOD 300 platforms, enabling phased migration strategies. Reuse existing field wiring and termination infrastructure to minimize upgrade costs while gaining modern diagnostic capabilities.
Delivery Timeline & Service Commitment
Lead Time: Stock inventory ships within 3-5 business days via express courier. Custom configurations with specialized termination units may require 2-3 weeks—contact our technical team for expedited options.
Warranty Coverage: 24-month manufacturer warranty from shipment date covers defects in materials and workmanship. Extended warranty programs available for critical infrastructure deployments.
Technical Support: Pre-sales application engineering assistance included—our ABB-certified specialists help with I/O mapping, termination unit selection, and system integration planning. Post-sales support via email, phone, and remote diagnostics.
Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and configuration templates for Control Builder/800xA. Full technical manuals and CAD drawings available for download.
Frequently Asked Questions
Q: Can the 07DI92 interface with NPN sensors or voltage-sourcing devices?
A: No, this module uses current-sourcing inputs requiring PNP sensors or dry contacts connected to +24VDC. For NPN compatibility, specify the 07DI93 voltage-sourcing variant or use signal converters.
Q: What is the maximum cable length between the module and field devices?
A: Up to 300 meters using shielded twisted-pair cable (0.75mm² minimum). For runs exceeding 100m, enable input filtering to 5-10ms to reject induced noise from parallel power cables.
Q: How does dual isolation benefit multi-zone process areas?
A: Each 16-channel group maintains independent galvanic isolation, allowing connection of field devices with different ground references (e.g., Zone 1 hazardous area barriers and Zone 2 standard devices) without creating ground loops that cause measurement errors.
Q: Is hot-swapping supported in non-redundant systems?
A: Module replacement without power-down is mechanically possible but not recommended for non-redundant configurations, as it will interrupt all 32 input channels. Plan maintenance during scheduled process shutdowns.
Q: Which 800xA software versions support the 07DI92 module?
A: Compatible with 800xA versions 4.0 through 6.1 when used with S800 I/O libraries. Verify your Control Builder version includes AC31 module definitions—updates available via ABB Library Manager.
Q: Can I mix 07DI92 modules with other AC31 I/O types on the same bus?
A: Yes, the AC31 bus supports mixed module types including analog I/O (07AI91, 07AO91), digital outputs (07DC92), and communication modules. Maximum 12 modules per bus segment; use bus extenders for larger systems.
Ready to Optimize Your Digital I/O Infrastructure?
Contact our industrial automation specialists for application-specific guidance on integrating the ABB 07DI92 into your control system. We provide complimentary I/O mapping reviews, termination unit recommendations, and migration planning for legacy system upgrades.
Request a technical consultation: Share your system architecture and I/O requirements to receive a customized solution proposal within 24 hours.
