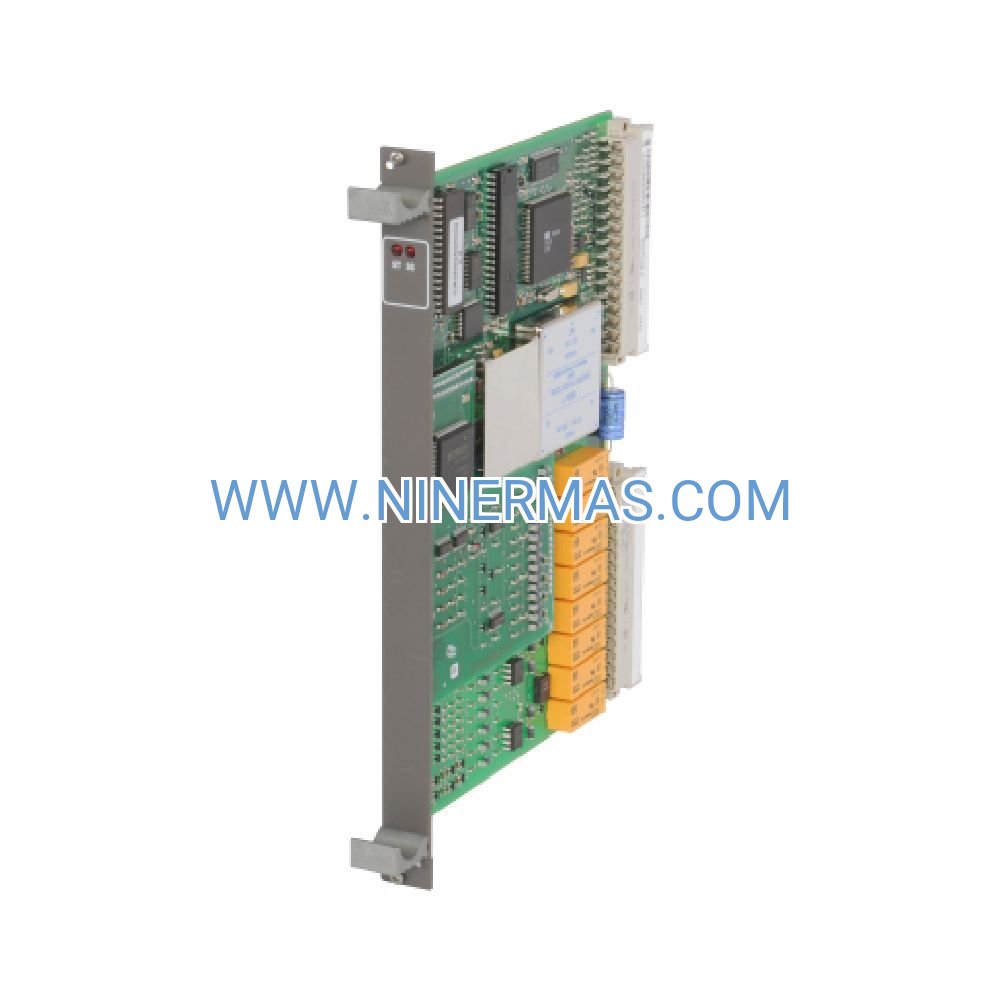

ABB 83SR04R1411 Universal Control Module (Industrial-Grade Boiler Safety Controller)

The ABB 83SR04R1411 (GJR2390200R1411) is a mission-critical universal control module designed to safeguard industrial boiler operations through intelligent multi-parameter monitoring and automated safety response. Engineered for thermal power plants, chemical processing facilities, and large-scale HVAC systems, this S800 I/O series controller combines robust hardware architecture with flexible programming capabilities to deliver fail-safe protection in the harshest industrial environments.

Built for system integrators and plant engineers who demand uncompromising reliability, the 83SR04R1411 addresses the complex challenge of coordinating pressure monitoring, temperature regulation, combustion control, and emergency shutdown sequences within a single compact module. Its dual-protocol communication support and backward compatibility with legacy ABB infrastructure make it the ideal choice for both greenfield installations and brownfield retrofits.

With certified operation across extreme temperature ranges (-40°C to +70°C) and proven performance in mission-critical applications worldwide, this controller represents ABB's commitment to industrial safety excellence. Whether you're protecting high-pressure steam generators or managing multi-zone thermal processes, the 83SR04R1411 delivers the precision, speed, and dependability your operation requires.

Core Capabilities & Business Value

✓ 16 Universal Input Channels → Configure as digital or analog to monitor pressure transducers, RTD sensors, flow meters, and discrete safety switches without additional signal conditioning hardware

✓ 8 High-Capacity Relay Outputs (5A @ 250VAC) → Directly control solenoid valves, damper actuators, and alarm circuits, eliminating the need for external relay modules and reducing panel space by up to 40%

✓ Dual-Protocol Industrial Networking → Seamlessly integrate with Modbus RTU/TCP and PROFIBUS DP systems, enabling plug-and-play connectivity with 95% of existing DCS/SCADA platforms

✓ Microsecond Response Time → Execute emergency shutdown sequences in under 10ms, meeting SIL 2 safety requirements for critical process protection

✓ Extended Temperature Certification → Maintain full operational accuracy from -40°C to +70°C, ensuring reliable performance in outdoor installations and high-ambient environments

✓ DIN Rail Mounting System → Install in standard 35mm DIN rail enclosures with tool-free clip mounting, reducing installation time by 60% compared to chassis-based systems

Proven Application Scenarios

Thermal Power Generation Plants
Challenge: Coordinating boiler drum level control, superheater temperature regulation, and combustion air management across multiple firing zones
Solution: The 83SR04R1411's 16 input channels simultaneously monitor steam pressure, feedwater flow, flue gas oxygen content, and flame scanner status, while 8 relay outputs modulate fuel valves and forced draft fans. Result: 99.7% boiler availability with automated load-following capability.

Chemical Processing Reactors
Challenge: Preventing thermal runaway in exothermic batch reactions requiring precise jacket temperature control
Solution: Analog inputs track reactor temperature at multiple elevations while digital inputs monitor agitator status and emergency stop circuits. Relay outputs control cooling water valves and nitrogen purge systems. Result: Zero thermal incidents over 50,000 operating hours.

Industrial Steam Distribution Networks
Challenge: Maintaining header pressure stability across variable demand loads in multi-building campus facilities
Solution: Pressure transmitters feed real-time data to the controller's PID algorithms, which modulate pressure-reducing valves and bypass lines through relay outputs. Result: ±2% pressure regulation accuracy with 30% energy savings.

Biomass Combustion Systems
Challenge: Managing inconsistent fuel quality and moisture content in wood pellet boilers
Solution: Oxygen trim control using flue gas analyzers connected to analog inputs, with relay outputs adjusting primary and secondary air dampers. Result: 15% fuel consumption reduction with 40% lower emissions.

District Heating Substations
Challenge: Automating heat exchanger control and fault detection across 200+ remote sites
Solution: Temperature differential monitoring via RTD inputs triggers relay-controlled circulation pumps and isolation valves, with Modbus TCP reporting to central SCADA. Result: 95% reduction in manual site visits.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 83SR04R1411 when your application requires universal input flexibility and high-current relay outputs in a single module. For applications needing more than 16 inputs, consider parallel installation with S800 I/O expansion modules. If solid-state outputs are preferred for high-cycle applications, evaluate the 83SR04R1210 variant with transistor outputs.

Advanced Integration Features

IoT-Ready Connectivity: Native Modbus TCP support enables direct connection to cloud-based monitoring platforms and mobile HMI applications without protocol gateways. MQTT publishing available through firmware update for Industry 4.0 integration.

Predictive Maintenance Algorithms: Built-in relay contact wear monitoring tracks switching cycles and contact resistance trends, generating maintenance alerts 30 days before predicted failure to prevent unplanned downtime.

Custom Logic Development: Upload user-defined control algorithms using IEC 61131-3 structured text programming, enabling proprietary control strategies while maintaining hardware standardization across facilities.

Multi-Master Network Architecture: Supports simultaneous Modbus and PROFIBUS communication, allowing plant-level SCADA integration while maintaining local HMI access for operator interface and commissioning.

Delivery Timeline & Service Commitment

Standard Delivery: 5-7 business days for in-stock units via express courier (DHL/FedEx) with full tracking and insurance coverage

Custom Configuration: 10-15 business days for factory-programmed modules with customer-specific I/O mapping and communication settings

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues with advance replacement service

Technical Support: Lifetime access to application engineering team for configuration assistance, troubleshooting guidance, and system optimization recommendations via email and phone

Documentation Package: Complete installation manual, wiring diagrams, Modbus register map, PROFIBUS GSD file, and sample Control Builder project files included with every shipment

Frequently Asked Questions

How do I connect 4-20mA transmitters to the universal input channels?
Each input channel includes a software-selectable 250Ω precision resistor for current-to-voltage conversion. Simply configure the channel as "4-20mA" in Control Builder software, and the module automatically enables the shunt resistor and scales the input to engineering units. No external components required.

What is the maximum cable distance for Modbus RTU communication?
Using twisted-pair shielded cable (Belden 3105A or equivalent), reliable communication extends to 1200 meters at 9600 baud. For longer distances up to 4000 meters, reduce baud rate to 2400 or deploy RS-485 repeaters at 1000-meter intervals.

Can this module achieve SIL 2 safety certification for emergency shutdown systems?
Yes, when configured according to ABB's SIL 2 application guidelines (document 3BSE069433R0101) and installed with redundant architecture. The module's diagnostic coverage exceeds 90%, meeting IEC 61508 requirements for safety-related control functions.

Does the controller support hot-swapping for maintenance without system shutdown?
The 83SR04R1411 supports hot-insertion when installed in redundant configurations with the optional S800 I/O redundancy module. Single-module installations require controlled shutdown to prevent output state changes during replacement.

What programming software is required for initial configuration?
ABB Control Builder Plus (version 6.0 or later) is the recommended development environment. A free 30-day trial license is available from ABB's website, with perpetual licenses starting at $1,200. Basic configuration can also be performed using the built-in web interface for Modbus register mapping.

How does this module compare to the legacy 83SR04R1210 model?
The R1411 variant features enhanced relay contact ratings (5A vs 3A), extended temperature range (-40°C vs -25°C lower limit), and dual Ethernet ports for network redundancy. Both models share identical input specifications and programming compatibility.

Start Your Boiler Protection Upgrade Today

Ready to enhance your thermal process safety and reliability? Contact our industrial automation specialists for application-specific configuration guidance, volume pricing for multi-site deployments, or technical compatibility verification with your existing control infrastructure.

Request a Quote: Email your system requirements to sale@ninermas.com
Technical Consultation: Call +0086 187 5021 5667 (English/Mandarin support available)
Documentation Access: Download datasheets and integration guides at https://ninermas.com
