GE Fanuc IC697MDL750 Retrofit-Compatible Output Module for Legacy Systems

GE Fanuc IC697MDL750 Retrofit-Compatible Output Module: Legacy System Compatibility & Smooth Upgrade

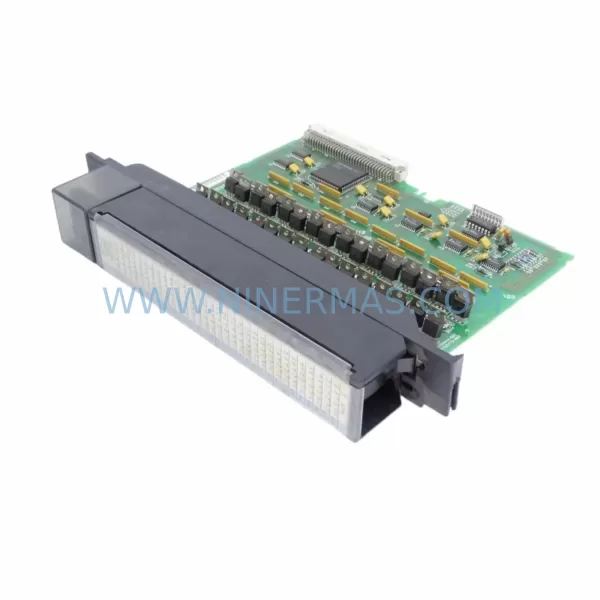

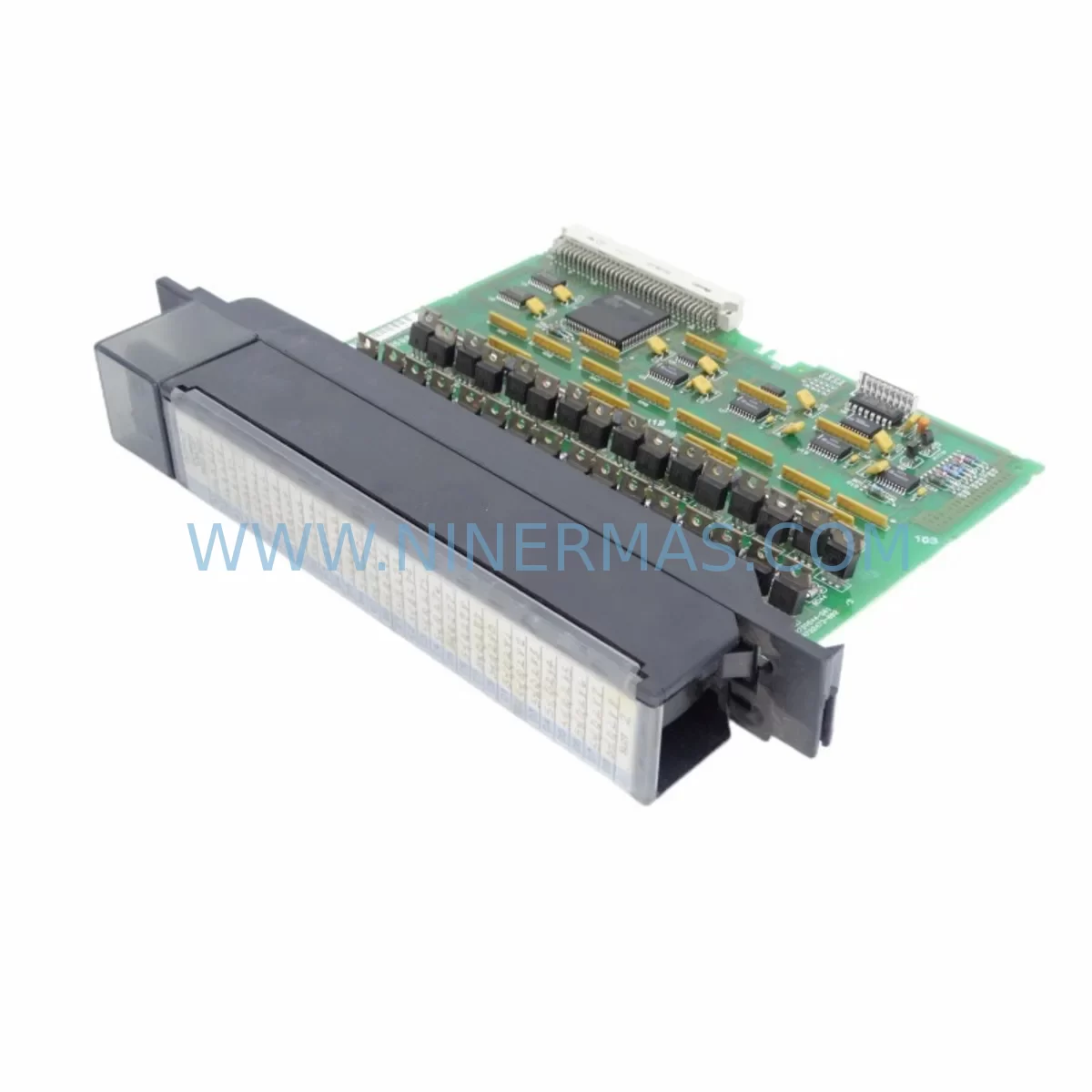

The GE Fanuc IC697MDL750 is a 32-point discrete output module designed for the Series 90-70 PLC platform — one of the most widely deployed industrial control architectures in process manufacturing, automotive assembly, and utilities infrastructure. As GE Fanuc has transitioned its product roadmap toward the PACSystems RX7i and RX3i families, the IC697MDL750 has become a critical retrofit and replacement component for facilities that continue to operate legacy Series 90-70 control cabinets. NINERMAS maintains verified stock of the IC697MDL750 with full functional testing, 12-month warranty coverage, and same-week shipping to minimize unplanned downtime during emergency replacements or scheduled upgrade windows.

When planning a retrofit around the IC697MDL750, engineers must confirm several key parameters before committing to a replacement strategy. The module operates on a 5 VDC backplane supply drawn from the IC697CHS750 or IC697CHS782 rack, and the total power budget of the rack must be recalculated if additional I/O modules — such as the IC697MDL340 analog input module or IC697MDL241 discrete input module — are being added simultaneously. Terminal block wiring must be verified against the original field wiring schedule, as output sink/source configuration and load current ratings differ between module generations. If the existing rack is a 9-slot or 12-slot chassis, slot addressing and I/O map assignments in the GE Proficy Machine Edition programming environment must be preserved to avoid logic remapping during commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IC697MDL750 retrofit begins well before the module arrives on site. The first step is a full audit of the existing Series 90-70 rack configuration. In a typical legacy control cabinet, the IC697CPU772 or IC697CPU781 central processing unit occupies the leftmost slot, with power supplied by the IC697PWR711 or IC697PWR724 power supply module. The IC697MDL750 output module typically occupies one of the middle I/O slots, and its slot number is hard-referenced in the PLC program’s I/O configuration table. Before pulling the failed module, the maintenance team should export the current hardware configuration from Proficy Machine Edition and document the exact slot assignment, output forcing status, and any active fault masks.

If the retrofit scope extends beyond a single module swap — for example, if the facility is also upgrading its communications infrastructure — the IC697CMM742 communications coprocessor or IC697BEM731 bus expansion module may need to be reconfigured to accommodate new network segments. Facilities migrating from legacy serial protocols to Ethernet-based architectures often install the IC697CMM711 alongside the IC697MDL750 replacement to enable Modbus TCP or SRTP communication without replacing the entire CPU. In cases where the control cabinet also houses a GE Fanuc IC697ALG320 analog output module or IC697ALG440 analog input module, the power budget recalculation becomes especially important, as analog modules draw significantly more backplane current than discrete I/O modules.

For facilities managing I/O expansion across multiple racks, the IC697BEM711 remote I/O scanner or IC697BEM731 bus expansion module must be verified for compatibility with the updated rack configuration. Wiring adaptation between the IC697MDL750’s output terminal block and the field device junction box should be completed using the original field wiring diagram, with each output channel tested for continuity and correct polarity before energizing the rack. If the original terminal block connector is damaged or corroded, NINERMAS can supply compatible replacement connectors as part of the retrofit kit.

Downtime Control During System Migration

Minimizing production downtime during an IC697MDL750 replacement requires a structured hot-swap protocol, even though the Series 90-70 platform does not natively support hot-swappable I/O in all configurations. The recommended approach is to pre-stage the replacement module with the correct hardware revision, perform the swap during a planned maintenance window, and use the CPU’s I/O forcing capability to hold critical output states during the brief interruption. Before removing the failed module, the control engineer should place the CPU in Stop-I/O-Enabled mode, document all forced outputs, and notify the process control room to switch affected loops to manual mode.

Once the IC697MDL750 replacement is seated and the rack is re-energized, the CPU will automatically recognize the module if the hardware configuration in the program matches the physical slot assignment. If a configuration mismatch fault is detected — typically indicated by a flashing red LED on the module faceplate — the engineer should verify the I/O configuration table in Proficy Machine Edition and perform a hardware configuration download. The entire swap process, from module removal to verified output operation, typically takes 15 to 45 minutes for an experienced technician, making it feasible to complete within a single shift’s planned maintenance window. NINERMAS provides pre-shipment functional test reports for each IC697MDL750 unit, reducing the risk of receiving a non-functional replacement and extending an unplanned outage.

For facilities with no spare slot available in the existing rack, NINERMAS can advise on rack expansion options using the IC697CHS750 expansion chassis and IC697BEM731 bus expansion module, allowing additional I/O capacity without replacing the existing CPU or power supply. This approach preserves the original program logic, HMI tag structure, and communication links while extending the operational life of the legacy control system by five to ten years.

Retrofit Support FAQ

Q1: Is the IC697MDL750 a direct drop-in replacement for a failed output module in my Series 90-70 rack?
Yes. The IC697MDL750 is a direct slot-compatible replacement for the same model in any Series 90-70 rack, including the IC697CHS750 and IC697CHS782 chassis. No mechanical modification, program recompile, or HMI reconfiguration is required, provided the hardware configuration in the PLC program already references this module type and slot address.

Q2: How do I verify wiring compatibility before installing the replacement module?
Compare the terminal block pinout on the replacement IC697MDL750 against your original field wiring schedule. Check output voltage range (12–24 VDC), load current per channel, and sink/source configuration. If the original terminal block connector is damaged, contact NINERMAS for a compatible replacement connector. All field wiring should be tested for continuity and correct polarity before energizing the rack.

Q3: Does NINERMAS test the IC697MDL750 before shipment, and what warranty is provided?
Yes. Every IC697MDL750 unit supplied by NINERMAS undergoes functional testing prior to shipment, including output channel verification under load. A pre-shipment test report is available upon request. All units are covered by a 12-month warranty from the date of shipment. For warranty claims or technical support, contact sale@ninermas.com or call +0086 187 5021 5667.

Q4: Can the IC697MDL750 be used in a PACSystems RX7i migration project?
The IC697MDL750 is a Series 90-70 module and is not directly compatible with the PACSystems RX7i backplane. However, for facilities not yet ready for a full platform migration, continuing to operate with the IC697MDL750 in the existing Series 90-70 rack is a cost-effective strategy that preserves the current program logic and HMI configuration. NINERMAS can advise on phased migration strategies that allow gradual transition to the RX7i platform while maintaining production continuity.
