Siemens 6DP1230-7AA Service-Ready Spare Part

Siemens 6DP1230-7AA Service-Ready Spare Part for Industrial Maintenance

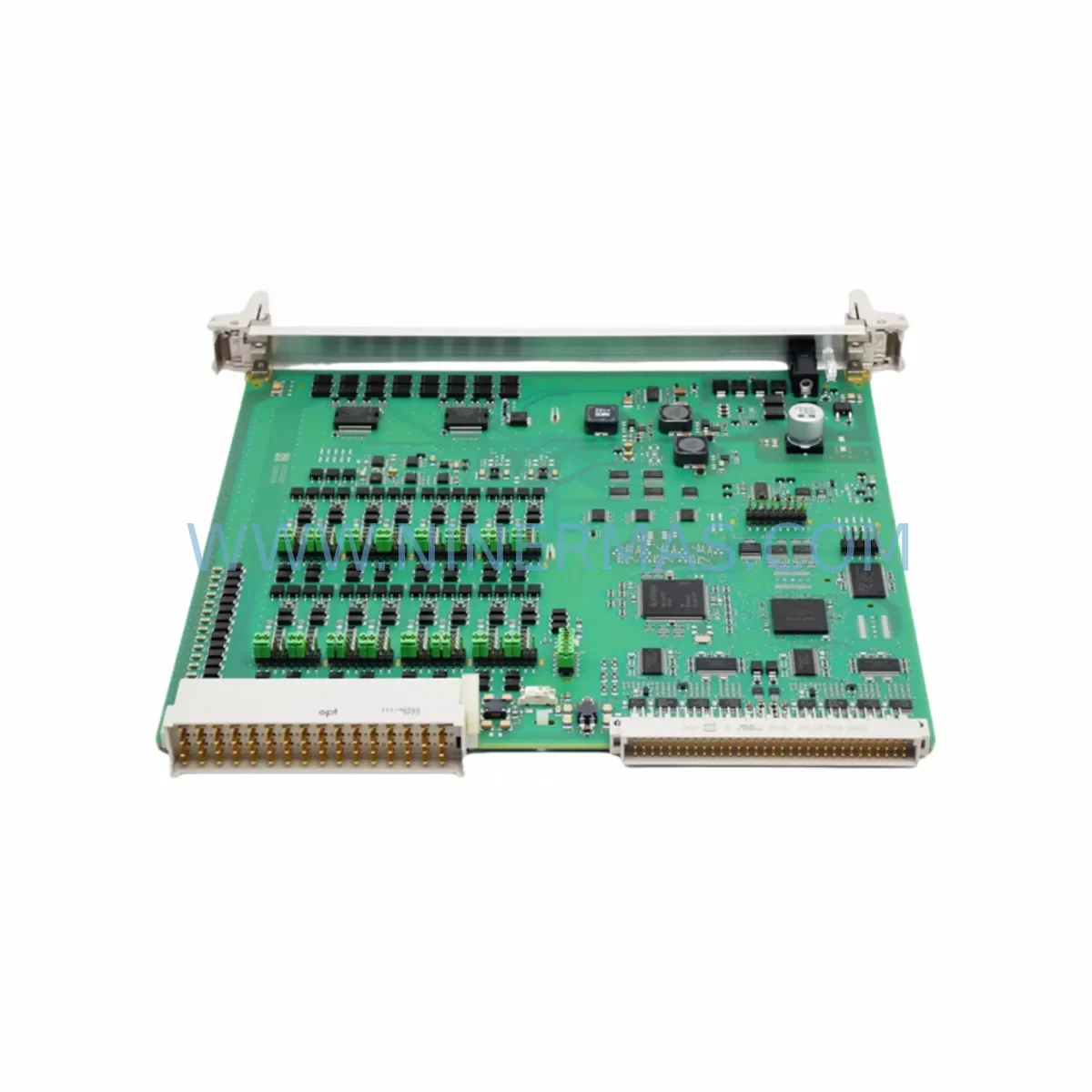

The Siemens 6DP1230-7AA is an analog encoder interface module designed for integration within SIMATIC S5 and S7 control architectures, as well as SIMODRIVE positioning and motion control systems. As a critical signal acquisition and feedback component, the 6DP1230-7AA evaluates analog encoder signals and converts them into digital position data for the PLC or drive controller — a function that is indispensable in precision-driven industrial processes such as CNC machining, automated assembly lines, crane positioning, and continuous web handling systems.

For maintenance engineers managing aging SIMATIC S5 or early S7 installations, the 6DP1230-7AA represents a high-priority spare part. Signal drift, connector wear, or internal component degradation in the encoder interface module can cause erratic position feedback, axis faults, or complete motion control failure — all of which translate directly into unplanned downtime. Stocking a verified replacement unit is the most reliable strategy to minimize mean time to repair (MTTR) and protect production continuity.

At NINERMAS, every 6DP1230-7AA unit undergoes pre-shipment functional testing to confirm signal integrity, connector condition, and module communication before dispatch. Each unit is backed by a 12-month warranty, providing procurement engineers with the confidence needed for long-term spare parts planning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6DP1230-7AA encoder interface module is rarely an isolated task. A thorough maintenance plan for any SIMATIC S5 or S7 motion control cabinet should address the full signal chain and power distribution architecture to prevent recurrence of faults after module swap.

Begin with the encoder cable assembly — shielded multi-core cables connecting the encoder to the 6DP1230-7AA are subject to mechanical fatigue, especially in rotary or linear axis applications with continuous movement. Inspect for insulation cracking, connector pin corrosion, or shield continuity loss. Alongside this, verify the 24 VDC encoder power supply output; a marginal supply voltage can cause intermittent signal errors that mimic module failure.

Within the same control cabinet, the Siemens 6ES7 307-series power supply modules (for S7-300 racks) or the legacy 6ES5 951-series power supply units (for S5 systems) should be inspected for output ripple and load regulation. A degraded rack power supply is a common root cause of encoder interface faults that are misdiagnosed as module failures.

The SIMATIC S7-300 backplane bus connector (U-connector) between adjacent modules deserves attention during any module replacement — worn or oxidized bus connectors cause intermittent communication errors between the encoder interface module and the CPU. Similarly, if the system uses a Siemens IM 360/361 interface module for multi-rack expansion, verify rack-to-rack communication integrity before and after the swap.

For systems with analog I/O integration, check the Siemens SM 331 or SM 332 analog I/O modules in the same rack. These modules share the backplane bus and can be affected by noise injected through a failing encoder interface. A signal isolator or galvanic separator between the encoder cable shield and cabinet ground is recommended in high-EMI environments such as variable frequency drive (VFD) cabinets or welding lines.

If the system includes an HMI panel — such as a Siemens OP7, OP17, or TP177 — connected via MPI or PROFIBUS DP, confirm that the communication parameters and station addresses remain intact after module replacement, as some S5/S7 configurations store encoder-related parameters in the CPU memory that may require re-initialization. Finally, inspect the terminal blocks and fuse holders on the encoder power distribution rail; a blown fuse or loose terminal is often the simplest cause of encoder interface failure and should be ruled out before module replacement.

Site Replacement Workflow

Replacing the Siemens 6DP1230-7AA in a live industrial environment requires a structured approach to minimize downtime and avoid secondary faults:

Step 1 — Fault Isolation: Before removing the module, document all active fault codes from the CPU or drive controller. Use the SIMATIC STEP 5 or STEP 7 programming software to read the diagnostic buffer and confirm that the fault originates from the encoder interface module rather than the encoder itself or the downstream drive.

Step 2 — Safe Isolation: De-energize the control cabinet following local lockout/tagout (LOTO) procedures. Discharge any residual voltage on the encoder power rail before disconnecting the module. Label all connectors before removal to ensure correct re-connection.

Step 3 — Module Swap: Remove the faulty 6DP1230-7AA by releasing the module locking mechanism and sliding it off the backplane. Install the replacement unit, ensuring the bus connector is fully seated. Reconnect all encoder cables and power connectors in the documented order.

Step 4 — Parameter Verification: If the replacement module requires parameter assignment (e.g., encoder type, resolution, or signal range), use STEP 5/STEP 7 or the drive parameterization tool to configure the module to match the original settings. Retain a backup of the CPU program and module parameters before making any changes.

Step 5 — Functional Test: Re-energize the system and perform a controlled jog or reference run to verify encoder feedback accuracy. Monitor position values in the PLC diagnostic screen and confirm that no encoder-related fault codes reappear. Document the replacement in the site maintenance log.

This structured workflow reduces the risk of repeat faults, protects the encoder and drive from damage caused by incorrect reconnection, and ensures that the replacement 6DP1230-7AA is operating within its specified parameters from the first power-on.

Spare Parts Support FAQ

Q1: Is the 6DP1230-7AA still available as a new original Siemens part?
The 6DP1230-7AA is a legacy module associated with the SIMATIC S5/S7 and SIMODRIVE product families, which have reached or are approaching end-of-life status. NINERMAS maintains dedicated stock of original and tested units to support customers with long-running installations. Contact our team to confirm current availability and lead time before scheduling your maintenance window.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, functional failure under normal operating conditions, and any fault attributable to the module itself. Each unit is pre-shipment tested for signal integrity and communication function. Warranty claims are supported by our technical team with replacement dispatch as the primary resolution method to minimize your downtime.

Q3: How do I confirm compatibility before ordering?
Provide your existing module part number, the CPU or drive model it interfaces with, and the encoder type (analog sin/cos, voltage, or current output). Our engineering team will cross-reference your system configuration and confirm compatibility before shipment. We recommend also sharing your STEP 5 or STEP 7 hardware configuration file if available.

Q4: Can NINERMAS support long-term supply for multiple units?
Yes. We support blanket orders and scheduled delivery programs for maintenance teams managing multiple machines or production lines with the same module type. Long-term supply agreements are available for the 6DP1230-7AA and related SIMATIC S5/S7 spare parts, ensuring your maintenance inventory remains replenished without repeated sourcing effort.
