ICS Triplex T8442C Spare Part for Industrial Maintenance

ICS Triplex T8442C Spare Part for Industrial Maintenance

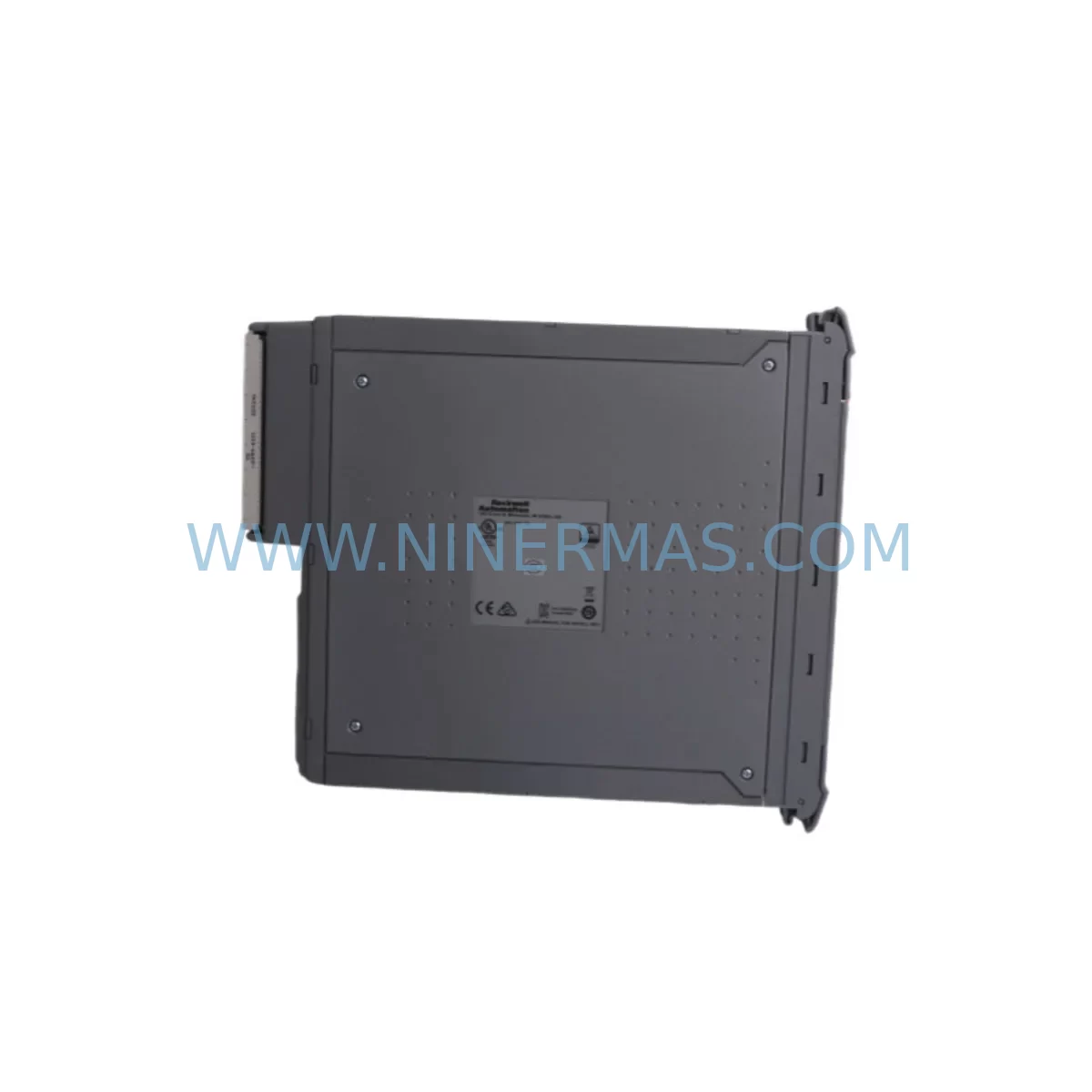

The ICS Triplex T8442C is a ruggedized digital output module designed for the ICS Triplex Trusted T8000 Series safety-critical control platform. Widely deployed in petrochemical plants, offshore platforms, power generation facilities, and continuous process industries, the T8442C delivers reliable field output switching in environments where control integrity is non-negotiable. For maintenance engineers managing aging safety instrumented systems (SIS) or emergency shutdown (ESD) architectures, maintaining a verified spare of the T8442C is a fundamental element of any credible maintenance strategy.

The T8442C operates within the Trusted TMR (Triple Modular Redundant) architecture, providing voted digital output signals to final control elements such as solenoid valves, motor starters, and relay-driven actuators. Its ruggedized design accommodates high-vibration, high-humidity, and thermally demanding environments — conditions routinely encountered in refinery control rooms, LNG terminals, and heavy industrial substations. When a field output channel degrades or fails, the T8442C can be replaced without full system shutdown in hot-standby configurations, dramatically reducing mean time to repair (MTTR) and protecting production continuity.

From a procurement engineering perspective, the T8442C is a long-lifecycle component that has been in active deployment for over two decades. Original modules sourced from authorized distributors or verified surplus channels — pre-tested and accompanied by a 12-month warranty — represent the lowest-risk path for spare parts replenishment. Counterfeit or untested substitutes introduce unacceptable risk in SIS applications where output module integrity directly affects process safety function (PSF) performance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a Trusted T8000-based safety system extends well beyond stocking a single output module. When a T8442C output module is flagged for replacement during a scheduled inspection or unplanned fault event, the maintenance team should simultaneously audit the surrounding components to prevent secondary failures from extending downtime.

The T8110 Trusted TMR Processor Module is the central controller governing all I/O modules in the chassis. If the T8442C fault is accompanied by processor diagnostic alarms, the T8110 should be inspected for firmware integrity and internal diagnostics. Similarly, the T8431 Digital Input Module — which feeds field sensor signals into the same voted logic — should be verified for channel health, as input-output correlation errors are a common diagnostic indicator of broader chassis issues.

The T8800 Power Supply Module is another critical component to inspect during any T8442C replacement. Output module failures are sometimes precipitated by power supply ripple, voltage sag under load, or capacitor degradation in aging PSUs. Verifying that the T8800 delivers stable 24 VDC within specification protects the replacement T8442C from premature failure. Where dual-redundant power supply configurations are used, both the primary and secondary T8800 units should be load-tested.

Field wiring integrity is equally important. The T8403 Marshalling Panel and associated terminal blocks should be inspected for loose terminations, corrosion, or insulation breakdown — particularly in humid or chemically aggressive environments. Signal isolation barriers, such as the MTL5000 Series Zener Barriers or equivalent galvanic isolators, should be checked for drift or degradation if the T8442C is driving intrinsically safe field circuits.

For sites using the T8092 Communication Interface Module to integrate the Trusted system with a DCS or SCADA platform via Modbus or OPC, communication health should be confirmed after any module swap to ensure the output status registers are correctly mapped and acknowledged by the supervisory system. The Trusted Engineering Workstation (TEW) software should be used to perform a post-replacement functional verification, confirming voted output states match commanded logic before returning the loop to service.

Maintenance planners should also review the status of the T8451 Analogue Output Module if the control cabinet includes mixed digital and analogue output loops. Analogue output drift in adjacent modules can sometimes be masked by digital output faults, and a comprehensive cabinet inspection during a planned T8442C replacement is the most cost-effective time to address both.

Finally, fuse holders and field terminal protection devices within the output loop — including miniature circuit breakers (MCBs) rated for the solenoid or relay load — should be tested for continuity and correct trip rating. A blown field fuse is a common root cause of apparent output module failure and should always be ruled out before condemning the T8442C itself.

Site Replacement Workflow

Replacing the ICS Triplex T8442C in a live Trusted TMR system follows a structured procedure designed to maintain safety function integrity throughout the maintenance activity:

Step 1 — Pre-Replacement Verification: Confirm the fault is isolated to the T8442C using the Trusted Engineering Workstation diagnostics. Review the module’s fault log, channel status, and voter output. Obtain a permit-to-work (PTW) from the site safety authority if the output loop controls a safety-critical actuator.

Step 2 — Bypass and Inhibit: Apply the appropriate safety bypass or inhibit to the affected output channel in accordance with the site’s Management of Change (MOC) procedure. In TMR systems, a single module can typically be replaced while the remaining two legs maintain the voted output — confirm this with the system’s safety manual before proceeding.

Step 3 — Module Extraction: Power down the module slot if required by the chassis design. Disconnect field wiring at the marshalling panel rather than at the module face to avoid disturbing adjacent terminations. Extract the T8442C using the module ejector handles, taking ESD precautions throughout.

Step 4 — Replacement Installation: Insert the pre-tested replacement T8442C into the correct chassis slot. Reconnect field wiring, verifying termination torque and polarity. Power up the slot and observe the module’s LED status indicators for normal operation.

Step 5 — Functional Test and Return to Service: Using the Trusted Engineering Workstation, perform a channel-by-channel output test to confirm all 16 channels respond correctly to commanded states. Verify that the DCS or SCADA system correctly reflects output status. Remove the bypass/inhibit and return the loop to automatic control. Document the replacement in the site’s maintenance management system (CMMS).

This structured approach minimizes the risk of introducing new faults during the replacement activity and ensures the safety function is fully restored before the bypass is lifted. For sites without in-house Trusted system expertise, NINERMAS can provide pre-tested T8442C modules with full documentation to support the site’s maintenance team.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the ICS Triplex T8442C supplied by NINERMAS?
All T8442C modules supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes a full functional test prior to shipment, and a test report is available upon request. Warranty claims are processed promptly, with replacement units dispatched within 5 business days of fault confirmation.

Q2: How do I confirm compatibility between the T8442C and my existing Trusted T8000 chassis?
The T8442C is designed for direct installation in ICS Triplex Trusted T8000 Series chassis. It is backward-compatible with earlier T8442 and T8442B variants in the same slot position. Compatibility is determined by chassis backplane revision and firmware version of the T8110 processor module. NINERMAS recommends providing your chassis serial number and processor firmware version when ordering to allow pre-shipment compatibility verification.

Q3: Can NINERMAS support long-term supply of the T8442C for multi-year maintenance contracts?
Yes. NINERMAS maintains strategic inventory of ICS Triplex Trusted Series modules, including the T8442C, to support long-term spare parts programs for petrochemical, power, and process industry clients. Blanket purchase orders and annual supply agreements are available, with fixed pricing and guaranteed lead times to support your site’s maintenance planning cycle.

Q4: What should I do if the replacement T8442C shows a fault immediately after installation?
Immediate post-installation faults are most commonly caused by field wiring issues (incorrect polarity, open circuit, or blown field fuse), chassis backplane connector contamination, or a mismatch between the module revision and the chassis firmware. NINERMAS technical support can assist with fault diagnosis remotely. If the module itself is confirmed faulty, it will be replaced under warranty at no additional cost.
