ICS Triplex T8310CX Retrofit-Compatible TMR Module for Legacy Systems

ICS Triplex T8310CX Retrofit-Compatible TMR Module for Legacy Systems

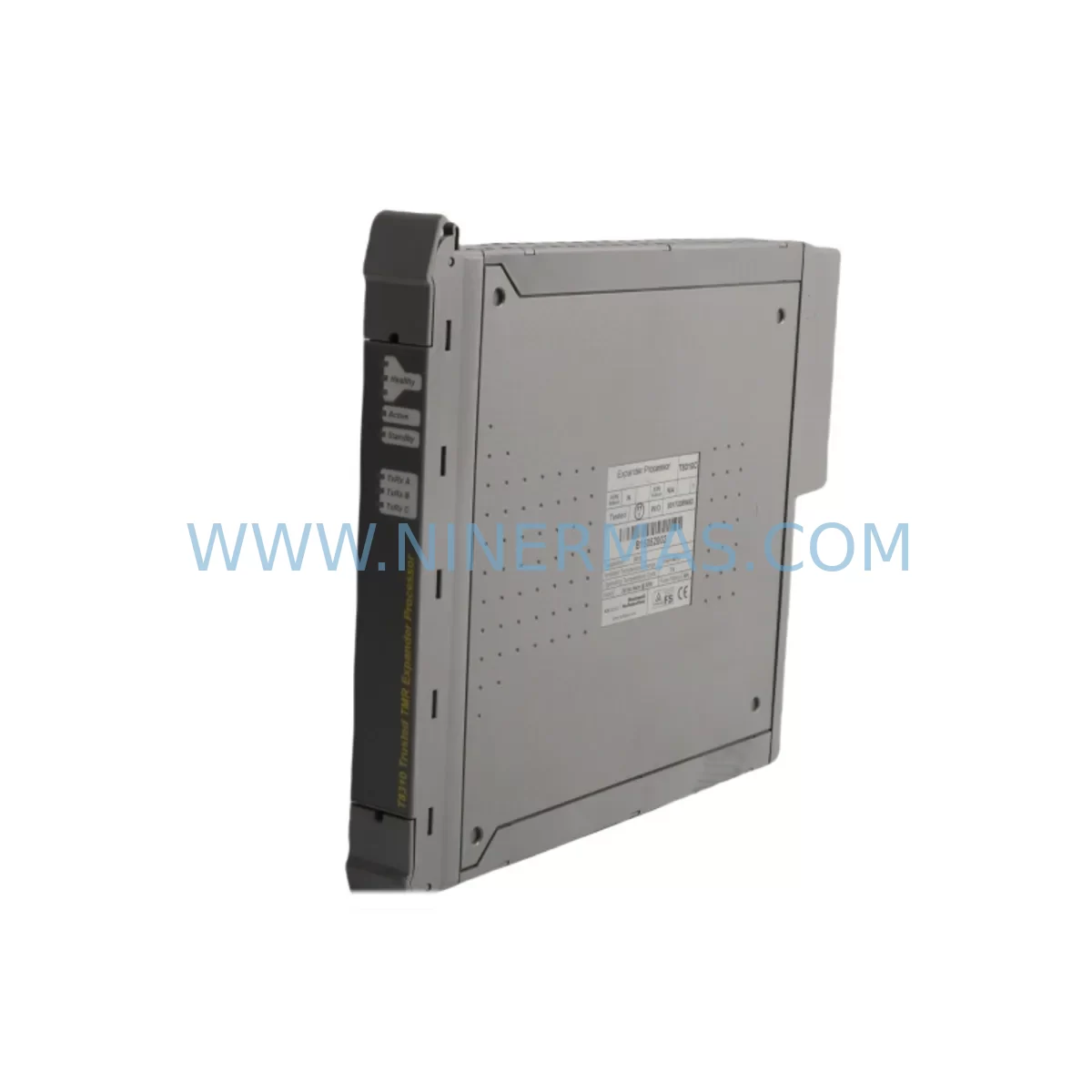

The ICS Triplex T8310CX is a Triple Modular Redundancy (TMR) processor module designed for the Trusted series safety control platform. As legacy Trusted systems approach end-of-life and original spare parts become increasingly scarce, the T8310CX remains one of the most sought-after modules for brownfield retrofit projects, aging control cabinet upgrades, and safety system life extension programs across oil & gas, petrochemical, power generation, and offshore industries.

NINERMAS maintains verified stock of the T8310CX to support customers managing long-cycle maintenance windows, unplanned shutdowns, and phased migration programs. Each unit is subject to pre-shipment functional testing and ships with a 12-month warranty, giving procurement and maintenance teams the confidence to plan replacements without compressing their engineering schedules.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the T8310CX within an operating Trusted TMR environment requires a structured approach that accounts for the full scope of the control architecture. Before the module is physically swapped, engineers should audit the existing T8920 power supply module capacity to confirm it can sustain the replacement unit under full I/O load. The Trusted backplane carries both power and data, so any degradation in the PSU rail will affect the new module’s voting logic integrity.

Slot addressing is a common source of commissioning delay. The T8310CX must be assigned the correct module address within the Trusted configuration tool — typically TriStation 1131 — before the application program is downloaded. If the address conflicts with an adjacent T8431 digital input module or a T8451 analog input module already mapped in the program, the controller will fault on startup. Reviewing the rack layout drawing and the I/O assignment table in the existing project file before the outage begins eliminates this risk.

For sites running Modbus RTU or HART communication loops, the T8831 communication module or T8830 gateway should be inspected for firmware compatibility with the replacement T8310CX. In some older installations, the communication module firmware predates the processor revision and requires an update to maintain polling integrity with the DCS or historian. This is particularly relevant where the Trusted system interfaces with a third-party SCADA platform via serial links.

I/O wiring termination should be documented at the T8431 digital input and T8451 analog input field terminal assemblies before any module is removed. Photographs of the terminal blocks and a point-to-point check against the loop drawings reduce the risk of miswiring during reassembly. Where signal isolators are installed between field instruments and the Trusted I/O modules, their output ranges should be confirmed to match the replacement module’s input specifications.

HMI faceplates linked to the Trusted controller — whether running on a dedicated Trusted HMI workstation or integrated into a broader DCS display — should be tested in simulation mode after the program download to confirm that all tag references resolve correctly and that alarm setpoints have been preserved. Any custom function blocks or cause-and-effect matrices embedded in the TriStation 1131 project should be validated against the original revision-controlled backup before the outage, not during it.

For sites where the T8310CX is part of a larger phased migration toward a modern safety instrumented system, the replacement module can serve as a bridge while the new platform is engineered and FAT-tested. This approach allows the existing certified application logic to remain in service, preserving the SIL rating of the safety function while the migration project proceeds in parallel.

Downtime Control During System Migration

Minimising process downtime during a T8310CX replacement begins with preparation that is completed before the maintenance window opens. The application program should be exported from the live controller and stored in a revision-controlled archive. A second copy should be loaded onto the engineering workstation that will be used during the outage, with the TriStation 1131 project verified to compile without errors against the target hardware configuration.

The TMR architecture of the Trusted platform provides a degree of fault tolerance that can be leveraged during planned maintenance. In some configurations, a single leg of the TMR can be taken offline for module replacement while the remaining two legs maintain the voted output, allowing the replacement to proceed without a full process shutdown. This approach must be validated against the site’s safety management system and the certified application’s proof test procedure before it is adopted.

Where a full shutdown is required, the sequence should be planned to isolate the Trusted system from field devices in a controlled order that matches the process safety requirements. After the T8310CX is replaced and the application downloaded, a structured startup sequence — beginning with I/O verification, followed by communication link confirmation, and concluding with a functional test of each safety function — ensures that the system is returned to service in a known good state.

Keeping a tested spare T8310CX on the shelf, alongside critical companion modules such as the T8920 power supply and T8431 I/O modules, is the most effective way to compress unplanned outage duration. NINERMAS maintains stock specifically to support emergency dispatch requirements, with same-day shipping available for in-stock units.

Retrofit Support FAQ

Q: Is the T8310CX a direct drop-in replacement for the T8310?
A: The T8310CX is closely related to the T8310 and shares the same form factor and backplane interface. However, firmware revisions and hardware sub-variants exist within the Trusted product family. NINERMAS recommends confirming the exact part number and revision level of the module being replaced before ordering to ensure full compatibility.

Q: What commissioning steps are required after installing the T8310CX?
A: After physical installation, the module address must be set to match the existing configuration, the application program must be downloaded via TriStation 1131, and all I/O channels should be verified against the loop drawings. Communication links to any T8831 or T8830 gateway modules should be confirmed active before the system is returned to automatic mode.

Q: Does NINERMAS test the T8310CX before shipment?
A: Yes. All units undergo pre-shipment functional testing. Each T8310CX ships with a test report and is covered by a 12-month warranty from the date of shipment. Units are packaged in anti-static protection suitable for international freight.

Q: Can NINERMAS supply other Trusted series modules needed for the same retrofit project?
A: NINERMAS stocks a range of Trusted series components including power supply modules, digital and analog I/O modules, and communication gateway modules to support complete retrofit and life extension projects. Contact sale@ninermas.com with your full bill of materials for availability and lead time confirmation.
