ICS Triplex T8270 Retrofit-Compatible TMR Power Module for Legacy Systems

ICS Triplex T8270 Retrofit-Compatible TMR Power Module for Legacy Systems

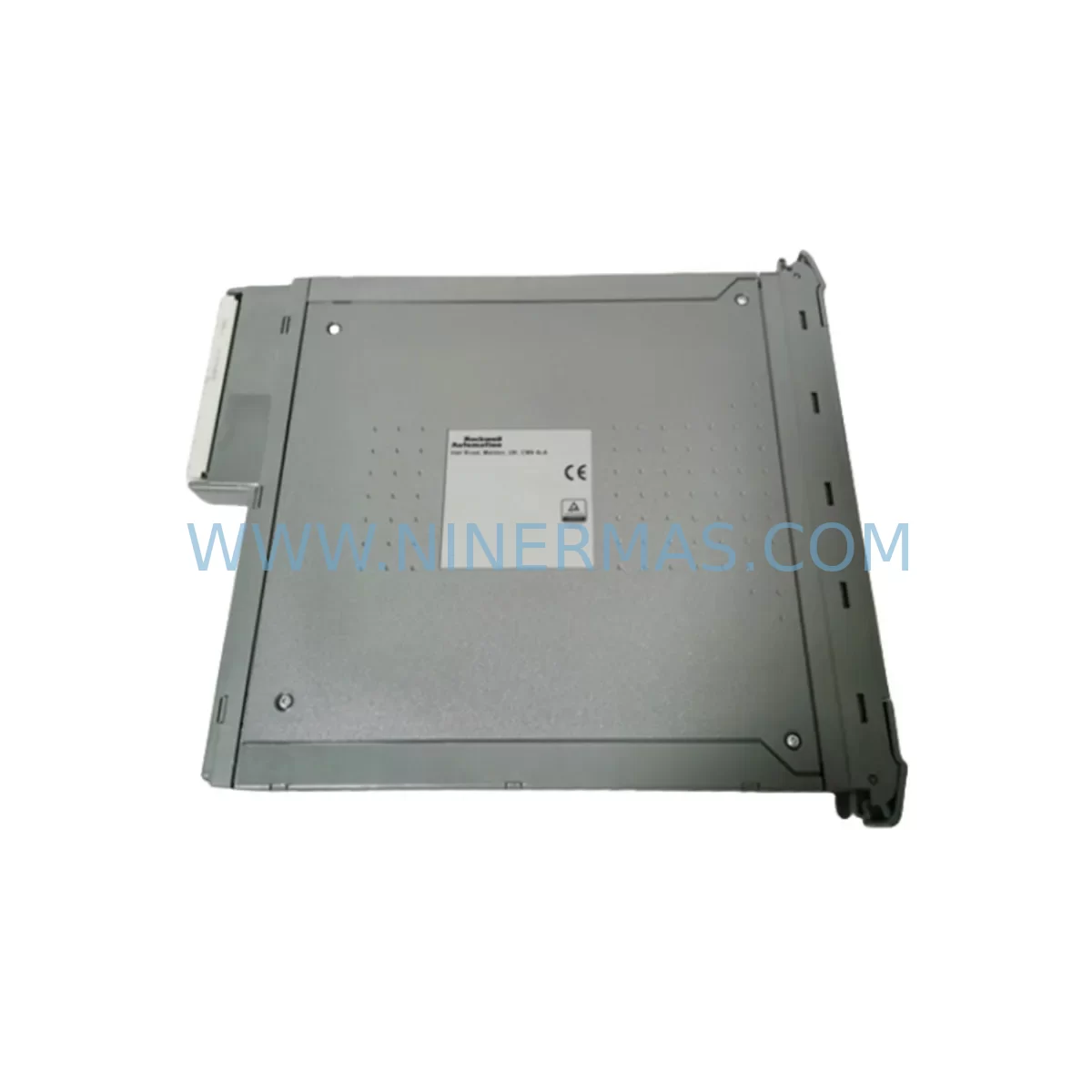

The ICS Triplex T8270 is a Triple Modular Redundant (TMR) power supply module designed for the ICS Triplex Trusted safety-critical control platform — one of the most widely deployed TMR architectures in oil & gas, petrochemical, power generation, and offshore process industries. As the Trusted platform approaches end-of-life support cycles, plant engineers and reliability teams face increasing pressure to source verified replacement modules that maintain SIL2 and SIL3 integrity without triggering a full system overhaul.

NINERMAS maintains verified inventory of the T8270 power module to support ongoing maintenance, emergency sparing, and phased retrofit programs. Each unit is pre-shipment tested, documented, and backed by a 12-month warranty, enabling maintenance teams to restore system availability with minimal disruption to live production environments.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the T8270 power module within an operational Trusted TMR system requires careful pre-work to avoid unplanned shutdowns or safety system impairment. The Trusted architecture’s 2oo3 voting logic means that a single power module can be replaced while the remaining two legs maintain system integrity — but only if the replacement is executed within the platform’s defined maintenance window and with the correct module revision.

Before initiating the swap, engineers should confirm the installed chassis generation. The T8000-series rack and its backplane connectors must be inspected for pin wear, particularly in systems that have been in continuous service for more than a decade. The T8270 seats into the dedicated power slot; adjacent modules such as the T8110 Trusted TMR Controller and T8151 Communication Interface Module should remain undisturbed during the replacement to preserve active program execution and fieldbus communication continuity.

Power capacity verification is a critical pre-replacement step. The total load drawn by installed I/O modules — including T8431 Digital Input Modules, T8461 Digital Output Modules, and T8481 Analog Input Modules — must be calculated against the T8270’s rated output to confirm no derating is required. In high-density I/O configurations, a second power module may already be installed in a redundant slot; confirm both slots are accounted for in the load budget.

Terminal wiring on the incoming AC or DC feed to the power module should be documented before disconnection. Labeling each conductor and photographing the terminal block arrangement reduces re-wiring errors during reinstallation. If the system uses an external 24 VDC distribution rail or an uninterruptible power supply (UPS) upstream of the Trusted chassis, verify that the UPS output remains stable during the module hot-swap window.

For sites where the Trusted system interfaces with a Yokogawa CENTUM VP DCS or a Honeywell Safety Manager via Modbus or HART gateway, the communication link should be monitored throughout the replacement. The T8151 or equivalent gateway module maintains the fieldbus session independently of the power module, but alarm suppression should be coordinated with the control room operator to prevent nuisance trips during the brief power interruption window.

After physical installation, the T8270 performs an automatic power-on self-test. Maintenance personnel should observe the module’s status LEDs and confirm that the TMR voting status returns to a healthy 3-of-3 state within the expected initialization period. HMI faceplate alarms related to power module fault should clear automatically; if they persist, a firmware version mismatch between the replacement T8270 and the installed T8110 controller should be investigated before returning the system to automatic mode.

Downtime Control During System Migration

The TMR architecture of the Trusted platform is specifically designed to support online module replacement, and the T8270 power module is no exception. However, minimizing downtime requires disciplined pre-planning rather than relying solely on the platform’s redundancy features.

Begin by scheduling the replacement during a planned low-production window and coordinating with the safety instrumented system (SIS) engineer to confirm that the system is not in a degraded voting state prior to the swap. A 2oo3 system operating in 1oo2 mode due to a pre-existing fault in another module is not a safe condition for a second module replacement.

Preserve the original program logic by ensuring that the T8110 controller retains its application program in non-volatile memory throughout the power module replacement. The Trusted platform is designed to maintain program execution across single-module power events, but a full chassis power loss — caused by simultaneous failure of both power modules — would require a cold restart and program reload from the engineering workstation. Keeping a current backup of the application on a dedicated programming laptop with Trusted ToolSuite software is essential.

Field control continuity is maintained through the TMR voting logic as long as at least two of the three power legs remain active. Communicate clearly with the control room before and after the swap, and confirm that all process interlocks remain in their expected state. Post-replacement, conduct a full functional test of the power module’s contribution to the TMR vote before closing the maintenance work order.

NINERMAS ships the T8270 with pre-shipment functional testing documentation, reducing on-site commissioning time. Units are available from stock, supporting emergency replacement scenarios where lead time from the original manufacturer is no longer viable due to product discontinuation.

Retrofit Support FAQ

Q1: Is the T8270 a direct replacement for the original ICS Triplex Trusted power module?
Yes. The T8270 is designed for direct slot replacement within the T8000-series Trusted chassis. Confirm the chassis backplane revision and firmware version of the installed T8110 controller to ensure full compatibility before installation.

Q2: Can the T8270 be replaced while the Trusted system is online?
The Trusted TMR architecture supports online module replacement when the system is in a healthy 3-of-3 voting state. Replacement during a degraded voting condition is not recommended. Always coordinate with the SIS engineer and control room operator before proceeding.

Q3: What pre-shipment testing does NINERMAS perform on the T8270?
Each T8270 unit undergoes functional power-on testing and visual inspection before dispatch. A test report is included with shipment. The unit is covered by a 12-month warranty from the date of delivery.

Q4: What is the lead time and stock availability for the T8270?
NINERMAS maintains stock of the T8270 to support emergency and planned replacement requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for real-time availability and lead time confirmation.
