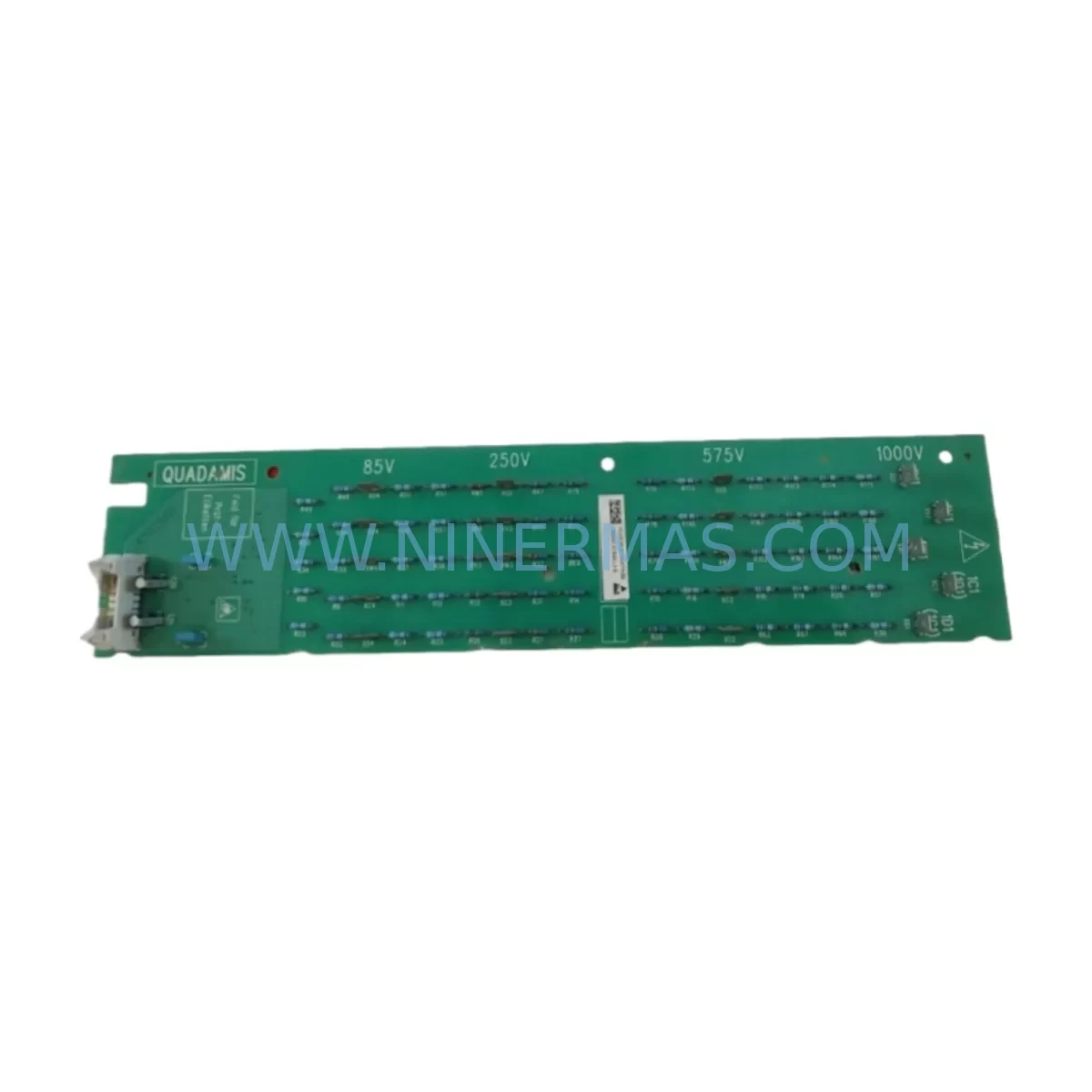

Siemens C98043-A7044-L1-6 Service-Ready Spare Part

Siemens C98043-A7044-L1-6 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

The Siemens C98043-A7044-L1-6 is a ruggedized machine control module designed for demanding industrial environments where continuous operation is non-negotiable. As a direct service-ready spare part, this unit supports rapid field replacement in SIMOREG DC Master drive systems and compatible Siemens control architectures, enabling maintenance engineers to restore production lines with minimal disruption. NINERMAS stocks this module as part of a long-term spare parts program, ensuring availability for planned shutdowns, emergency callouts, and annual overhaul cycles alike.

Industrial facilities running aging Siemens drive and control infrastructure face increasing pressure to source reliable, compatible spare parts as OEM production winds down. The C98043-A7044-L1-6 addresses this challenge directly — offering a tested, warranty-backed replacement that preserves system compatibility without requiring costly platform upgrades or re-engineering. Whether you are managing a paper mill, chemical processing plant, steel rolling line, or water treatment facility, this module delivers the electrical performance and mechanical robustness your control cabinet demands.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the C98043-A7044-L1-6 control module, a thorough site inspection of the surrounding drive cabinet is essential to prevent repeat failures and ensure a stable return to service. Maintenance engineers should treat this replacement as an opportunity to audit the full electrical circuit rather than a simple board swap.

Begin by verifying the condition of the Siemens C98043-A7004-L2 pulse encoder interface board, which works in close coordination with the control module to manage speed feedback signals. A degraded encoder interface can cause erratic drive behaviour even after a successful control board replacement. Similarly, inspect the C98043-A7001-L1 firing pulse board — worn or contaminated firing circuits are a common root cause of control module stress in DC drive systems.

The DC bus capacitor bank and associated 6RA70-series power section should be checked for capacitance drift and leakage, particularly in systems that have been in service for more than eight years. Alongside this, review the condition of the 24 VDC auxiliary power supply module feeding the control electronics; an unstable auxiliary supply is frequently overlooked but can cause intermittent faults that mimic control board failure.

I/O terminal strips and SIMOREG CUD1 / CUD2 expansion boards should be inspected for corrosion, loose terminations, and insulation breakdown, especially in humid or chemically aggressive environments. If the drive communicates via PROFIBUS DP or a CBP2 communications board, verify that the fieldbus connection is stable and that the board firmware is compatible with the replacement control module revision.

For systems integrated with a SIMATIC S7 PLC or a SINUMERIK CNC controller, confirm that the drive parameter set is backed up before removal and restored after installation. Signal isolation between the drive and the PLC analog I/O — particularly speed reference and actual value channels — should be verified using a calibrated signal isolator or SITRANS signal conditioner to rule out ground loop interference.

Finally, inspect the cabinet’s fan and ventilation assembly, door interlocks, and surge protection devices (SPDs) on the incoming supply. Overheating and transient overvoltages are leading causes of premature control module failure in industrial drive cabinets. Replacing the C98043-A7044-L1-6 as part of a structured preventive maintenance programme — rather than purely on a reactive basis — significantly extends the operational life of the entire drive system and reduces unplanned downtime risk.

Site Replacement Workflow

Replacing the C98043-A7044-L1-6 in the field follows a structured sequence to minimise downtime and ensure system compatibility is maintained throughout the process.

Step 1 — Documentation & Backup: Before powering down the drive, record all parameter settings using the SIMOREG parameter upload function via the DriveMonitor or STARTER software tool. Photograph all wiring connections on the existing control board, paying particular attention to the X100, X101, and X300 connector positions.

Step 2 — Safe Isolation: Isolate the drive from the AC supply and DC bus. Discharge the DC link capacitors fully and verify zero voltage with a calibrated meter before opening the drive enclosure. Follow local LOTO (Lockout/Tagout) procedures.

Step 3 — Board Removal: Disconnect all ribbon cables and plug-in connectors from the existing C98043-A7044-L1-6 board. Note the board revision marking before removal — confirm the replacement unit carries a compatible or higher revision level to avoid firmware incompatibility.

Step 4 — Installation: Install the replacement board using ESD-safe handling procedures. Reconnect all connectors in the documented sequence. Verify that the board is firmly seated and that no connector pins are bent or misaligned.

Step 5 — Parameter Restore & Commissioning: Restore the saved parameter set to the new board. Perform a no-load test run to verify speed reference tracking, current limit response, and fault-free operation before reconnecting the mechanical load.

Step 6 — Handover & Documentation: Update the site maintenance log with the replacement date, new board serial number, and any parameter changes made during commissioning. Retain the removed board for failure analysis if required.

This workflow is applicable to direct like-for-like replacement of the C98043-A7044-L1-6 and supports system continuity without requiring drive re-engineering or PLC program modification.

Spare Parts Support FAQ

Q1: Is the C98043-A7044-L1-6 a direct drop-in replacement for the original Siemens board?
Yes. The C98043-A7044-L1-6 supplied by NINERMAS is an original Siemens spare part or a service-ready equivalent that maintains full electrical and mechanical compatibility with the SIMOREG DC Master drive family. No hardware modification is required for direct board-level replacement. Compatibility with specific drive firmware versions should be confirmed against the drive’s existing software revision prior to installation.

Q2: What pre-shipment testing is performed on this module?
Every C98043-A7044-L1-6 unit undergoes functional verification before dispatch. Testing covers power-on self-check, signal integrity on key I/O channels, and visual inspection for physical damage or component degradation. A test report is available upon request for quality-critical procurement processes.

Q3: Can NINERMAS support long-term supply of this part for multi-year maintenance contracts?
Yes. NINERMAS operates a dedicated long-term spare parts programme for obsolete and end-of-life Siemens control modules. We can support blanket purchase orders, consignment stock arrangements, and scheduled delivery programmes aligned with your annual maintenance calendar. Contact our team to discuss a tailored supply agreement.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical mishandling, or operation outside the specified environmental parameters. NINERMAS provides direct warranty support — no third-party RMA process required.
