Allen-Bradley 5069-AEN2TR Retrofit EtherNet/IP Adapter Module: Ruggedized Upgrade for Legacy Automation Systems

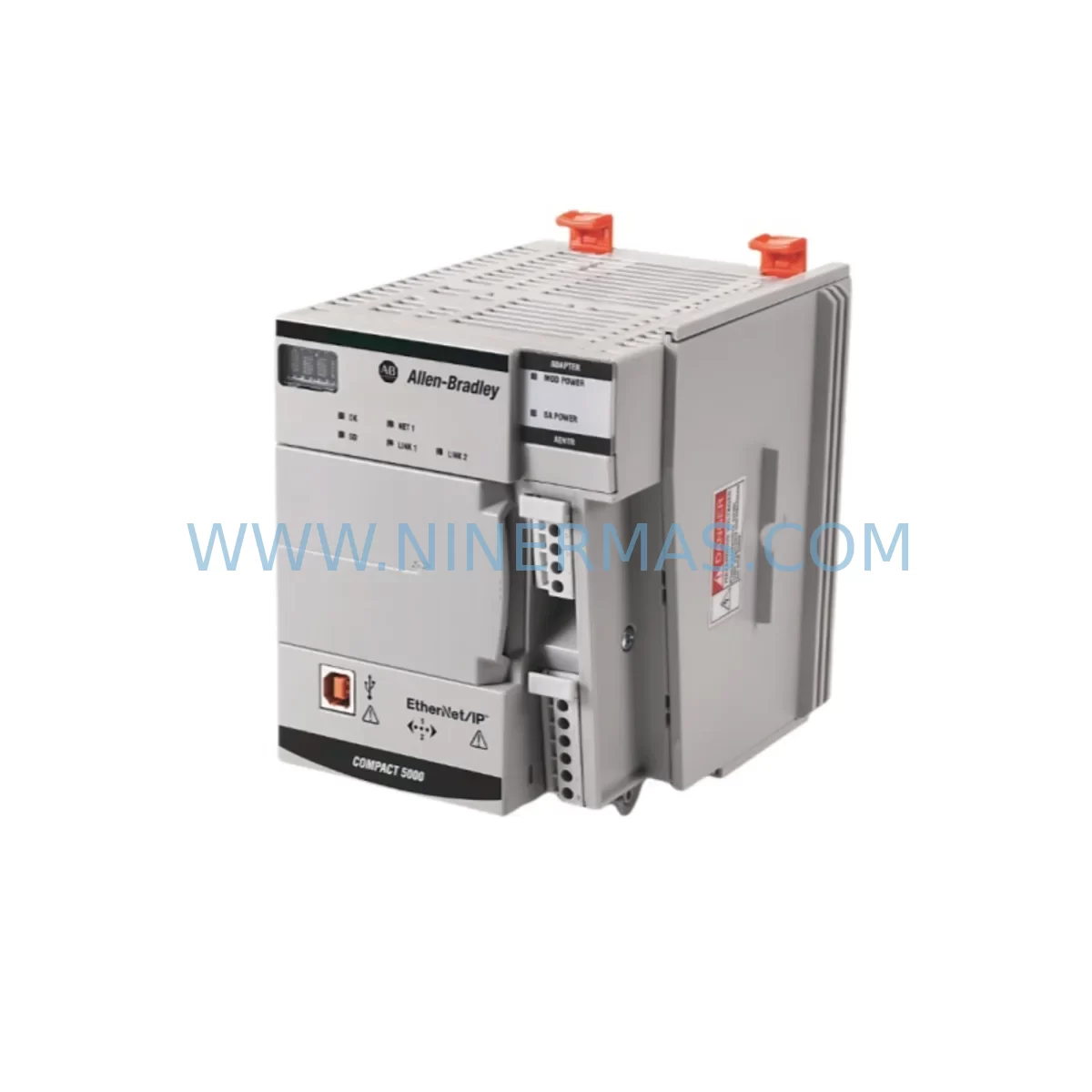

The Allen-Bradley 5069-AEN2TR is a ruggedized EtherNet/IP adapter module designed for the Compact 5000 I/O platform, engineered to operate reliably in harsh industrial environments where vibration, wide temperature swings, and high-humidity conditions are routine. For facilities running aging 1734 POINT I/O, 1756 ControlLogix, or 1769 CompactLogix architectures, the 5069-AEN2TR represents a proven migration path that preserves existing EtherNet/IP network topology while delivering the enhanced environmental tolerance demanded by modern production floors.

When planning a retrofit from legacy adapter modules such as the 1734-AENTR or 1756-EN2TR, engineers must verify several critical parameters before committing to a cutover. Power budget on the existing backplane or mounting base is the first checkpoint: the 5069-AEN2TR draws from the Compact 5000 local bus, and the total current draw across all installed 5069 I/O modules — including digital input modules like the 5069-IB16 and analog output modules like the 5069-OF8 — must remain within the power supply rating of the 5069-PA1 or 5069-PA2 power supply in use. Exceeding this budget without adding a supplemental 5069-ECR end cap or reconfiguring the chassis layout will cause unpredictable module faults.

Terminal wiring compatibility is the second major consideration. Legacy systems built around 1734 POINT I/O typically use 1734-TB or 1734-TBS terminal bases, which are not physically interchangeable with the 5069 mounting system. Field wiring must be re-terminated to the appropriate 5069-series I/O module terminal blocks. This process should be mapped in advance using the existing I/O wiring diagrams, and each signal should be verified against the new module’s channel assignments before power-up. Where signal isolation is required between legacy field devices and the new I/O tier, inline signal isolators or barriers should be inserted to protect both the new module and the connected instrumentation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the 5069-AEN2TR begins well before any physical work starts on the control cabinet. The first step is a full audit of the existing I/O architecture: document every module slot in the legacy chassis, record the module catalog numbers, channel assignments, and any special function modules such as high-speed counter inputs or motion control axes. Systems built around the 1756-L7x or 1756-L8x ControlLogix controllers with remote 1756-EN2TR communication modules will require particular attention to the EtherNet/IP connection path, since the 5069-AEN2TR operates as a standalone adapter on its own IP address rather than as a remote rack extension of a ControlLogix backplane.

For installations where the existing network uses a linear EtherNet/IP topology, the 5069-AEN2TR’s Device Level Ring (DLR) capability offers an opportunity to upgrade to a fault-tolerant ring topology during the same maintenance window. This eliminates the single point of failure inherent in linear networks and is particularly valuable in continuous-process environments where an unplanned network interruption would trigger a full line shutdown. The ring supervisor function can be hosted on a 1783-ETAP or a managed switch already present in the network cabinet, avoiding additional hardware costs.

I/O module selection within the Compact 5000 family should be finalized before the retrofit window opens. Common pairings with the 5069-AEN2TR include the 5069-IB16 16-point 24VDC digital input module, the 5069-OB16 16-point digital output module, the 5069-IF8 8-channel analog input module, and the 5069-OF8 8-channel analog output module. Where the legacy system included thermocouple or RTD inputs via 1756-IT6I2 or 1756-IR6I modules, the 5069-IT2I or 5069-IR4I modules provide equivalent functionality within the Compact 5000 platform. All module selections should be cross-referenced against the 5069-PA1 or 5069-PA2 power supply capacity before the bill of materials is finalized.

Cabinet space planning is a frequently underestimated element of Compact 5000 retrofits. The 5069 mounting base system has a different physical footprint than 1734 POINT I/O bases, and the DIN rail layout inside the control cabinet may need to be redesigned. Measure available rail length, account for the 5069-AEN2TR adapter width, and confirm that the cable management channels can accommodate the new Ethernet patch cables alongside existing field wiring. Where space is constrained, consider whether any legacy relay output modules can be replaced with 5069-OBV8S safety output modules to consolidate safety and standard I/O onto a single platform.

Programming cable access is another practical consideration. During commissioning, a direct USB connection to the 5069-AEN2TR or to the host controller via a 1756-USB or 1784-U2DHP programming cable will be needed to perform the initial IP address assignment and to download the updated Studio 5000 project. Ensure that the programming laptop has the correct version of Logix Designer installed and that the EDS file for the 5069-AEN2TR is registered in RSLinx Classic or FactoryTalk Linx before the cutover window begins.

Downtime Control During System Migration

Minimizing unplanned downtime during a Compact 5000 retrofit requires a structured cutover plan that accounts for every dependency in the control system. The most effective approach is to pre-build and pre-test the new 5069 I/O assembly — including the 5069-AEN2TR adapter, all selected I/O modules, and the 5069-PA1 power supply — on a bench or staging rack before the production line is taken offline. Assign IP addresses, download the updated Studio 5000 project to the host controller in offline simulation mode, and verify that all I/O tags resolve correctly in the tag database before any field wiring is touched.

Protecting the original program logic is non-negotiable. Before beginning any hardware work, export the current controller project from Studio 5000 and store a timestamped backup on both a local drive and a network share. If the existing controller is a 1769-L3x CompactLogix, also export the motion group configuration and any Add-On Instructions (AOIs) that reference the legacy I/O path. These AOIs will need their input and output references updated to point to the new 5069 I/O tree, but the internal logic should remain unchanged, which significantly reduces validation time.

During the physical cutover, work systematically from the power supply outward. Disconnect and label every field wire at the legacy terminal base before removing any module. Install the new 5069 mounting base and re-terminate field wires to the corresponding 5069 I/O module channels, verifying signal type and polarity at each point. Once all wiring is complete, power up the 5069-AEN2TR and confirm that it appears on the EtherNet/IP network with the correct IP address before downloading the updated project to the controller. Perform a controlled online edit or full project download depending on the scope of the I/O tree changes, then force-test each I/O channel individually before releasing the line to production.

HMI screens built in FactoryTalk View SE or FactoryTalk View ME will require tag path updates wherever the legacy I/O module path is referenced. Export the HMI tag database, perform a global find-and-replace on the old I/O path string, and re-import before the cutover. Validate all alarm setpoints and trend displays against the new tag references during the commissioning window to avoid discovering discrepancies after the line restarts.

Retrofit Support FAQ

Q: Is the 5069-AEN2TR a direct drop-in replacement for the 1734-AENTR?
A: The 5069-AEN2TR is a functional replacement for EtherNet/IP adapter duties but is not a physical drop-in. It uses the Compact 5000 mounting base system, which differs from the 1734 POINT I/O base. Field wiring must be re-terminated to the new 5069 I/O modules, and the Studio 5000 project I/O tree must be updated to reflect the new module path and IP address. The EtherNet/IP CIP communication protocol is fully compatible, so no changes to the network switch configuration or controller scan list structure are required beyond updating the connection path.

Q: What commissioning steps are required after installing the 5069-AEN2TR?
A: After physical installation, assign a static IP address to the module using BOOTP/DHCP or the module’s web interface. Register the EDS file in FactoryTalk Linx, update the Studio 5000 project I/O tree, and perform a full project download to the host controller. Force-test each I/O channel to verify correct signal mapping, then validate HMI tag references and alarm setpoints before returning the system to automatic mode. A pre-shipment function test report is available on request for units supplied by Ninermas.

Q: Can the 5069-AEN2TR operate in high-vibration or high-humidity environments?
A: Yes. The 5069-AEN2TR is the ruggedized variant of the Compact 5000 EtherNet/IP adapter, featuring conformal coating and enhanced mechanical tolerance for environments that exceed the operating conditions of standard 5069-AEN2 modules. It is suitable for applications in food and beverage processing, water treatment, mining, and heavy manufacturing where condensation, washdown proximity, or continuous vibration would degrade standard modules over time.

Q: What warranty and supply terms does Ninermas offer for the 5069-AEN2TR?
A: All 5069-AEN2TR units supplied by Ninermas carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing before dispatch. Inventory is maintained for immediate shipment, and expedited delivery options are available for urgent retrofit or breakdown replacement requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for current stock status and lead time confirmation.
